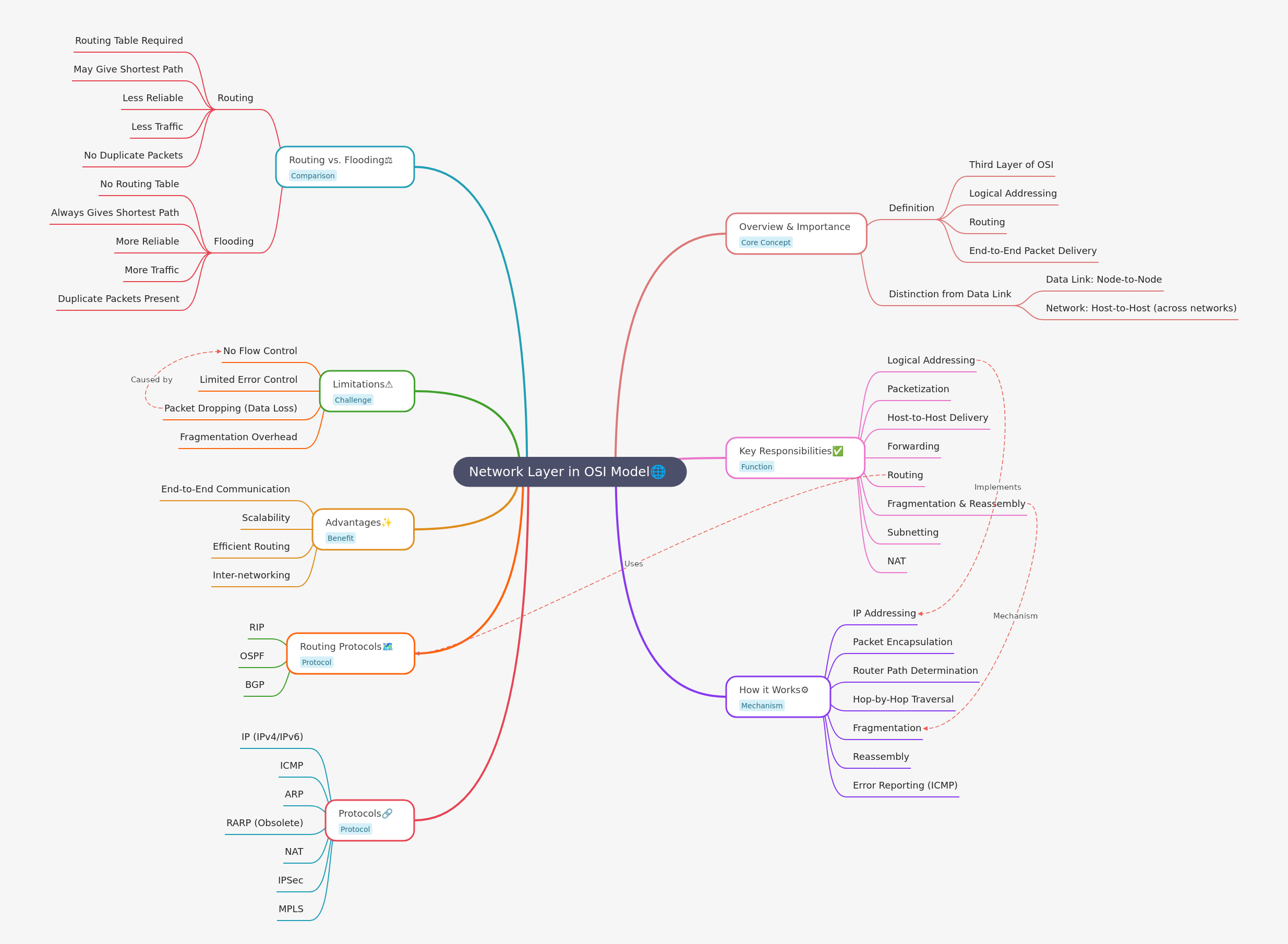

Network Layer in OSI Model Explained
The Network Layer, the third layer of the OSI model, is vital for host-to-host communication across diverse networks. It manages logical addressing, routing, and packet forwarding, ensuring data reaches its destination efficiently. This layer enables internetworking by distinguishing itself from the Data Link Layer, which handles only node-to-node transfers.
Key Takeaways
Third OSI layer, enables host-to-host communication.
Manages logical addressing, routing, and packet forwarding.
Key protocols: IP, ICMP, ARP, and routing protocols.
Ensures end-to-end delivery, scalability, inter-networking.
Lacks flow control and robust error control.
What is the Network Layer and why is it important?
The Network Layer, the third layer of the OSI model, is crucial for inter-network communication. It enables end-to-end packet delivery across diverse networks, extending beyond local link limitations. By assigning logical addresses and determining optimal data paths, it facilitates global connectivity. This layer is fundamental for the internet, ensuring data traverses multiple routers and networks to reach its intended recipient, making seamless communication possible across the globe.
- Third OSI layer.
- Enables end-to-end packet delivery.
- Handles logical addressing and routing.
- Crucial for global internet connectivity.
- Distinguished from Data Link (host-to-host).
What are the core responsibilities of the Network Layer?
The Network Layer performs essential tasks for data transmission across interconnected networks. It assigns unique logical addresses (IP addresses) to devices for global identification. This layer handles packetization, encapsulating data into network packets, and ensures their host-to-host delivery. It makes forwarding decisions, directing packets to the next hop, and uses routing protocols to determine the best path. Additionally, it manages fragmentation and reassembly for different network MTUs, subnetting for address space efficiency, and Network Address Translation (NAT) for private network access.
- Logical Addressing (IP).
- Packetization and host-to-host delivery.
- Forwarding and routing.
- Fragmentation and reassembly.
- Subnetting and NAT.
How does the Network Layer function to deliver data?
The Network Layer ensures efficient data delivery using several mechanisms. It identifies hosts via IP addressing. Data undergoes packet encapsulation, adding a header with source and destination IP addresses. Routers then perform path determination using routing tables to select the next hop. This involves hop-by-hop traversal until the destination is reached. Fragmentation breaks large packets for smaller network links, followed by reassembly. Error reporting, often via ICMP, helps diagnose delivery issues, ensuring robust communication across complex network infrastructures.
- Uses IP addressing for identification.
- Encapsulates data with network headers.
- Routers determine optimal paths.
- Packets traverse hop-by-hop.
- Handles fragmentation and reassembly.
- ICMP for error reporting.
Which key protocols operate at the Network Layer?
Several essential protocols define the Network Layer's operations. Internet Protocol (IP), including IPv4 and IPv6, is fundamental for logical addressing and packet delivery. Internet Control Message Protocol (ICMP) handles error reporting and diagnostics. Address Resolution Protocol (ARP) maps IP addresses to MAC addresses locally. Network Address Translation (NAT) allows private networks to share public IP addresses. IPSec provides secure communication over IP, and MPLS (Multiprotocol Label Switching) enhances forwarding efficiency, collectively enabling robust and versatile network functionalities.
- IP (IPv4/IPv6): Core addressing.
- ICMP: Error reporting.
- ARP: IP to MAC mapping.
- NAT: Private network access.
- IPSec: Secure communication.
- MPLS: Efficient forwarding.
What are common routing protocols used in the Network Layer?
Routing protocols are vital for routers to exchange network topology information and determine efficient data paths. They dynamically update routing tables for complex, changing network environments. Examples include Routing Information Protocol (RIP), an older distance-vector protocol for small networks. Open Shortest Path First (OSPF) is a widely used link-state protocol, known for scalability and faster convergence. Border Gateway Protocol (BGP) is the standard exterior gateway protocol, managing global internet routing between autonomous systems, ensuring worldwide data flow.
- RIP: Distance-vector, small networks.
- OSPF: Link-state, scalable, fast.
- BGP: Inter-AS routing, global internet.
What are the main advantages of the Network Layer?
The Network Layer offers significant advantages for modern network communication. It enables end-to-end communication, connecting any device across different networks. This layer provides excellent scalability, supporting vast and complex networks like the internet by managing numerous interconnected devices. Through sophisticated routing algorithms, it ensures efficient routing, directing data along optimal paths to minimize latency and maximize throughput. Ultimately, it facilitates inter-networking, unifying disparate networks into a cohesive global communication system, which is essential for today's interconnected world.
- End-to-end communication.
- High scalability.
- Efficient routing.
- Facilitates inter-networking.
What are the limitations of the Network Layer?
Despite its critical role, the Network Layer has inherent limitations. It typically provides no flow control, meaning it doesn't regulate data transmission rates to prevent receiver overload. It also offers limited error control; it detects some header errors but doesn't guarantee reliable delivery or retransmit lost packets, leaving this to higher layers. This can lead to packet dropping and data loss in congested networks. Fragmentation overhead, where packets are broken down and reassembled, can also introduce inefficiencies and increase router processing load.
- No flow control.
- Limited error control.
- Potential packet dropping.
- Fragmentation overhead.
How do routing and flooding differ in network data delivery?
Routing and flooding are distinct data delivery strategies. Routing is an intelligent method where routers use routing tables to determine optimal paths, aiming for the shortest route. It generates less network traffic and avoids duplicate packets, though it requires complex table maintenance. Flooding, conversely, sends every incoming packet out on all outgoing links except its arrival link. While it guarantees the shortest path and offers redundancy, it creates significantly more traffic and duplicate packets, making it generally inefficient for large-scale networks.
- Routing: Uses tables, less traffic, no duplicates.
- Flooding: No tables, more traffic, duplicates present.
Frequently Asked Questions
What is the primary function of the Network Layer?
Its primary function is to enable host-to-host communication across different networks by handling logical addressing, routing, and forwarding data packets to their ultimate destination.
How does the Network Layer differ from the Data Link Layer?
The Network Layer focuses on host-to-host delivery across multiple networks using logical addresses (IP). The Data Link Layer, conversely, manages node-to-node delivery within a single local network using physical (MAC) addresses.
What is logical addressing in the Network Layer?
Logical addressing involves assigning unique, hierarchical IP addresses to devices. This allows for global identification and routing of data packets across interconnected networks, independent of the underlying physical hardware addresses.
Why is routing essential in the Network Layer?
Routing is essential because it determines the most efficient path for data packets to travel from source to destination across complex networks. It ensures timely and optimized delivery, preventing congestion and maximizing network performance.
Does the Network Layer provide error control or flow control?
Generally, the Network Layer provides limited error control, primarily for its own header, and typically no flow control. These functions are largely handled by higher layers, such as the Transport Layer, for reliable data transmission.
