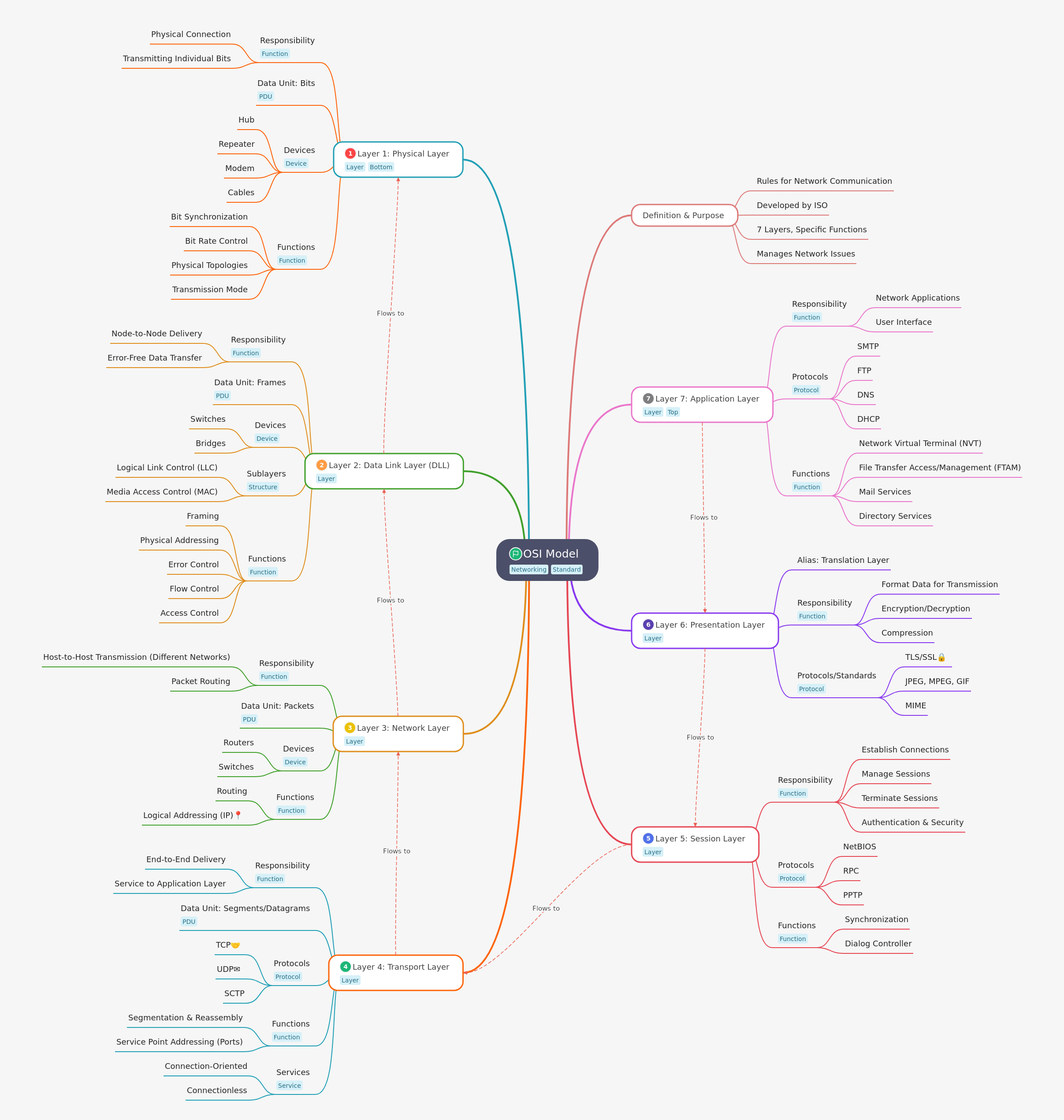

OSI Model: A Comprehensive Guide
The OSI Model is a fundamental conceptual framework that standardizes network communication into seven distinct layers. Developed by ISO, it defines how hardware and software components interact, enabling diverse systems to communicate seamlessly. Each layer performs specific functions, from physical data transmission to application-level services, simplifying troubleshooting and development in complex network environments.
Key Takeaways
OSI Model standardizes network communication into seven layers.
Each layer performs specific, distinct networking functions.
It aids in understanding, designing, and troubleshooting networks.
Layers range from physical transmission to application services.
Developed by ISO, it's a universal reference for network protocols.
What is the OSI Model and what is its purpose?
The Open Systems Interconnection (OSI) Model, developed by ISO, is a conceptual framework standardizing telecommunication system functions into seven distinct layers. Its primary purpose is to provide a universal standard for network communication, enabling diverse systems to interoperate seamlessly. This layered approach simplifies network design, development, and troubleshooting by breaking down complex processes. Understanding the OSI Model is crucial for network professionals to diagnose issues, implement new technologies, and ensure efficient data flow across various networks.
- Rules for Network Communication
- Developed by ISO
- 7 Layers, Specific Functions
- Manages Network Issues
What is the role of the Application Layer in the OSI Model?
The Application Layer (Layer 7) serves as the primary interface for end-user applications to interact with the network. It provides network services directly to software, enabling users to send and receive data. This layer handles high-level protocols facilitating communication between applications, ensuring data is presented in a usable format. It identifies communication partners, determines resource availability, and synchronizes communication. Essentially, it's where users directly engage with network services like email, web browsing, and file transfers, critical for user experience.
- Responsibility: Network Applications, User Interface
- Key Protocols: SMTP, FTP, DNS, DHCP
- Functions: NVT, FTAM, Mail, Directory Services
How does the Presentation Layer prepare data for network transmission?
The Presentation Layer (Layer 6), also known as the Translation Layer, is responsible for translating data between the application layer and the network format. It ensures data exchanged between two communicating systems is readable and understandable. This layer handles data formatting, encryption, decryption, and compression, acting as a data translator. It converts data into a common format for transmission and then back into the native format. This crucial function ensures interoperability and data integrity across diverse systems, making secure and efficient data exchange possible.
- Alias: Translation Layer
- Responsibility: Format Data, Encryption/Decryption, Compression
- Protocols/Standards: TLS/SSL, JPEG, MPEG, GIF, MIME
What are the key functions of the Session Layer in network communication?
The Session Layer (Layer 5) is responsible for establishing, managing, and terminating communication sessions between applications. It coordinates dialogue between two end systems, ensuring organized data exchange. This layer handles session synchronization, allowing for checkpoints in data streams, so if a connection fails, only data after the last checkpoint needs retransmission. It also manages authentication and security aspects. By controlling the dialogue, the Session Layer ensures applications maintain a stable and reliable connection for their interaction, facilitating orderly data exchange.
- Responsibility: Establish, Manage, Terminate Sessions; Authentication & Security
- Protocols: NetBIOS, RPC, PPTP
- Functions: Synchronization, Dialog Controller
What is the primary role of the Transport Layer in data delivery?
The Transport Layer (Layer 4) provides reliable end-to-end communication between processes on different hosts. Its primary responsibility is to ensure complete and accurate data delivery from source to destination application. This layer segments data into smaller units (segments or datagrams) for transmission and reassembles them. It also handles flow control, error control, and multiplexing, allowing multiple applications to share a single network connection. Protocols like TCP offer connection-oriented, reliable delivery, while UDP provides connectionless, faster, but less reliable service, optimizing data transfer.
- Responsibility: End-to-End Delivery, Service to Application Layer
- Data Unit: Segments/Datagrams
- Protocols: TCP, UDP, SCTP
- Functions: Segmentation & Reassembly, Service Point Addressing (Ports)
- Services: Connection-Oriented, Connectionless
How does the Network Layer facilitate data routing across networks?
The Network Layer (Layer 3) is responsible for logical addressing and routing data packets across different networks. Its main function is to move packets from a source host to a destination host, even if on geographically separate networks. This layer determines the best path for data transmission using logical addresses (like IP addresses) and routing protocols. Devices such as routers operate at this layer to forward packets based on their destination IP address. The Network Layer ensures data can traverse complex inter-network environments, making global communication possible.
- Responsibility: Host-to-Host Transmission (Different Networks), Packet Routing
- Data Unit: Packets
- Devices: Routers, Switches
- Functions: Routing, Logical Addressing (IP)
What are the core responsibilities of the Data Link Layer?
The Data Link Layer (Layer 2) provides node-to-node data transfer, ensuring reliable transmission across a physical link. It takes raw data from the Physical Layer and transforms it into frames, adding physical addresses (MAC addresses) for local delivery. This layer is divided into two sublayers: Logical Link Control (LLC) and Media Access Control (MAC). LLC manages communication between network layer protocols and MAC, while MAC handles physical medium access, error detection, and flow control. Devices like switches and bridges operate at this layer, ensuring error-free data transfer.
- Responsibility: Node-to-Node Delivery, Error-Free Data Transfer
- Data Unit: Frames
- Devices: Switches, Bridges
- Sublayers: Logical Link Control (LLC), Media Access Control (MAC)
- Functions: Framing, Physical Addressing, Error Control, Flow Control, Access Control
What is the function of the Physical Layer in network communication?
The Physical Layer (Layer 1) is the lowest layer of the OSI Model, responsible for the physical connection between devices and raw bit stream transmission over a physical medium. It defines electrical, mechanical, procedural, and functional specifications for activating, maintaining, and deactivating the physical link. This layer deals with hardware specifications like cables, connectors, voltage levels, and data rates. Devices such as hubs, repeaters, and modems operate at this layer. Its primary function is to convert digital data into signals for transmission, ensuring bit synchronization.
- Responsibility: Physical Connection, Transmitting Individual Bits
- Data Unit: Bits
- Devices: Hub, Repeater, Modem, Cables
- Functions: Bit Synchronization, Bit Rate Control, Physical Topologies, Transmission Mode
Frequently Asked Questions
Why is the OSI Model important for networking?
It provides a universal framework for understanding how network components interact, simplifying design, troubleshooting, and interoperability across diverse systems and technologies.
What is the difference between connection-oriented and connectionless services?
Connection-oriented services (like TCP) establish a dedicated link for reliable, ordered data delivery. Connectionless services (like UDP) send data without prior connection, offering faster but less reliable transmission.
Which OSI layer is responsible for IP addressing and routing?
The Network Layer (Layer 3) handles logical addressing (IP addresses) and determines the optimal path for data packets to travel across different networks through routing.
What role does the Presentation Layer play in data security?
The Presentation Layer is responsible for encryption and decryption of data, ensuring secure transmission. It also handles data compression and formatting for interoperability between systems.
How do the Application and Physical Layers differ in function?
The Application Layer (Layer 7) provides network services to end-user applications, while the Physical Layer (Layer 1) deals with the raw bit transmission over the physical medium, like cables and signals.
