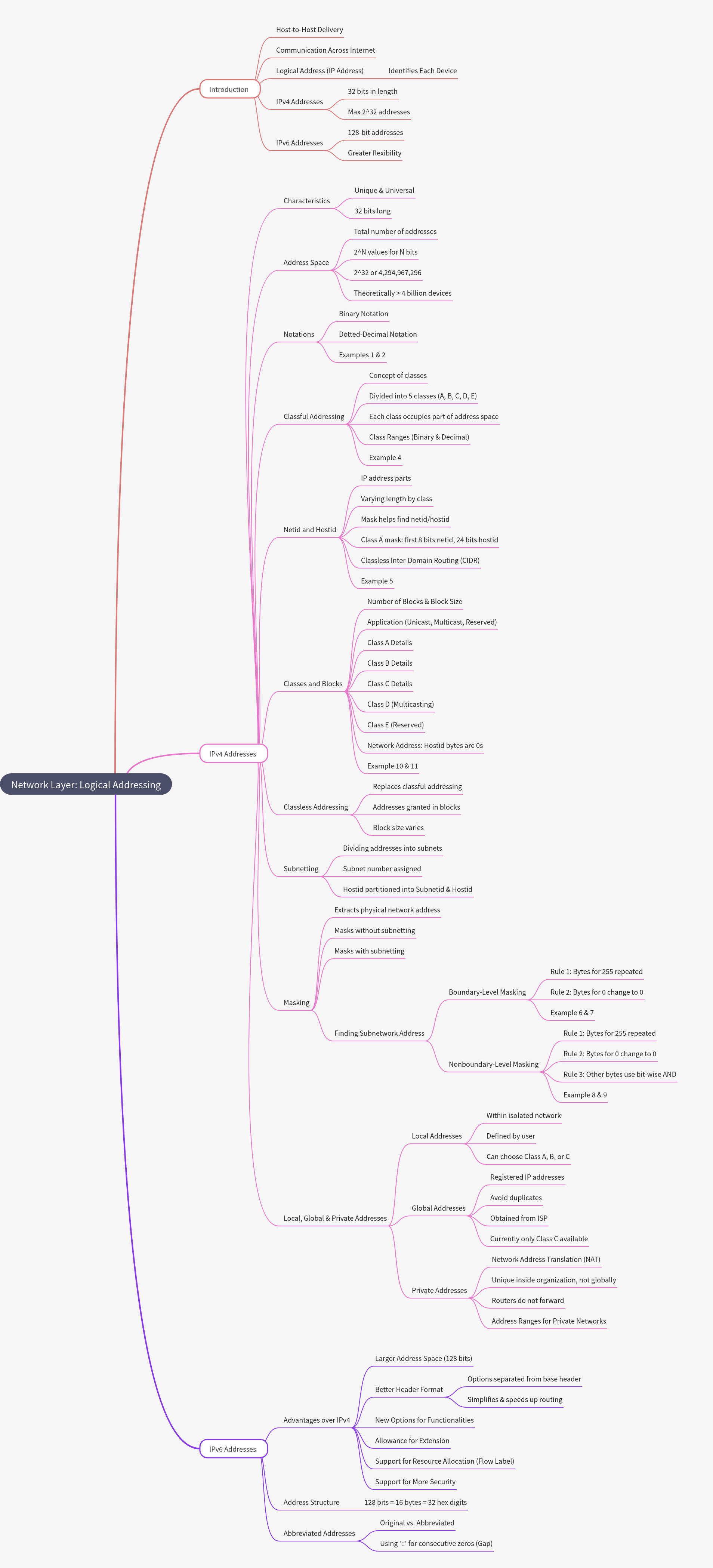

Network Layer: Logical Addressing Explained
Logical addressing, primarily through IP addresses, enables host-to-host communication across diverse networks like the internet. It assigns a unique, universal identifier to each device, facilitating efficient data routing. Both IPv4 and IPv6 serve this purpose, with IPv6 offering a significantly larger address space and enhanced features to support the growing demands of modern networking. This foundational concept ensures data packets reach their intended destinations reliably.
Key Takeaways
Logical addressing uses IP addresses for unique device identification.
IPv4 addresses are 32-bit, supporting over 4 billion devices.
IPv6 uses 128-bit addresses, offering vast expansion and flexibility.
Addressing schemes include classful, classless, and subnetting.
IP addresses are crucial for global internet communication.
What is Logical Addressing in the Network Layer?
Logical addressing in the network layer is fundamental for enabling seamless host-to-host communication across the vast expanse of the internet. It provides a standardized method for identifying and locating devices, ensuring that data packets are delivered accurately from a source to a destination, even when traversing multiple intermediate networks. This crucial function relies on logical addresses, primarily IP addresses, which are universally unique identifiers assigned to every network-connected device. These addresses abstract the physical network topology, allowing for flexible and scalable communication, making the internet's global reach possible.
- Facilitates Host-to-Host Delivery: Ensures data packets are correctly routed and delivered from a specific source device to a specific destination across various network segments.
- Enables Communication Across the Internet: Logical addresses are essential for devices to communicate globally, forming the backbone of all online interactions and services.
- Uses Logical Address (IP Address): This unique numerical label is assigned to each network interface, serving as its primary identifier within the network layer.
- IPv4 Addresses: These are 32-bit identifiers, capable of supporting a maximum of 2^32 unique addresses, approximately 4.3 billion devices.
- IPv6 Addresses: These are 128-bit identifiers, offering a significantly larger address space and enhanced capabilities for future network growth and the Internet of Things.
How Do IPv4 Addresses Function and What Are Their Key Characteristics?
IPv4 addresses are 32-bit numerical labels assigned to devices participating in a computer network, serving as their unique and universal identifiers. These addresses are typically represented in dotted-decimal notation for human readability, dividing the 32 bits into four 8-bit octets. The IPv4 address space theoretically allows for over 4 billion unique addresses, a number that has proven insufficient for the exponential growth of internet-connected devices, leading to the development of IPv6. Understanding IPv4 involves grasping its structure, various notation methods, and the historical classful addressing system, largely superseded by more efficient classless methods and subnetting.
- Characteristics: Each IPv4 address is unique and universally assigned to a network interface, consisting of 32 bits for distinct identification.
- Address Space: Total possible IPv4 addresses is 2^32, equating to approximately 4.3 billion unique values, theoretically supporting over 4 billion devices.
- Notations: Addresses can be expressed in Binary Notation or the more common Dotted-Decimal Notation (e.g., 192.168.1.1).
- Classful Addressing: An older system dividing IP space into five classes (A, B, C, D, E), each with predefined network and host portions, now largely obsolete.
- Netid and Hostid: Every IP address is logically divided into a network identifier (Netid) and a host identifier (Hostid), lengths varying by class or subnet mask.
- Classes and Blocks: Details on network blocks and sizes for Class A, B, C (unicast), Class D (multicasting), and Class E (experimental). Network addresses have all hostid bytes as zeros.
- Classless Addressing: Modern approach (CIDR) replaces classful, granting addresses in variable-sized blocks for efficient allocation, conserving IPv4 space.
- Subnetting: Divides a large network into smaller, manageable subnets by partitioning the hostid into a subnetid and a new hostid, improving organization and efficiency.
- Masking: Uses a subnet mask to logically separate network from host portions, identifying the network address through boundary-level or nonboundary-level techniques.
- Local, Global & Private Addresses: Local are user-defined; Global are registered, unique IPs from an ISP; Private are internal, not routed globally, often with NAT.
Why Are IPv6 Addresses Important and How Are They Structured?
IPv6 addresses represent the next generation of internet protocol, designed to overcome the critical limitations of IPv4, particularly its dwindling address space and inherent inefficiencies. With a massive 128-bit structure, IPv6 offers an astronomically larger number of unique addresses, ensuring ample capacity for billions of new devices and services for the foreseeable future. Beyond sheer quantity, IPv6 introduces several architectural improvements, including a more efficient header format that simplifies and speeds up routing processes, enhanced security features like built-in IPsec, and better support for resource allocation through flow labels. These advancements make IPv6 crucial for the future scalability, performance, and security of the internet.
- Advantages over IPv4: Offers a significantly Larger Address Space (128 bits), a Better Header Format (options separated, speeds routing), and New Options for Functionalities.
- Allowance for Extension: Designed with inherent flexibility to accommodate future enhancements and new features without requiring fundamental changes to the core structure.
- Support for Resource Allocation (Flow Label): Includes a flow label field that allows for better handling of real-time traffic and quality of service (QoS) mechanisms.
- Support for More Security: IPsec is an integral part of IPv6, providing robust end-to-end security features for data integrity, authentication, and confidentiality.
- Address Structure: 128 bits long, equivalent to 16 bytes or 32 hexadecimal digits, typically written in eight groups of four hexadecimal digits separated by colons.
- Abbreviated Addresses: Consecutive blocks of zeros can be compressed using '::', and leading zeros within a 16-bit block can be omitted for brevity.
Frequently Asked Questions
What is the primary purpose of logical addressing in networking?
Logical addressing, primarily using IP addresses, provides a unique identifier for each device on a network. Its main purpose is to enable efficient and accurate host-to-host communication and data routing across the internet.
What are the main differences between IPv4 and IPv6 addresses?
IPv4 addresses are 32-bit, offering about 4 billion unique addresses. IPv6 addresses are 128-bit, providing a vastly larger address space. IPv6 also features a more efficient header, better security, and improved resource allocation.
How does subnetting help manage IP addresses?
Subnetting divides a large network into smaller, more manageable subnets. This technique efficiently utilizes the available IP address space, reduces network congestion, and enhances security by segmenting network traffic.
