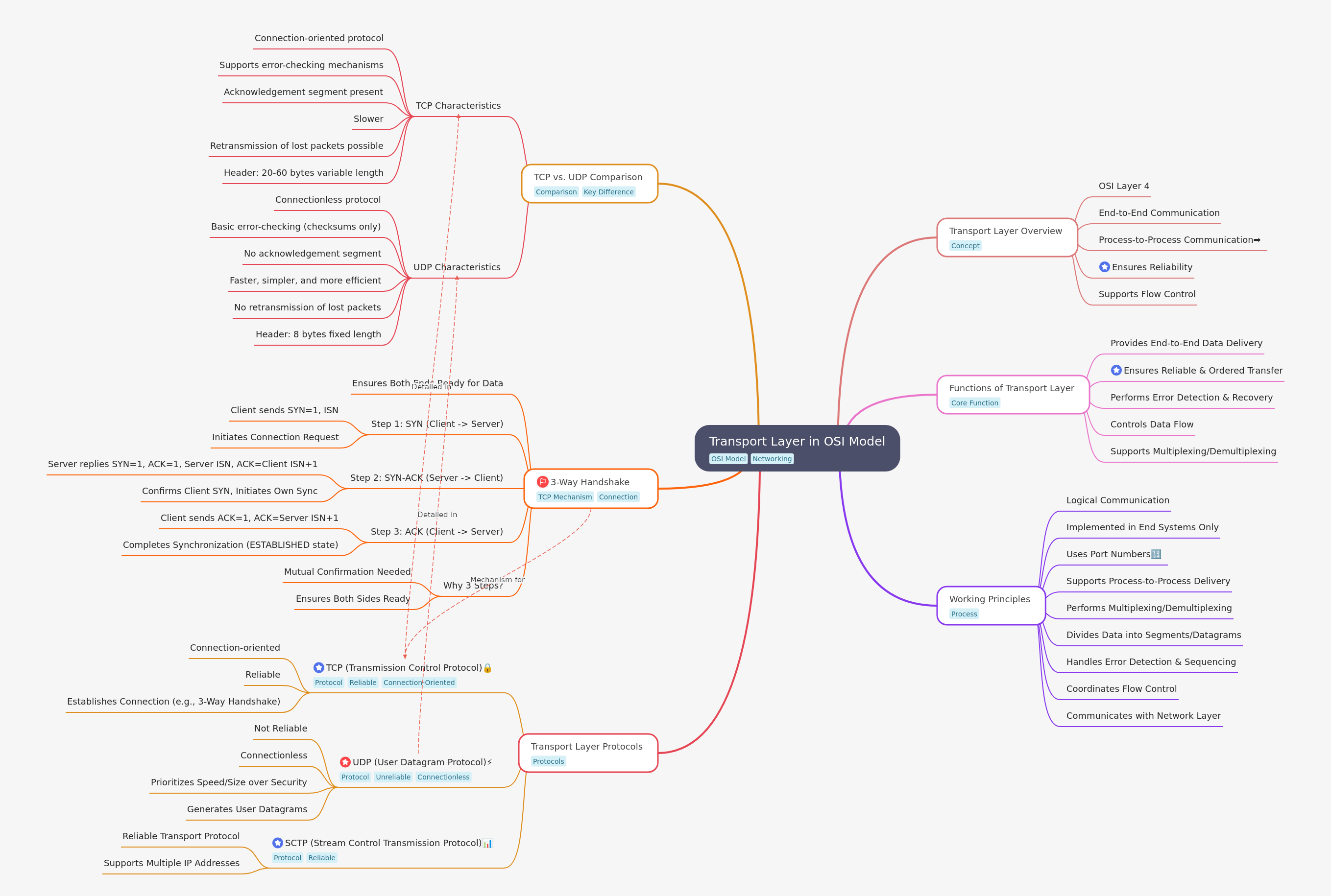

Transport Layer in OSI Model: Functions, Protocols, and Principles
The Transport Layer, OSI Layer 4, provides end-to-end communication between applications on different hosts. It ensures reliable, ordered, and error-free data delivery through mechanisms like segmentation, flow control, and error detection. Key protocols, TCP and UDP, offer distinct services, balancing reliability with speed to meet diverse application requirements for efficient network communication.
Key Takeaways
Transport Layer enables process-to-process data delivery across networks.
It ensures reliable, ordered, and error-free data transfer between applications.
TCP offers connection-oriented, reliable communication with flow control.
UDP provides fast, connectionless, and less reliable data transfer for speed.
The TCP 3-Way Handshake establishes secure, mutually confirmed connections.
What is the Transport Layer in the OSI Model?
The Transport Layer, designated as Layer 4 in the Open Systems Interconnection (OSI) model, serves as a crucial intermediary, providing logical communication between application processes running on different hosts. Its primary responsibility is to ensure that data is transferred reliably and efficiently from a source application to a destination application, regardless of the underlying network complexities. This layer manages end-to-end communication, meaning it handles the entire journey of data from one program to another, rather than just between adjacent network devices. It also facilitates process-to-process communication, identifying specific applications using port numbers, and is vital for ensuring data integrity and flow control across diverse network environments.
- OSI Layer 4
- End-to-End Communication
- Process-to-Process Communication
- Ensures Reliability
- Supports Flow Control
What are the primary functions of the Transport Layer?
The Transport Layer performs several critical functions to guarantee effective data transmission across networks. It is responsible for providing end-to-end data delivery, ensuring that data segments arrive at the correct destination application. A key function is to ensure reliable and ordered transfer, meaning data arrives in the sequence it was sent, without duplication or loss. This layer also performs robust error detection and recovery, identifying corrupted or missing data and initiating retransmissions when necessary. Furthermore, it controls data flow to prevent a fast sender from overwhelming a slow receiver, maintaining network efficiency. Finally, it supports multiplexing and demultiplexing, allowing multiple applications to share a single network connection and directing incoming data to the appropriate application.
- Provides End-to-End Data Delivery
- Ensures Reliable & Ordered Transfer
- Performs Error Detection & Recovery
- Controls Data Flow
- Supports Multiplexing/Demultiplexing
How does the Transport Layer operate to ensure data integrity?
The Transport Layer operates through a set of sophisticated principles to ensure data integrity and efficient communication. It establishes logical communication paths, abstracting the complexities of the physical network from the applications. This layer is implemented solely in the end systems, meaning the source and destination hosts, not intermediate routers. It utilizes port numbers to uniquely identify specific application processes, enabling precise process-to-process delivery. Data is divided into smaller, manageable segments or datagrams for transmission, which are then reassembled at the destination. The layer handles error detection and sequencing, often using checksums and sequence numbers, and coordinates flow control to manage data rates. It also communicates directly with the Network Layer to pass segments for routing.
- Logical Communication
- Implemented in End Systems Only
- Uses Port Numbers
- Supports Process-to-Process Delivery
- Performs Multiplexing/Demultiplexing
- Divides Data into Segments/Datagrams
- Handles Error Detection & Sequencing
- Coordinates Flow Control
- Communicates with Network Layer
Which key protocols operate at the Transport Layer?
Several key protocols operate at the Transport Layer, each designed for specific communication needs. The Transmission Control Protocol (TCP) is a connection-oriented, reliable protocol that guarantees data delivery, order, and error-free transmission, making it suitable for applications like web browsing and email. The User Datagram Protocol (UDP), in contrast, is a connectionless and unreliable protocol that prioritizes speed and efficiency over guaranteed delivery. UDP is ideal for real-time applications such as streaming video, online gaming, or DNS lookups where occasional packet loss is acceptable for lower latency. Stream Control Transmission Protocol (SCTP) is another reliable transport protocol, offering features like multi-homing and multi-streaming, providing enhanced reliability and performance for specific applications, particularly in telephony and signaling.
- TCP (Transmission Control Protocol)
- UDP (User Datagram Protocol)
- SCTP (Stream Control Transmission Protocol)
Why is the TCP 3-Way Handshake essential for connection establishment?
The TCP 3-Way Handshake is a fundamental mechanism for establishing a reliable, connection-oriented communication session between a client and a server. It ensures that both ends are ready to send and receive data, mutually confirming the connection parameters. In Step 1, the client sends a SYN (synchronize) segment to the server, initiating the connection request. The server responds in Step 2 with a SYN-ACK (synchronize-acknowledge) segment, acknowledging the client's request and initiating its own synchronization. Finally, in Step 3, the client sends an ACK (acknowledge) segment, confirming the server's synchronization and completing the connection establishment. This three-step process is crucial because it guarantees that both parties have agreed upon the initial sequence numbers and are prepared for data exchange, preventing data loss or miscommunication.
- Ensures Both Ends Ready for Data
- Step 1: SYN (Client -> Server)
- Step 2: SYN-ACK (Server -> Client)
- Step 3: ACK (Client -> Server)
- Why 3 Steps?
What are the key differences between TCP and UDP?
TCP (Transmission Control Protocol) and UDP (User Datagram Protocol) are the two most prominent Transport Layer protocols, each serving distinct purposes based on application requirements. TCP is a connection-oriented protocol, meaning it establishes a dedicated connection before data transfer, ensuring reliability through mechanisms like error-checking, acknowledgements, and retransmission of lost packets. This makes TCP slower but guarantees data integrity and order, suitable for web browsing, email, and file transfers. In contrast, UDP is a connectionless protocol; it sends data without prior connection establishment or guarantees of delivery. UDP is faster, simpler, and more efficient, with minimal overhead (an 8-byte fixed header compared to TCP's 20-60 byte variable header), making it ideal for applications where speed is paramount and some data loss is tolerable, such as real-time voice/video streaming or online gaming.
- TCP Characteristics
- UDP Characteristics
Frequently Asked Questions
What is the main role of the Transport Layer?
The Transport Layer ensures reliable, end-to-end communication between applications on different hosts. It manages data flow, segmentation, and error recovery, providing a transparent data transfer service to upper layers for efficient network communication.
When should I use TCP instead of UDP?
You should use TCP when data integrity, order, and reliability are crucial, such as for web browsing, email, or file transfers. TCP guarantees delivery, retransmits lost packets, and manages flow control to prevent data loss.
What is a port number in the Transport Layer?
A port number identifies a specific application or process on a host. It allows the Transport Layer to direct incoming data to the correct service, enabling multiple applications to share a single network connection and facilitating process-to-process communication.
