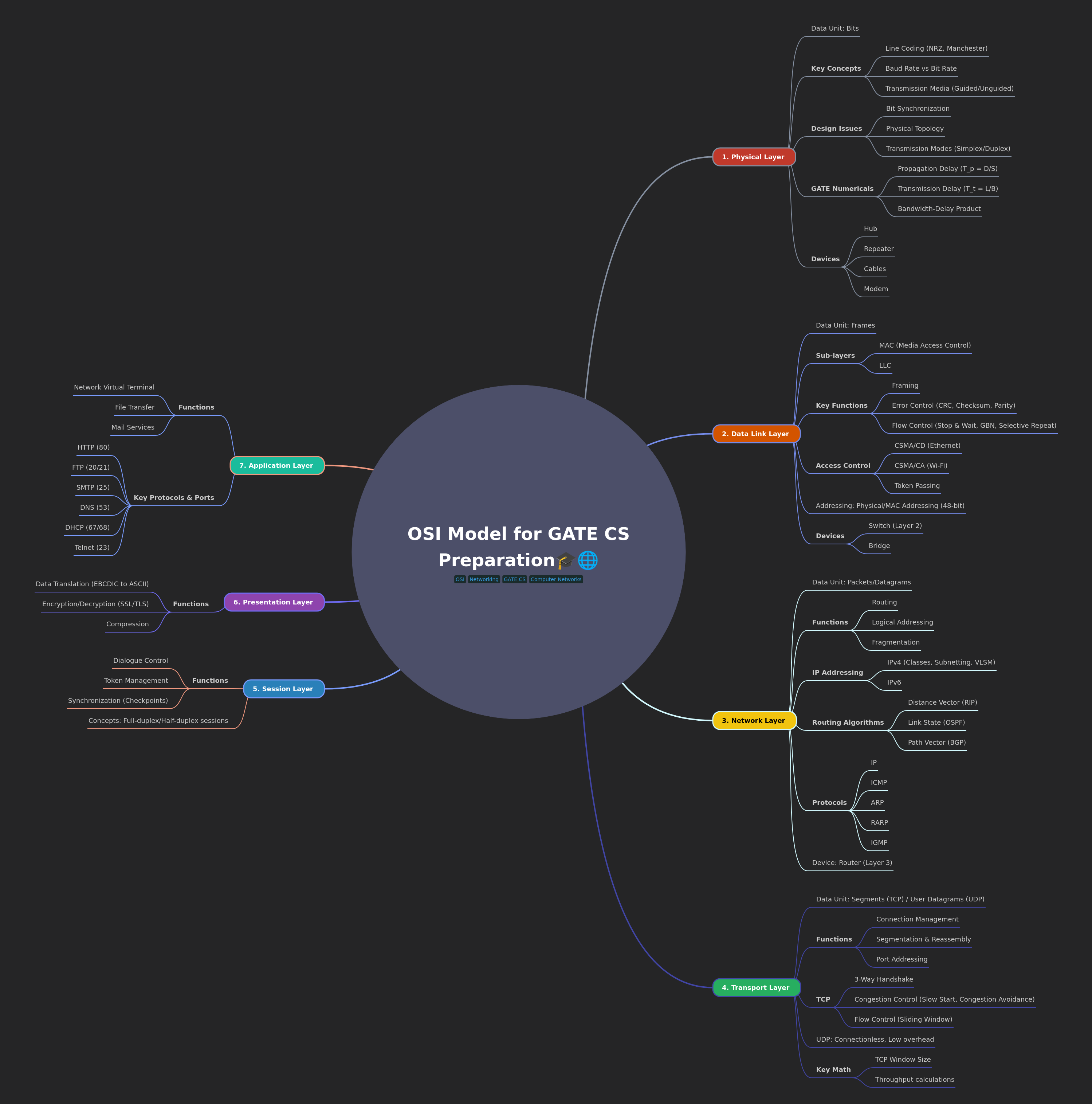

Featured Mind map
OSI Model for GATE CS Exam Preparation
The OSI (Open Systems Interconnection) model is a seven-layer conceptual framework standardizing network communication. For GATE CS, mastering each layer's functions, data units, protocols, and associated devices is crucial. This foundational understanding enables effective problem-solving in computer networks, covering everything from physical transmission to application-level interactions, essential for exam success.
Key Takeaways
Physical Layer handles raw bit transmission and media specifics.
Data Link Layer manages frames, error control, and flow control.
Network Layer routes packets across diverse networks using IP.
Transport Layer ensures reliable end-to-end data delivery.
Upper layers manage session, presentation, and application services.
What is the Physical Layer in the OSI Model?
The Physical Layer, the lowest layer of the OSI model, is responsible for the physical connection between devices and the transmission of raw unstructured bit streams over a physical medium. It defines electrical, mechanical, procedural, and functional specifications for activating, maintaining, and deactivating physical links. This layer deals with how data is converted into signals and transmitted, including aspects like voltage levels, data rates, and physical cabling. Understanding its role in bit synchronization and transmission modes is crucial for GATE CS.
- Data Unit: Bits
- Key Concepts: Line Coding (NRZ, Manchester), Baud Rate vs Bit Rate, Transmission Media (Guided/Unguided)
- Design Issues: Bit Synchronization, Physical Topology, Transmission Modes (Simplex/Duplex)
- GATE Numericals: Propagation Delay (T_p = D/S), Transmission Delay (T_t = L/B), Bandwidth-Delay Product
- Devices: Hub, Repeater, Cables, Modem
How does the Data Link Layer manage data transmission?
The Data Link Layer ensures reliable data transfer across a physical link by handling framing, error control, and flow control. It takes raw data from the Physical Layer and transforms it into frames, adding headers and trailers for error detection and correction. This layer also manages access to the shared medium through sub-layers like MAC and LLC, preventing collisions and ensuring orderly transmission. Its functions are vital for local network communication and efficient data exchange between directly connected nodes.
- Data Unit: Frames
- Sub-layers: MAC (Media Access Control), LLC
- Key Functions: Framing, Error Control (CRC, Checksum, Parity), Flow Control (Stop & Wait, GBN, Selective Repeat)
- Access Control: CSMA/CD (Ethernet), CSMA/CA (Wi-Fi), Token Passing
- Addressing: Physical/MAC Addressing (48-bit)
- Devices: Switch (Layer 2), Bridge
What are the primary functions of the Network Layer?
The Network Layer is responsible for logical addressing and routing packets across different networks, ensuring data reaches its destination even if it traverses multiple intermediate devices. It determines the best path for data delivery, managing network congestion and fragmentation. This layer uses logical addresses, such as IP addresses, to uniquely identify devices globally. Key protocols like IP, ICMP, and ARP facilitate internetworking, making it a cornerstone for global communication and a critical topic for GATE CS.
- Data Unit: Packets/Datagrams
- Functions: Routing, Logical Addressing, Fragmentation
- IP Addressing: IPv4 (Classes, Subnetting, VLSM), IPv6
- Routing Algorithms: Distance Vector (RIP), Link State (OSPF), Path Vector (BGP)
- Protocols: IP, ICMP, ARP, RARP, IGMP
- Device: Router (Layer 3)
How does the Transport Layer ensure reliable data delivery?
The Transport Layer provides end-to-end communication between applications on different hosts, ensuring reliable and ordered delivery of data. It segments data from the Session Layer, manages connection establishment and termination, and handles flow and congestion control. Protocols like TCP offer connection-oriented, reliable service with features like 3-way handshake and sliding window, while UDP provides a connectionless, low-overhead alternative. Understanding TCP window size and throughput calculations is essential for GATE CS numerical problems.
- Data Unit: Segments (TCP) / User Datagrams (UDP)
- Functions: Connection Management, Segmentation & Reassembly, Port Addressing
- TCP: 3-Way Handshake, Congestion Control (Slow Start, Congestion Avoidance), Flow Control (Sliding Window)
- UDP: Connectionless, Low overhead
- Key Math: TCP Window Size, Throughput calculations
What is the role of the Session Layer in network communication?
The Session Layer establishes, manages, and terminates communication sessions between applications. It provides mechanisms for dialogue control, determining whether communication is half-duplex or full-duplex, and for token management, ensuring that only one party performs a critical operation at a time. Synchronization, through checkpoints, allows for recovery from failures, ensuring that if a session fails, it can be resumed from the last checkpoint rather than restarting from the beginning. This layer organizes and synchronizes dialogues.
- Functions: Dialogue Control, Token Management, Synchronization (Checkpoints)
- Concepts: Full-duplex/Half-duplex sessions
Why is the Presentation Layer important for data representation?
The Presentation Layer is responsible for data translation, encryption/decryption, and compression, ensuring that data exchanged between application layers of different systems is in a readable and understandable format. It translates data from the application format to a network format and vice-versa, handling syntax and semantics. For instance, it converts EBCDIC to ASCII. Encryption and decryption (like SSL/TLS) secure data, while compression reduces the number of bits to be transmitted, optimizing network efficiency.
- Functions: Data Translation (EBCDIC to ASCII), Encryption/Decryption (SSL/TLS), Compression
Which services does the Application Layer provide to users?
The Application Layer is the topmost layer, providing network services directly to end-user applications. It enables users to interact with the network through various protocols that support common network functions. These include services like network virtual terminals for remote access, file transfer capabilities, and mail services. Understanding key protocols and their associated port numbers, such as HTTP (80), FTP (20/21), SMTP (25), DNS (53), DHCP (67/68), and Telnet (23), is fundamental for GATE CS.
- Functions: Network Virtual Terminal, File Transfer, Mail Services
- Key Protocols & Ports: HTTP (80), FTP (20/21), SMTP (25), DNS (53), DHCP (67/68), Telnet (23)
Frequently Asked Questions
What is the main purpose of the OSI model?
The OSI model provides a standardized, conceptual framework for how network communication functions, dividing it into seven distinct layers. This helps in understanding, designing, and troubleshooting network architectures.
Which OSI layers are considered host-to-host and which are network-support?
The Application, Presentation, and Session layers are host-to-host (upper layers). The Transport, Network, Data Link, and Physical layers are network-support layers, dealing with the actual data transmission across the network.
What is the difference between a router and a switch in the OSI model?
A router operates at the Network Layer (Layer 3), forwarding packets between different networks based on IP addresses. A switch operates at the Data Link Layer (Layer 2), forwarding frames within the same local network using MAC addresses.
How do TCP and UDP differ at the Transport Layer?
TCP (Transmission Control Protocol) is connection-oriented, reliable, and provides flow/congestion control. UDP (User Datagram Protocol) is connectionless, unreliable, and offers low overhead, suitable for real-time applications where speed is prioritized over guaranteed delivery.
What is the significance of port numbers in the Application Layer?
Port numbers identify specific applications or services running on a host, allowing the Transport Layer to direct data to the correct process. For example, HTTP uses port 80, and FTP uses ports 20/21.
