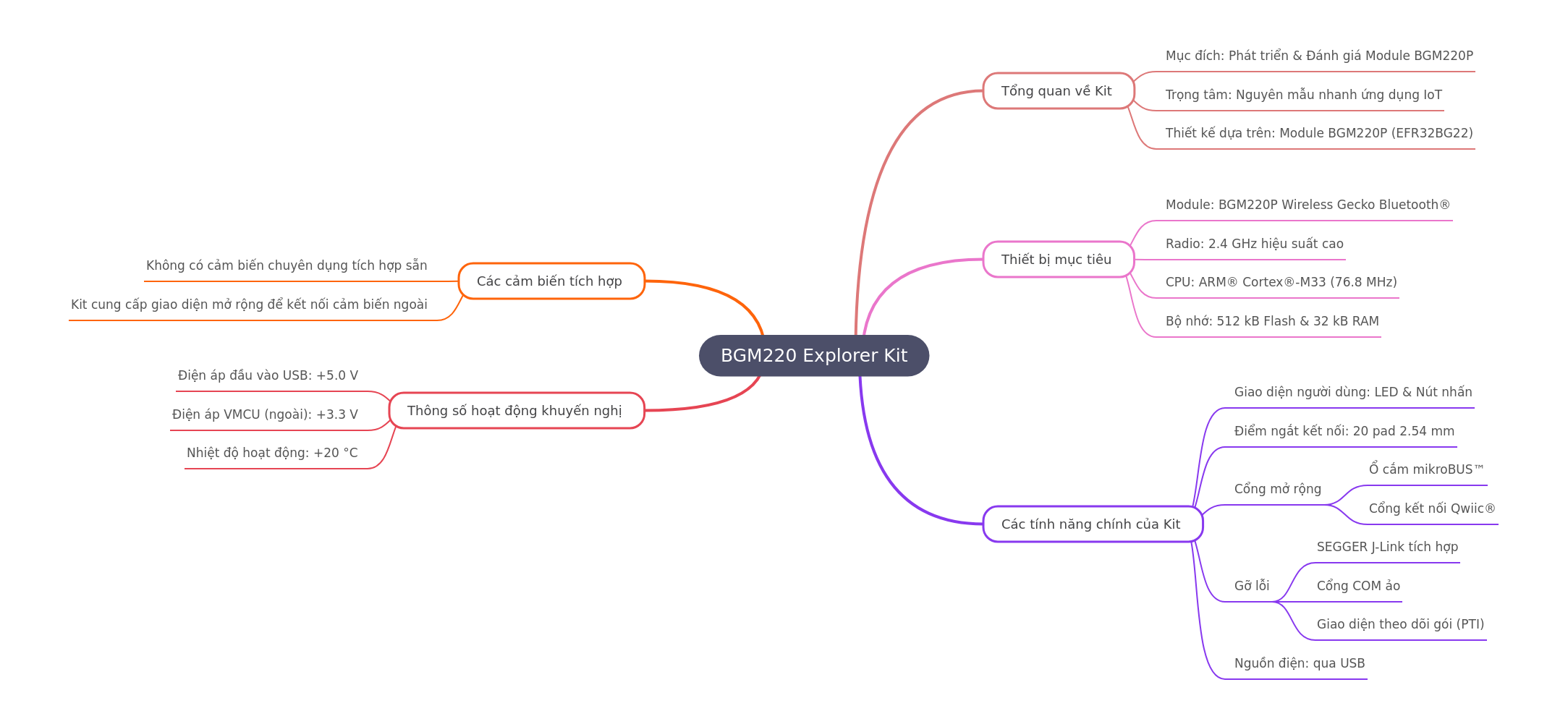

BGM220 Explorer Kit: Specifications & Sensors Overview
The BGM220 Explorer Kit is a comprehensive development platform designed for rapid prototyping and evaluation of the BGM220P Wireless Gecko Bluetooth module. It integrates a powerful ARM Cortex-M33 CPU, ample memory, and a high-performance 2.4 GHz radio. The kit provides essential tools like user interfaces, versatile expansion ports, and robust debugging capabilities, all powered via USB, to accelerate IoT application development.
Key Takeaways
BGM220 Explorer Kit facilitates rapid IoT prototyping with the BGM220P module.
Features a powerful ARM Cortex-M33 CPU, 512 kB Flash, and 32 kB RAM.
Includes user interfaces, versatile expansion ports (mikroBUS, Qwiic), and robust debugging.
Operates optimally with +5.0V USB input, +3.3V VMCU, and a +20°C ambient temperature.
No integrated sensors, but offers extensive interfaces for connecting external sensors.
What is the BGM220 Explorer Kit's primary purpose?
The BGM220 Explorer Kit serves as a dedicated and efficient platform specifically engineered for the development and thorough evaluation of the BGM220P Wireless Gecko Bluetooth module. Its core focus is to enable rapid prototyping for a wide array of Internet of Things (IoT) applications, significantly accelerating the design and testing phases. The entire kit's architecture and functionality are meticulously designed around the capabilities of the BGM220P module, which itself is built upon the EFR32BG22, providing a robust and reliable foundation for creating advanced wireless connectivity solutions. This strategic design ensures developers can quickly bring their innovative Bluetooth-enabled devices to market.
- Purpose: Develop and evaluate the BGM220P Module effectively.
- Focus: Facilitate rapid prototyping for diverse IoT applications.
- Design based on: The powerful BGM220P Module (EFR32BG22) for optimal performance.
What is the target device of the BGM220 Explorer Kit?
The BGM220 Explorer Kit is precisely engineered to target and support the BGM220P Wireless Gecko Bluetooth® module, which stands as a high-performance component crucial for energy-efficient wireless communication in modern IoT ecosystems. This advanced module integrates a powerful 2.4 GHz radio, guaranteeing reliable and robust data transmission across various applications, from smart home devices to industrial sensors. At its technological heart, the module boasts an ARM® Cortex®-M33 CPU, operating at an impressive 76.8 MHz, complemented by a substantial 512 kB of Flash memory and 32 kB of RAM, providing ample processing power and storage for complex embedded software and sophisticated functionalities.
- Module: BGM220P Wireless Gecko Bluetooth® for advanced connectivity.
- Radio: High-performance 2.4 GHz for reliable data transmission.
- CPU: ARM® Cortex®-M33 (76.8 MHz) for robust processing capabilities.
- Memory: 512 kB Flash & 32 kB RAM for extensive software and data storage.
What are the key features included in the BGM220 Explorer Kit?
The BGM220 Explorer Kit is comprehensively equipped with several essential features meticulously designed to streamline both development and debugging processes. It incorporates intuitive user interface elements, including LEDs for visual feedback and push buttons for direct interaction, enhancing the user experience during prototyping. For extensive external connectivity, the kit provides 20 convenient break-out pads with a 2.54 mm pitch, alongside versatile expansion ports such as a mikroBUS™ socket and a Qwiic® connector, enabling effortless integration with a broad spectrum of peripherals and add-on boards. Debugging capabilities are exceptionally robust, featuring an integrated SEGGER J-Link, a virtual COM port for serial communication, and a Packet Trace Interface (PTI) for detailed analysis, all powered conveniently via a single USB connection.
- User Interface: Integrated LED and Push buttons for direct interaction.
- Break-out points: 20 pads (2.54 mm) for flexible external connections.
- Expansion ports: mikroBUS™ socket and Qwiic® connector for diverse peripheral integration.
- Debugging: Features integrated SEGGER J-Link, Virtual COM port, and Packet Trace Interface (PTI).
- Power: Conveniently supplied via USB, simplifying setup and operation.
What are the recommended operating parameters for the BGM220 Explorer Kit?
For ensuring optimal performance, stability, and long-term reliability, the BGM220 Explorer Kit is designed to operate within specific recommended parameters. When powered via USB, it requires a stable +5.0 V input voltage, which is critical for delivering consistent power to all onboard components and connected peripherals. The external VMCU voltage, essential for the proper functioning of the module and any attached components, should be precisely maintained at +3.3 V. Furthermore, the kit is engineered to perform most effectively within a controlled operating temperature range, with a recommended ambient temperature of +20 °C. Adhering to these parameters helps guarantee component longevity, accurate operation, and overall system integrity during development and testing phases.
- USB Input Voltage: Maintain at +5.0 V for stable power delivery.
- VMCU Voltage (external): Ensure +3.3 V for proper module and peripheral function.
- Operating Temperature: Recommended +20 °C for optimal performance and longevity.
Does the BGM220 Explorer Kit include integrated sensors?
The BGM220 Explorer Kit does not feature dedicated integrated sensors directly built onto its board. This design choice emphasizes maximum flexibility and extensibility, catering to the diverse and evolving requirements of various IoT applications. Instead of pre-installing specific sensors, the kit provides comprehensive and versatile expansion interfaces, prominently including the mikroBUS™ socket and the Qwiic® connector. This strategic approach allows developers the freedom to easily connect and integrate a wide array of external sensors, enabling them to select specialized components that precisely match their project's unique functional needs, rather than being constrained by a fixed set of onboard options. This modularity empowers highly customized and adaptable IoT solutions.
- No dedicated integrated sensors are present on the kit board.
- The kit provides extensive expansion interfaces for connecting a wide range of external sensors.
Frequently Asked Questions
What is the main purpose of the BGM220 Explorer Kit?
It's designed for developing and evaluating the BGM220P Wireless Gecko Bluetooth module, focusing on rapid prototyping for IoT applications. This helps accelerate the creation of innovative Bluetooth-enabled devices efficiently.
What kind of CPU and memory does the BGM220P module feature?
The BGM220P module integrates an ARM® Cortex®-M33 CPU operating at 76.8 MHz. It includes 512 kB of Flash memory and 32 kB of RAM, providing robust resources for complex embedded software execution.
Does the BGM220 Explorer Kit have built-in sensors?
No, the kit does not have dedicated integrated sensors. It offers various expansion interfaces like mikroBUS™ and Qwiic® to easily connect external sensors, allowing for highly customized IoT project development.
