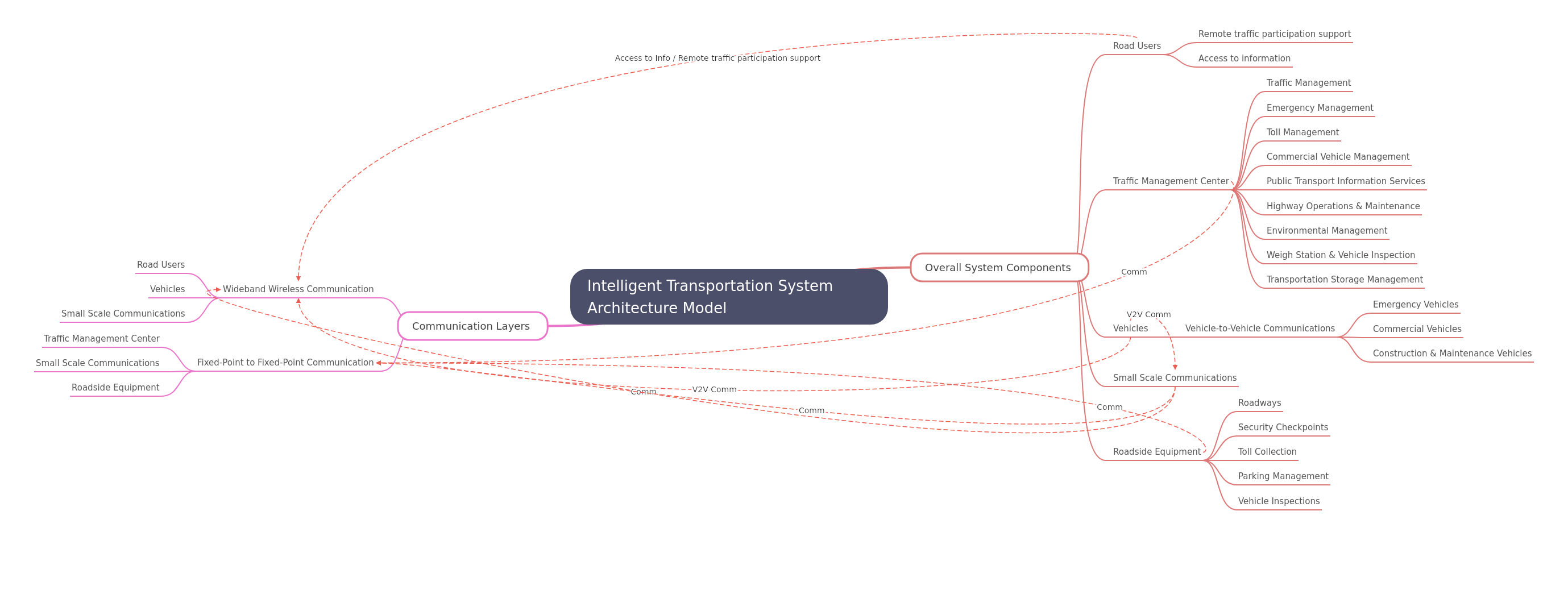

Intelligent Transportation System Architecture Model
An Intelligent Transportation System (ITS) architecture model defines the essential components and communication layers for modernizing transport infrastructure. It integrates advanced technologies to improve traffic flow, enhance safety, and provide real-time information. This framework supports efficient management of vehicles, infrastructure, and services, fostering a more responsive and sustainable transportation network for all stakeholders.
Key Takeaways
ITS integrates diverse components for efficient transport.
Communication layers are vital for system interoperability.
Traffic management centers centralize operational control.
Roadside equipment and vehicles enhance real-time data.
ITS aims to improve safety, efficiency, and user experience.
What are the core components of an Intelligent Transportation System?
An Intelligent Transportation System (ITS) relies on a diverse set of core components working in concert to achieve its objectives of enhancing safety, efficiency, and sustainability in transportation. These components encompass the human element, such as road users, alongside critical infrastructure like traffic management centers and roadside equipment. Vehicles, increasingly equipped with advanced communication capabilities, also form a crucial part of this integrated network. Small-scale communication units bridge various elements, ensuring seamless data exchange. Together, these parts create a comprehensive ecosystem designed to manage and optimize traffic flow, respond to emergencies, and provide vital information to all participants within the transportation environment. This holistic approach ensures that every aspect of the system contributes to a more intelligent and responsive network.
- Road Users: These are the individuals who interact with the transportation system, benefiting from advanced ITS services. They receive remote traffic participation support, enabling them to make informed decisions about their journeys, and gain access to real-time information regarding traffic conditions, public transport schedules, and potential hazards, significantly improving their travel experience and safety.
- Traffic Management Center: This central operational hub is responsible for overseeing and coordinating various aspects of the transportation network. Its functions include comprehensive traffic management, efficient emergency management, precise toll management, and effective commercial vehicle management. It also provides public transport information services, manages highway operations and maintenance, supports environmental management initiatives, and handles weigh station and vehicle inspection processes, alongside transportation storage management.
- Vehicles: Modern vehicles are integral to ITS, especially through their advanced communication capabilities. Vehicle-to-Vehicle (V2V) communications allow vehicles to directly exchange data, enhancing collision avoidance and cooperative driving. This is particularly critical for emergency vehicles, commercial vehicles, and construction & maintenance vehicles, enabling better coordination and response times across the network.
- Small Scale Communications: These localized communication units play a pivotal role in bridging various components of the ITS architecture. They facilitate short-range data exchange, connecting vehicles to roadside infrastructure and enabling localized information dissemination. This ensures that data flows smoothly between different parts of the system, supporting applications like smart parking and localized traffic alerts.
- Roadside Equipment: This category includes physical infrastructure deployed along roadways to collect data, manage traffic, and provide services. Key elements are the roadways themselves, security checkpoints for monitoring and control, automated toll collection systems, and intelligent parking management solutions. Additionally, roadside equipment supports vehicle inspections, contributing to overall road safety and regulatory compliance.
How do communication layers enable an Intelligent Transportation System?
Communication layers are the backbone of any Intelligent Transportation System, providing the essential infrastructure for data exchange and interoperability among its various components. These layers define how information flows, enabling real-time decision-making and coordinated actions across the network. Wideband wireless communication facilitates dynamic interactions, connecting mobile entities like road users and vehicles, while fixed-point to fixed-point communication ensures reliable data transfer between stationary infrastructure elements. The effective integration of these communication methods allows for the seamless sharing of traffic data, emergency alerts, and operational commands. This robust communication framework is critical for supporting advanced ITS applications, from adaptive traffic signals to connected vehicle technologies, ultimately enhancing the system's overall responsiveness and effectiveness in managing complex transportation scenarios.
- Wideband Wireless Communication: This layer is crucial for dynamic and mobile communication within the ITS. It connects mobile entities such as individual road users, enabling them to receive real-time updates and participate in traffic management. It also facilitates communication for vehicles, including V2V interactions, and links various small-scale communication devices, ensuring broad coverage and rapid data transmission for critical applications.
- Fixed-Point to Fixed-Point Communication: This communication layer provides stable and reliable data links between stationary components of the ITS. It connects the central Traffic Management Center to various remote systems, ensuring continuous data flow for monitoring and control. It also links small-scale communication units and roadside equipment, such as sensors and cameras, back to the central network, forming a robust and secure communication backbone for infrastructure management.
- Enables Real-Time Data Exchange: The integration of these communication layers is fundamental for facilitating the instantaneous sharing of vast amounts of data. This real-time exchange is vital for dynamic traffic management, allowing the system to adapt quickly to changing conditions, optimize signal timings, and reroute traffic efficiently to prevent congestion and improve flow.
- Supports Vehicle-to-Vehicle (V2V) and Vehicle-to-Infrastructure (V2I) Interactions: These communication layers are essential for enabling advanced connected vehicle applications. V2V communication allows vehicles to communicate directly with each other for safety warnings and cooperative maneuvers, while V2I communication connects vehicles to roadside units for traffic information, signal phase and timing data, and other infrastructure-related services, enhancing both safety and efficiency.
- Crucial for Emergency Response and Public Transport Information Services: A robust communication framework ensures that emergency services can receive and transmit critical information rapidly, improving response times and coordination during incidents. Similarly, it enables the timely dissemination of public transport information, including schedules, delays, and route changes, directly to passengers and operators, enhancing the reliability and user experience of public transit.
Frequently Asked Questions
What is the primary goal of an Intelligent Transportation System (ITS)?
The primary goal of an ITS is to enhance transportation safety, efficiency, and sustainability. It achieves this by integrating advanced technologies to manage traffic, provide real-time information, and improve overall network performance for all users.
How do "Road Users" interact with an ITS architecture?
Road users interact by receiving critical information, such as traffic updates and route guidance, and potentially through remote participation support. This connectivity, often via wideband wireless communication, empowers them to make informed travel decisions and contribute to system efficiency.
What role does the Traffic Management Center play in an ITS?
The Traffic Management Center (TMC) serves as the central hub for ITS operations. It oversees traffic flow, manages emergencies, handles tolling, and coordinates public transport information, ensuring comprehensive control and responsiveness across the transportation network.
