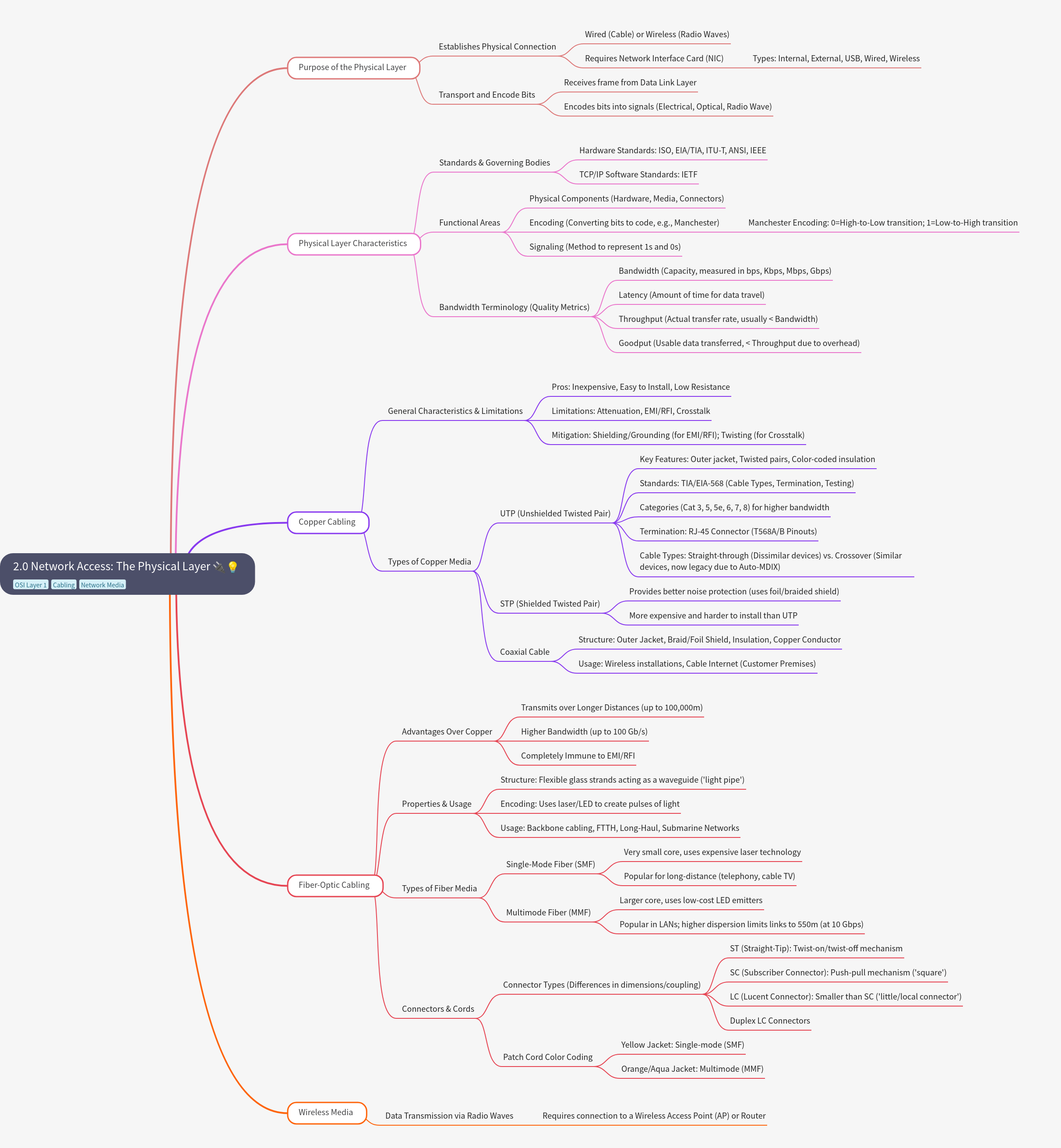

Featured Mind Map

The Physical Layer (OSI Layer 1): Media and Encoding

The Physical Layer (OSI Layer 1) is responsible for the physical transmission of raw data bits across a communication medium. It establishes the physical connection, whether wired or wireless, and defines how bits are encoded into signals—electrical, optical, or radio waves—to ensure reliable data transfer between network devices using components like NICs and various cabling types.

Key Takeaways

1

Layer 1 establishes the physical connection and transmits raw bits as signals.

2

Data is encoded into electrical, optical, or radio wave signals.

3

Copper, fiber-optic, and wireless are the three primary media types.

4

Bandwidth, latency, throughput, and goodput measure connection quality.

5

Fiber offers high bandwidth and immunity to electromagnetic interference.

The Physical Layer (OSI Layer 1): Media and Encoding

What is the primary purpose of the Physical Layer in networking?

The Physical Layer (OSI Layer 1) is fundamentally responsible for the physical transmission of raw data bits across the network medium. Its primary purpose is twofold: first, to establish the physical connection, which can be either wired via cables or wireless using radio waves, requiring a Network Interface Card (NIC) on the device. Second, it must transport and encode the bits. This involves receiving the data frame from the Data Link Layer and converting the binary information into a suitable signal—electrical pulses for copper, light pulses for fiber, or radio waves for wireless—ensuring the physical link is activated and maintained for reliable communication.

  • Establishes Physical Connection: This involves setting up the link using either wired (various cable types) or wireless (radio waves) methods, and necessitates a Network Interface Card (NIC) which can be internal, external, USB, wired, or wireless.
  • Transport and Encode Bits: The layer receives the data frame from the Data Link Layer and performs encoding, converting the bits into physical signals (Electrical, Optical, or Radio Wave) that can travel across the medium.

What characteristics and standards govern the Physical Layer's operation?

The operation of the Physical Layer is strictly defined by international standards and governing bodies, including ISO, EIA/TIA, ITU-T, ANSI, and IEEE for hardware specifications, alongside the IETF for TCP/IP software standards. Key functional areas include defining the physical components like hardware, media, and connectors. Furthermore, the layer handles encoding, which is the process of converting bit streams into a specific code pattern, such as Manchester Encoding, and signaling, which is the method used to physically represent the 1s and 0s on the medium. Performance is measured using quality metrics like bandwidth, latency, throughput, and goodput.

  • Standards & Governing Bodies: Hardware standards are set by organizations like ISO, EIA/TIA, ITU-T, ANSI, and IEEE, while the IETF governs TCP/IP software standards.
  • Functional Areas: Includes defining Physical Components (hardware, media, connectors), Encoding (converting bits to code, e.g., Manchester Encoding where 0 is High-to-Low and 1 is Low-to-High transition), and Signaling (the method used to represent binary data).
  • Bandwidth Terminology: Quality metrics include Bandwidth (capacity, measured in bps, Kbps, Mbps, Gbps), Latency (time required for data travel), Throughput (actual transfer rate, typically less than bandwidth), and Goodput (usable data transferred, less than throughput due to overhead).

What are the types and limitations of copper cabling used in networks?

Copper cabling is widely utilized due to its low cost, ease of installation, and low resistance, but it is susceptible to several physical limitations. These include attenuation (signal weakening over distance), Electromagnetic Interference (EMI), Radio Frequency Interference (RFI), and crosstalk (signal bleed between adjacent wires). To mitigate these issues, shielding and grounding are used for EMI/RFI reduction, while twisting the wire pairs is essential for minimizing crosstalk. The main types are UTP (Unshielded Twisted Pair), categorized by bandwidth (Cat 5e, 6, 7, 8) and terminated with RJ-45 connectors, and STP (Shielded Twisted Pair), which provides superior noise protection but is more costly to deploy.

  • General Characteristics & Limitations: Offers advantages like being inexpensive and easy to install, but is limited by attenuation, EMI/RFI, and crosstalk, requiring mitigation techniques such as shielding, grounding, and twisting.
  • Types of Copper Media: Includes UTP (Unshielded Twisted Pair) with standards like TIA/EIA-568 and RJ-45 termination (T568A/B pinouts), STP (Shielded Twisted Pair) offering better noise protection, and Coaxial Cable (used for cable internet and wireless installations). Cable types include straight-through (for dissimilar devices) and crossover (for similar devices, now legacy).

Why is fiber-optic cabling superior to copper, and what are its types?

Fiber-optic cabling represents a significant technological leap over copper, transmitting data as pulses of light through flexible glass strands. Its key advantages include the ability to transmit over extremely long distances (up to 100,000m) and support very high bandwidths (up to 100 Gb/s). Crucially, fiber is completely immune to all forms of electromagnetic interference, making it highly reliable. It is used extensively in backbone cabling, long-haul connections, and Fiber-to-the-Home (FTTH) deployments. The two main types are Single-Mode Fiber (SMF), which uses expensive laser technology for maximum distance, and Multimode Fiber (MMF), which uses low-cost LED emitters for shorter distances, typically within local area networks.

  • Advantages Over Copper: Provides higher bandwidth (up to 100 Gb/s), transmits over longer distances, and is completely immune to EMI/RFI.
  • Properties & Usage: Structured with flexible glass strands acting as a waveguide, encoding data using laser or LED light pulses; used for backbone, long-haul, and submarine networks.
  • Types of Fiber Media: Single-Mode Fiber (SMF) uses small cores and lasers for long distance; Multimode Fiber (MMF) uses larger cores and LEDs, popular in LANs but limited to shorter links (e.g., 550m at 10 Gbps).
  • Connectors & Cords: Common connector types include ST (twist-on), SC (push-pull), and LC (smaller, often duplex). Patch cords are color-coded: Yellow jacket for SMF and Orange/Aqua jacket for MMF.

How does the Physical Layer handle data transmission using wireless media?

Wireless media facilitates network access by transmitting data using radio waves, a method defined by the Physical Layer. This approach allows for mobility and eliminates physical cabling to the end device. To gain network access, the device must establish a connection with a Wireless Access Point (AP) or router, which serves as the bridge between the wireless client and the wired network infrastructure. The Physical Layer manages the complex processes of encoding the binary data into radio signals, defining the frequency spectrum, and controlling power levels to ensure reliable over-the-air communication, despite the inherent susceptibility of radio waves to interference and range limitations.

  • Data Transmission via Radio Waves: Data is transmitted wirelessly, requiring the end device to connect to a Wireless Access Point (AP) or Router to gain network access.

Frequently Asked Questions

Q

What is the difference between throughput and goodput?

A

Throughput is the actual rate at which data transfers, measured in bits per second. Goodput is the measure of usable data transferred, excluding overhead from protocols, retransmissions, and encapsulation.

Q

What is Manchester Encoding, and where is it used?

A

Manchester Encoding is a method where the bit value is represented by a signal transition within the bit period. A high-to-low transition represents 0, and a low-to-high transition represents 1. It is used in older Ethernet standards.

Q

How does copper cabling mitigate the effects of crosstalk?

A

Crosstalk, which is signal interference between adjacent wire pairs, is mitigated by twisting the pairs tightly. This twisting causes the interference signals to cancel each other out, preserving data integrity.
