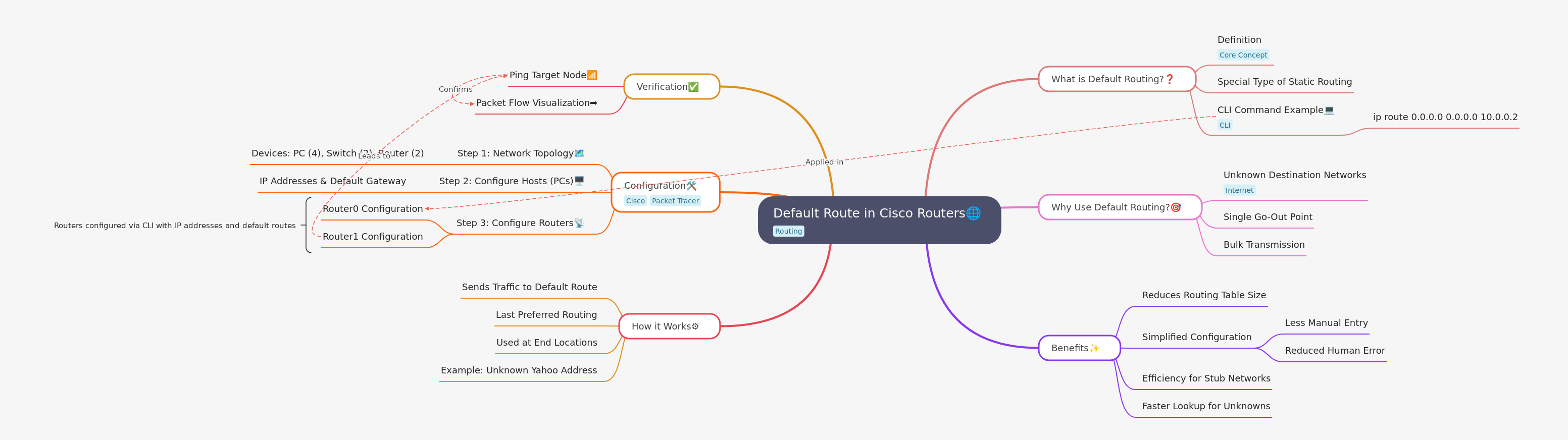

Featured Mind map
Default Route in Cisco Routers: A Comprehensive Guide
A default route in Cisco routers is a special type of static route that directs traffic for any destination network not explicitly listed in the routing table. It acts as a 'gateway of last resort,' ensuring that packets with unknown destinations are forwarded to a specified next-hop address, typically an internet-facing router, simplifying network management and reducing routing table size.
Key Takeaways
Default routes are static routes for unknown destinations.
They simplify configuration and reduce routing table size.
Essential for stub networks and internet connectivity.
Configured using the 'ip route 0.0.0.0 0.0.0.0' command.
Verification involves pinging and packet flow analysis.
What is Default Routing in Cisco Routers?
Default routing in Cisco routers defines a 'gateway of last resort' for all traffic that does not have a more specific route in the routing table. This fundamental concept is a special type of static routing, acting as a catch-all mechanism. When a router receives a packet destined for a network it doesn't explicitly know, it forwards that packet to the next-hop address specified by the default route. This approach is crucial for efficient network operation, especially in environments where not all possible destination networks are known or need to be individually configured. It ensures connectivity to external networks like the internet, making it a core concept in network design.
- Defines a 'gateway of last resort' for unknown destinations.
- Functions as a special, catch-all static route.
- Configured via a specific CLI command example.
Why is Default Routing Essential for Network Efficiency?
Default routing is essential because it efficiently handles traffic destined for unknown networks, particularly those outside the local network, such as the internet. It provides a single 'go-out point' for all non-local traffic, eliminating the need to configure individual routes for every possible external destination. This mechanism is highly beneficial for bulk transmission of data to external networks, as it streamlines the forwarding process. Without a default route, packets destined for unlisted networks would simply be dropped, severely limiting a network's connectivity and utility and hindering overall network efficiency.
- Handles traffic for unknown destination networks, like the internet.
- Establishes a single exit point for external traffic.
- Facilitates efficient bulk data transmission.
What are the Key Benefits of Implementing Default Routes?
Implementing default routes offers several significant benefits for network administrators. Primarily, it drastically reduces the routing table size, as a single default route replaces numerous specific routes for external networks. This leads to simplified configuration, requiring less manual entry and significantly reducing the potential for human error during setup. Default routes are particularly efficient for stub networks, which have only one exit point, as they don't need to learn complex routing information. Furthermore, they enable faster lookup times for unknown destinations, as the router quickly identifies the 'gateway of last resort' without extensive table searches, enhancing network performance.
- Reduces the overall size of the routing table.
- Simplifies network configuration, minimizing manual entry and errors.
- Enhances efficiency, especially for stub networks.
- Provides faster lookup for traffic to unknown destinations.
How Does a Default Route Function in a Cisco Router?
A default route functions by acting as the final decision-maker for packet forwarding when no more specific route matches the destination IP address. When a router receives a packet, it first checks its routing table for the most specific match. If no specific route is found, the router then consults its default route. This mechanism is often referred to as 'last preferred routing' because it is only used after all other specific routes have been considered. It is typically implemented at end locations or edge routers that connect to external networks, ensuring that all traffic not intended for local networks is directed towards the internet or a central hub. For instance, if a user tries to reach an unknown Yahoo address, the router uses the default route to forward the packet out, maintaining seamless connectivity.
- Sends traffic to the designated default route when no specific match exists.
- Operates as the 'last preferred routing' option.
- Primarily used at network edge or end locations.
- Handles traffic for unknown external addresses effectively.
How Do You Configure a Default Route on Cisco Routers?
Configuring a default route on Cisco routers involves a systematic approach, often demonstrated using tools like Cisco Packet Tracer. The process begins with establishing the network topology, which typically includes multiple PCs, switches, and routers. Next, you configure the host devices (PCs) with their respective IP addresses and, crucially, their default gateway, pointing to the local router interface. The final and most critical step is configuring the routers themselves. This involves assigning IP addresses to interfaces and then applying the default route command, such as 'ip route 0.0.0.0 0.0.0.0 [next-hop IP]', via the Command Line Interface (CLI). This ensures all traffic without a specific route is directed appropriately, establishing the 'gateway of last resort'.
- Step 1: Define network topology with devices like PCs, switches, and routers.
- Step 2: Configure host PCs with IP addresses and default gateways.
- Step 3: Configure routers with interface IP addresses and the default route command.
How Can You Verify the Functionality of a Default Route?
Verifying the functionality of a default route is crucial to ensure proper network connectivity and traffic forwarding. The primary method involves using the 'ping' command to a target node that is reachable only via the default route, such as an external website or a device in a remote network. A successful ping confirms that the default route is correctly directing traffic. Additionally, network simulation tools like Packet Tracer allow for packet flow visualization, providing a graphical representation of how packets traverse the network and utilize the default route. This visual confirmation helps in understanding the routing path and troubleshooting any potential issues, ensuring that the 'gateway of last resort' is indeed operational and performing as expected.
- Ping a target node reachable only through the default route.
- Utilize packet flow visualization tools for graphical confirmation.
Frequently Asked Questions
What is the primary purpose of a default route?
Its primary purpose is to provide a path for traffic destined for networks not explicitly listed in the routing table. It acts as a 'gateway of last resort' for unknown destinations, ensuring connectivity to external networks like the internet.
How does a default route simplify network management?
It simplifies management by reducing the routing table size and the need for extensive manual configuration. Instead of defining routes for every possible external network, a single default route handles all unknown traffic, minimizing human error.
What is the command to configure a default route?
The command to configure a default route in Cisco IOS is 'ip route 0.0.0.0 0.0.0.0 [next-hop-ip-address]'. This directs all traffic with an unknown destination to the specified next-hop router.
