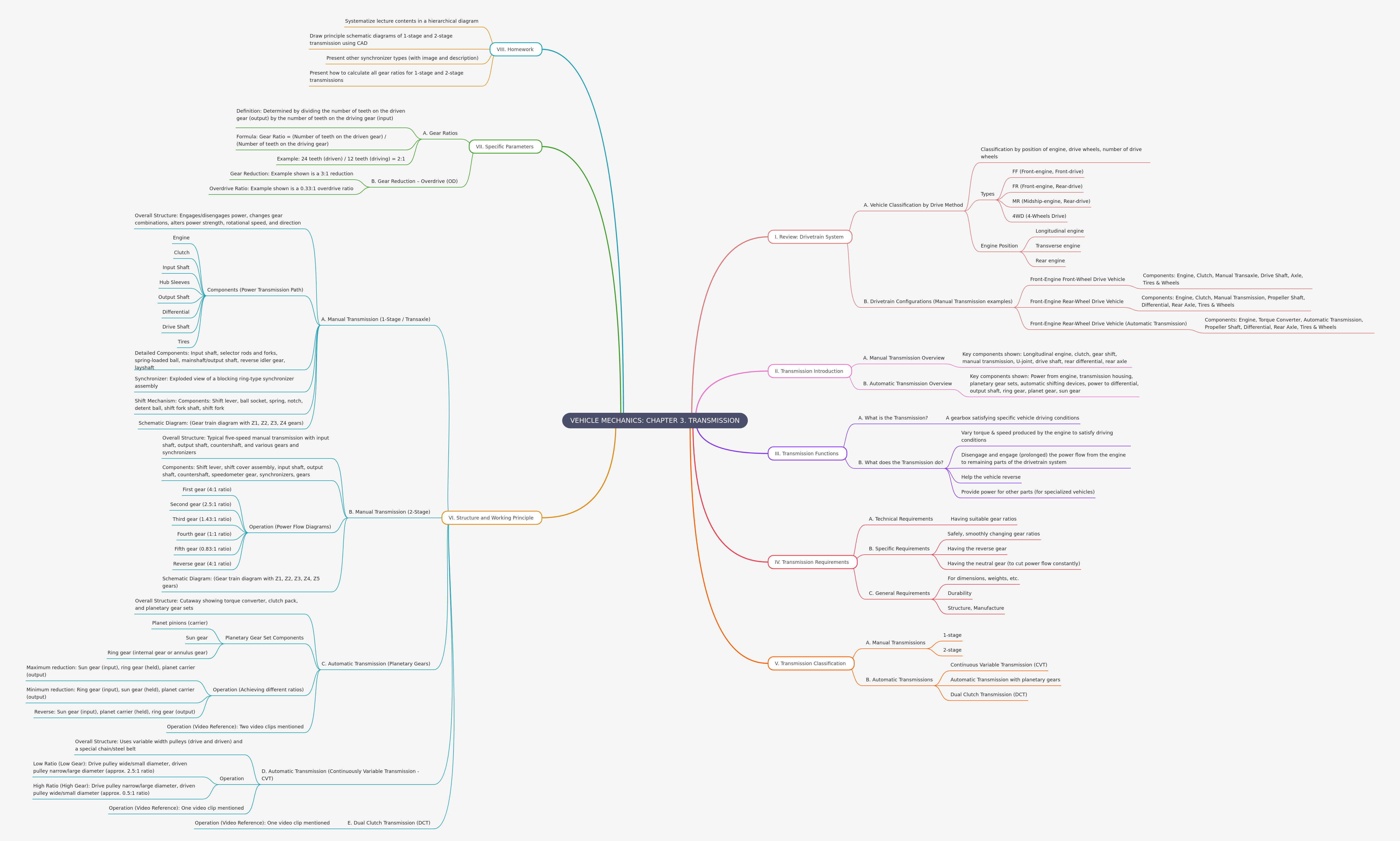

Featured Mind map
Vehicle Transmission Systems Explained
Vehicle transmissions are crucial components that manage engine power delivery to the wheels. They adjust torque and speed to suit driving conditions, enable reversing, and disengage power flow. Transmissions are classified into manual and automatic types, each with distinct operational principles and components, ensuring efficient and adaptable vehicle performance.
Key Takeaways
Transmissions adapt engine power for diverse driving conditions.
They allow gear changes, reversing, and power disengagement.
Manual and automatic transmissions operate differently.
Drivetrain configuration impacts transmission type and components.
Key requirements include suitable ratios, smooth shifts, and durability.
What is a Vehicle Drivetrain System?
A vehicle drivetrain system transmits power from the engine to the driving wheels. It encompasses the transmission, driveshafts, axles, and differential, all working cohesively to propel the vehicle. Understanding drivetrain configurations is crucial for comprehending how different vehicles manage power delivery and traction. These systems are classified by engine position, drive wheel location, and number of drive wheels, influencing vehicle performance and handling. This foundational knowledge is essential for appreciating the transmission's role.
- Classified by engine, drive wheels.
- Types: FF, FR, MR, 4WD.
- Key components: Engine, clutch, transmission, shafts.
How Do Manual and Automatic Transmissions Differ?
Transmissions are vital for converting engine power into usable torque and speed. Manual transmissions require drivers to manually select gears using a clutch and lever, providing direct control. Automatic transmissions, conversely, manage gear changes autonomously, typically employing hydraulic or electronic controls for a smoother, more convenient driving experience. Both types optimize engine efficiency and performance, but their internal mechanisms and driver interaction are distinctly different.
- Manual: Clutch, gear shift, direct control.
- Automatic: Planetary gears, auto shifting.
What are the Primary Functions of a Vehicle Transmission?
The primary function of a vehicle transmission is to adapt the engine's power output to meet diverse driving demands. It achieves this by varying the torque and speed delivered to the wheels, allowing the engine to operate within its optimal power band. Beyond gear changes, the transmission enables the driver to disengage power flow from the engine, facilitating stopping or idling, and provides the crucial ability to reverse the vehicle. In specialized applications, transmissions can also supply power to auxiliary systems.
- Vary torque and speed.
- Disengage/engage power flow.
- Enable vehicle reversal.
What Key Requirements Must a Transmission Fulfill?
A vehicle transmission must meet several critical requirements for optimal performance, safety, and durability. Technically, it needs suitable gear ratios for efficient engine operation across all speeds and loads. Specific operational requirements include smooth, safe gear changes, preventing abrupt shifts that could compromise stability. Furthermore, reverse and neutral gears are essential for vehicle maneuverability and safely cutting power flow when stationary. General requirements encompass considerations for size, weight, and manufacturing quality.
- Suitable gear ratios.
- Smooth, safe gear changes.
- Reverse and neutral gears.
How are Vehicle Transmissions Classified?
Vehicle transmissions are primarily classified into two broad categories: manual and automatic, each with distinct sub-types. Manual transmissions, requiring driver input for gear selection, are categorized by their stage design, such as 1-stage or 2-stage systems. Automatic transmissions, designed for autonomous gear changes, include more advanced technologies. These encompass Continuous Variable Transmissions (CVT), offering seamless ratio changes, traditional automatics utilizing planetary gears, and Dual Clutch Transmissions (DCT).
- Manual: 1-stage, 2-stage.
- Automatic: CVT, planetary, DCT.
What are the Structures and Working Principles of Transmissions?
Transmission structures and working principles vary significantly. A 1-stage manual transaxle integrates transmission and differential, using input/output shafts to change gears. A 2-stage manual transmission features input, output, and countershafts with multiple gears and synchronizers for precise engagement. Automatic transmissions with planetary gears utilize sun, planet, and ring gears to achieve various ratios by controlling components. CVTs employ variable-width pulleys and a belt for continuous ratio adjustment. DCTs use two separate clutches for odd and even gears, enabling very fast, efficient shifts.
- Manual 1-stage: Transaxle, gear changes.
- Manual 2-stage: Multi-gear, synchronizers.
- Planetary Auto: Sun, planet, ring gears.
- CVT: Variable pulleys, continuous ratios.
- DCT: Dual clutches, rapid shifts.
How are Gear Ratios and Overdrive Defined in Transmissions?
Specific parameters like gear ratios and overdrive are fundamental to understanding transmission performance. A gear ratio is defined by dividing the number of teeth on the driven gear (output) by the number of teeth on the driving gear (input). This ratio determines torque multiplication and speed reduction. For instance, a 2:1 ratio means output rotates half as fast as input but with double the torque. Overdrive (OD) refers to a gear ratio where output rotates faster than input (ratio less than 1:1), improving fuel efficiency.
- Gear Ratio: Driven teeth / driving teeth.
- Example: 24/12 = 2:1.
- Overdrive: Output faster than input.
How Can You Further Explore Vehicle Transmission Concepts?
To deepen your understanding of vehicle transmission concepts, engaging in practical and analytical exercises is highly beneficial. Systematizing lecture contents into a hierarchical diagram helps consolidate knowledge and visualize relationships. Drawing principle schematic diagrams of 1-stage and 2-stage transmissions using CAD software provides hands-on experience. Researching and presenting other synchronizer types, with images and descriptions, expands technical knowledge. Finally, calculating all gear ratios for various transmission types reinforces mathematical principles.
- Systematize lecture content.
- Draw CAD schematics.
- Research synchronizer types.
- Calculate gear ratios.
