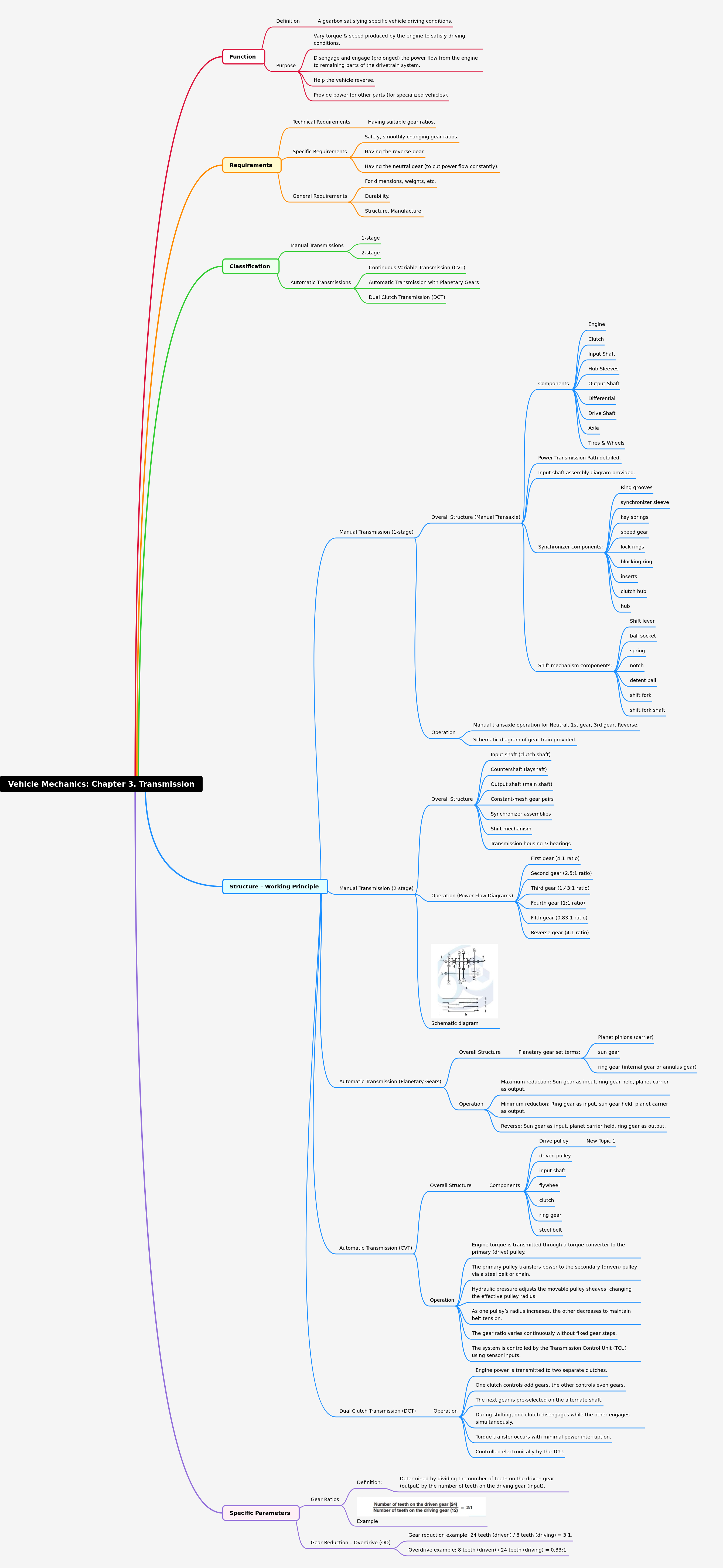

Vehicle Transmission Systems Explained
Vehicle transmission systems are crucial components that manage the engine's power delivery to the wheels. They adjust torque and speed to suit driving conditions, enable reversing, and allow for temporary disengagement of power. This ensures optimal engine performance and efficient vehicle operation across diverse speeds and terrains.
Key Takeaways
Transmissions adapt engine power to driving conditions.
They enable gear changes, reverse, and power disengagement.
Systems vary from manual to advanced automatics like CVT and DCT.
Key requirements include suitable ratios, smooth shifts, and durability.
Gear ratios define output speed relative to engine input.
What is the primary function of a vehicle transmission system?
A vehicle transmission system, essentially a gearbox, serves to adapt the engine's torque and speed to meet diverse driving conditions. Its core purpose is to vary the power output, ensuring the engine operates efficiently whether accelerating, cruising, or climbing. It also allows for disengaging power flow, enabling the vehicle to stop without stalling, facilitates reversing, and can provide power for auxiliary functions in specialized vehicles. This dynamic control is vital for optimal performance and fuel economy.
- Vary engine torque and speed to match driving conditions.
- Disengage and engage power flow from the engine to the drivetrain.
- Enable the vehicle to move in reverse.
- Provide power for other specialized vehicle components.
What are the essential requirements for vehicle transmission systems?
Vehicle transmission systems must fulfill several critical requirements to ensure safe, efficient, and reliable operation. Technically, they need suitable gear ratios to cover a wide range of speeds and loads. Specifically, they must allow for smooth and safe gear changes, include a reverse gear for maneuverability, and incorporate a neutral gear to temporarily cut power flow. Beyond these, general requirements encompass compact dimensions, manageable weight, robust durability, and cost-effective manufacturing processes.
- Possess suitable gear ratios for varied driving.
- Allow for safe and smooth gear ratio changes.
- Include a functional reverse gear.
- Provide a neutral gear to disengage power flow.
- Meet standards for dimensions, weight, durability, and manufacture.
How are vehicle transmission systems classified?
Vehicle transmission systems are broadly classified based on their operational mechanism, primarily into manual and automatic types. Manual transmissions require the driver to physically select gears, often categorized by their stage design (e.g., 1-stage or 2-stage systems). Automatic transmissions, conversely, manage gear changes autonomously. This category includes advanced systems like Continuous Variable Transmissions (CVT) for seamless ratio changes, automatic transmissions utilizing planetary gears, and Dual Clutch Transmissions (DCT) known for rapid, efficient shifts.
- Manual Transmissions: Driver-operated, typically 1-stage or 2-stage designs.
- Automatic Transmissions: Self-shifting systems for convenience.
- Continuous Variable Transmission (CVT): Offers infinite gear ratios for smooth acceleration.
- Automatic Transmission with Planetary Gears: Uses complex gear sets for multiple ratios.
- Dual Clutch Transmission (DCT): Provides fast, efficient shifts using two separate clutches.
What are the working principles and structures of common vehicle transmissions?
Vehicle transmissions employ diverse structures and working principles to convert engine power into usable motion for the wheels. Manual systems rely on driver input to engage specific gear sets, while automatic systems utilize hydraulic pressure or electronic controls to manage gear changes autonomously. Each design, from the mechanical simplicity of a single-stage manual to the complex planetary gear sets of an automatic or the continuous variability of a CVT, aims to optimize power delivery, fuel efficiency, and driving comfort by effectively managing torque and speed ratios.
- Manual Transmission (1-stage): Features components like clutch, input/output shafts, differential, and synchronizers for driver-controlled gear selection.
- Manual Transmission (2-stage): Utilizes input, counter, and output shafts with constant-mesh gears and synchronizer assemblies for multiple gear ratios.
- Automatic Transmission (Planetary Gears): Employs planetary gear sets (sun, planet, ring gears) to achieve various ratios through selective holding or driving of components.
- Automatic Transmission (CVT): Operates with variable-diameter pulleys and a steel belt or chain, providing continuous, stepless gear ratio changes for optimal engine efficiency.
- Dual Clutch Transmission (DCT): Uses two separate clutches for odd and even gears, enabling pre-selection and rapid, smooth shifts with minimal power interruption, controlled electronically.
What specific parameters define transmission performance?
Transmission performance is fundamentally defined by specific parameters, primarily gear ratios and the concepts of gear reduction and overdrive. A gear ratio quantifies the relationship between the input and output speeds, determined by dividing the number of teeth on the driven gear by the number of teeth on the driving gear. Gear reduction occurs when the output speed is lower than the input, increasing torque, while overdrive signifies an output speed higher than the input, reducing torque for fuel efficiency at higher vehicle speeds.
- Gear Ratios: Defined by the ratio of driven gear teeth to driving gear teeth, determining speed and torque changes.
- Gear Reduction: Occurs when the output gear has more teeth than the input, increasing torque and decreasing speed (e.g., 3:1).
- Overdrive (OD): Happens when the output gear has fewer teeth than the input, decreasing torque and increasing speed for efficiency (e.g., 0.33:1).
Frequently Asked Questions
Why do vehicles need a transmission system?
Transmissions are essential to match engine power and speed to driving conditions. They allow for varying torque, enabling acceleration, cruising, reversing, and temporarily disengaging power, ensuring efficient and controlled vehicle operation.
What are the main types of vehicle transmissions?
The primary types are manual transmissions, which require driver input for gear changes, and automatic transmissions, which shift gears autonomously. Automatic types include Continuous Variable Transmissions (CVT), planetary gear automatics, and Dual Clutch Transmissions (DCT).
What key features must a transmission system possess?
A transmission must have suitable gear ratios, allow for smooth and safe gear changes, include reverse and neutral gears, and be durable. It also needs to meet specific dimensional, weight, and manufacturing requirements for optimal performance.
