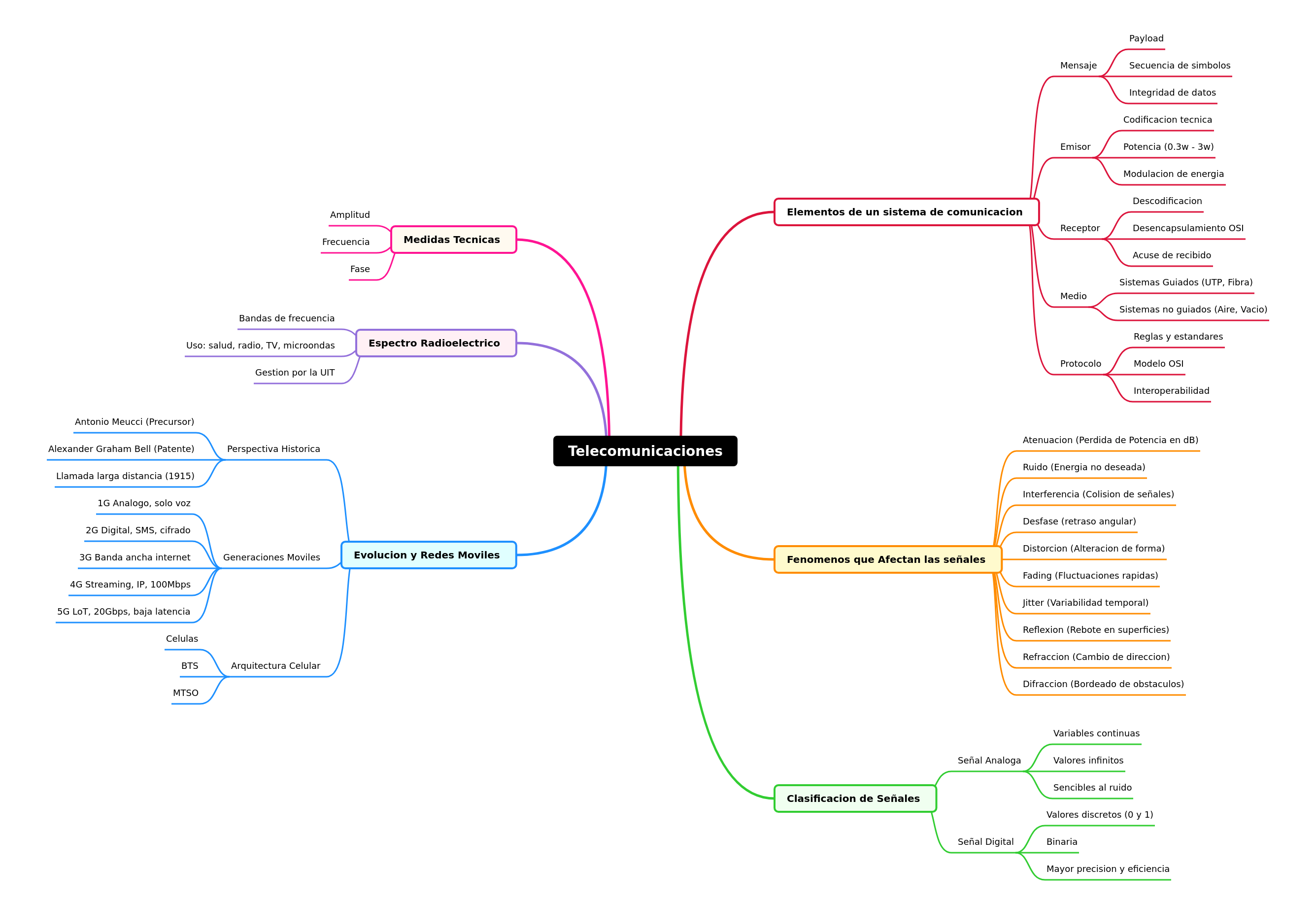

Featured Mind map
Understanding Telecommunications Systems & Signals
Telecommunications involves the transmission of information over distances using various technologies. It encompasses the essential components like sender, receiver, and medium, addresses signal challenges such as attenuation and noise, classifies signals as analog or digital, and details the evolution of mobile networks and the management of the radioelectric spectrum, all underpinned by technical signal measurements.
Key Takeaways
Communication systems rely on five core elements for effective information exchange.
Signals are affected by phenomena like attenuation, noise, and interference.
Signals are primarily classified as either analog or digital based on their nature.
Mobile networks have evolved through generations, from 1G voice to 5G IoT.
The radioelectric spectrum is a vital, managed resource for diverse applications.
What are the essential elements of a communication system?
A communication system fundamentally comprises five key elements that work in concert to enable the successful transmission and reception of information. These components ensure that a message originates from a source, is encoded, travels through a medium, and is then decoded and understood by a destination. Understanding each element is crucial for designing, troubleshooting, and optimizing any telecommunication network, from simple point-to-point links to complex global infrastructures. Effective communication hinges on the seamless interaction and proper functioning of these interconnected parts, ensuring data integrity and reliable delivery across various distances and environments.
- Message: The actual information or data being transmitted, including its payload, symbol sequence, and data integrity.
- Emisor (Sender): The device or entity that originates and encodes the message, involving technical encoding, power output (e.g., 0.3W - 3W), and energy modulation.
- Receptor (Receiver): The device or entity that receives, decodes, and processes the message, performing tasks like decoding, OSI decapsulation, and sending acknowledgments.
- Medio (Medium): The physical or non-physical path through which the signal travels, such as guided systems (UTP, Fiber) or unguided systems (Air, Vacuum).
- Protocolo (Protocol): The set of rules and standards governing communication, ensuring interoperability and often structured by models like OSI.
What phenomena can affect communication signals?
Communication signals, as they travel through various media, are susceptible to numerous physical phenomena that can degrade their quality and integrity, potentially leading to data loss or errors. These effects can manifest as a reduction in signal strength, the introduction of unwanted energy, or alterations to the signal's waveform and timing. Engineers and technicians must account for these challenges when designing and deploying communication systems, often employing techniques to mitigate their impact and ensure reliable data transmission over specified distances and environments. Understanding these phenomena is critical for maintaining signal quality and system performance.
- Atenuacion (Attenuation): Loss of signal power, typically measured in decibels (dB).
- Ruido (Noise): Unwanted energy that interferes with the signal.
- Interferencia (Interference): Collision of signals from different sources.
- Desfase (Phase Shift): An angular delay or change in the signal's phase.
- Distorcion (Distortion): Alteration of the signal's original waveform.
- Fading: Rapid fluctuations in signal strength over time or space.
- Jitter: Variability in the arrival time of successive signal pulses.
- Reflexion (Reflection): Signal bouncing off surfaces.
- Refraccion (Refraction): Change in signal direction when passing through different media.
- Difraccion (Diffraction): Signal bending around obstacles.
How are communication signals classified?
Communication signals are primarily classified into two fundamental types: analog and digital, each possessing distinct characteristics that dictate their application and performance in various telecommunication contexts. This classification is based on how the signal represents information, whether through continuous variations or discrete values. The choice between analog and digital signaling depends on factors such as required precision, noise immunity, and transmission efficiency, influencing the design and capabilities of modern communication networks. Understanding these signal types is foundational to comprehending how information is processed and transmitted.
- Señal Analoga (Analog Signal): Characterized by continuous variables and infinite values, making them susceptible to noise.
- Señal Digital (Digital Signal): Uses discrete values (typically 0s and 1s), offering greater precision and efficiency with better noise immunity.
What is the evolution of mobile networks and their architecture?
Mobile networks have undergone a remarkable evolution, transforming from rudimentary voice-only systems to sophisticated high-speed data platforms, fundamentally changing how people communicate and access information. This progression, marked by distinct generations (1G to 5G), reflects continuous advancements in technology, capacity, and service offerings. Each generation has introduced new capabilities, from basic voice calls to advanced streaming, internet access, and support for the Internet of Things (IoT). The underlying cellular architecture, involving cells, base stations, and mobile switching centers, has adapted to support these growing demands, ensuring widespread coverage and efficient resource utilization.
- Perspectiva Historica (Historical Perspective): Key figures like Antonio Meucci (precursor) and Alexander Graham Bell (patent), leading to the first long-distance call in 1915.
- Generaciones Moviles (Mobile Generations): 1G (Analog, voice-only), 2G (Digital, SMS, encryption), 3G (Broadband internet), 4G (Streaming, IP, 100Mbps), 5G (IoT, 20Gbps, low latency).
- Arquitectura Celular (Cellular Architecture): Comprises cells (geographic areas), BTS (Base Transceiver Stations), and MTSO (Mobile Telephone Switching Office).
What is the radioelectric spectrum and how is it managed?
The radioelectric spectrum represents the range of electromagnetic frequencies used for wireless communication, serving as a critical, finite natural resource that enables a vast array of modern technologies. Its efficient allocation and management are paramount to prevent interference and ensure equitable access for diverse applications, from broadcasting and mobile communications to scientific research and medical devices. International bodies like the ITU play a crucial role in regulating its use, establishing standards, and coordinating frequency assignments globally to facilitate seamless and reliable wireless services across borders. Proper spectrum management is essential for technological advancement and societal connectivity.
- Bandas de frecuencia (Frequency Bands): Specific ranges within the spectrum allocated for different uses.
- Uso (Usage): Utilized across various sectors including health, radio, TV broadcasting, and microwave communications.
- Gestion por la UIT (Management by ITU): Regulated and managed by the International Telecommunication Union.
What are the key technical measures of a signal?
Signals in telecommunications are characterized by several fundamental technical measures that describe their properties and behavior, providing crucial insights into their strength, rate of oscillation, and relative position in a cycle. These parameters are essential for understanding how signals carry information, how they interact with transmission media, and how they can be manipulated for efficient communication. By analyzing amplitude, frequency, and phase, engineers can design systems that accurately transmit and receive data, optimize performance, and diagnose issues within complex communication networks. These measures form the bedrock of signal analysis.
- Amplitud (Amplitude): The maximum displacement or distance moved by a point on a vibrating body or wave measured from its equilibrium position.
- Frecuencia (Frequency): The number of cycles or oscillations per unit of time, typically measured in Hertz (Hz).
- Fase (Phase): The position of a point in time on a waveform cycle, often expressed as an angle.
Frequently Asked Questions
What is the primary function of a protocol in telecommunications?
Protocols establish the rules and standards for communication, ensuring that different devices and systems can understand and interact with each other effectively, facilitating interoperability and reliable data exchange.
How does attenuation impact a communication signal?
Attenuation refers to the loss of signal power as it travels through a medium. This reduction in strength can weaken the signal, making it harder for the receiver to detect and decode accurately, potentially leading to errors.
What is the main difference between analog and digital signals?
Analog signals use continuous variables with infinite values, making them susceptible to noise. Digital signals use discrete values (0s and 1s), offering greater precision, efficiency, and better immunity to noise.
