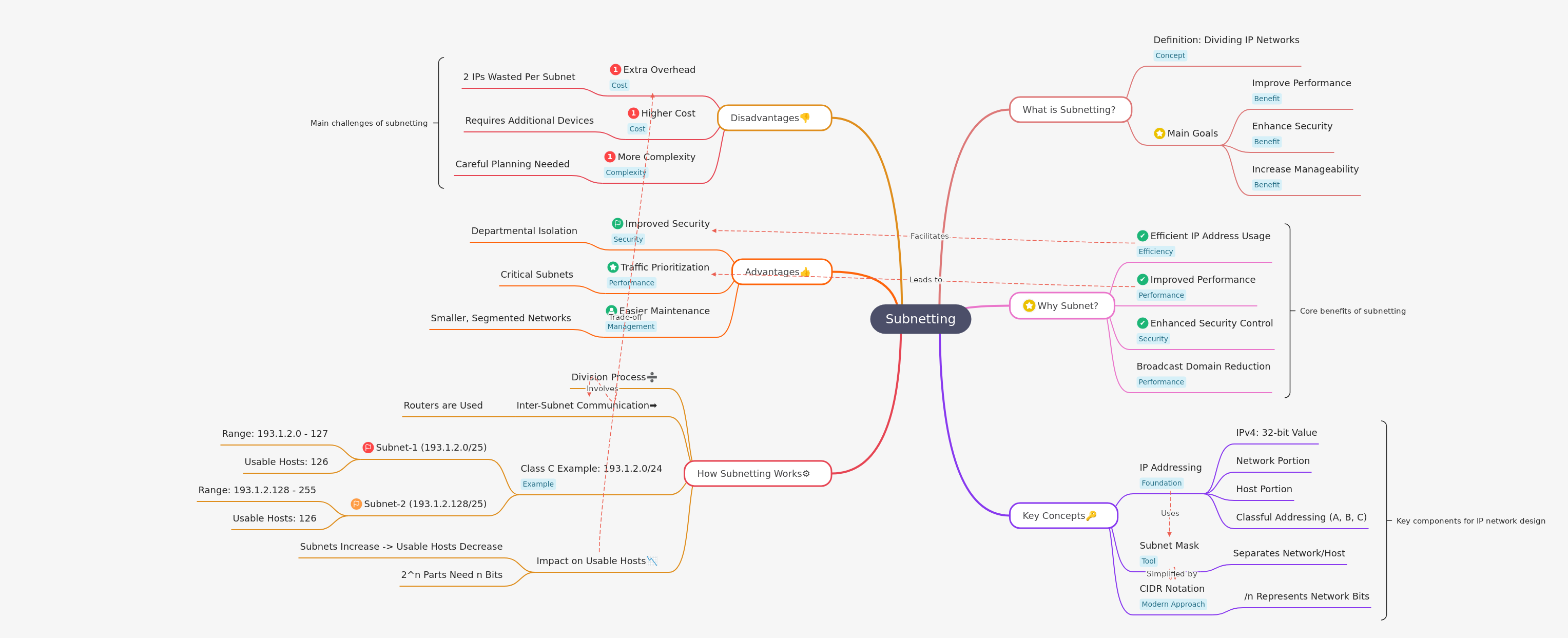

Understanding Subnetting: Concepts, Benefits, and How It Works
Subnetting is the strategic division of a larger IP network into smaller, more manageable subnetworks. This process optimizes network performance by reducing broadcast traffic, enhances security through isolation, and improves overall manageability. It allows for more efficient use of IP addresses and better control over network resources, making it a fundamental practice in modern network design and administration.
Key Takeaways
Subnetting divides large networks into smaller, efficient segments.
It significantly improves network performance and security.
Key concepts include IP addressing, subnet masks, and CIDR.
Subnetting requires careful planning but offers better control.
While beneficial, it introduces some overhead and complexity.
What is Subnetting and Its Primary Goals?
Subnetting is a fundamental networking practice that involves dividing a single, large IP network into multiple smaller, more efficient subnetworks. This strategic segmentation helps to organize network resources and traffic more effectively. The primary goals of implementing subnetting are to significantly improve network performance by localizing traffic, enhance security through the isolation of different network segments, and increase the overall manageability of complex network infrastructures. By breaking down a large network, administrators gain finer control over data flow and resource allocation, leading to a more robust and scalable network environment.
- Definition: Subnetting involves dividing a larger IP network into smaller, distinct subnetworks.
- Improve Performance: Reduces broadcast traffic and localizes data flow within segments.
- Enhance Security: Isolates network segments, limiting access and potential threats.
- Increase Manageability: Simplifies administration and organization of network resources.
Why is Subnetting Essential for Network Management?
Subnetting is essential because it addresses several critical challenges in network management and design. By creating smaller broadcast domains, it drastically reduces unnecessary network traffic, leading to improved performance and faster data transmission. It also allows for more efficient utilization of IP addresses, preventing wastage in large networks where not all addresses might be needed in a single segment. Furthermore, subnetting provides enhanced security control by enabling administrators to isolate sensitive network segments, thereby limiting access and potential threats. This strategic division also helps in reducing the size of broadcast domains, which is crucial for maintaining network stability and efficiency.
- Efficient IP Address Usage: Prevents wastage by allocating addresses more precisely.
- Improved Performance: Minimizes broadcast domains, leading to faster network operations.
- Enhanced Security Control: Allows for granular access control and segment isolation.
- Broadcast Domain Reduction: Crucial for maintaining network stability and efficiency.
What are the Key Concepts Underlying Subnetting?
Understanding subnetting requires familiarity with several key networking concepts that form its foundation. IP addressing, particularly IPv4, uses a 32-bit value divided into a network portion and a host portion, which identifies the specific network and individual device, respectively. Historically, this was managed through classful addressing (A, B, C). The subnet mask is a crucial tool that works in conjunction with an IP address to separate these network and host portions, defining the boundaries of a subnet. Modern networks extensively use CIDR (Classless Inter-Domain Routing) notation, where "/n" explicitly represents the number of bits dedicated to the network portion, offering greater flexibility and efficiency than classful addressing.
- IP Addressing: Understands IPv4's 32-bit structure, network, and host portions.
- Subnet Mask: A critical tool for distinguishing network and host parts of an IP address.
- CIDR Notation: Modern approach using "/n" to specify network bits, offering flexibility.
How Does Subnetting Work in Practice?
Subnetting works by taking bits from the host portion of an IP address to create more network bits, effectively dividing a large network into smaller, distinct subnets. This division process is fundamental. Routers are crucial for enabling communication between these separate subnets. For instance, a Class C network like 193.1.2.0/24 can be split into two /25 subnets. Subnet-1 (193.1.2.0/25) would range from 193.1.2.0 to 127, providing 126 usable hosts. Subnet-2 (193.1.2.128/25) would cover 193.1.2.128 to 255, also with 126 usable hosts. A key impact is that increasing the number of subnets inherently decreases the number of usable hosts per subnet, as two addresses are always reserved.
- Division Process: Achieved by borrowing host bits to extend the network portion.
- Inter-Subnet Communication: Routers are necessary to direct traffic between different subnets.
- Class C Example: Illustrates splitting a 193.1.2.0/24 network into two /25 subnets.
- Impact on Usable Hosts: Increasing subnets reduces available host addresses per segment.
What are the Primary Advantages of Implementing Subnetting?
Implementing subnetting offers significant advantages that contribute to a more robust and efficient network infrastructure. One major benefit is improved security, achieved through departmental isolation, which means different departments or sensitive data can reside on separate subnets, limiting unauthorized access and containing potential breaches. Subnetting also enables effective traffic prioritization, allowing critical subnets to receive preferential bandwidth or service, ensuring essential applications perform optimally. Furthermore, it leads to easier maintenance because managing smaller, segmented networks is less complex than overseeing one vast, monolithic network. This segmentation simplifies troubleshooting, upgrades, and overall network administration, making the network more resilient and adaptable to change.
- Improved Security: Achieved through isolating departments or sensitive data segments.
- Traffic Prioritization: Enables critical network segments to receive preferential bandwidth.
- Easier Maintenance: Simplifies troubleshooting and management of smaller, segmented networks.
What are the Disadvantages and Challenges of Subnetting?
While highly beneficial, subnetting also presents certain disadvantages and challenges that network administrators must consider. One notable drawback is the extra overhead it introduces, as two IP addresses (network address and broadcast address) are wasted per subnet, which can become significant in scenarios requiring many small subnets. This often leads to higher costs, as implementing subnetting effectively may require additional networking devices like routers or managed switches to handle the increased segmentation and inter-subnet routing. Moreover, subnetting inherently adds more complexity to network design and management. It demands careful planning and a thorough understanding of IP addressing schemes to avoid misconfigurations and ensure optimal performance, making it a task that requires specialized knowledge and attention to detail.
- Extra Overhead: Two IP addresses are reserved (wasted) per subnet for network and broadcast.
- Higher Cost: May necessitate additional networking hardware like routers or switches.
- More Complexity: Requires careful planning and specialized knowledge to implement correctly.
Frequently Asked Questions
What is the main purpose of subnetting in a network?
The main purpose of subnetting is to divide a large IP network into smaller, more manageable segments. This improves network performance by reducing broadcast traffic, enhances security through isolation, and makes IP address usage more efficient.
How does a subnet mask function in IP addressing?
A subnet mask works by separating the network portion from the host portion of an IP address. It helps define the boundaries of a specific subnet, allowing devices to determine if a destination IP address is on the local network or requires routing.
What are the primary trade-offs when implementing subnetting?
Implementing subnetting offers benefits but introduces trade-offs. It creates extra overhead by wasting two IP addresses per subnet, can incur higher costs due to additional hardware, and increases network design complexity, requiring careful planning.
