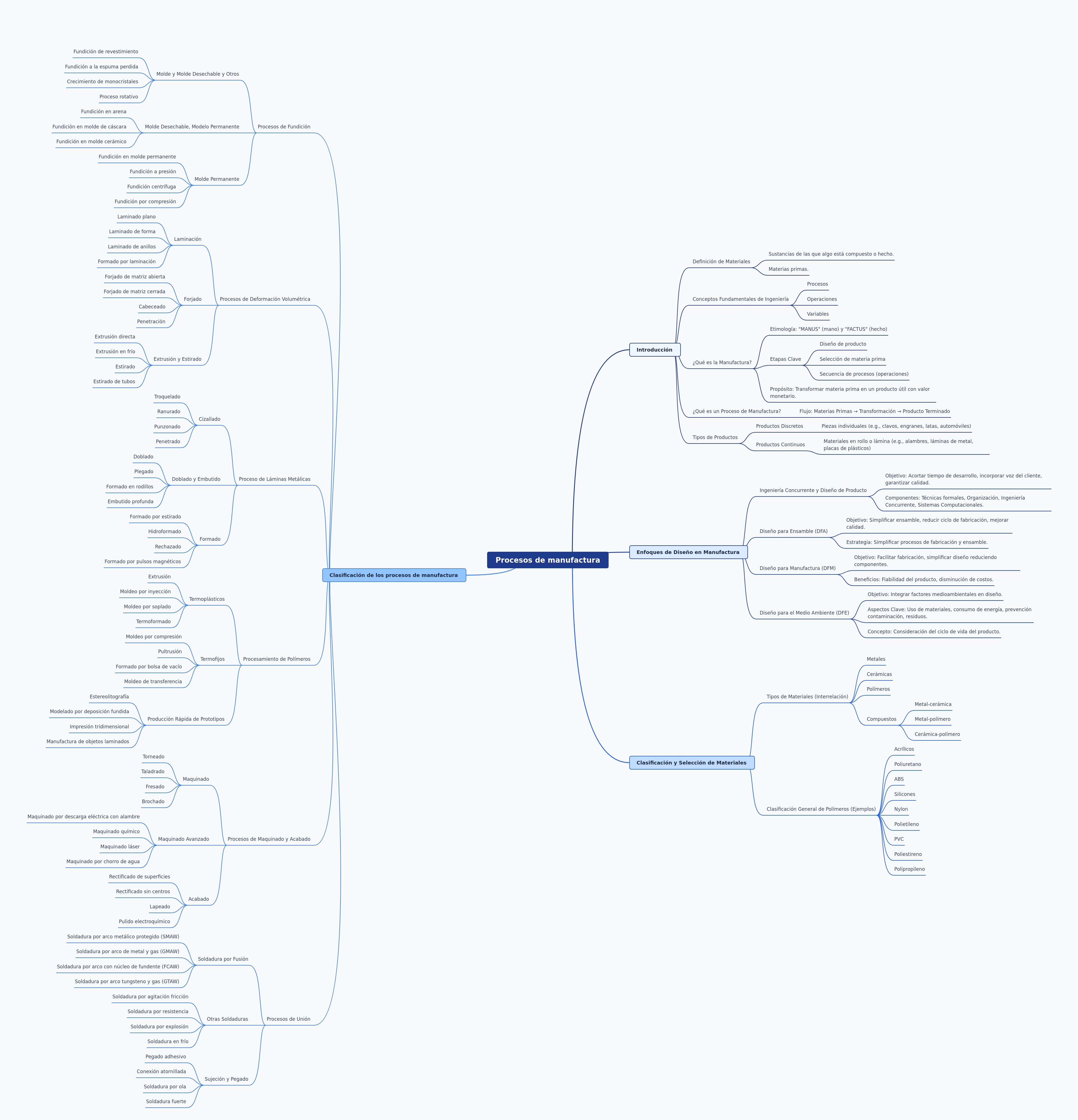

Featured Mind map
Manufacturing Processes: A Comprehensive Guide
Manufacturing processes involve transforming raw materials into finished products with added value. This encompasses understanding material properties, applying various design methodologies like DFM and DFA, and executing specific operations such as casting, forming, machining, and joining. The goal is efficient, high-quality production, considering factors like cost, environmental impact, and product reliability.
Key Takeaways
Manufacturing transforms raw materials into valuable products through structured processes.
Design approaches like DFM and DFA optimize products for efficient production and quality.
Material selection (metals, polymers, ceramics) is crucial for process suitability and product function.
Diverse processes, from casting to advanced machining, shape materials into final forms.
Modern manufacturing integrates environmental considerations and rapid prototyping for innovation.
What is Manufacturing and Why is it Important?
Manufacturing systematically converts raw materials into finished goods, adding value. Its purpose is creating useful, monetarily valuable products, driving economic development and innovation. Understanding manufacturing involves fundamental engineering concepts like processes, operations, and variables, defining the transformation flow. It's a dynamic field, constantly evolving with new technologies.
- Materials: Raw substances.
- Concepts: Processes, operations, variables.
- Stages: Design, material selection, process sequencing.
- Types: Discrete, Continuous.
How Do Design Approaches Optimize Manufacturing?
Manufacturing design approaches optimize product development and production. Concurrent Engineering integrates phases, shortening time-to-market and ensuring quality. Design for Assembly (DFA) simplifies product assembly, reducing cycles. Design for Manufacturing (DFM) facilitates fabrication by simplifying designs, lowering costs. Design for Environment (DFE) integrates environmental factors, considering material use, energy, pollution, and waste.
- Concurrent Engineering: Faster development, quality.
- Design for Assembly (DFA): Simplified assembly, reduced cycle.
- Design for Manufacturing (DFM): Easier fabrication, lower costs.
- Design for Environment (DFE): Eco-friendly design, life cycle focus.
What Are the Key Material Types in Manufacturing?
Material classification and selection are foundational, dictating feasible processes and final product properties. Materials categorize into metals, ceramics, polymers, and composites, each with distinct characteristics. Composites combine materials for enhanced properties. Polymers include thermoplastics and thermosets, with examples like polyethylene, PVC, and nylon. Understanding these types is crucial for selecting optimal materials, balancing performance, cost, and environmental impact.
- Primary Types: Metals, Ceramics, Polymers, Composites.
- Composites: Metal-ceramic, metal-polymers, ceramic-polymers.
- Polymer Examples: Acrylics, Polyurethane, ABS, Silicones, Nylon, Polyethylene, PVC, Polystyrene, Polypropylene.
How Do Casting Processes Create Products?
Casting processes involve pouring molten material into a mold, allowing it to solidify into the desired shape. This versatile method produces complex geometries. Techniques vary by material, precision, and volume. Disposable molds include sand, shell, and ceramic casting. Permanent molds offer higher rates and better finish, encompassing permanent mold, die, centrifugal, and squeeze casting. Specialized methods like investment and lost foam casting provide high precision.
- Disposable Mold: Sand, shell, ceramic.
- Permanent Mold: Die, centrifugal, squeeze.
- Other Methods: Investment, lost foam, single crystal, rotational.
What are Bulk Deformation Manufacturing Processes?
Bulk deformation processes significantly change metal workpiece shapes through plastic deformation, often at elevated temperatures. Rolling reduces thickness for flat sheets or rings. Forging uses compressive forces to shape metal, from open-die for simple forms to closed-die for intricate parts, including upsetting. Extrusion forces material through a die for uniform cross-sections, while drawing pulls material through a die to reduce cross-section. These processes create strong, durable components.
- Rolling: Flat, shape, ring, roll forming.
- Forging: Open-die, closed-die, upsetting, penetration.
- Extrusion/Drawing: Direct, cold extrusion, drawing, tube drawing.
How are Sheet Metal Products Manufactured?
Sheet metal processes shape thin metal sheets using cutting, bending, and forming operations. Shearing, including blanking, punching, and piercing, cuts and creates holes. Bending and deep drawing techniques like folding and roll forming deform sheets for 3D shapes. Advanced forming methods such as stretch forming, hydroforming, and magnetic pulse forming achieve complex geometries. These processes are vital for industries, producing lightweight, durable components.
- Shearing: Blanking, notching, punching, piercing.
- Bending/Deep Drawing: Bending, folding, roll forming, deep drawing.
- Forming: Stretch, hydroforming, spinning, magnetic pulse.
What Methods are Used in Polymer Manufacturing?
Polymer processing shapes plastic materials into useful products, categorized by thermoplastic and thermoset behaviors. Thermoplastics, repeatedly meltable, use extrusion, injection molding, blow molding, and thermoforming for mass production. Thermosets, undergoing irreversible chemical changes, are processed via compression molding, pultrusion, and transfer molding, yielding strong, rigid components. Rapid prototyping techniques like stereolithography, fused deposition modeling, and 3D printing enable quick creation.
- Thermoplastics: Extrusion, injection, blow, thermoforming.
- Thermosets: Compression, pultrusion, vacuum bag, transfer.
- Rapid Prototyping: Stereolithography, FDM, 3D printing, laminated object.
How Do Machining and Finishing Processes Refine Products?
Machining and finishing processes achieve precise dimensions, desired surface finishes, and specific functionalities. Traditional machining like turning, drilling, milling, and broaching removes material. Advanced techniques such as wire electrical discharge machining (WEDM), chemical, laser, and waterjet machining offer high precision. Finishing processes further refine surfaces, including surface grinding, centerless grinding, lapping, and electrochemical polishing, enhancing aesthetics and performance.
- Machining: Turning, drilling, milling, broaching.
- Advanced Machining: WEDM, chemical, laser, waterjet.
- Finishing: Surface, centerless grinding, lapping, electrochemical polishing.
What are the Primary Methods for Joining Materials?
Joining processes assemble multiple components into functional products, creating permanent or semi-permanent bonds. Fusion welding, including SMAW, GMAW, FCAW, and GTAW, melts and fuses materials. Other welding techniques like friction stir, resistance, and cold welding offer specialized solutions. Fastening and bonding methods, such as adhesive bonding, bolted connections, wave soldering, and brazing, connect parts without melting base materials. Choice depends on material compatibility, strength, and application.
- Fusion Welding: SMAW, GMAW, FCAW, GTAW.
- Other Welding: Friction stir, resistance, explosion, cold.
- Fastening/Bonding: Adhesive, bolted, wave soldering, brazing.
Frequently Asked Questions
What is the primary goal of manufacturing?
The primary goal is to transform raw materials into useful, value-added products efficiently and cost-effectively, meeting specific design and quality standards.
How do DFM and DFA improve product development?
DFM (Design for Manufacturing) simplifies product fabrication, while DFA (Design for Assembly) streamlines assembly processes. Both reduce costs, improve quality, and shorten development cycles.
What are the main categories of engineering materials?
The main categories are metals, ceramics, polymers, and composites. Each offers unique properties suitable for different manufacturing processes and product applications.
Can you name some common casting processes?
Common casting processes include sand casting, die casting, investment casting, and permanent mold casting. These methods shape molten material into desired forms.
What is the difference between thermoplastics and thermosets?
Thermoplastics can be repeatedly melted and reshaped, while thermosets undergo an irreversible chemical change upon heating, becoming rigid and unable to be re-melted.
