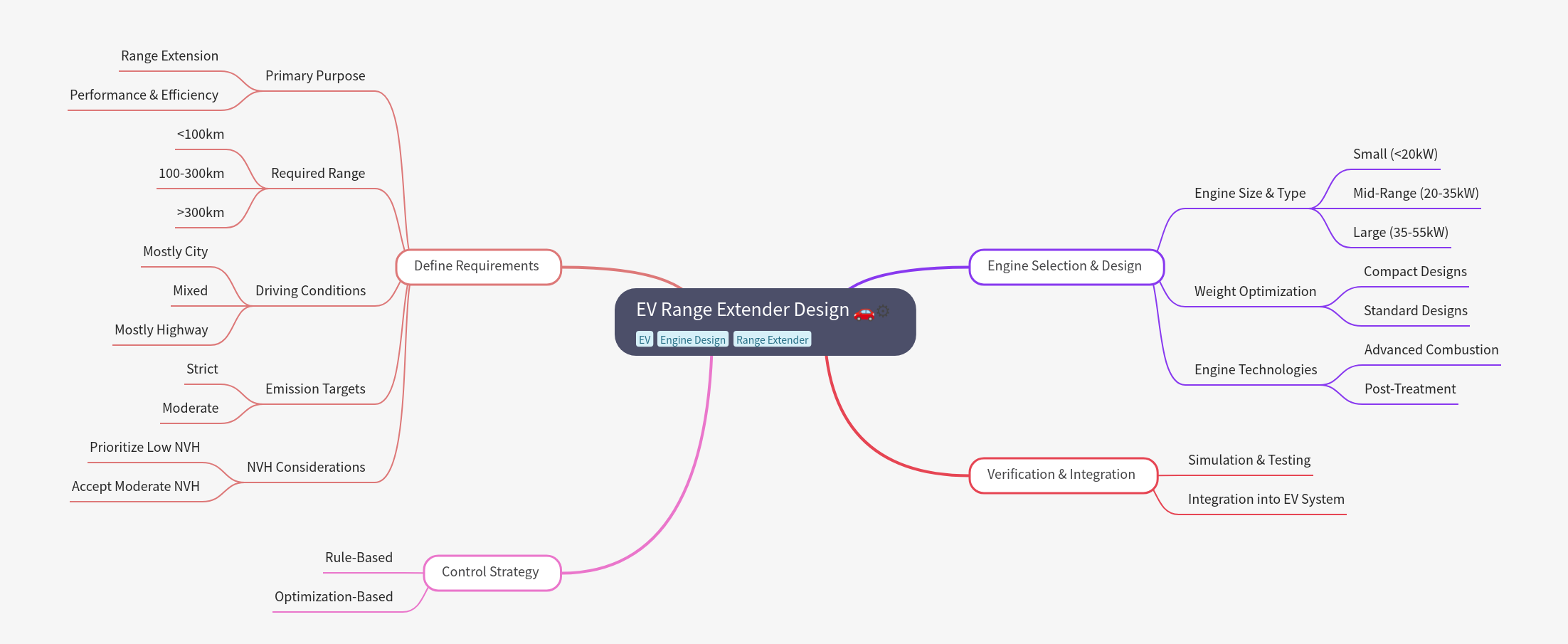

EV Range Extender Design Principles
An EV range extender is a compact internal combustion engine designed to generate electricity, thereby extending an electric vehicle's driving range. It functions by charging the battery when its state of charge falls below a predetermined level, rather than directly powering the wheels. This system effectively mitigates range anxiety, enhances overall vehicle efficiency, and contributes to reduced emissions by optimizing the engine's operation specifically for power generation.
Key Takeaways
Define precise requirements for range, driving conditions, and emissions.
Select appropriate engine size and technology for optimal performance.
Implement intelligent control strategies to maximize efficiency.
Thoroughly verify and seamlessly integrate the system into the EV.
What Key Requirements Guide EV Range Extender Design?
Designing an effective EV range extender necessitates a meticulous definition of its operational requirements, as these foundational specifications dictate every subsequent engineering and development decision. This crucial initial phase establishes the primary purpose, determining if it solely extends range or also enhances overall vehicle performance. Understanding the specific required driving range, from under 100 kilometers to over 300 kilometers, is paramount for appropriately sizing the system. Furthermore, considering typical driving conditions, such as city, mixed, or highway use, helps optimize the extender's operational profile. Emission targets, whether stringent or moderate, profoundly influence engine technology choices, while NVH (Noise, Vibration, and Harshness) considerations determine the necessary refinement for passenger comfort.
- Primary Purpose: Clearly define if the focus is solely on range extension or also on improving overall vehicle performance and efficiency.
- Required Range: Specify the target driving distance, such as less than 100km, between 100-300km, or greater than 300km, to guide system sizing.
- Driving Conditions: Tailor the design for typical usage patterns, including mostly city driving, mixed urban and highway use, or predominantly highway travel.
- Emission Targets: Adhere to specific environmental standards, ranging from strict regulations to more moderate requirements, influencing engine and exhaust choices.
- NVH Considerations: Prioritize achieving very low noise, vibration, and harshness levels for premium comfort, or accept moderate NVH depending on vehicle segment.
How is the Engine Selected and Designed for an EV Range Extender?
The meticulous selection and precise design of the internal combustion engine are pivotal for an EV range extender's success, directly influencing its efficiency, packaging, and overall vehicle performance. Engineers must carefully determine the optimal engine size and type, considering power outputs from small (<20kW) to mid-range (20-35kW) and larger (35-55kW) units, based on defined range and performance requirements. Weight optimization is a critical design imperative, favoring compact designs to minimize vehicle mass and maximize electric driving range, though standard designs may also be considered. Integrating advanced engine technologies, like sophisticated combustion processes and effective post-treatment systems, is essential for meeting stringent emission targets and ensuring environmental compliance.
- Engine Size & Type: Choose the appropriate power output, ranging from small (<20kW) for light duty, mid-range (20-35kW) for balanced performance, to large (35-55kW) for significant range extension.
- Weight Optimization: Prioritize compact designs to reduce vehicle mass and enhance electric range, or consider standard designs based on specific project needs.
- Engine Technologies: Incorporate advanced combustion techniques for improved fuel economy and robust post-treatment systems to meet strict emission regulations.
What Control Strategies Optimize Range Extender Operation?
Implementing highly effective control strategies is fundamental to optimizing the seamless and efficient operation of an EV range extender within the electric vehicle ecosystem. These sophisticated strategies precisely dictate when the range extender activates, how much electrical power it generates, and how it intelligently interacts with the battery and electric motor. Two primary approaches are commonly employed: rule-based control and optimization-based control. Rule-based systems operate on predefined thresholds and conditions, such as engaging the engine when the battery's state of charge drops below a specific percentage. Optimization-based strategies leverage complex algorithms to continuously determine the most efficient operating point, considering factors like fuel consumption, emissions, and battery health, maximizing overall system performance.
- Rule-Based: Relies on a set of predefined conditions and thresholds, such as battery state of charge or power demand, to activate and manage operation.
- Optimization-Based: Utilizes complex algorithms and real-time data to dynamically determine the most efficient operating point, considering fuel, emissions, and battery health.
How are EV Range Extenders Verified and Integrated into Vehicles?
The concluding yet critical stages of EV range extender development encompass rigorous verification and seamless integration into the broader electric vehicle system, ensuring the highest levels of reliability, safety, and optimal performance. This comprehensive process typically commences with extensive simulation and physical testing, where virtual models and prototypes undergo various operational scenarios to validate design choices and predict real-world behavior. These exhaustive tests meticulously assess every critical parameter, from power generation efficiency and fuel consumption to emissions compliance and NVH levels. Following successful verification, the range extender is carefully integrated into the EV system, connecting it to the battery, power electronics, and vehicle control unit. Proper integration guarantees efficient support for the electric powertrain.
- Simulation & Testing: Conduct comprehensive virtual modeling and physical prototype tests to validate design integrity, predict performance, and ensure compliance across various operational parameters.
- Integration into EV System: Seamlessly connect the range extender with the vehicle's high-voltage battery, power electronics, and central control unit to ensure harmonious and efficient operation within the electric powertrain.
Frequently Asked Questions
What is the primary purpose of an EV range extender?
Its main goal is to extend the electric vehicle's driving range by generating electricity to recharge the battery, thereby alleviating range anxiety and improving overall vehicle utility.
What factors influence engine selection for a range extender?
Key factors include the required power output (engine size), the necessity for weight optimization, and the integration of advanced engine technologies for efficiency and emissions control.
How do control strategies impact range extender performance?
Control strategies, whether rule-based or optimization-based, dictate precisely when and how the range extender operates, directly influencing fuel efficiency, emissions, and overall system performance.
