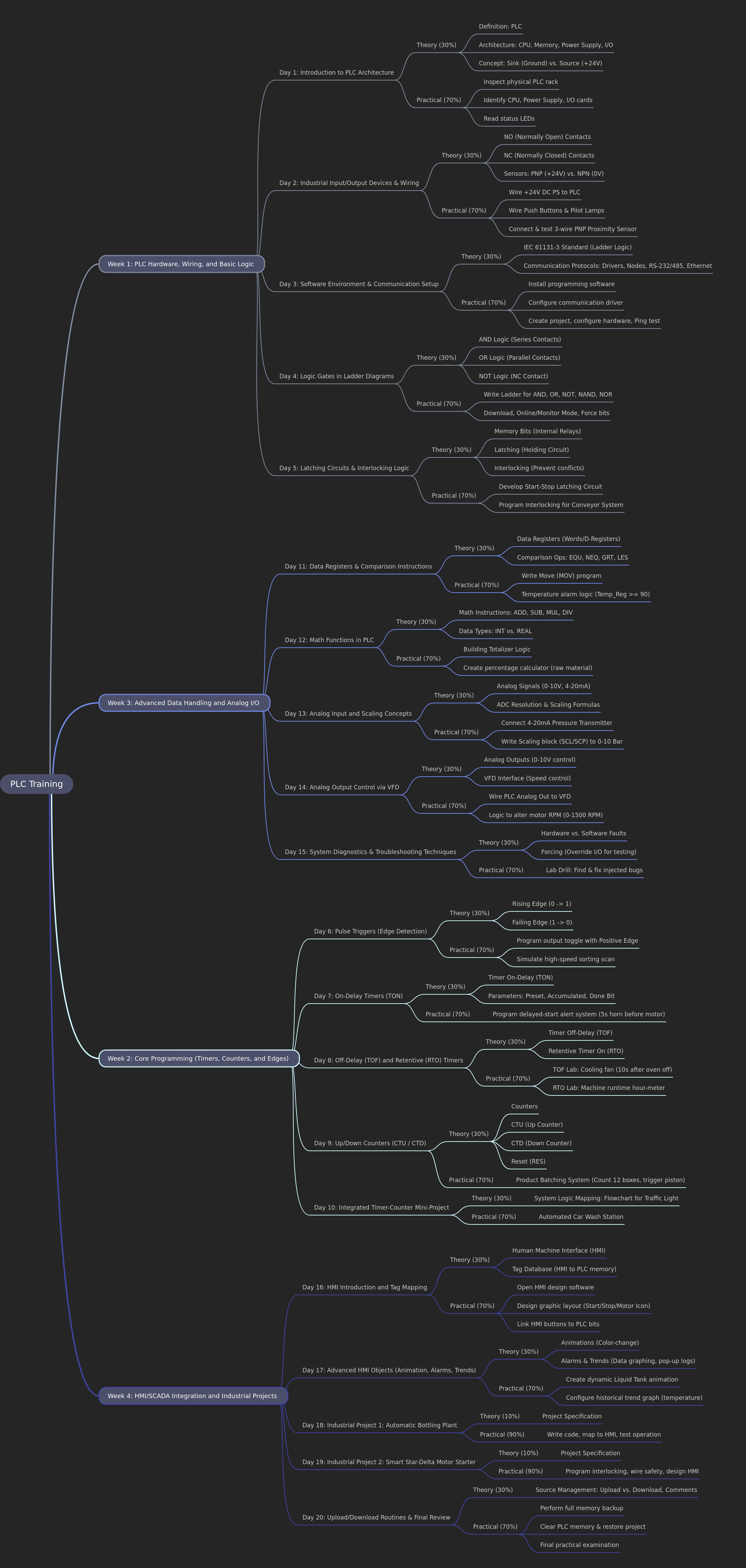

20-Day PLC Training Syllabus
This 20-day PLC training syllabus provides a comprehensive curriculum for industrial automation. It covers fundamental PLC hardware, wiring, and basic logic, progressing to advanced programming with timers, counters, and data handling. The program also integrates analog I/O, HMI/SCADA, and troubleshooting, ensuring practical skills for real-world PLC system implementation and management.
Key Takeaways
Master PLC hardware, wiring, and basic logic fundamentals.
Learn core programming: timers, counters, and edge detection.
Understand advanced data handling and analog I/O scaling.
Integrate HMI/SCADA for system control and visualization.
Develop practical troubleshooting skills for industrial PLCs.
What are the foundational elements of PLC systems and their basic logic?
Understanding the foundational elements of PLC systems begins with grasping their architecture, including the CPU, memory, power supply, and I/O modules, alongside crucial concepts like sink versus source wiring. Trainees learn to identify and wire industrial input/output devices such as normally open/closed contacts, push buttons, pilot lamps, and PNP/NPN sensors, ensuring proper physical connections. The curriculum then progresses to setting up the software environment, configuring communication protocols like RS-232/485 and Ethernet, and establishing a connection to the PLC. Participants gain proficiency in implementing basic logic gates—AND, OR, NOT—using ladder diagrams, and advance to developing essential control circuits like latching mechanisms and interlocking logic to prevent operational conflicts, crucial for systems such as conveyor controls. This initial week provides a robust practical base for all subsequent PLC programming.
- Introduction to PLC architecture, components, and fundamental wiring concepts.
- Wiring and testing industrial input/output devices, including various sensors.
- Setting up PLC programming software and establishing communication links.
- Implementing basic logic gates (AND, OR, NOT) using ladder diagrams.
- Developing latching circuits and interlocking logic for safe operation.
How are timers, counters, and edge detection utilized in core PLC programming?
Core PLC programming extensively utilizes timers, counters, and edge detection to manage sequential and event-driven processes. Participants first learn to implement pulse triggers, such as rising and falling edges, which are vital for detecting momentary changes and controlling outputs precisely, as seen in high-speed sorting applications. The syllabus then delves into various timer types: On-Delay (TON) for delayed actions, Off-Delay (TOF) for maintaining output after input removal, and Retentive (RTO) for accumulating time across power cycles, essential for tasks like cooling fan control or machine runtime tracking. Concurrently, up and down counters (CTU/CTD) are mastered for batching and counting applications. The week culminates in an integrated mini-project, like an automated car wash station, applying these combined concepts to solve a practical industrial challenge.
- Implementing pulse triggers (rising/falling edge) for precise event detection.
- Utilizing On-Delay (TON) timers for delayed actions and sequencing.
- Applying Off-Delay (TOF) and Retentive (RTO) timers for specific control scenarios.
- Programming Up/Down Counters (CTU/CTD) for batching and counting tasks.
- Developing integrated projects combining timers and counters for complex automation.
What advanced data handling and analog I/O techniques are crucial for PLC systems?
Advanced data handling and analog I/O techniques are fundamental for sophisticated PLC control. This week introduces data registers and comparison instructions (EQU, NEQ, GRT, LES) for managing and evaluating numerical values, enabling logic like temperature alarm systems. Participants then master essential math functions (ADD, SUB, MUL, DIV) and understand data types (INT vs. REAL) to build applications such as totalizers or percentage calculators. A significant focus is placed on analog input and scaling concepts, covering signals like 0-10V and 4-20mA, and applying scaling formulas to convert raw sensor data into meaningful engineering units, exemplified by pressure transmitter integration. Analog output control, particularly with Variable Frequency Drives (VFDs) for motor speed regulation, is also covered. The week concludes with critical system diagnostics and troubleshooting methodologies, including forcing I/O, to effectively identify and resolve injected faults.
- Utilizing data registers and comparison instructions for data evaluation.
- Implementing math functions (ADD, SUB, MUL, DIV) for calculations.
- Understanding analog input signals (0-10V, 4-20mA) and scaling techniques.
- Controlling analog outputs, such as VFDs, for precise speed regulation.
- Developing skills in system diagnostics and troubleshooting hardware/software faults.
How are HMI/SCADA systems integrated with PLCs for industrial control and visualization?
Integrating HMI/SCADA systems with PLCs is crucial for modern industrial control, providing intuitive operator interfaces and comprehensive system visualization. This final week begins with an introduction to Human Machine Interfaces (HMI), focusing on tag database creation to link HMI elements with PLC memory addresses, and designing basic graphic layouts for control functions like start/stop buttons. Participants then explore advanced HMI objects, including dynamic animations, alarm configurations for critical events, and historical trend graphing for data analysis, such as monitoring liquid tank levels or temperature trends. The curriculum culminates in two significant industrial projects: an automatic bottling plant and a smart star-delta motor starter, where trainees apply all learned skills—programming, interlocking, safety wiring, and HMI design—to real-world scenarios. The training concludes with essential routines for PLC memory backup, project restoration, and a final practical examination, ensuring readiness for industrial deployment.
- Introducing HMI concepts and mapping tags between HMI and PLC.
- Designing advanced HMI objects like animations, alarms, and trend graphs.
- Implementing an automatic bottling plant project, integrating PLC and HMI.
- Developing a smart star-delta motor starter with interlocking and HMI.
- Mastering PLC upload/download routines, memory backup, and project restoration.
Frequently Asked Questions
What is the primary focus of this 20-day PLC training program?
The program focuses on providing comprehensive practical skills in PLC systems, from fundamental hardware and wiring to advanced programming, analog I/O, HMI/SCADA integration, and troubleshooting for industrial automation.
What kind of practical experience can I expect from this syllabus?
You will gain extensive hands-on experience through 70% practical sessions daily, including wiring industrial devices, programming various logic, timers, and counters, scaling analog signals, and completing two full industrial projects with HMI integration.
Does the training cover both basic and advanced PLC programming concepts?
Yes, the syllabus progresses from basic logic gates and latching circuits to advanced topics like data registers, math functions, analog I/O scaling, and the integration of Human Machine Interfaces (HMI) for complex industrial control.
