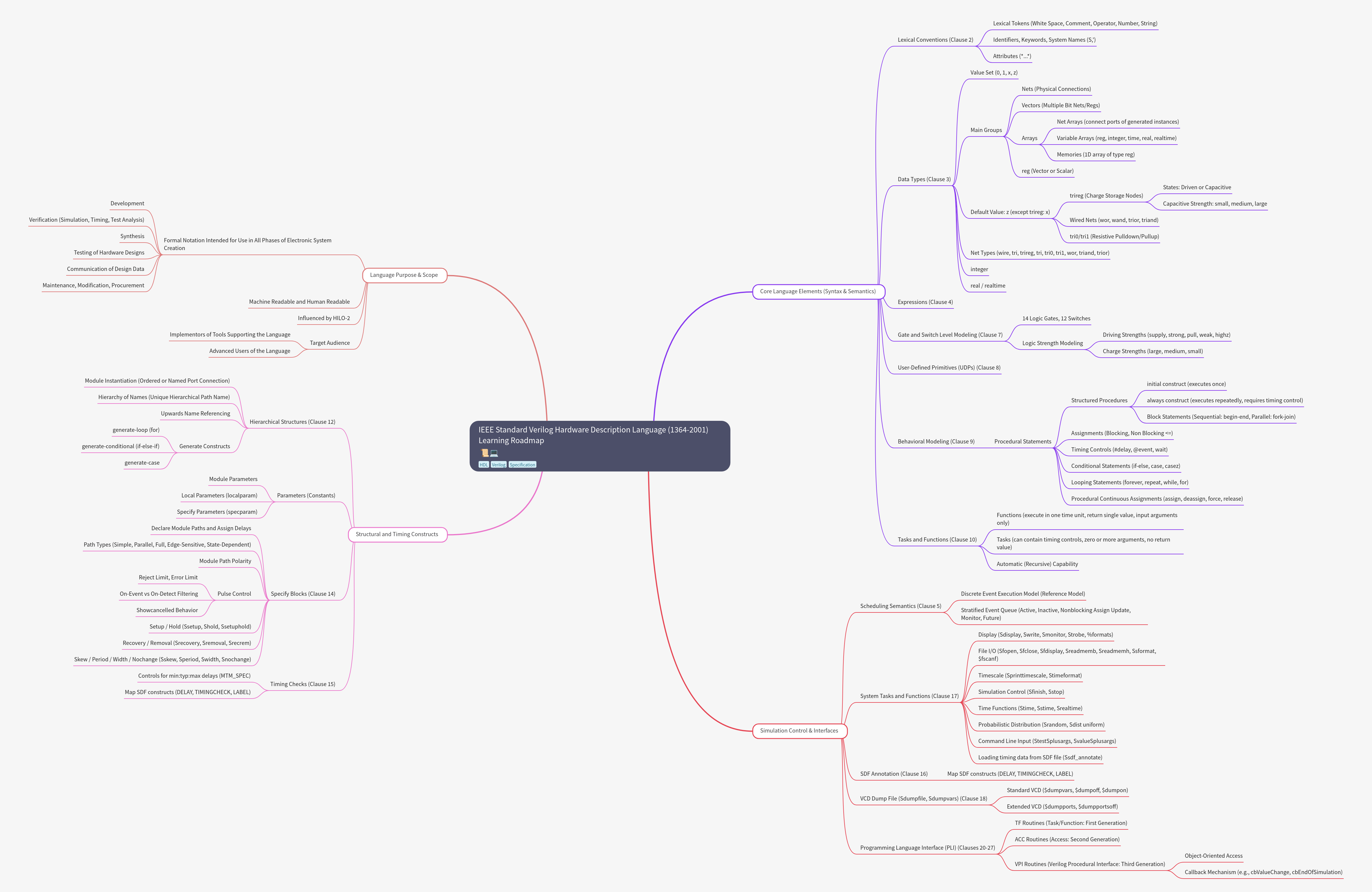

IEEE Verilog HDL (1364-2001) Standard Learning Roadmap
The IEEE Standard Verilog HDL (1364-2001) defines a formal notation used across all phases of electronic system creation, from development and verification to synthesis and testing. It serves as a machine-readable and human-readable language for communicating design data, establishing the core syntax, data types, behavioral modeling, and simulation control mechanisms necessary for modern hardware design.
Key Takeaways
Verilog is essential for all phases of electronic system creation, including synthesis and testing.
The standard defines core elements like lexical conventions and the four-value data set (0, 1, x, z).
Behavioral modeling uses procedural statements like initial and always constructs for logic definition.
Structural constructs manage hierarchy, parameters, and precise timing specifications via specify blocks.
Simulation relies on a stratified event queue and system tasks for I/O and control.
The Programming Language Interface (PLI) allows external code integration for advanced verification.
What is the purpose and scope of the IEEE Verilog HDL standard?
The IEEE Verilog Hardware Description Language (1364-2001) provides a formal notation intended for use throughout the entire electronic system creation lifecycle. This standard ensures that designs are both machine-readable for tools and human-readable for collaboration among engineers. Its scope encompasses crucial activities such as development, verification, synthesis, and testing of hardware designs. Furthermore, Verilog facilitates the communication of design data and supports long-term maintenance, modification, and procurement processes, building upon influences from earlier languages like HILO-2. Understanding this scope is vital for tool implementors and advanced users seeking to leverage the language effectively across complex projects.
- Formal Notation Intended for Use in All Phases of Electronic System Creation.
- Designed to be Machine Readable and Human Readable for documentation and tool processing.
- Influenced by the earlier hardware description language HILO-2.
- Target Audience includes Implementors of Tools Supporting the Language and Advanced Users of the Language.
What are the core syntax and semantic elements of the Verilog language?
The core language elements define the fundamental syntax and semantics necessary for writing functional Verilog code, starting with lexical conventions that govern how tokens, identifiers, and attributes are structured (Clause 2). Data types are central (Clause 3), utilizing a four-value set (0, 1, x, z) and categorizing elements into nets (physical connections) and registers (`reg`). Modeling can occur at the gate and switch level (Clause 7), defining logic strengths, or through behavioral modeling (Clause 9) using procedural statements like `initial` and `always` blocks. Expressions (Clause 4) define operations, while User-Defined Primitives (UDPs) (Clause 8) allow for custom logic definitions, ensuring comprehensive design capability.
- Lexical Conventions (Clause 2) define tokens, identifiers, keywords, system names, and attributes.
- Data Types (Clause 3) include the four-value set (0, 1, x, z), nets, vectors, arrays, and registers.
- Expressions (Clause 4) define how values are computed and manipulated within the design.
- Gate and Switch Level Modeling (Clause 7) specifies 14 logic gates and 12 switches, along with logic strength modeling.
- User-Defined Primitives (UDPs) (Clause 8) allow designers to create custom logic blocks.
- Behavioral Modeling (Clause 9) utilizes procedural statements, assignments, timing controls, and looping statements.
- Tasks and Functions (Clause 10) provide modularity, supporting automatic (recursive) capability.
How are structural hierarchy and timing specified in Verilog HDL?
Structural and timing constructs manage the organization and performance characteristics of the hardware design, ensuring accurate representation of physical circuits. Hierarchy is established through module instantiation (Clause 12), allowing for unique path names and upwards name referencing. Parameters define constants at the module level, while `generate` constructs enable conditional or looped instantiation of structures, promoting reusable code. Crucially, `specify` blocks (Clause 14) are used to declare module paths and assign precise timing delays, enabling detailed timing checks (Clause 15) like setup, hold, recovery, and removal, which are vital for accurate simulation and synthesis results across different delay specifications.
- Hierarchical Structures (Clause 12) are built via module instantiation, hierarchy of names, and generate constructs.
- Parameters define constants, including Module Parameters, Local Parameters (`localparam`), and Specify Parameters (`specparam`).
- Specify Blocks (Clause 14) declare module paths, assign delays, and define path types (Simple, Parallel, Full).
- Timing Checks (Clause 15) control minimum, typical, and maximum delays (MTM_SPEC) and map SDF constructs.
What mechanisms control simulation execution and external interfaces in Verilog?
Simulation control is fundamentally managed by the scheduling semantics (Clause 5), which rely on a discrete event execution model and a stratified event queue (Active, Inactive, Nonblocking Update, Monitor, Future) to manage event ordering precisely. System tasks and functions (Clause 17) provide essential utilities for display, file I/O, and simulation control, such as `$finish` and `$stop`. External interfaces are handled by the Programming Language Interface (PLI) (Clauses 20-27), which has evolved through generations (TF, ACC, VPI) to allow external C/C++ code to interact with the simulation kernel. This enables advanced verification, debugging, and the loading of timing data via SDF Annotation (Clause 16) for comprehensive analysis.
- Scheduling Semantics (Clause 5) define the Discrete Event Execution Model and the Stratified Event Queue.
- System Tasks and Functions (Clause 17) manage display, file I/O, timescale settings, simulation control, and time functions.
- SDF Annotation (Clause 16) maps timing data constructs (DELAY, TIMINGCHECK, LABEL) from Standard Delay Format files.
- VCD Dump File (Clause 18) commands (`$dumpvars`, `$dumpports`) record simulation waveforms for post-processing analysis.
- Programming Language Interface (PLI) (Clauses 20-27) provides routines (TF, ACC, VPI) for external language integration, including object-oriented access and callback mechanisms.
Frequently Asked Questions
What is the primary difference between a Verilog task and a function?
Functions must execute in a single time unit, return a single value, and only accept input arguments. Tasks, conversely, can contain timing controls, accept zero or more arguments (input, output, inout), and do not return a value directly, making them suitable for complex procedures.
What are the four values in the Verilog value set?
The Verilog value set consists of four states: 0 (logic low), 1 (logic high), x (unknown logic value), and z (high impedance). These values are fundamental for accurately modeling the behavior and indeterminate states of digital circuits during simulation.
What is the purpose of a specify block?
Specify blocks are used to declare module paths and assign precise timing delays within a design. They are crucial for defining timing constraints, such as setup, hold, and skew checks, necessary for accurate gate-level simulation and timing verification.
