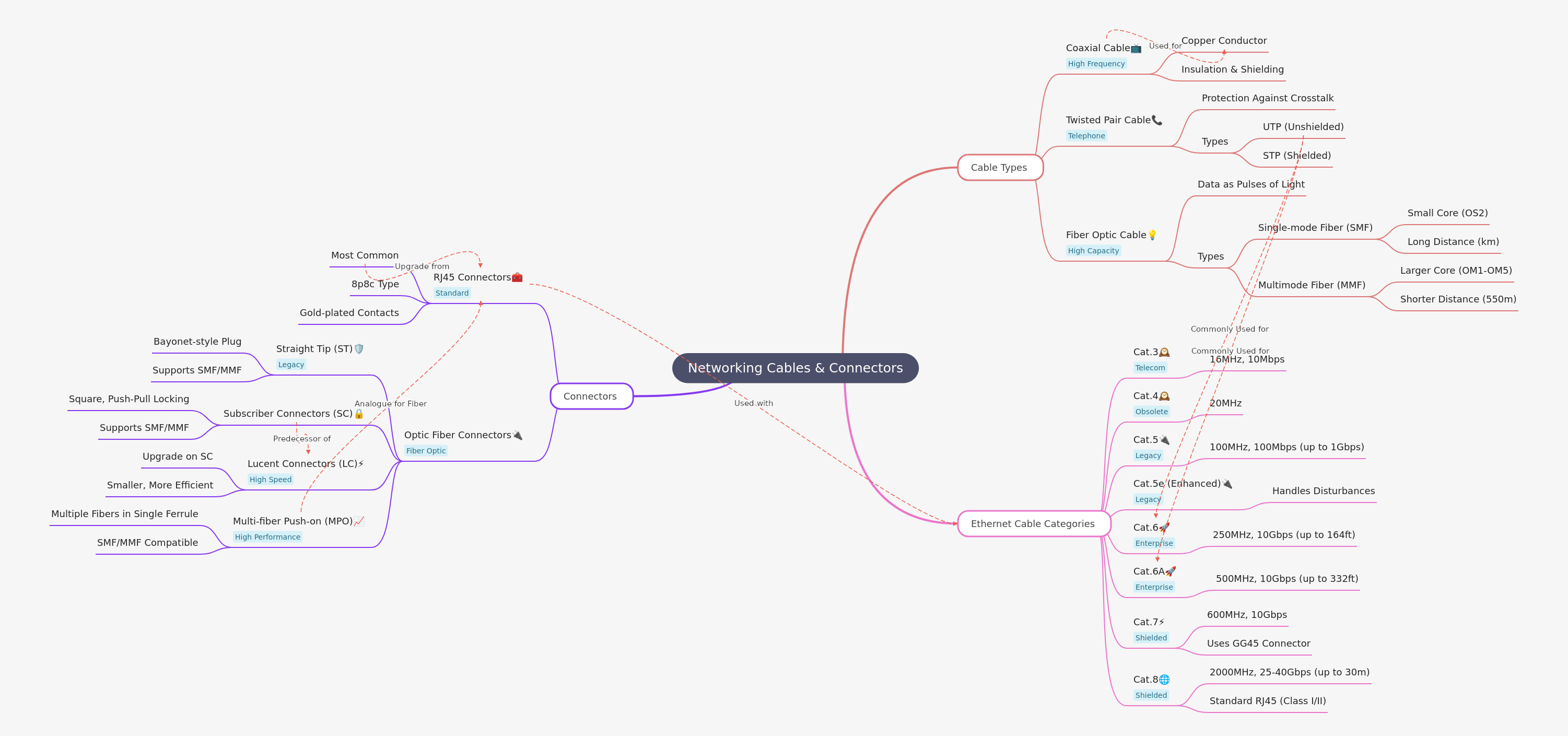

Networking Cables & Connectors Guide
Networking cables and connectors are fundamental components that enable data transmission across networks. They define the physical medium and connection points, determining network speed, reliability, and distance capabilities. Understanding different cable types like coaxial, twisted pair, and fiber optic, alongside various Ethernet categories and connector standards, is crucial for designing and maintaining efficient network infrastructures.
Key Takeaways
Diverse cable types (coaxial, twisted pair, fiber optic) offer distinct performance for specific network needs.
Ethernet cable categories (Cat.3 to Cat.8) dictate network speed, frequency, and distance capabilities.
Connectors like RJ45 and various fiber optic types ensure reliable physical network links are established.
Selecting appropriate cables and connectors is crucial for optimal network performance and reliability.
Fiber optics provide high capacity for long distances, while copper suits shorter, cost-effective runs.
What are the primary types of networking cables and their specific applications?
Networking cables are the foundational elements for data transmission, each engineered with distinct characteristics for various network environments and performance requirements. Coaxial cables, identified by their central copper conductor and robust insulation and shielding, are excellent for high-frequency signal transmission, historically used in television and early internet systems. Twisted pair cables, a ubiquitous choice for modern Ethernet, feature pairs of wires twisted to effectively protect against crosstalk and electromagnetic interference, available in unshielded (UTP) and shielded (STP) variants. Fiber optic cables represent the pinnacle of data transfer, transmitting information as pulses of light. They offer superior speed and capacity over vast distances, making them indispensable for high-bandwidth backbones and long-haul communication infrastructure when performance and reliability are absolutely critical for operations.
- Coaxial Cable: Features a copper conductor, insulation, and shielding; excellent for high-frequency signals (📺).
- Twisted Pair Cable: Wires twisted for crosstalk protection; UTP (Unshielded) and STP (Shielded) types (📞).
- Fiber Optic Cable: Transmits data as light pulses (💡), offering high capacity and impressive speed for networks.
- Single-mode Fiber (SMF): Small core (OS2) for long distances (kilometers), supporting high-speed data.
- Multimode Fiber (MMF): Larger core (OM1-OM5) for shorter distances (550m), supporting various applications.
How do Ethernet cable categories influence network performance, speed, and distance capabilities?
Ethernet cable categories, designated by 'Cat' numbers, define crucial performance metrics like maximum frequency and data transfer rates, evolving continuously to meet escalating bandwidth demands across various applications. Older categories such as Cat.3 (10Mbps, 16MHz) and Cat.4 (20MHz) are now largely obsolete or considered legacy, primarily found in older telecom (🕰️) setups. Modern enterprise networks widely adopt Cat.6 (10Gbps up to 164ft, 250MHz) and Cat.6A (10Gbps up to 332ft, 500MHz) for robust, high-speed connectivity (🚀). For cutting-edge data centers requiring extreme performance, Cat.8 cables deliver 25-40Gbps over short distances (up to 30m) at 2000MHz, utilizing standard RJ45 connectors and offering superior shielding (🌐⚡) for critical, high-density applications.
- Cat.3: Legacy telecom (🕰️) standard, 16MHz frequency, 10Mbps data rate for basic voice communication.
- Cat.5e (Enhanced): Improved Cat.5, handles disturbances, supports up to 1Gbps, a common legacy (🔌).
- Cat.6: Enterprise-grade (🚀), 250MHz, 10Gbps up to 164ft for reliable, high-speed network connections.
- Cat.6A: Enhanced enterprise (🚀), 500MHz, 10Gbps up to 332ft for extended reach and superior performance.
- Cat.7: Shielded (⚡), 600MHz, 10Gbps, uses GG45 connector for secure, high-bandwidth network links.
- Cat.8: Shielded (⚡🌐), 2000MHz, 25-40Gbps up to 30m, uses standard RJ45 for data centers.
Which types of connectors are essential for terminating networking cables effectively?
Connectors serve as vital interfaces, ensuring secure and efficient physical connections for networking cables, whether electrical or optical, thereby enabling seamless data flow. The selection of a connector is paramount, depending on the cable type and the network's specific performance and density requirements. RJ45 connectors are the industry standard (🧰) for Ethernet twisted pair cables, characterized by their 8p8c type design and gold-plated contacts for reliable conductivity. For fiber optic cables, a diverse range of specialized connectors exists, each engineered for precise fiber alignment to minimize signal loss. These include legacy ST, common SC, compact LC for high-speed (⚡) applications, and high-performance (📈) MPO connectors, which serve as a multi-fiber analogue to RJ45 for data center environments.
- RJ45 Connectors: Most common (🧰) for Ethernet, 8p8c type, gold-plated contacts, standard for twisted pair.
- Straight Tip (ST): A legacy (🛡️) fiber optic connector with bayonet-style plug, supporting SMF/MMF.
- Subscriber Connectors (SC): Features a square, push-pull locking (🔒) mechanism, widely used for SMF/MMF.
- Lucent Connectors (LC): A smaller, more efficient (⚡) upgrade from SC, favored for high-density, high-speed fiber.
- Multi-fiber Push-on (MPO): High-performance (📈) connector, multiple fibers in single ferrule, SMF/MMF compatible.
Frequently Asked Questions
What is the primary functional difference between Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP) cables, and when is each type typically preferred in networking environments?
UTP (Unshielded Twisted Pair) cables lack shielding, making them more susceptible to interference. STP (Shielded Twisted Pair) cables include metallic shielding to significantly reduce electromagnetic interference and crosstalk, offering better performance in noisy environments.
Under what specific circumstances should one choose fiber optic cables instead of traditional copper Ethernet cables for network infrastructure, considering performance and cost implications?
Choose fiber optic cables for long-distance data transmission, extremely high bandwidth requirements, or environments with significant electromagnetic interference. Copper Ethernet cables are generally more cost-effective and simpler for shorter distances and lower bandwidth needs.
Why have Ethernet cable categories evolved so much over time, and what are the key considerations for planning future network upgrades based on these advancements?
Ethernet cable categories evolved to meet increasing demands for network speed and bandwidth. Each new category supports higher frequencies and data rates, ensuring compatibility with faster networking technologies and future-proofing installations for improved performance and reliability.
