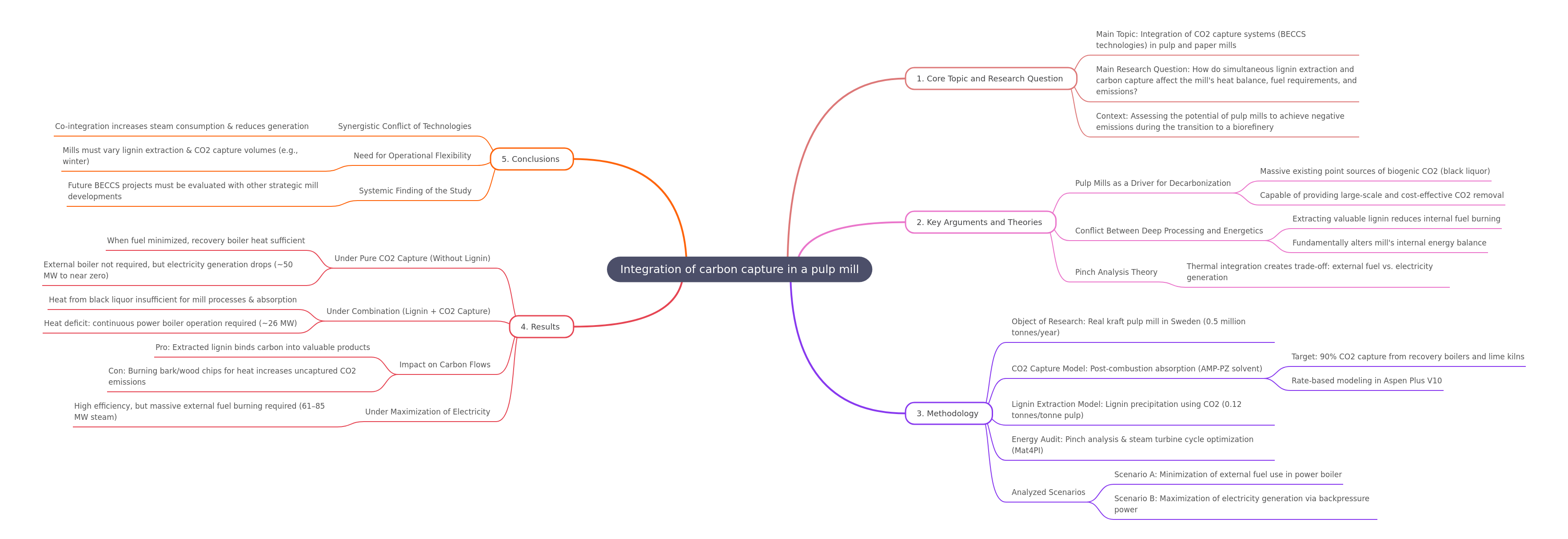

Featured Mind map
Integrating Carbon Capture in Pulp Mills
Integrating carbon capture and lignin extraction in pulp mills significantly alters their energy balance and emissions profile. While pulp mills offer a unique opportunity for large-scale biogenic CO2 removal, combining these technologies creates a synergistic conflict. This necessitates careful operational planning to manage increased steam consumption and reduced electricity generation, ensuring sustainable transition towards biorefinery models and negative emissions.
Key Takeaways
Pulp mills are ideal for large-scale biogenic CO2 capture.
Lignin extraction and CO2 capture conflict energetically.
Combined processes increase steam demand, reduce power output.
Operational flexibility is crucial for successful co-integration.
Future BECCS projects need holistic mill development evaluation.
What is the core focus of integrating carbon capture in pulp mills?
The central focus of this research is to meticulously analyze the intricate integration of advanced CO2 capture systems, specifically Bioenergy with Carbon Capture and Storage (BECCS) technologies, within the operational framework of existing pulp and paper mills. This study primarily investigates the profound impact of simultaneously implementing lignin extraction and carbon capture on a mill's critical heat balance, its overall fuel requirements, and its environmental emissions profile. The broader, overarching context of this investigation is to thoroughly assess the substantial potential for pulp mills to achieve genuine negative carbon emissions, thereby positioning them as pivotal contributors in the global transition towards a sustainable biorefinery model. Understanding these complex, interconnected interactions is absolutely vital for optimizing future industrial decarbonization strategies effectively.
- Main Topic: Integrating CO2 capture (BECCS) systems into pulp and paper mills.
- Research Question: How simultaneous lignin extraction and carbon capture affect mill heat balance, fuel needs, and emissions.
- Context: Assessing pulp mills' potential for achieving negative emissions during the transition to a biorefinery.
Why are pulp mills considered crucial for global decarbonization efforts?
Pulp mills are widely recognized as crucial for global decarbonization efforts primarily because they represent massive, concentrated point sources of biogenic CO2, largely originating from the combustion of black liquor. This inherent characteristic makes them uniquely positioned to provide large-scale and highly cost-effective carbon dioxide removal solutions. However, a significant and inherent conflict emerges between deep processing activities, such as the extraction of valuable lignin, and the mill's internal energetics. Extracting lignin directly reduces the amount of internal fuel available for burning, which fundamentally alters the mill's delicate internal energy balance. Furthermore, Pinch Analysis Theory illuminates this challenge by demonstrating that thermal integration inevitably creates a critical trade-off between the consumption of external fuel and the generation of internal electricity, thereby complicating optimal decarbonization pathways.
- Pulp mills are massive biogenic CO2 sources, offering large-scale, cost-effective carbon removal.
- Lignin extraction reduces internal fuel, fundamentally altering the mill's energy balance.
- Pinch analysis highlights a trade-off between external fuel use and internal electricity generation.
How was the integration of carbon capture and lignin extraction rigorously studied?
The rigorous study of carbon capture and lignin extraction integration was conducted using a detailed model of a real kraft pulp mill located in Sweden, which boasts an annual production capacity of 0.5 million tonnes. The methodology incorporated a sophisticated CO2 capture model based on post-combustion absorption, utilizing an AMP-PZ solvent, with an ambitious target of 90% CO2 capture from both recovery boilers and lime kilns, meticulously modeled using Aspen Plus V10 software. Concurrently, a lignin extraction model simulated the process of lignin precipitation using CO2, achieving a yield of 0.12 tonnes per tonne of pulp. An exhaustive energy audit, employing Pinch analysis and advanced steam turbine cycle optimization with Mat4PI software, was performed to assess energy flows comprehensively. Two distinct scenarios were thoroughly analyzed: one focused on minimizing external fuel use in the power boiler, and the other on maximizing electricity generation via backpressure power.
- Research Object: A real Swedish kraft pulp mill, producing 0.5 million tonnes of pulp annually.
- CO2 Capture Model: Post-combustion absorption (AMP-PZ solvent), targeting 90% capture from key sources.
- Lignin Extraction Model: CO2 precipitation method, yielding 0.12 tonnes of lignin per tonne of pulp.
- Energy Audit: Utilized Pinch analysis and steam turbine cycle optimization (Mat4PI) for comprehensive assessment.
- Analyzed Scenarios: Minimizing external fuel consumption versus maximizing internal electricity generation.
What were the significant findings regarding combined CO2 capture and lignin extraction?
The study yielded several significant findings concerning the combined integration of CO2 capture and lignin extraction. Under a scenario of pure CO2 capture without lignin extraction, minimizing external fuel proved feasible as recovery boiler heat was sufficient, thereby eliminating the need for an external boiler; however, electricity generation plummeted dramatically from approximately 50 MW to near zero. When lignin extraction was combined with CO2 capture, the heat derived from black liquor became critically insufficient for both the mill's core processes and the energy-intensive absorption unit, resulting in a continuous heat deficit that necessitated approximately 26 MW from a power boiler. Regarding carbon flows, while the extracted lignin effectively binds carbon into valuable products, the compensatory burning of bark or wood chips for heat paradoxically increased uncaptured CO2 emissions. Furthermore, maximizing electricity generation, though highly efficient, demanded a massive and unsustainable external fuel burning, requiring between 61 and 85 MW of steam.
- Pure CO2 Capture: Fuel minimization possible, but electricity generation drops significantly (50 MW to near zero).
- Combined Lignin + CO2 Capture: Black liquor heat insufficient, requiring continuous 26 MW power boiler operation.
- Carbon Flow Impact: Lignin binds carbon, yet burning biomass for heat increases uncaptured CO2 emissions.
- Maximizing Electricity: Achieves high efficiency but demands substantial external fuel consumption (61–85 MW steam).
What are the overarching conclusions for integrating carbon capture in pulp mills?
The overarching conclusions underscore a profound synergistic conflict when co-integrating lignin extraction and CO2 capture technologies within pulp mills. This complex co-integration demonstrably increases the mill's overall steam consumption while simultaneously reducing its internal electricity generation capacity, presenting a multifaceted operational challenge. The study emphatically highlights a critical need for enhanced operational flexibility, suggesting that mills must develop the capability to dynamically vary both lignin extraction and CO2 capture volumes, for instance, by adjusting to seasonal demands such as those experienced during winter months. A crucial systemic finding emphasizes that all future Bioenergy with Carbon Capture and Storage (BECCS) projects must not be evaluated in isolation; instead, they require comprehensive assessment in conjunction with other strategic mill developments to ensure a truly holistic, sustainable, and economically viable approach to industrial decarbonization.
- Co-integration creates a synergistic conflict: increased steam consumption and reduced electricity generation.
- Operational flexibility is paramount, requiring dynamic adjustment of extraction and capture volumes.
- Future BECCS projects demand holistic evaluation alongside other strategic mill developments for sustainability.
Frequently Asked Questions
What is BECCS technology in the context of pulp mills?
BECCS, or Bioenergy with Carbon Capture and Storage, in pulp mills involves capturing biogenic CO2 emissions, primarily from burning black liquor, and then storing them permanently. This process is crucial for achieving negative emissions by actively removing carbon dioxide from the atmosphere, contributing to climate change mitigation efforts.
How does lignin extraction impact a pulp mill's energy balance?
Lignin extraction significantly impacts a pulp mill's energy balance by removing a key internal fuel source from the black liquor. This reduction in available internal fuel fundamentally alters the mill's energy profile, often leading to increased reliance on external fuel sources or a notable decrease in its internal electricity generation capacity.
What is the 'synergistic conflict' identified when combining these technologies?
The 'synergistic conflict' arises when lignin extraction and CO2 capture are integrated. While individually beneficial, their combined effect leads to increased steam consumption within the mill and a simultaneous reduction in internal electricity generation. This creates operational challenges, requiring careful management of energy resources.
