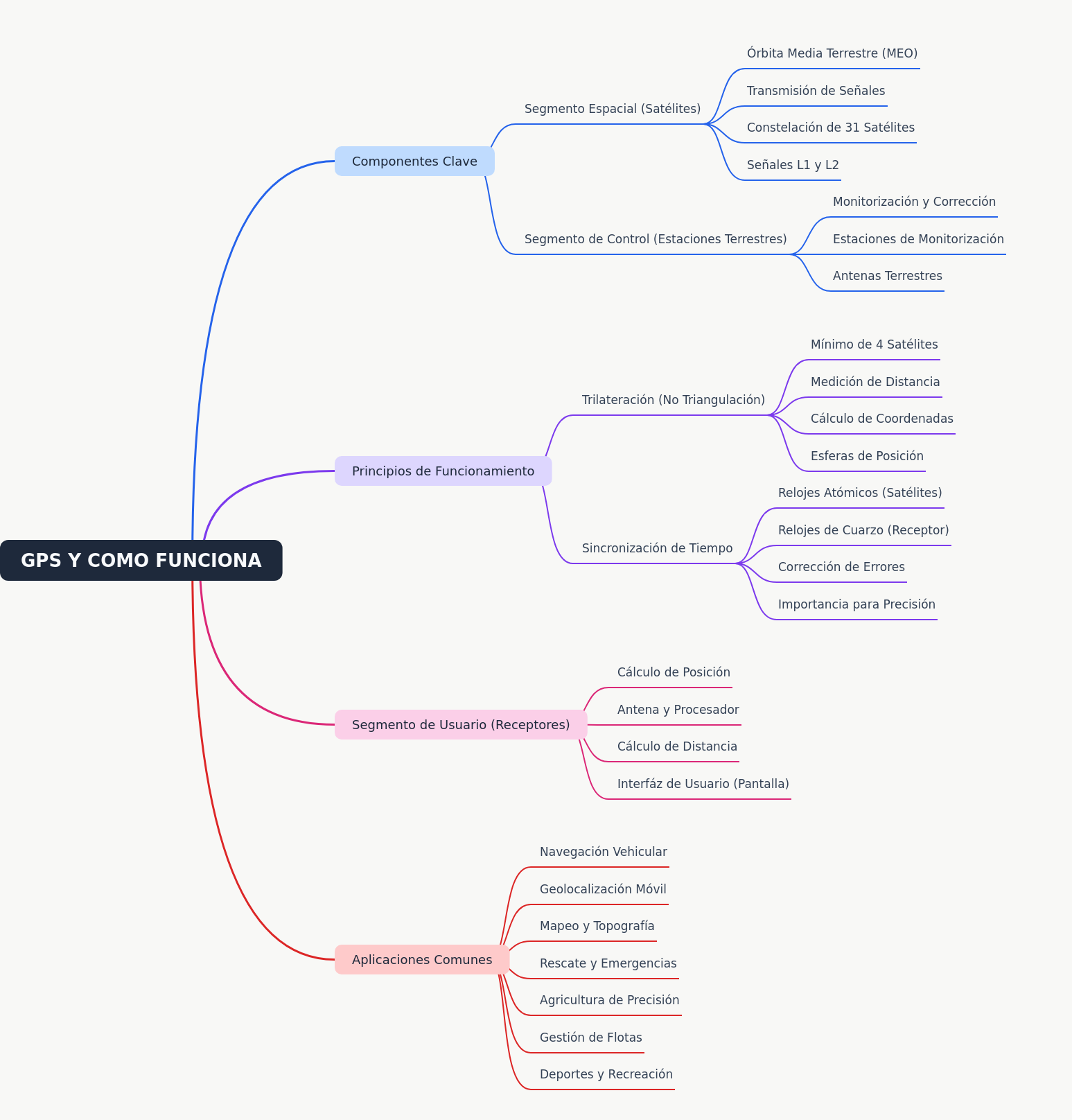

Understanding GPS: How Global Positioning Systems Function
The Global Positioning System (GPS) operates by using a network of satellites orbiting Earth to transmit precise timing signals. Receivers on the ground measure the time difference from at least four satellites to calculate their exact position through a process called trilateration. This intricate synchronization and distance measurement enable accurate geolocation for various applications, from navigation to emergency services.
Key Takeaways
GPS relies on three segments: space, control, and user.
Trilateration, not triangulation, determines location using satellite signals.
Precise atomic clocks on satellites are crucial for accuracy.
A minimum of four satellites is needed for 3D position calculation.
GPS supports diverse applications, from navigation to precision agriculture.
What are the key components that make up the Global Positioning System?
The Global Positioning System (GPS) operates through the seamless integration of three distinct yet interdependent segments: the Space Segment, the Control Segment, and the User Segment. The Space Segment is comprised of a constellation of 31 active satellites orbiting Earth in Medium Earth Orbit (MEO), continuously broadcasting precise timing and navigational data. These satellites transmit signals, notably L1 and L2, which carry the information necessary for position calculation. The Control Segment, managed by a global network of ground stations, meticulously monitors the satellites' health, orbital paths, and clock accuracy, uploading necessary corrections to maintain system integrity. Finally, the User Segment consists of the GPS receivers, ranging from handheld devices to integrated vehicle systems, which receive and process these satellite signals to compute and display a user's exact location. This intricate collaboration ensures the robust and reliable delivery of GPS services worldwide.
- Space Segment: 31 satellites in Medium Earth Orbit (MEO) transmit L1 and L2 signals.
- Control Segment: Ground stations monitor satellite health, orbits, and clock accuracy, uploading corrections.
- User Segment: Receivers process satellite signals to calculate and display precise location.
How does the Global Positioning System determine your precise location?
GPS determines precise location through a sophisticated process known as trilateration, which is distinct from triangulation. This method involves measuring the exact distance from a receiver to at least four different GPS satellites. Each satellite broadcasts a signal containing its precise orbital position and the exact time the signal was transmitted, relying on highly accurate atomic clocks. The GPS receiver, equipped with a less precise quartz clock, records the time difference between when the signal was sent and when it was received. By multiplying this time difference by the speed of light, the receiver calculates its distance from each satellite. Conceptually, each distance measurement places the receiver on the surface of an imaginary sphere centered at the satellite. The intersection of these multiple "spheres of position" from at least four satellites allows the receiver to accurately pinpoint its three-dimensional coordinates (latitude, longitude, and altitude) and synchronize its internal clock with the highly accurate satellite clocks, correcting for its own timing errors.
- Trilateration: Calculates position by measuring distances from multiple satellites, not angles.
- Distance Measurement: Determined by signal travel time multiplied by the speed of light.
- Minimum of 4 Satellites: Essential for accurate 3D position and receiver clock synchronization.
- Spheres of Position: Intersecting imaginary spheres from each satellite pinpoint the receiver's location.
- Time Synchronization: Atomic clocks on satellites ensure precision; receiver corrects its quartz clock.
What critical role do GPS receivers play in calculating your position?
GPS receivers, which constitute the User Segment, are the vital link that translates raw satellite signals into actionable location data for end-users. These devices, found in everything from smartphones to dedicated navigation units, are engineered with specialized components. An integrated antenna captures the faint radio signals continuously broadcast by the GPS satellites. A powerful internal processor then takes over, performing the complex computations required for position determination. The receiver precisely measures the time delay of each incoming signal, comparing it to its own internal clock to calculate the "pseudorange" or approximate distance to each satellite. By simultaneously processing signals from multiple satellites, typically four or more, the receiver can accurately calculate its own three-dimensional coordinates. This calculated position, along with other relevant navigational information, is then presented to the user through an intuitive interface, often a screen, enabling real-time guidance, mapping, and location-based services.
- Antenna and Processor: Capture satellite signals and perform complex calculations for position.
- Distance Calculation: Measures signal travel time to determine pseudorange from each satellite.
- Position Calculation: Computes precise 3D coordinates by processing multiple satellite signals.
- User Interface: Displays calculated location data, maps, and navigational information.
What are the diverse common applications and uses of GPS technology?
GPS technology has profoundly transformed numerous sectors, offering a vast array of common applications that extend far beyond simple navigation. In transportation, it is indispensable for vehicular navigation, guiding drivers efficiently, and for sophisticated fleet management, optimizing logistics and tracking assets. Mobile geolocation services on smartphones rely heavily on GPS, enabling location-based apps and emergency calls. For critical public safety, GPS is a cornerstone for rescue and emergency services, allowing rapid and precise location of individuals in distress or disaster zones. Industries like agriculture benefit immensely from precision farming, where GPS-guided machinery optimizes planting, spraying, and harvesting, leading to increased efficiency and yield. Furthermore, GPS is vital for detailed mapping and topography, sports and recreation tracking, and even scientific research, demonstrating its unparalleled versatility and pervasive impact across modern society by providing reliable, real-time, and highly accurate positioning data.
- Navegación Vehicular: Provides efficient routing and real-time traffic updates for drivers.
- Geolocalización Móvil: Powers location-based services and emergency features on mobile devices.
- Mapeo y Topografía: Essential for creating accurate maps and surveying land.
- Rescate y Emergencias: Facilitates rapid location and response in critical situations.
- Agricultura de Precisión: Optimizes farming operations, improving efficiency and resource use.
- Gestión de Flotas: Enables tracking, monitoring, and efficient management of vehicle fleets.
- Deportes y Recreación: Tracks performance, routes, and enhances outdoor activities.
Frequently Asked Questions
How many satellites does GPS need to function accurately?
For a precise 3D position (latitude, longitude, and altitude) and accurate time synchronization, a GPS receiver requires signals from a minimum of four satellites. This allows for robust trilateration calculations.
What is the difference between trilateration and triangulation in GPS?
GPS uses trilateration, which calculates position by measuring distances from multiple known points (satellites). Triangulation, conversely, determines position by measuring angles from known points. GPS relies on distance, not angles.
Why is time synchronization so important for GPS accuracy?
Precise time synchronization is critical because GPS calculates distance by multiplying signal travel time by the speed of light. Even tiny timing errors can lead to significant distance inaccuracies, making atomic clocks on satellites essential for high precision.
