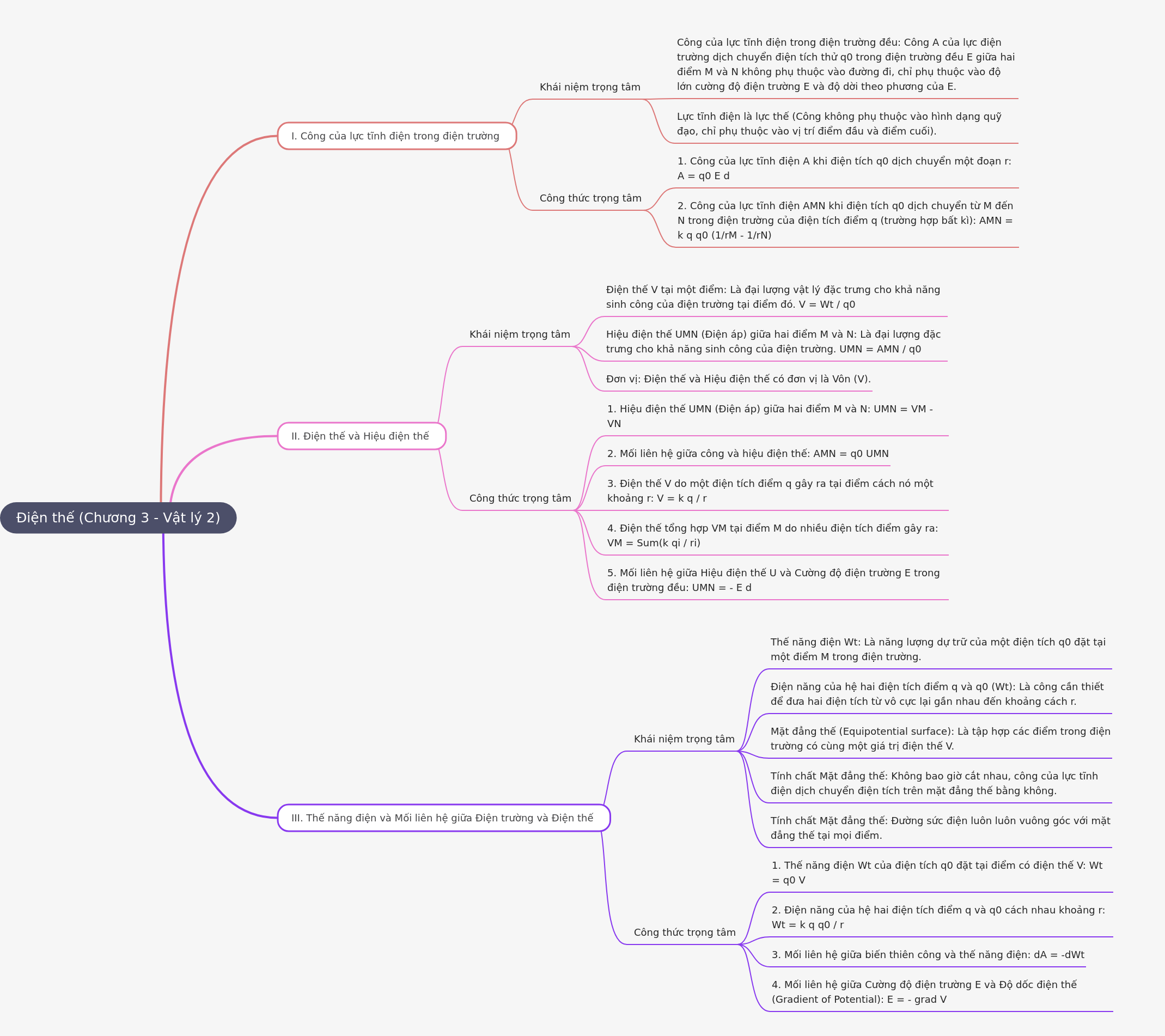

Electric Potential and Fields (Physics 2)
Electric potential quantifies an electric field's ability to do work, defining the potential energy per unit charge at a point. It is crucial for understanding how charges interact and move within electric fields, forming the basis for concepts like potential difference and electric potential energy, which are fundamental in electromagnetism.
Key Takeaways
Electrostatic work is path-independent, depending only on start and end points.
Electric potential measures an electric field's work-doing capacity.
Potential difference drives charge movement and relates to work done.
Electric potential energy is stored energy of a charge in a field.
Equipotential surfaces have constant potential and are perpendicular to field lines.
What is the Work of Electrostatic Force in an Electric Field?
The work performed by an electrostatic force within an electric field quantifies the energy transferred when a charged particle moves from one location to another. A crucial aspect of this work is its path-independent nature; the total work done depends solely on the initial and final positions of the charge, not on the specific trajectory it follows. This fundamental property classifies the electrostatic force as a conservative force, much like gravitational force. For a uniform electric field, the work is directly proportional to the charge, the electric field strength, and the displacement component parallel to the field, illustrating the energy transformations occurring within such systems.
- The work done by an electric field on a test charge (q0) moving between two points M and N is fundamentally independent of the specific path taken.
- Electrostatic force is classified as a conservative force, implying that the total work done depends exclusively on the initial and final positions of the charge.
- In a uniform electric field (E), the work (A) for a charge (q0) undergoing a displacement (d) along the field direction is precisely calculated by: A = q0 E d.
- For a point charge (q) generating the field, the work (AMN) done on a test charge (q0) moving from radial distance rM to rN is: AMN = k q q0 (1/rM - 1/rN).
How are Electric Potential and Potential Difference Defined and Calculated?
Electric potential (V) at a specific point in an electric field is a scalar quantity that characterizes the field's ability to perform work on a unit positive test charge placed at that point. It essentially represents the electric potential energy per unit charge. Potential difference (UMN), often referred to as voltage, is the difference in electric potential between two points. It quantifies the work done by the electric field per unit charge as it moves from one point to another. Both electric potential and potential difference are fundamental concepts for analyzing energy dynamics in electrical circuits and systems, with the standard unit of measurement being the Volt (V).
- Electric potential (V) at any given point is defined as the electric potential energy (Wt) per unit positive test charge (q0) at that location: V = Wt / q0.
- Potential difference (UMN), commonly known as voltage, between points M and N, represents the work (AMN) done by the electric field per unit charge (q0) as it moves: UMN = AMN / q0.
- Both electric potential and potential difference are universally measured using the standard unit of the Volt (V), a crucial unit in electrical engineering.
- The potential difference between points M and N can also be directly expressed as the algebraic difference between their individual electric potentials: UMN = VM - VN.
- The work done by the electric field on a charge is directly proportional to the charge and the potential difference it traverses: AMN = q0 UMN.
- The electric potential (V) generated by a single point charge (q) at a radial distance (r) from it is precisely calculated using the formula: V = k q / r.
- For a system comprising multiple point charges, the total electric potential (VM) at point M is the algebraic sum of the potentials contributed by each individual charge: VM = Sum(k qi / ri).
- In a uniform electric field, the relationship between the potential difference (U) and the electric field strength (E) over a distance (d) is given by: UMN = - E d.
What is Electric Potential Energy and How Does it Relate to Electric Fields and Equipotential Surfaces?
Electric potential energy (Wt) represents the stored energy of a charge (q0) due to its position within an electric field. This energy is equivalent to the work required to bring that charge from a reference point (often infinity) to its current location. For a system of two point charges (q and q0), their electric energy is the work needed to assemble them from infinite separation to a distance r. A key concept related to potential is the equipotential surface, which is a locus of points in an electric field where the electric potential is constant. These surfaces are crucial for visualizing electric fields and understanding charge movement.
- Electric potential energy (Wt) of a charge (q0) positioned at a point with electric potential (V) is precisely calculated as the product: Wt = q0 V.
- The electric energy stored within a system of two point charges (q and q0) separated by a distance (r) is given by the formula: Wt = k q q0 / r.
- Equipotential surfaces are precisely defined as the geometric loci of all points within an electric field that possess the exact same value of electric potential (V).
- A fundamental and critical property of equipotential surfaces is that they will never intersect each other, maintaining distinct potential levels.
- Crucially, no work is performed by the electrostatic force when a charged particle moves along any path that lies entirely on an equipotential surface.
- Electric field lines are always oriented perpendicularly to equipotential surfaces at every single point, clearly indicating the direction of the electric force and potential gradient.
- The relationship between an infinitesimal change in work (dA) done by the electric field and the corresponding change in electric potential energy (dWt) is expressed as: dA = -dWt.
- The electric field strength (E) is directly related to the negative gradient of the electric potential (V), indicating the direction of the steepest potential decrease: E = - grad V.
Frequently Asked Questions
What makes electrostatic force a conservative force?
Electrostatic force is conservative because the work it does on a charge moving between two points depends only on the initial and final positions, not on the specific path taken.
What is the primary difference between electric potential and potential difference?
Electric potential is the potential energy per unit charge at a single point, while potential difference is the work done per unit charge to move between two distinct points in an electric field.
What are equipotential surfaces, and why are they important?
Equipotential surfaces are imaginary surfaces where every point has the same electric potential. They are important because electric field lines are always perpendicular to them, showing the direction of the electric force.
