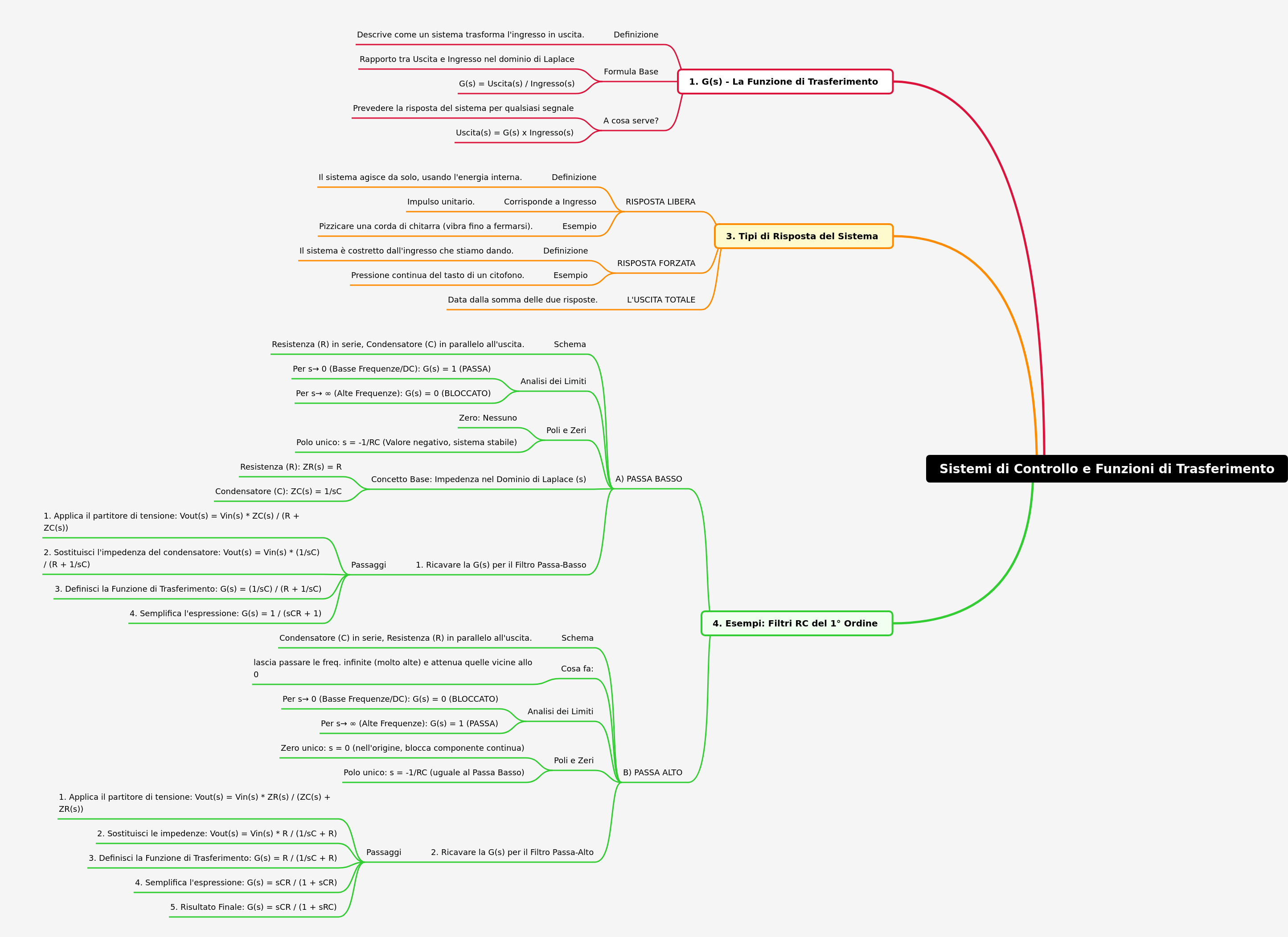

Control Systems and Transfer Functions Explained
Control systems are engineered to manage, command, direct, or regulate the behavior of other devices or systems. A transfer function, denoted as G(s), is a mathematical representation in the Laplace domain that describes how a system transforms an input signal into an output signal. It is crucial for analyzing system dynamics, predicting responses, and designing effective control strategies across various engineering disciplines.
Key Takeaways
Transfer functions (G(s)) model system input-output relationships in the Laplace domain.
Systems exhibit both free response (internal energy) and forced response (external input).
First-order RC filters demonstrate practical application of transfer function principles.
Poles and zeros of G(s) reveal system stability and frequency characteristics.
What is a Transfer Function (G(s)) in Control Systems?
A transfer function, symbolized as G(s), serves as a fundamental mathematical model in control systems, illustrating precisely how a system processes an input signal to generate a corresponding output. Expressed in the Laplace domain, it represents the ratio of the system's output to its input, assuming zero initial conditions. This powerful tool allows engineers to abstract complex physical systems into a concise algebraic form, simplifying analysis and design. By understanding G(s), one can predict a system's behavior without needing to solve intricate differential equations directly, making it indispensable for system analysis and control design. It essentially provides a blueprint of the system's dynamic characteristics, enabling precise control and optimization across various engineering applications.
- Definition and Purpose: A transfer function, G(s), precisely defines how a control system transforms an input signal into an output signal. It serves as a mathematical blueprint for understanding system dynamics and predicting behavior.
- Laplace Domain Representation: It is fundamentally expressed as the ratio of the system's output in the Laplace domain, Y(s), to its input in the Laplace domain, U(s), assuming all initial conditions are zero. This transformation simplifies complex differential equations into algebraic forms.
- Predictive Power: G(s) enables engineers to predict the system's response to any given input signal. The output in the Laplace domain, Y(s), is simply the product of the transfer function G(s) and the input U(s), i.e., Y(s) = G(s) × U(s). This relationship is crucial for system analysis and control design.
How Do Control Systems Respond to Inputs and Internal Dynamics?
Control systems exhibit two primary types of responses: free response and forced response, which together constitute the total system output. The free response describes the system's behavior driven solely by its internal energy storage elements and initial conditions, without any external input. This is akin to a system "ringing out" after an initial disturbance, gradually returning to equilibrium. Conversely, the forced response is the system's reaction directly attributable to an external input signal, compelling the system to behave in a certain way, such as maintaining a specific output. Understanding both components is vital for comprehensive system analysis, as the total output is simply their superposition. This distinction helps engineers isolate and analyze the effects of internal dynamics versus external stimuli, crucial for designing stable and predictable systems.
- Free Response (Natural Response): This component describes the system's behavior driven solely by its internal energy storage elements and initial conditions, without any external input. It represents the system's inherent tendency to return to equilibrium after a disturbance, like the decaying oscillations of a pendulum.
- Forced Response (Steady-State Response): This component represents the system's reaction directly attributable to an external input signal. It describes how the system is compelled to behave under continuous external influence, such as a motor maintaining a constant speed due to a steady voltage input.
- Total System Output: The complete output of any control system is the linear superposition of its free response and forced response. Understanding both components allows for a comprehensive analysis of system dynamics, distinguishing between transient behaviors and steady-state reactions.
How Do First-Order RC Filters Illustrate Transfer Functions in Practice?
First-order RC filters provide excellent practical examples for understanding transfer functions and their application in signal processing. These simple circuits, comprising a resistor (R) and a capacitor (C), can be configured as either low-pass or high-pass filters, each with distinct frequency response characteristics. By analyzing their transfer functions in the Laplace domain, we can predict how they will affect signals of different frequencies, from direct current (DC) to very high frequencies. The position of poles and zeros in the complex s-plane directly indicates the filter's stability and its frequency-selective behavior, allowing engineers to design circuits that pass desired frequencies while attenuating others. This practical application demonstrates the power of G(s) in real-world electronic design, from audio equalizers to communication systems, highlighting the theoretical concepts in tangible forms.
- Low-Pass Filter Configuration: This filter type consists of a resistor (R) in series with the input and a capacitor (C) in parallel across the output, designed to pass low-frequency signals while attenuating high-frequency components.
- Low-Pass Frequency Characteristics: For very low frequencies (s→0, or DC), the filter passes the signal almost entirely (G(s) approaches 1). For very high frequencies (s→∞), it effectively blocks the signal (G(s) approaches 0).
- Low-Pass Transfer Function: Its transfer function is derived as G(s) = 1 / (sCR + 1), revealing a single pole at s = -1/RC, which signifies the filter's cutoff frequency and stable operation.
- High-Pass Filter Configuration: This filter type features a capacitor (C) in series with the input and a resistor (R) in parallel across the output, purposed to pass high-frequency signals and block low-frequency components.
- High-Pass Frequency Characteristics: At very low frequencies (s→0, or DC), the filter blocks the signal (G(s) approaches 0). At very high frequencies (s→∞), it passes the signal almost entirely (G(s) approaches 1).
- High-Pass Transfer Function: Its transfer function is derived as G(s) = sCR / (1 + sCR), characterized by a pole at s = -1/RC and a zero at s = 0, which is responsible for blocking the DC component.
- Laplace Domain Impedance: The analysis of these filters heavily relies on understanding component impedances in the Laplace domain: ZR(s) = R for a resistor and ZC(s) = 1/sC for a capacitor. These are crucial for deriving the transfer functions using voltage divider rules.
- Poles and Zeros Significance: The locations of poles and zeros in the complex s-plane are fundamental. Poles determine system stability and transient response, while zeros influence the frequency response and phase characteristics, collectively defining the filter's behavior.
Frequently Asked Questions
What is the primary purpose of a transfer function G(s)?
The primary purpose of a transfer function G(s) is to mathematically describe how a control system transforms an input signal into an output signal in the Laplace domain. It helps predict system behavior and simplify complex system analysis and design processes.
What is the difference between free response and forced response in a system?
Free response is the system's behavior driven by its internal energy and initial conditions, without external input. Forced response is the system's reaction directly caused by an external input signal. Their sum gives the total system output, crucial for comprehensive analysis.
How do first-order RC filters demonstrate transfer function principles?
First-order RC filters, like low-pass and high-pass types, use resistors and capacitors to selectively pass or block frequencies. Their transfer functions G(s) illustrate how circuit components influence frequency response, stability, and signal processing in practical applications, providing tangible examples of theoretical concepts.
