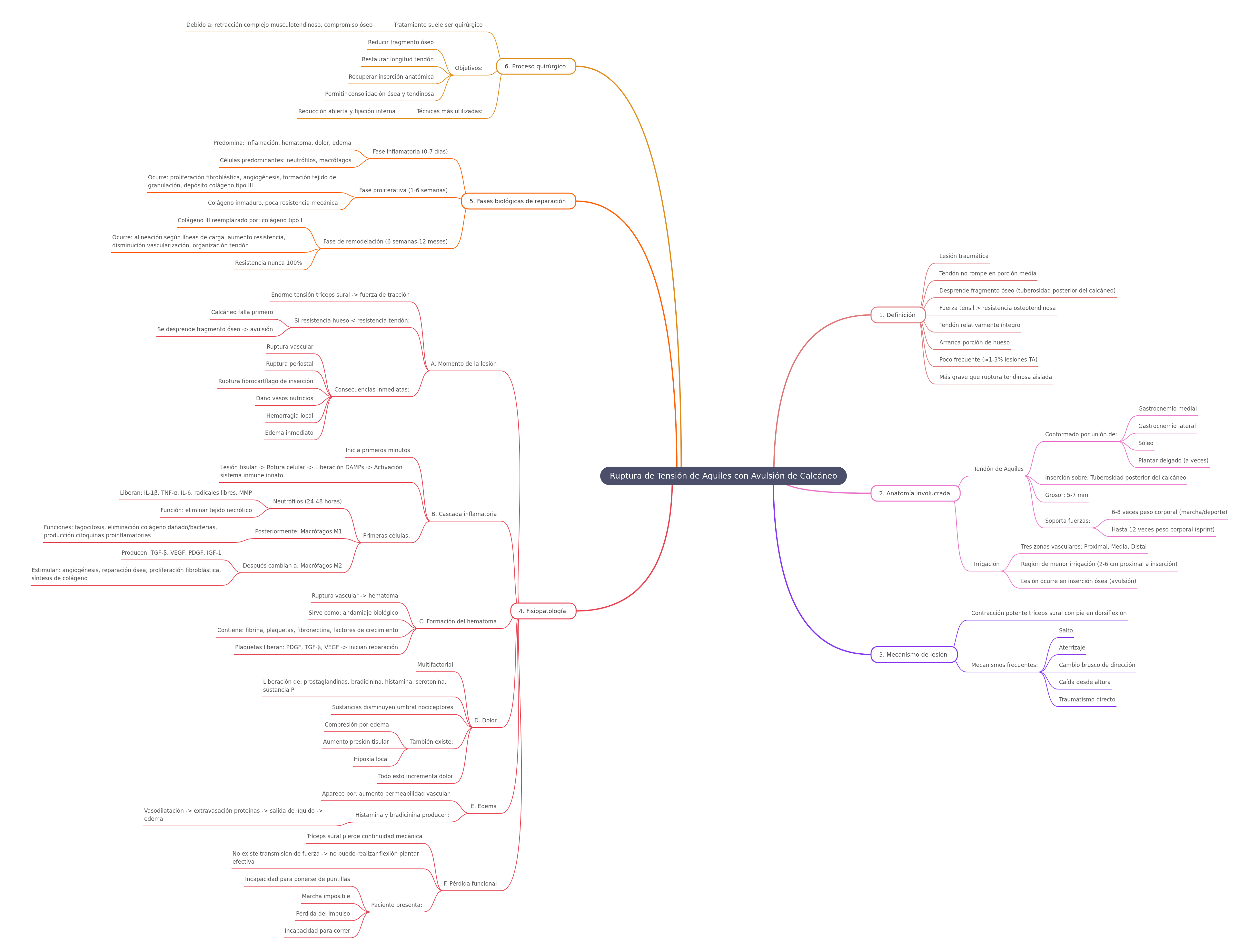

Ruptura de Aquiles con Avulsión de Calcáneo
Achilles tendon avulsion with calcaneal fracture is a severe traumatic injury where the Achilles tendon, instead of rupturing mid-substance, pulls a fragment of bone from the posterior calcaneal tuberosity. This less common but more complex injury requires specific management due to the bone involvement, often necessitating surgical intervention for optimal recovery and functional restoration.
Key Takeaways
Avulsion involves the tendon detaching a bone fragment.
Injury occurs when bone resistance is less than tendon strength.
Immediate responses include inflammation, hematoma, pain, and edema.
Repair progresses through inflammatory, proliferative, and remodeling phases.
Surgical treatment is typically required for proper healing and function.
What is an Achilles Tendon Avulsion with Calcaneal Fracture?
An Achilles tendon avulsion with calcaneal fracture is a distinct and severe traumatic injury where the Achilles tendon remains relatively intact but forcibly detaches a piece of bone from the posterior calcaneal tuberosity. Unlike a typical Achilles rupture, the tendon itself does not tear in its mid-portion; instead, the immense tensile force exerted by the calf muscles overcomes the bone's resistance, causing the bone to fracture and avulse. This condition is less common, representing approximately 1-3% of all Achilles tendon injuries, but is generally considered more severe due to the combined osteotendinous damage, requiring precise diagnosis and often surgical intervention for effective repair and functional recovery.
- Traumatic injury where tendon pulls bone fragment.
- Tendon remains largely intact, unlike typical ruptures.
- Force exceeds osteotendinous resistance, causing bone failure.
- Less frequent but more severe than isolated tendon rupture.
Which Anatomical Structures are Involved in Achilles Avulsion?
The primary anatomical structures involved in an Achilles tendon avulsion with calcaneal fracture are the Achilles tendon itself and its insertion point on the calcaneus. The Achilles tendon, formed by the convergence of the gastrocnemius (medial and lateral heads) and soleus muscles, with occasional contribution from the plantaris, is the body's strongest tendon. It inserts onto the posterior tuberosity of the calcaneus, typically measuring 5-7 mm thick. This tendon can withstand forces 6-8 times body weight during normal activities and up to 12 times during sprints. Crucially, the region 2-6 cm proximal to its insertion has reduced vascularity, but in avulsion injuries, the lesion occurs directly at the well-vascularized bone-tendon interface.
- Achilles Tendon: Formed by gastrocnemius, soleus, and sometimes plantaris.
- Insertion: Posterior tuberosity of the calcaneus.
- Strength: Withstands 6-12 times body weight.
- Irrigation: Three vascular zones; avulsion occurs at insertion.
How Does an Achilles Tendon Avulsion Injury Occur?
An Achilles tendon avulsion injury typically occurs due to a powerful, sudden contraction of the triceps surae muscle group while the foot is in a dorsiflexed position. This creates an immense tensile force on the Achilles tendon. Common scenarios leading to this injury include activities involving explosive movements such as jumping, landing forcefully from a height, or making abrupt changes in direction during sports. Direct trauma to the heel can also contribute, though less frequently. The critical factor is that the force generated by the calf muscles is so great that, instead of the tendon fibers tearing, the tendon's attachment to the calcaneus fails, pulling a piece of the bone away.
- Potent triceps surae contraction with foot dorsiflexed.
- Common in jumping, landing, or sudden direction changes.
- Can result from falls from height or direct trauma.
- Force overcomes bone resistance, causing avulsion.
What is the Pathophysiology of Achilles Tendon Avulsion?
The pathophysiology of Achilles tendon avulsion involves an immediate traumatic event followed by a complex cascade of biological responses. At the moment of injury, the immense traction force from the triceps surae causes the calcaneus to fail before the tendon, leading to bone avulsion. This results in immediate vascular and periosteal rupture, damage to nutrient vessels, and localized hemorrhage and edema. Subsequently, an inflammatory cascade begins within minutes, involving neutrophils and macrophages to clear necrotic tissue and later promote healing. A hematoma forms, acting as a biological scaffold rich in growth factors like PDGF, TGF-β, and VEGF, initiating repair. Pain is multifactorial, caused by inflammatory mediators and tissue compression, while functional loss stems from the mechanical discontinuity of the triceps surae, preventing effective plantar flexion.
- Immediate injury: Bone failure, vascular/periosteal rupture, hemorrhage, edema.
- Inflammatory cascade: Neutrophils (24-48h) clear debris; macrophages M1 then M2.
- Hematoma formation: Acts as a biological scaffold, rich in growth factors.
- Pain: Caused by inflammatory mediators, edema, and tissue compression.
- Functional loss: Inability to plantar flex due to mechanical discontinuity.
What are the Biological Phases of Achilles Tendon Avulsion Repair?
The biological repair of an Achilles tendon avulsion progresses through distinct, overlapping phases: inflammatory, proliferative, and remodeling. The inflammatory phase (0-7 days) is characterized by acute inflammation, hematoma formation, pain, and edema, with neutrophils and macrophages dominating the cellular response to clear damaged tissue. The proliferative phase (1-6 weeks) sees fibroblast proliferation, angiogenesis, granulation tissue formation, and the deposition of immature type III collagen, which provides initial structural integrity but lacks significant mechanical strength. Finally, the remodeling phase (6 weeks to 12 months) involves the gradual replacement of type III collagen with stronger type I collagen, its alignment along stress lines, increased mechanical resistance, and decreased vascularization, organizing the tendon. While significant strength is regained, the repaired tissue may never achieve 100% of its original resistance.
- Inflammatory Phase (0-7 days): Inflammation, hematoma, pain, edema; neutrophils and macrophages.
- Proliferative Phase (1-6 weeks): Fibroblast proliferation, angiogenesis, granulation tissue, type III collagen.
- Remodeling Phase (6 weeks-12 months): Type III replaced by type I collagen, increased resistance, organization.
- Repaired tissue may not reach 100% original strength.
Why is Surgical Intervention Often Necessary for Achilles Avulsion?
Surgical intervention is typically the preferred treatment for Achilles tendon avulsion with calcaneal fracture due to the complex nature of the injury, which involves both soft tissue and bone. The primary objectives of surgery are to accurately reduce the avulsed bone fragment, restore the anatomical length and tension of the Achilles tendon, and re-establish its secure insertion onto the calcaneus. This approach facilitates optimal bone consolidation and tendinous healing, which is crucial given the retraction of the musculotendinous complex and the inherent instability of the bony fragment. The most commonly utilized technique involves open reduction and internal fixation, ensuring precise anatomical alignment and providing the necessary stability for the healing process to proceed effectively and restore functional integrity.
- Surgical treatment is usually required due to bone involvement and retraction.
- Objectives: Reduce bone fragment, restore tendon length and insertion.
- Aims to allow proper bone and tendon consolidation.
- Most common technique: Open reduction and internal fixation.
Frequently Asked Questions
How does an Achilles avulsion differ from a standard Achilles rupture?
An avulsion involves the Achilles tendon pulling a piece of bone from the calcaneus, leaving the tendon largely intact. A standard rupture typically involves the tendon tearing within its mid-substance, without bone involvement.
What are the immediate symptoms of an Achilles tendon avulsion?
Immediate symptoms include severe pain, swelling (edema), a popping sensation at the time of injury, and significant functional loss, making it impossible to stand on tiptoes or walk normally.
Why is surgical treatment often recommended for this injury?
Surgery is preferred to precisely reattach the avulsed bone fragment, restore proper tendon length, and ensure secure anatomical insertion. This approach optimizes healing, prevents retraction, and maximizes functional recovery.
