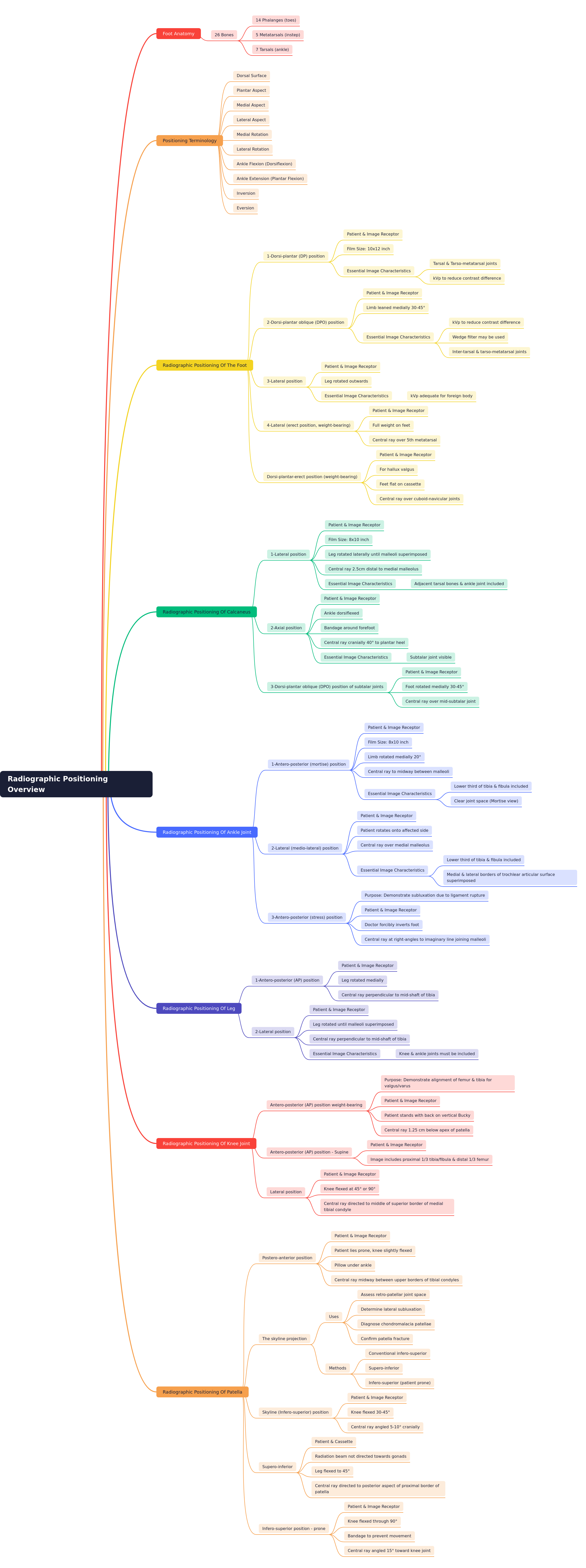

Radiographic Positioning: Lower Limb Imaging Guide
Radiographic positioning involves precise patient and image receptor alignment to capture diagnostic images of anatomical structures. It ensures optimal visualization of bones and joints, aiding in accurate diagnosis of injuries or conditions. This overview details essential techniques for the foot, ankle, leg, knee, and patella, including specific projections and critical image characteristics for effective medical assessment.
Key Takeaways
Master precise positioning for accurate lower limb diagnostics.
Understand specific views for foot, ankle, leg, knee, and patella.
Apply correct terminology for consistent radiographic practice.
Optimize image quality by adjusting kVp and using filters.
Recognize essential image characteristics for diagnostic clarity.
What are the key anatomical components of the foot?
The human foot is a complex structure, crucial for mobility and weight-bearing, comprising numerous bones. Understanding its anatomy is fundamental for accurate radiographic positioning and interpretation. The foot's skeletal framework includes phalanges, metatarsals, and tarsals. These bones articulate to form various joints, enabling movement and stability. Radiographers must be familiar with these components to ensure proper alignment and capture all necessary structures for diagnosis.
- Comprises 26 individual bones.
- Includes 14 phalanges (toes).
- Features 5 metatarsals (instep).
- Contains 7 tarsal bones (ankle).
What essential terminology guides radiographic positioning?
Radiographic positioning relies on standardized terms to accurately describe patient orientation, beam direction, and anatomical landmarks. This precise language ensures consistency and clarity in medical documentation. Understanding terms like dorsal, plantar, medial, and lateral is critical for correctly aligning equipment. Rotational terms such as inversion and eversion, along with flexion and extension, define specific limb movements. Mastery of this terminology is indispensable for proper radiographic techniques.
- Dorsal Surface: Top of foot.
- Plantar Aspect: Sole of foot.
- Medial Aspect: Side closer to midline.
- Lateral Aspect: Side further from midline.
- Medial Rotation: Turning inward.
- Lateral Rotation: Turning outward.
- Ankle Flexion (Dorsiflexion): Foot upward.
- Ankle Extension (Plantar Flexion): Foot downward.
- Inversion: Turning sole inward.
- Eversion: Turning sole outward.
How is the foot radiographically positioned for diagnostic imaging?
Radiographic imaging of the foot requires specific positioning techniques to visualize its complex bony structures and joints effectively. Different projections highlight various aspects, ensuring comprehensive diagnostic coverage. Dorsi-plantar (DP) views provide an anterior-posterior perspective, while oblique views separate overlapping bones. Lateral views offer a profile, crucial for assessing alignment. Weight-bearing positions evaluate the foot under natural stress, revealing conditions like flatfoot. Each position demands careful patient and image receptor alignment for optimal detail.
- DP position: Captures tarsal/tarso-metatarsal joints; 10x12 film; adjust kVp.
- DPO position: Limb leaned medially 30-45°; wedge filter; visualizes inter-tarsal/tarso-metatarsal joints.
- Lateral position: Leg rotated outwards; kVp for foreign body.
- Lateral (erect, weight-bearing): Full weight; central ray over 5th metatarsal.
- DP-erect (weight-bearing): For hallux valgus; feet flat; central ray over cuboid-navicular joints.
What are the standard radiographic positions for imaging the calcaneus?
Imaging the calcaneus, or heel bone, is essential for diagnosing fractures, stress injuries, or other pathologies. Specific radiographic positions provide clear, unobstructed views of the calcaneus and its articulations. The lateral position offers a profile view, assessing the bone's shape and relationship with adjacent tarsals. The axial projection is valuable for visualizing the calcaneus body and subtalar joint, revealing fractures. Precise patient positioning, including ankle dorsiflexion and specific central ray angulations, is crucial to prevent superimposition.
- Lateral position: 8x10 film; leg rotated laterally; central ray 2.5cm distal to medial malleolus; includes adjacent tarsals/ankle joint.
- Axial position: Ankle dorsiflexed; bandage around forefoot; central ray cranially 40° to plantar heel; subtalar joint visible.
- DPO position of subtalar joints: Foot rotated medially 30-45°; central ray over mid-subtalar joint.
How is the ankle joint radiographically positioned for comprehensive assessment?
The ankle joint, a complex articulation, requires precise radiographic positioning to diagnose injuries like sprains, fractures, or ligamentous tears. The antero-posterior (mortise) view is fundamental, achieved by medially rotating the limb to open the joint space, providing clear assessment of the talocrural articulation. A lateral view offers a profile, essential for evaluating alignment. Stress views, performed with forced inversion or eversion, are critical for assessing ligamentous integrity, particularly in suspected instability.
- AP (mortise) position: 8x10 film; limb rotated medially 20°; central ray midway between malleoli; clear joint space.
- Lateral (medio-lateral) position: Patient rotates onto affected side; central ray over medial malleolus; includes lower tibia/fibula; superimposed trochlear surfaces.
- AP (stress) position: Demonstrates subluxation from ligament rupture; doctor forcibly inverts foot; central ray at right-angles to malleoli line.
What are the standard radiographic positions for imaging the leg?
Radiographic imaging of the leg, encompassing the tibia and fibula, is crucial for diagnosing fractures, stress injuries, or bone deformities. The antero-posterior (AP) position provides a frontal view, allowing assessment of the shaft and alignment. The lateral position offers a profile view, essential for determining displacement in fractures and evaluating the tibia-fibula relationship. For comprehensive imaging, both the knee and ankle joints must be included in the lateral projection, as injuries often extend into these articulations.
- AP position: Leg rotated medially; central ray perpendicular to mid-shaft of tibia.
- Lateral position: Leg rotated until malleoli superimposed; central ray perpendicular to mid-shaft of tibia; knee and ankle joints included.
How is the knee joint radiographically positioned for diagnostic purposes?
The knee joint requires specialized radiographic positioning to evaluate its intricate structures, including the distal femur, proximal tibia, and patella. Weight-bearing antero-posterior (AP) views are invaluable for assessing alignment and detecting conditions like valgus or varus deformities, often exacerbated by standing. Supine AP views provide a general overview of the joint space. Lateral views, typically with the knee flexed, are essential for visualizing the patellofemoral joint and identifying effusions.
- AP (weight-bearing): Demonstrates femur/tibia alignment for valgus/varus; patient stands; central ray 1.25 cm below patella apex.
- AP (supine): Image includes proximal 1/3 tibia/fibula & distal 1/3 femur.
- Lateral position: Knee flexed 45° or 90°; central ray to middle of superior medial tibial condyle.
What are the specific radiographic positions for imaging the patella?
Imaging the patella, or kneecap, requires specialized projections to accurately assess its unique anatomy and common pathologies, such as fractures, subluxations, or chondromalacia. The postero-anterior (PA) view provides a frontal perspective, often with the knee slightly flexed. Skyline projections are particularly crucial for evaluating the patellofemoral joint space, detecting lateral subluxation, and diagnosing chondromalacia patellae. Various methods exist for skyline views, optimizing visualization while minimizing patient discomfort and radiation exposure.
- Postero-anterior position: Patient prone, knee slightly flexed; pillow under ankle; central ray midway between tibial condyles.
- Skyline projection uses: Assess retro-patellar joint space, lateral subluxation, chondromalacia patellae, patella fracture.
- Skyline (Infero-superior): Knee flexed 30-45°; central ray angled 5-10° cranially.
- Supero-inferior: Radiation beam away from gonads; leg flexed 45°; central ray to posterior proximal patella.
- Infero-superior (prone): Knee flexed 90°; bandage to prevent movement; central ray angled 15° toward knee joint.
Frequently Asked Questions
Why is precise positioning important in radiography?
Precise positioning ensures optimal visualization of anatomical structures, preventing superimposition and distortion. This clarity is crucial for accurate diagnosis.
What is the difference between dorsiflexion and plantar flexion?
Dorsiflexion is bending the foot upward towards the shin. Plantar flexion is bending the foot downward, pointing toes away.
When are weight-bearing radiographic views used for the foot or knee?
Weight-bearing views assess structures under natural stress. They help diagnose conditions like flatfoot or knee deformities not apparent otherwise.
What is the purpose of a "mortise view" of the ankle?
The mortise view is an AP projection of the ankle with the limb medially rotated. It opens and clearly visualizes the talocrural joint space.
Why are "skyline projections" important for the patella?
Skyline projections evaluate patellofemoral joint space, detect lateral subluxation, and diagnose chondromalacia patellae or patellar fractures.
