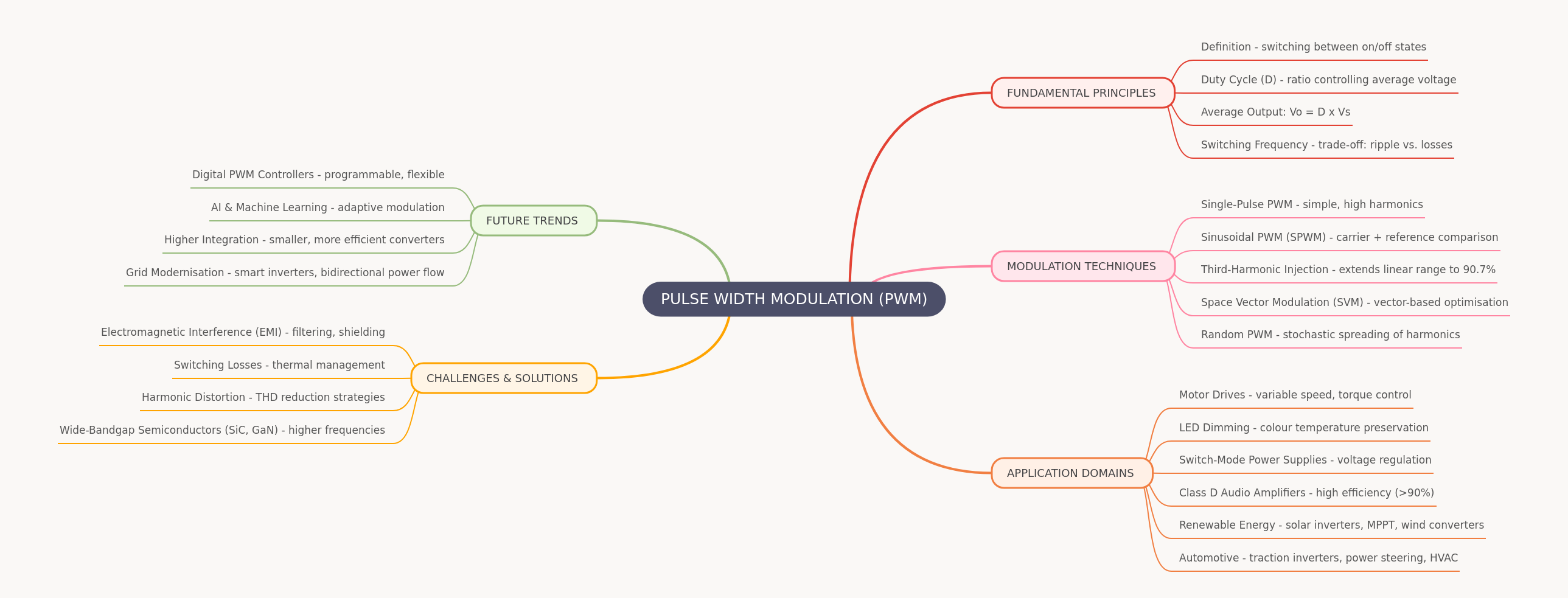

Pulse Width Modulation (PWM): A Comprehensive Guide
Pulse Width Modulation (PWM) is a highly efficient technique for controlling the average power delivered to an electrical load. It achieves this by rapidly switching a signal between on and off states, varying the duration of the "on" pulse relative to the total period. This ratio, known as the duty cycle, precisely regulates the average voltage or current, making PWM essential for various electronic control systems.
Key Takeaways
PWM controls power by varying the signal's "on" time.
Duty cycle directly determines the average output voltage.
Applications span motor control, LED dimming, and power supplies.
Challenges like EMI are addressed by advanced solutions.
Future trends include AI-driven adaptive modulation.
What are the fundamental principles of Pulse Width Modulation (PWM)?
Pulse Width Modulation (PWM) is a highly effective technique for controlling the average power delivered to an electrical load by rapidly switching a signal between its fully on and fully off states. This method's core principle revolves around the "duty cycle" (D), which represents the proportion of time the signal is in its "on" state relative to the total period of the signal. By precisely adjusting this duty cycle, PWM can accurately regulate the average voltage or current supplied to a device, making it an indispensable tool for efficient power control. The choice of switching frequency is critical, as it involves a delicate balance: higher frequencies reduce output ripple but increase switching losses, demanding careful design considerations.
- Definition: PWM controls power by rapidly switching between "on" and "off" states.
- Duty Cycle (D): The ratio of "on" time to total period, directly controlling average voltage.
- Average Output: Calculated as Vo = D x Vs, where Vs is the supply voltage.
- Switching Frequency: A critical parameter balancing output ripple reduction against increased switching losses.
What are the different modulation techniques used in PWM?
A variety of modulation techniques are employed in PWM to achieve specific control objectives, optimize performance, and mitigate undesirable effects. Simple Single-Pulse PWM is straightforward to implement but generates significant harmonics, limiting its application in sensitive systems. Sinusoidal PWM (SPWM) offers improved harmonic performance by comparing a sinusoidal reference signal with a high-frequency triangular carrier wave to generate the necessary pulses. More advanced methods like Third-Harmonic Injection strategically add a third harmonic component to the reference, extending the linear modulation range to 90.7% of the DC bus voltage. Space Vector Modulation (SVM) utilizes a sophisticated vector-based approach for optimal voltage utilization and reduced harmonics in three-phase power converters. Additionally, Random PWM spreads the harmonic energy stochastically across a wider frequency spectrum, effectively reducing peak interference.
- Single-Pulse PWM: Simple to implement but results in higher harmonic content.
- Sinusoidal PWM (SPWM): Compares a sinusoidal reference with a carrier wave for better harmonic performance.
- Third-Harmonic Injection: Extends the linear modulation range to 90.7% of DC bus voltage.
- Space Vector Modulation (SVM): A vector-based approach optimizing voltage utilization in three-phase systems.
- Random PWM: Stochastically spreads harmonic energy to reduce peak interference.
Where is Pulse Width Modulation (PWM) commonly applied?
Pulse Width Modulation is extensively applied across numerous industries, leveraging its inherent efficiency and precise control capabilities. In motor drives, PWM is fundamental for achieving variable speed and torque control in electric motors, significantly enhancing operational performance and energy efficiency across various industrial and consumer applications. It is also crucial for LED dimming, allowing smooth brightness adjustment while meticulously preserving the desired color temperature. Switch-mode power supplies heavily rely on PWM for stable and efficient voltage regulation, converting power with minimal loss. Class D audio amplifiers utilize PWM to achieve remarkable efficiencies, often exceeding 90%, by modulating audio signals into a series of pulses. Furthermore, PWM is indispensable in renewable energy systems for solar inverters, Maximum Power Point Tracking (MPPT) algorithms, and wind power converters, and plays a vital role in automotive applications such as traction inverters, power steering, and HVAC systems, demonstrating its broad utility.
- Motor Drives: Enables precise variable speed and torque control for electric motors.
- LED Dimming: Allows smooth brightness adjustment while preserving color temperature.
- Switch-Mode Power Supplies: Essential for efficient and stable voltage regulation.
- Class D Audio Amplifiers: Achieves high efficiency, often exceeding 90%, for audio reproduction.
- Renewable Energy: Used in solar inverters, MPPT, and wind converters for power conversion.
- Automotive: Powers traction inverters, power steering, and HVAC systems in vehicles.
What challenges does PWM present, and how are they addressed?
Despite its widespread adoption, PWM systems encounter several inherent challenges that necessitate specific design and implementation solutions for optimal performance. Electromagnetic Interference (EMI) is a significant concern, arising from the rapid switching transitions; this is typically mitigated through careful circuit layout, effective filtering, and robust shielding techniques. Switching losses, which manifest as heat generation in power devices, are managed by employing efficient thermal management strategies, including heat sinks and cooling systems. Harmonic distortion in the output signal is another critical issue, requiring Total Harmonic Distortion (THD) reduction strategies, often involving advanced modulation schemes or passive/active filtering. A transformative solution comes from the advent of Wide-Bandgap Semiconductors like Silicon Carbide (SiC) and Gallium Nitride (GaN), which enable operation at much higher switching frequencies and temperatures, leading to significantly improved efficiency and power density, thereby addressing many of these challenges more effectively.
- Electromagnetic Interference (EMI): Mitigated through careful filtering, shielding, and layout design.
- Switching Losses: Managed by effective thermal management strategies and efficient components.
- Harmonic Distortion: Reduced using THD strategies, advanced modulation, or filtering.
- Wide-Bandgap Semiconductors (SiC, GaN): Enable higher frequencies, improved efficiency, and power density.
What are the emerging trends shaping the future of PWM technology?
The future of Pulse Width Modulation technology is characterized by continuous innovation, primarily driven by advancements in digital control and power electronics. Digital PWM controllers are rapidly gaining prominence, offering unparalleled programmability, flexibility, and precision for increasingly complex control applications. The integration of Artificial Intelligence (AI) and Machine Learning (ML) is paving the way for adaptive modulation techniques, allowing PWM systems to dynamically optimize their performance in real-time based on varying operating conditions and load demands. Higher levels of integration are leading to the development of smaller, more compact, and significantly more efficient power converters, reducing overall system size and cost. Moreover, PWM is a cornerstone of modern grid modernization efforts, enabling sophisticated smart inverters and bidirectional power flow capabilities that are essential for seamlessly integrating renewable energy sources and enhancing the stability and resilience of electrical grids.
- Digital PWM Controllers: Offer programmable, flexible, and precise control solutions.
- AI & Machine Learning: Facilitate adaptive modulation for real-time performance optimization.
- Higher Integration: Leads to smaller, more efficient, and cost-effective power converters.
- Grid Modernisation: Supports smart inverters and bidirectional power flow for grid stability.
Frequently Asked Questions
How does duty cycle affect PWM output?
The duty cycle directly determines the average output voltage or power. A higher duty cycle means the signal is "on" for a longer duration, resulting in a higher average output to the load.
Why is PWM preferred for motor control?
PWM allows precise and efficient control over motor speed and torque by varying the average voltage supplied. This minimizes energy waste and provides smooth, responsive operation, ideal for variable speed drives.
What are the main benefits of using Wide-Bandgap Semiconductors in PWM?
Wide-Bandgap Semiconductors (SiC, GaN) enable PWM systems to operate at much higher switching frequencies and temperatures. This leads to smaller components, reduced losses, and improved overall efficiency and power density.
