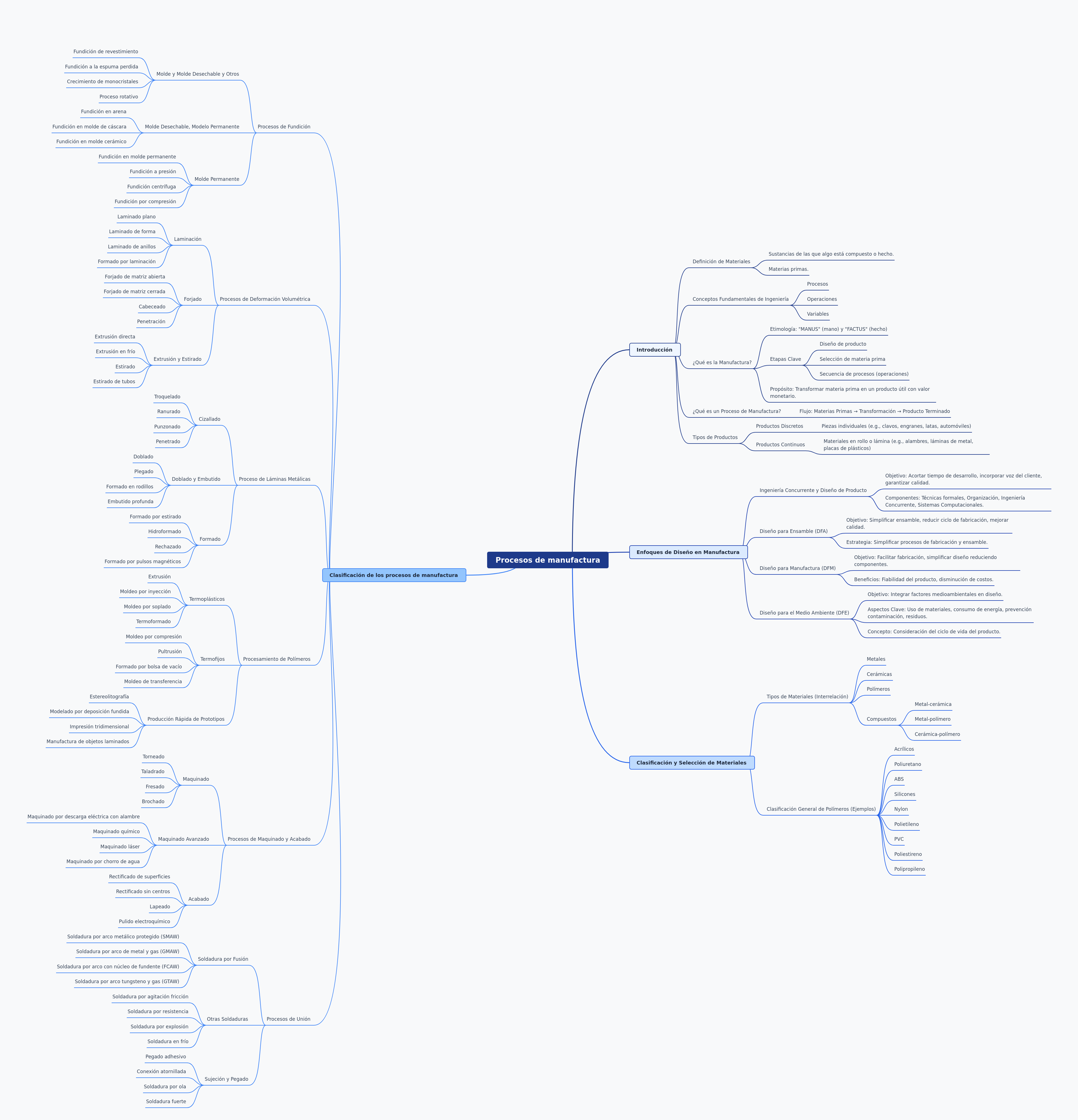

Featured Mind map
Manufacturing Processes: An Engineering Overview
Manufacturing processes transform raw materials into finished products with added value through a sequence of operations. This involves understanding material properties, applying design methodologies like DFM and DFA, and utilizing diverse techniques such as casting, forming, machining, and joining to create discrete or continuous goods efficiently and sustainably.
Key Takeaways
Manufacturing transforms raw materials into valuable products.
Design approaches like DFM and DFA optimize production.
Material selection is crucial for process and product.
Processes include casting, forming, machining, and joining.
Sustainability is integrated through Design for Environment.
What is Manufacturing and its Core Concepts?
Manufacturing systematically transforms raw materials into finished goods, adding value through operations. It integrates engineering principles to design, produce, and deliver products efficiently. This involves understanding material properties, process variables, and sequential steps from design to output. The goal is to create useful items, discrete or continuous, meeting requirements and optimizing resource utilization.
- Raw material transformation.
- Processes, operations, variables.
- Design, material, sequencing.
- Value-added product creation.
- Discrete or continuous goods.
How Do Design Approaches Optimize Manufacturing Processes?
Manufacturing design approaches integrate product design with production considerations for efficiency, quality, and cost. Concurrent Engineering shortens development cycles by involving all stakeholders early. Design for Assembly (DFA) simplifies product structures to reduce assembly time. Design for Manufacturing (DFM) facilitates fabrication and minimizes components, leading to reliability and lower costs. Design for Environment (DFE) integrates environmental factors, promoting sustainability.
- Concurrent Engineering: Faster development.
- DFA: Simplifies assembly.
- DFM: Facilitates fabrication, lowers cost.
- DFE: Environmental integration.
What Are the Key Material Types and How Are They Classified?
Material classification and selection are foundational, as properties dictate feasible processes and final product performance. Materials are broadly categorized into metals, ceramics, polymers, and composites, each with distinct characteristics. Composites combine two or more materials, like metal-ceramic, for enhanced properties. Understanding these interrelationships is crucial for selecting optimal materials, considering strength, durability, cost, and processability. Polymers are further classified into types like acrylics, polyurethanes, and polyethylenes.
- Metals, Ceramics, Polymers, Composites.
- Composites combine materials.
- Polymer examples: Acrylics, Nylon.
What Are the Different Types of Casting Processes?
Casting processes involve pouring molten material into a mold cavity, allowing it to solidify into a desired shape. This versatile method produces complex geometries and large components. Techniques vary by mold type and reusability. Disposable mold processes, such as sand casting, use molds destroyed after each use, ideal for intricate designs. Permanent mold casting utilizes reusable molds, suitable for high-volume production and better surface finishes. Specialized methods like investment casting offer high precision.
- Disposable molds: Sand, shell.
- Permanent molds: Die, centrifugal.
- Specialized: Investment, lost foam.
How Do Bulk Deformation Processes Shape Materials?
Bulk deformation processes significantly change metal workpiece shapes through plastic deformation, often at elevated temperatures. Rolling reduces material thickness by passing it between rollers, producing sheets or structural shapes. Forging applies compressive forces to shape metal, from open-die for large parts to closed-die for intricate components. Extrusion forces material through a die for uniform cross-sections, while drawing pulls material through a die to reduce its cross-section, common for wires and rods. These processes are fundamental for creating strong, durable metal products.
- Rolling: Sheets, shapes.
- Forging: Open-die, closed-die.
- Extrusion/Drawing: Wires, rods.
What Techniques Are Used in Sheet Metal Forming?
Sheet metal processes shape metal sheets into desired forms without significant material removal, crucial for many industries. Shearing operations like blanking and punching cut sheet metal into specific shapes. Bending and drawing techniques deform the sheet without cutting; bending creates angles, while deep drawing forms hollow parts. Other forming methods include stretch forming, where the sheet is stretched over a die, and hydroforming, using fluid pressure for complex shapes. Magnetic pulse forming offers high-speed, non-contact shaping.
- Shearing: Blanking, punching.
- Bending/Drawing: Angles, hollow parts.
- Forming: Stretch, hydroforming.
How Are Polymers Processed into Products?
Polymer processing transforms raw plastic materials into finished products, using methods tailored to their properties, distinguishing thermoplastics from thermosets. Thermoplastics, repeatedly melted and reshaped, are processed via extrusion for profiles, injection molding for complex parts, blow molding for hollow items, and thermoforming for sheet products. Thermosets, undergoing irreversible chemical changes, are processed using compression molding, pultrusion, and transfer molding. Rapid prototyping methods, including stereolithography and 3D printing, enable quick creation of polymer prototypes.
- Thermoplastics: Extrusion, injection.
- Thermosets: Compression, pultrusion.
- Rapid Prototyping: 3D printing.
What Are Machining and Finishing Processes?
Machining and finishing processes remove material from a workpiece to achieve desired shapes, dimensions, and surface finishes. Traditional machining operations like turning, drilling, milling, and broaching use cutting tools. Advanced machining techniques, such as electrical discharge machining (EDM), chemical machining, laser machining, and waterjet machining, employ non-conventional energy sources for difficult materials or intricate geometries. Finishing processes, including surface grinding, lapping, and electrochemical polishing, refine surface quality, enhance aesthetics, and improve functional performance.
- Machining: Turning, drilling, milling.
- Advanced: EDM, laser, waterjet.
- Finishing: Grinding, lapping, polishing.
How Are Different Components Joined in Manufacturing?
Joining processes are essential for assembling multiple components into a single, functional product, ranging from permanent bonds to temporary fasteners. Fusion welding techniques, such as Shielded Metal Arc Welding (SMAW) and Gas Metal Arc Welding (GMAW), melt and fuse materials, creating strong, continuous joints. Other welding methods like friction stir welding and resistance welding offer specialized solutions. Beyond welding, mechanical fastening (e.g., bolted connections) provides temporary or permanent assembly. Adhesive bonding offers lightweight, aesthetic joints, while brazing and soldering create metallurgical bonds at lower temperatures.
- Fusion Welding: SMAW, GMAW.
- Other Welding: Friction stir, resistance.
- Fastening/Bonding: Adhesive, bolted.
Frequently Asked Questions
What is the primary goal of manufacturing?
Transforms raw materials into valuable, useful products efficiently, meeting market demands.
How do design approaches like DFM benefit manufacturing?
DFM simplifies design, reduces components, improves reliability, and lowers production costs.
What are the main categories of materials used in manufacturing?
Metals, ceramics, polymers, and composites are primary types, each with unique properties.
Can you name some common bulk deformation processes?
Rolling, forging, extrusion, and drawing plastically deform materials into desired shapes.
What is rapid prototyping in polymer processing?
Quickly creates physical prototypes from digital designs, like 3D printing.
