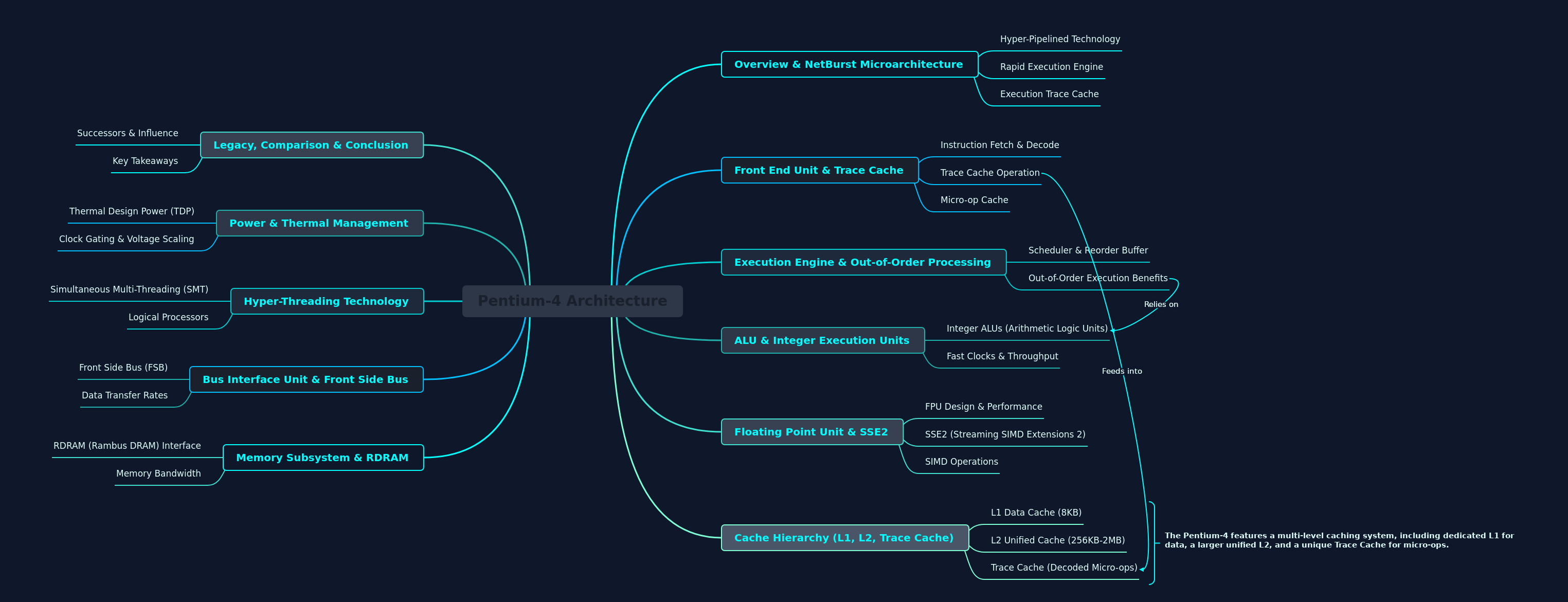

Featured Mind map
Pentium-4 Architecture: A Deep Dive
The Pentium-4 architecture, based on Intel's NetBurst microarchitecture, was designed for high clock speeds and introduced innovations like a deep pipeline, Execution Trace Cache, and Hyper-Threading. It aimed to boost performance through frequency scaling and parallel execution, significantly influencing processor design despite its eventual limitations in instruction-per-clock efficiency.
Key Takeaways
NetBurst microarchitecture prioritized high clock speeds.
Hyper-Pipelined Technology and Trace Cache were core innovations.
Hyper-Threading enabled simultaneous multi-threading for efficiency.
Advanced cache hierarchy optimized data and instruction access.
SSE2 enhanced multimedia and scientific computing capabilities.
What is the NetBurst Microarchitecture in Pentium-4?
The NetBurst microarchitecture, foundational to Intel's Pentium-4 processor, aimed for significantly higher clock frequencies and performance. It featured a deep instruction pipeline, enabling very high clock speeds, and introduced innovations to maximize instruction throughput. This strategic shift prioritized frequency scaling as a primary performance driver, influencing future processor designs. NetBurst focused on parallel execution and efficient instruction delivery, striving to keep execution units consistently busy.
- Hyper-Pipelined Technology: Enabled very high clock frequencies.
- Rapid Execution Engine: Accelerated integer and floating-point operations.
- Execution Trace Cache: Stored decoded micro-operations for faster execution.
How does the Pentium-4's Front End Unit and Trace Cache operate?
The Pentium-4's Front End Unit efficiently fetches and decodes instructions. A key innovation was the Execution Trace Cache, storing micro-operations (micro-ops) after decoding and tracing. This unique cache bypasses traditional instruction fetch and decode stages for frequently executed code paths. By delivering ready-to-execute micro-ops directly to the execution engine, the Trace Cache significantly reduces latency and improves overall efficiency.
- Instruction Fetch & Decode: Initial stages of processing program instructions.
- Trace Cache Operation: Stores decoded micro-ops, bypassing fetch/decode.
- Micro-op Cache: A specialized cache for frequently used micro-operations.
What defines the Pentium-4's Execution Engine and Out-of-Order Processing?
The Pentium-4's Execution Engine leverages out-of-order processing for high instruction throughput. It uses a sophisticated scheduler and reorder buffer to manage micro-operations, allowing them to execute as soon as operands are available, irrespective of original program order. This dynamic scheduling hides memory latencies and keeps execution units active, boosting performance. The reorder buffer ensures results are committed correctly.
- Scheduler & Reorder Buffer: Manages micro-op execution and result ordering.
- Out-of-Order Execution Benefits: Improves performance by maximizing unit utilization.
How do the Pentium-4's ALU and Integer Execution Units contribute to performance?
The Pentium-4 incorporates multiple Arithmetic Logic Units (ALUs) and integer execution units, vital for fundamental arithmetic and logical operations. These units were engineered to operate at exceptionally high clock frequencies, a defining characteristic of NetBurst. This combination of a rapid execution engine and fast ALUs enabled the Pentium-4 to process integer instructions with remarkable speed. This focus on high clock rates was crucial for high performance.
- Integer ALUs (Arithmetic Logic Units): Perform core arithmetic and logical operations.
- Fast Clocks & Throughput: Enabled high-speed instruction processing.
What are the capabilities of the Pentium-4's Floating Point Unit and SSE2?
The Pentium-4's Floating Point Unit (FPU) was enhanced for efficient complex mathematical calculations, crucial for scientific and multimedia tasks. It introduced Streaming SIMD Extensions 2 (SSE2), expanding upon earlier SSE capabilities. SSE2 provided new instructions for Single-Instruction, Multiple-Data (SIMD) operations, allowing the processor to perform the same operation on multiple data points simultaneously. This significantly accelerated tasks like video encoding, 3D graphics, and scientific simulations.
- FPU Design & Performance: Enhanced for complex mathematical computations.
- SSE2 (Streaming SIMD Extensions 2): New instruction set for SIMD operations.
- SIMD Operations: Process multiple data elements with a single instruction.
How is the Pentium-4's multi-level Cache Hierarchy structured?
The Pentium-4 employs a multi-level cache hierarchy to minimize memory access latency. It includes an 8KB L1 Data Cache for rapid data access and a larger L2 Unified Cache (256KB-2MB) for both instructions and data. Uniquely, the Execution Trace Cache stores decoded micro-operations, acting as an L1 instruction cache. This layered approach ensures quick access to critical instructions and data, reducing processor stalls and improving efficiency.
- L1 Data Cache (8KB): Small, fast cache for data.
- L2 Unified Cache (256KB-2MB): Larger cache for both instructions and data.
- Trace Cache (Decoded Micro-ops): Stores pre-decoded instructions for rapid execution.
What role did RDRAM play in the Pentium-4's Memory Subsystem?
The Pentium-4's memory subsystem initially relied on Rambus DRAM (RDRAM) for high-bandwidth memory access, crucial for supporting the processor's high clock speeds. RDRAM offered significantly higher data transfer rates than contemporary SDRAM, supplying the necessary bandwidth for the demanding NetBurst microarchitecture. Although RDRAM's high cost led to its replacement, its initial adoption highlighted Intel's commitment to a memory solution matching Pentium-4's aggressive performance.
- RDRAM (Rambus DRAM) Interface: Provided high-bandwidth memory access.
- Memory Bandwidth: Crucial for feeding the high-speed processor.
How did the Front Side Bus (FSB) function in the Pentium-4's Bus Interface Unit?
The Bus Interface Unit (BIU) in the Pentium-4 managed communication via the Front Side Bus (FSB). The FSB was the vital pathway for data transfer between the CPU, memory controller, and other system components. Pentium-4 processors used various FSB speeds (e.g., 400 MHz, 800 MHz). These speeds significantly influenced overall system performance by dictating data transfer rates to and from the processor, maximizing NetBurst's potential.
- Front Side Bus (FSB): Main communication pathway for the CPU.
- Data Transfer Rates: Determined by FSB speed, impacting system performance.
What is Hyper-Threading Technology and how did it benefit Pentium-4?
Hyper-Threading Technology (HT), introduced in some Pentium-4 models, allowed a single physical core to appear as two logical processors. Through Simultaneous Multi-Threading (SMT), the processor concurrently executed instructions from two threads on the same core by utilizing idle execution units. While not true parallel processing, HT improved resource utilization and throughput, especially in multi-threaded applications, boosting performance.
- Simultaneous Multi-Threading (SMT): Executes multiple threads concurrently on one core.
- Logical Processors: A single physical core appears as two to the OS.
How did Pentium-4 manage Power and Thermal aspects?
Due to high clock speeds and deep pipelines, Pentium-4 faced critical power consumption and thermal management challenges. Intel implemented strategies to control Thermal Design Power (TDP) and prevent overheating. These included clock gating, turning off clock signals to idle chip parts, and voltage scaling, adjusting operating voltage based on workload. Effective thermal management was essential for stability, as NetBurst generated considerable heat.
- Thermal Design Power (TDP): Metric for maximum heat generated by the CPU.
- Clock Gating & Voltage Scaling: Techniques to reduce power consumption and heat.
What is the legacy and influence of the Pentium-4 architecture?
The Pentium-4 architecture, despite power efficiency and instruction-per-clock limitations, left a significant legacy. Its emphasis on high clock speeds and innovations like Hyper-Threading and the Execution Trace Cache influenced subsequent processor generations. While Intel later shifted from NetBurst, many concepts introduced or refined, such as advanced caching and SIMD extensions, became standard. It represented a bold attempt to push performance boundaries.
- Successors & Influence: Impacted future processor designs and technologies.
- Key Takeaways: Lessons learned from its design and performance characteristics.
Frequently Asked Questions
What was the primary goal of the NetBurst microarchitecture?
NetBurst aimed for very high clock frequencies and improved performance through a deep pipeline and innovative features like the Execution Trace Cache, prioritizing frequency scaling.
How did the Execution Trace Cache improve Pentium-4 performance?
The Trace Cache stored decoded micro-operations, bypassing instruction fetch and decode for frequently executed code. This reduced latency and delivered ready-to-execute micro-ops directly to the execution engine.
What is Hyper-Threading Technology?
Hyper-Threading allows a single physical core to appear as two logical processors. It enables simultaneous multi-threading, executing instructions from two threads concurrently on the same core to improve resource utilization.
Why was RDRAM initially used with the Pentium-4?
RDRAM was chosen for its significantly higher memory bandwidth compared to SDRAM. This high bandwidth was crucial to feed the data-hungry NetBurst microarchitecture and support the processor's aggressive clock speeds.
What were the main challenges of the Pentium-4 architecture?
The Pentium-4 faced challenges with high power consumption and significant heat generation due to its deep pipeline and high clock speeds. This led to limitations in power efficiency and instruction-per-clock performance.
