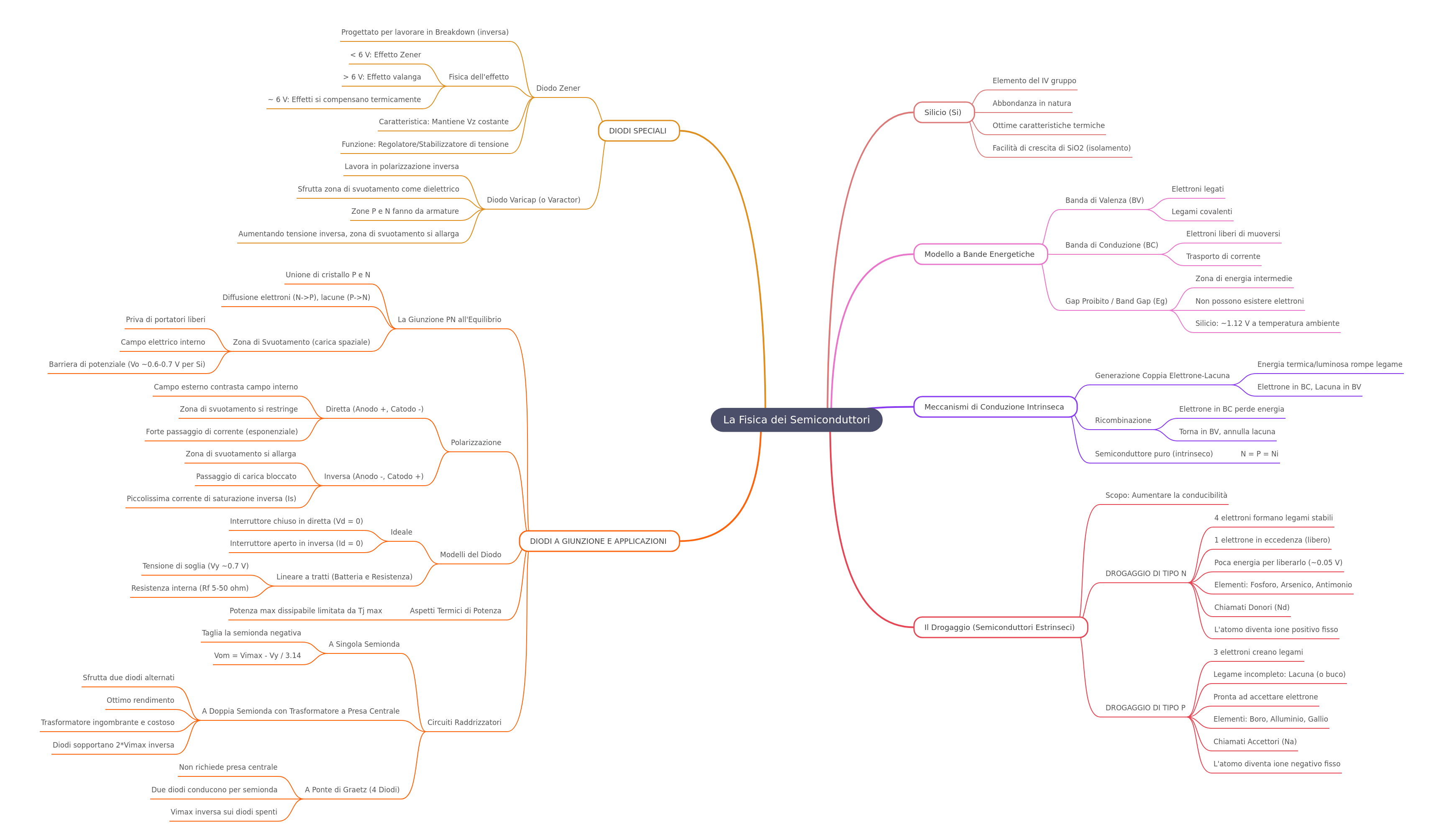

Physics of Semiconductors: Diodes & Applications
Semiconductor physics explains how materials like silicon conduct electricity under specific conditions, forming the basis for modern electronics. It details electron behavior in energy bands, intrinsic conduction mechanisms, and how doping creates extrinsic semiconductors. This understanding is crucial for designing essential components like PN junction diodes, which are vital for rectification and voltage regulation in countless electronic circuits.
Key Takeaways
Semiconductors bridge conductors and insulators, enabling controlled current flow.
Doping precisely alters conductivity by introducing impurities, creating N-type or P-type materials.
PN junction diodes allow current flow in one direction, crucial for rectification.
Specialized diodes like Zener and Varicap offer unique functionalities for regulation and tuning.
Understanding energy bands and carrier dynamics is fundamental to semiconductor device design.
What makes Silicon (Si) a primary semiconductor material?
Silicon is the cornerstone of modern electronics, primarily due to its unique atomic properties and widespread availability. As a Group IV element, it forms four stable covalent bonds, which are crucial for its semiconducting behavior, allowing controlled conductivity. Its natural abundance in the Earth's crust makes it an economically viable choice for large-scale manufacturing. Silicon also exhibits excellent thermal characteristics, ensuring device reliability and performance stability across a broad range of operating temperatures. Furthermore, the ability to easily grow a high-quality insulating layer of silicon dioxide (SiO2) on its surface is invaluable for isolating components and fabricating intricate integrated circuits, solidifying its role as the dominant semiconductor material.
- Group IV element, forming stable covalent bonds.
- Abundant in nature, ensuring cost-effective production.
- Possesses excellent thermal characteristics for device stability.
- Facilitates easy growth of silicon dioxide (SiO2) for insulation.
How does the Energy Band Model explain semiconductor behavior?
The Energy Band Model is essential for comprehending how semiconductors function electrically. It illustrates that electrons within a material occupy specific energy levels, grouped into bands. The Valence Band (VB) contains electrons that are tightly bound to atoms, actively participating in the material's covalent bonding structure. Above this lies the Conduction Band (CB), where electrons are free from atomic bonds and can move throughout the material, thereby contributing to electrical current. A critical feature is the Forbidden Gap, or Band Gap (Eg), an energy range where electrons cannot exist. For silicon, this gap is approximately 1.12 electron volts (eV) at room temperature. The moderate size of this band gap allows semiconductors to transition from insulators to conductors under specific energy inputs, unlike true insulators with large gaps or conductors with overlapping bands.
- Valence Band (VB) holds bound electrons in covalent bonds.
- Conduction Band (CB) contains free electrons for current transport.
- Forbidden Gap (Band Gap, Eg) is an energy zone where electrons cannot exist.
- Silicon's band gap is approximately 1.12 eV at room temperature.
What are the key mechanisms of intrinsic conduction in pure semiconductors?
Intrinsic conduction in pure, undoped semiconductors, such as silicon, is governed by a dynamic balance between electron-hole pair generation and recombination. When a semiconductor absorbs sufficient thermal or light energy, it can break a covalent bond, causing an electron to jump from the Valence Band to the Conduction Band. This process creates a free electron and leaves behind a positively charged "hole" in the Valence Band, both of which can act as charge carriers. This simultaneous creation is known as electron-hole pair generation. Conversely, recombination occurs when a free electron in the Conduction Band loses energy and falls back into a hole in the Valence Band, effectively neutralizing both carriers. In an intrinsic semiconductor, the concentration of free electrons (N) is precisely equal to the concentration of holes (P), both represented by the intrinsic carrier concentration (Ni), maintaining electrical neutrality.
- Electron-Hole Pair Generation: Thermal or light energy breaks bonds, creating free electrons and holes.
- Recombination: Free electrons return to valence band, annihilating holes.
- In pure intrinsic semiconductors, electron concentration equals hole concentration (N = P = Ni).
Why is doping essential for controlling semiconductor conductivity?
Doping is a fundamental process that intentionally introduces impurities into a pure semiconductor to precisely control and enhance its electrical conductivity, transforming it into an extrinsic semiconductor. This manipulation significantly increases the concentration of either free electrons or holes. N-type doping involves adding pentavalent elements like phosphorus, arsenic, or antimony to silicon. These elements have five valence electrons; four form stable covalent bonds, while the fifth is loosely bound and easily freed into the conduction band with minimal energy (around 0.05 eV). These impurities are termed donors, and they become fixed positive ions. Conversely, P-type doping incorporates trivalent elements such as boron, aluminum, or gallium. These elements have three valence electrons, creating an incomplete bond or a "hole" that readily accepts an electron. These impurities are called acceptors, becoming fixed negative ions. Doping is indispensable for tailoring semiconductor properties for diverse electronic device applications.
- Purpose: Significantly increase semiconductor conductivity.
- N-Type Doping: Adds pentavalent elements (e.g., Phosphorus), creating excess free electrons (donors).
- P-Type Doping: Adds trivalent elements (e.g., Boron), creating electron "holes" (acceptors).
- Doping atoms become fixed ions, enhancing carrier concentration.
How do PN junction diodes function and what are their primary applications?
A PN junction diode, formed by joining P-type and N-type semiconductor materials, is a cornerstone electronic component designed to permit current flow predominantly in one direction. At the junction, electrons from the N-side diffuse into the P-side, and holes from the P-side diffuse into the N-side, creating a "depletion region" that is largely devoid of free charge carriers. This region establishes an internal electric field and a potential barrier, typically around 0.6-0.7 V for silicon diodes. When forward-biased (positive voltage applied to the P-side, negative to the N-side), the external electric field opposes this internal barrier, causing the depletion region to narrow and allowing a substantial, exponentially increasing current to flow. Conversely, under reverse bias, the external field reinforces the internal barrier, widening the depletion region and effectively blocking current flow, save for a minuscule reverse saturation current. Diodes are extensively utilized in rectifier circuits to convert alternating current (AC) into pulsating direct current (DC), which is crucial for power supplies in almost all electronic devices. They are also used in signal demodulation, voltage clamping, and protection circuits.
- Formed by joining P-type and N-type semiconductors.
- Depletion region forms at the junction, creating a potential barrier.
- Forward bias allows strong current flow by narrowing the depletion region.
- Reverse bias blocks current by widening the depletion region.
- Primary application: Rectifier circuits for AC to DC conversion.
What are the unique characteristics and uses of special diodes?
Beyond the standard PN junction, several specialized diodes offer distinct functionalities tailored for specific electronic applications. The Zener diode, for instance, is uniquely engineered to operate reliably in its reverse breakdown region. In this mode, it maintains a remarkably constant voltage (Vz) across its terminals, even when the current flowing through it or the input voltage fluctuates. This characteristic makes Zener diodes indispensable as voltage regulators and stabilizers in power supply circuits, ensuring a stable output voltage. The breakdown phenomenon is attributed to the Zener effect (predominant below 6V) or the avalanche effect (dominant above 6V), with both effects thermally compensating around 6V. Another significant special diode is the Varicap, or Varactor diode. This device operates under reverse bias, leveraging its depletion region as a voltage-controlled dielectric. As the reverse voltage applied across the Varicap diode increases, its depletion region widens, consequently altering the diode's capacitance. This variable capacitance property makes Varicap diodes invaluable in tuning circuits, voltage-controlled oscillators, and frequency modulators, where precise and dynamic capacitance adjustment is required for signal processing and communication systems.
- Zener Diode: Designed for reverse breakdown operation, maintains constant voltage (Vz).
- Zener effect (<6V) and Avalanche effect (>6V) explain breakdown.
- Function: Voltage regulator/stabilizer.
- Varicap (Varactor) Diode: Operates in reverse bias, uses depletion region as a voltage-controlled dielectric.
- Function: Variable capacitor for tuning circuits and oscillators.
Frequently Asked Questions
What is the primary difference between intrinsic and extrinsic semiconductors?
Intrinsic semiconductors are pure materials with equal concentrations of electrons and holes, exhibiting relatively low conductivity. Extrinsic semiconductors are intentionally doped with impurities, either to increase free electrons (N-type) or holes (P-type), significantly enhancing and controlling their conductivity for specific electronic device applications.
How does a PN junction diode achieve its unidirectional current flow?
A PN junction diode allows current to flow predominantly in one direction due to its internal potential barrier. Forward bias reduces this barrier, enabling a strong current. Reverse bias reinforces the barrier, widening the depletion region and effectively blocking current flow, making it ideal for rectification.
What is the main function of a Zener diode in an electronic circuit?
The main function of a Zener diode is voltage regulation and stabilization. It is specifically designed to operate in its reverse breakdown region, where it maintains a nearly constant voltage across its terminals despite variations in current or input voltage, ensuring a stable power supply output.
