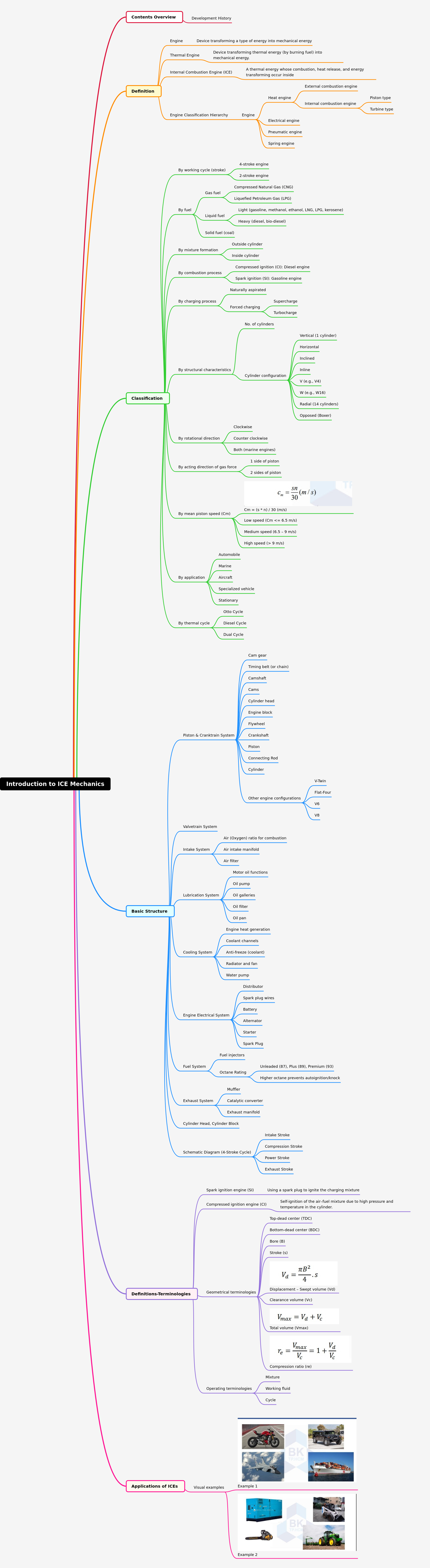

Introduction to ICE Mechanics
Internal Combustion Engines (ICEs) are thermal engines that convert chemical energy from fuel combustion into mechanical energy directly within the engine's cylinders. This process involves a controlled explosion that drives pistons, generating power for various applications. ICEs are classified by their working cycle, fuel type, combustion process, and structural characteristics, making them versatile power sources.
Key Takeaways
ICEs convert fuel energy into mechanical power internally.
Engines are classified by cycle, fuel, combustion, and structure.
Key components include piston, cranktrain, valvetrain, and fuel systems.
Understanding ICE terminology is crucial for engine analysis.
ICEs power diverse applications from vehicles to stationary equipment.
What is the historical development of Internal Combustion Engines?
The development history of Internal Combustion Engines (ICEs) traces back to the 17th century with early theoretical concepts, but practical applications began in the 19th century. Early pioneers like Étienne Lenoir and Nikolaus Otto made significant strides, with Otto's four-stroke engine in 1876 marking a pivotal moment. Rudolf Diesel later introduced the compression-ignition engine. These innovations transformed transportation and industry, leading to the widespread adoption of ICEs in vehicles, power generation, and machinery. Continuous advancements have focused on efficiency, emissions reduction, and fuel versatility.
- Early theoretical concepts emerged in the 17th century.
- Practical ICEs developed significantly in the 19th century.
- Key figures include Lenoir, Otto (four-stroke), and Diesel (compression-ignition).
- Ongoing advancements target efficiency, emissions, and fuel types.
How are Internal Combustion Engines defined and categorized?
Internal Combustion Engines (ICEs) are precisely defined as thermal engines where the combustion of fuel, the release of heat, and the transformation of energy all occur within the engine itself. This distinguishes them from external combustion engines, where combustion happens outside the working fluid. An engine, broadly, is any device converting one form of energy into mechanical energy. A thermal engine specifically converts thermal energy, often from burning fuel, into mechanical work. Understanding this hierarchy helps clarify the unique operational principles of ICEs.
- An engine converts any energy type into mechanical energy.
- A thermal engine transforms thermal energy from fuel combustion into mechanical energy.
- An ICE performs combustion, heat release, and energy transformation internally.
- Engine hierarchy includes heat engines (internal/external combustion) and other types.
What are the primary ways Internal Combustion Engines are classified?
Internal Combustion Engines are classified based on numerous operational and structural characteristics, providing a comprehensive framework for understanding their diverse designs and applications. These classifications help engineers and enthusiasts differentiate between various engine types, from small two-stroke engines in garden equipment to large, multi-cylinder diesel engines in marine vessels. Key distinctions include the working cycle, the type of fuel used, how the fuel-air mixture is formed, and the specific combustion process employed. Further classifications consider charging methods, structural configurations, and intended applications, highlighting the vast array of ICE designs.
- Working cycle: 4-stroke or 2-stroke engines.
- Fuel type: Gas (CNG, LPG), Liquid (gasoline, diesel), or Solid (coal).
- Mixture formation: Outside or inside the cylinder.
- Combustion process: Compressed ignition (Diesel) or Spark ignition (Gasoline).
- Charging process: Naturally aspirated or Forced (supercharge, turbocharge).
- Structural characteristics: Number of cylinders, cylinder configuration (e.g., V, Inline).
- Application: Automobile, marine, aircraft, specialized, or stationary.
- Thermal cycle: Otto, Diesel, or Dual Cycle.
What are the fundamental components and systems of an ICE?
The basic structure of an Internal Combustion Engine comprises several interconnected systems working in harmony to convert fuel into mechanical power. At its core, the piston and cranktrain system translates the linear motion of the piston, driven by combustion, into rotational motion via the crankshaft. Supporting this are critical systems like the valvetrain, which controls gas flow, and the intake and exhaust systems for air and spent gases. Lubrication and cooling systems manage friction and heat, while the fuel and electrical systems ensure precise fuel delivery and ignition. These components, including the cylinder head and block, are essential for the engine's operation.
- Piston & Cranktrain System: Converts linear piston motion to rotational crankshaft power.
- Valvetrain System: Manages intake and exhaust valve operation for gas exchange.
- Intake System: Delivers filtered air to the cylinders for combustion.
- Lubrication System: Reduces friction and cools engine parts with motor oil.
- Cooling System: Dissipates excess heat to prevent engine overheating.
- Engine Electrical System: Provides ignition spark and starts the engine.
- Fuel System: Delivers and atomizes fuel for efficient combustion.
- Exhaust System: Channels spent gases away and reduces emissions.
- Cylinder Head, Cylinder Block: Form the main structural housing for combustion.
- Schematic Diagram (4-Stroke Cycle): Illustrates intake, compression, power, and exhaust strokes.
What are the essential terminologies used in Internal Combustion Engines?
Understanding the specific terminologies associated with Internal Combustion Engines is crucial for comprehending their operation and design. Key terms differentiate between ignition methods, such as spark ignition (SI) engines, which use a spark plug, and compressed ignition (CI) engines, where fuel self-ignites under high pressure. Geometrical terminologies describe the physical dimensions and volumes within the cylinder, like Top-Dead Center (TDC), Bottom-Dead Center (BDC), bore, stroke, and compression ratio. Operating terminologies, including mixture, working fluid, and cycle, define the substances and processes involved in the engine's continuous function.
- Spark ignition engine (SI): Ignites mixture with a spark plug.
- Compressed ignition engine (CI): Self-ignites mixture due to high pressure.
- Geometrical terminologies: TDC, BDC, Bore, Stroke, Displacement, Clearance volume, Compression ratio.
- Operating terminologies: Mixture, Working fluid, Cycle.
Where are Internal Combustion Engines commonly applied?
Internal Combustion Engines are widely applied across numerous sectors due to their versatility, power density, and established technology. They serve as the primary power source for a vast range of vehicles, including automobiles, motorcycles, and heavy-duty trucks, facilitating personal and commercial transportation. Beyond road vehicles, ICEs are critical in marine applications, powering boats and ships, and in aviation for various aircraft types. They also find extensive use in specialized vehicles like construction equipment and agricultural machinery, as well as in stationary applications for power generation, pumps, and industrial equipment, demonstrating their pervasive impact on modern society.
- Automobile: Powering cars, trucks, and motorcycles.
- Marine: Propelling boats, ships, and other watercraft.
- Aircraft: Used in various types of airplanes and helicopters.
- Specialized vehicles: Powering construction, agricultural, and industrial machinery.
- Stationary: Generating electricity, driving pumps, and other fixed equipment.
Frequently Asked Questions
What is the fundamental difference between an ICE and an external combustion engine?
In an ICE, fuel combustion and energy conversion occur inside the engine's cylinders. In an external combustion engine, combustion happens outside, heating a separate working fluid.
How does a 4-stroke engine differ from a 2-stroke engine?
A 4-stroke engine completes its power cycle in four piston strokes (intake, compression, power, exhaust), requiring two crankshaft rotations. A 2-stroke engine completes the cycle in two strokes, one crankshaft rotation.
Why is the compression ratio important in an ICE?
The compression ratio indicates how much the air-fuel mixture is compressed before ignition. A higher compression ratio generally leads to greater thermal efficiency and power output, but requires higher octane fuel to prevent knocking.
