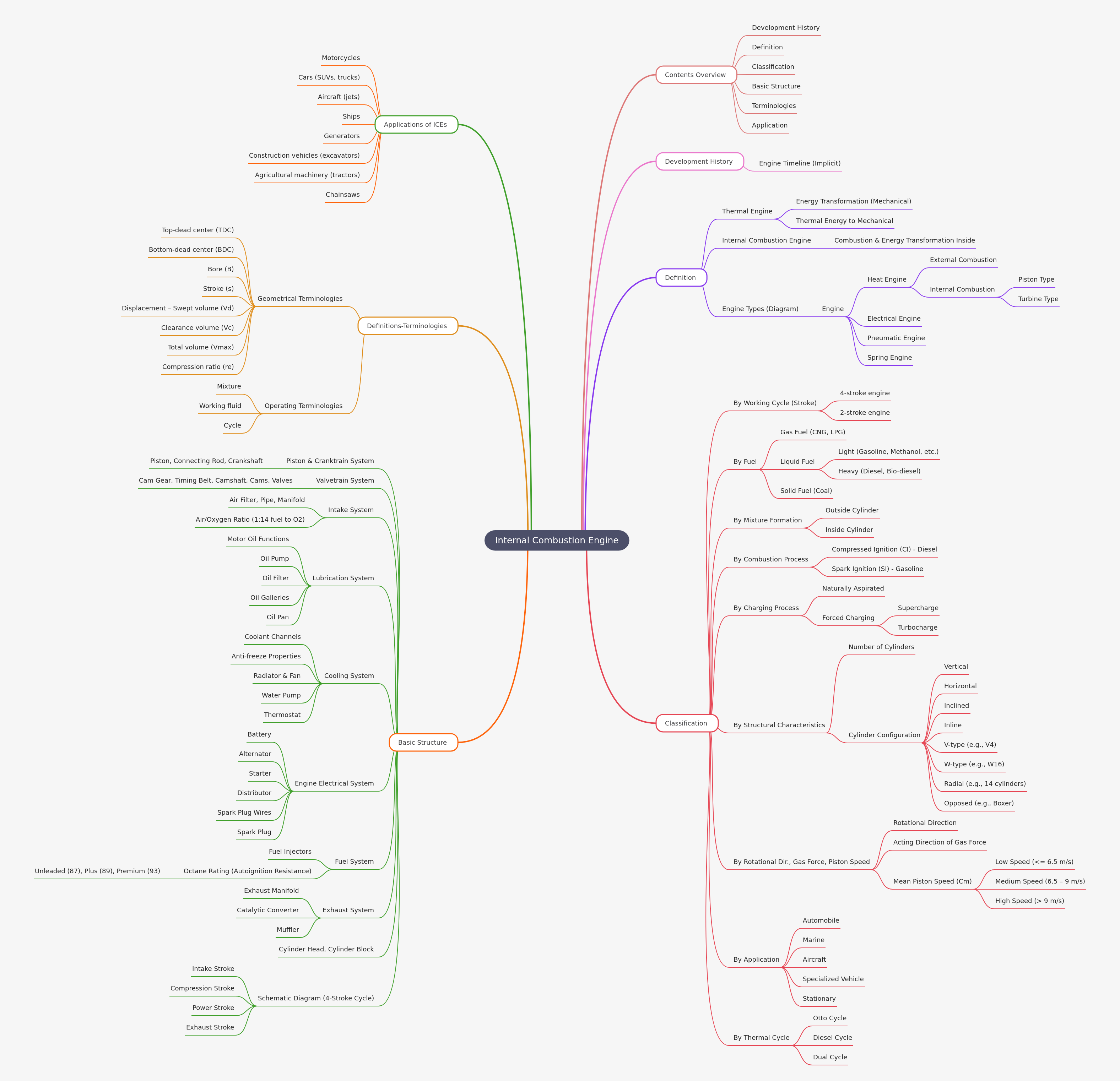

Featured Mind map
Understanding Internal Combustion Engines (ICEs)
Internal Combustion Engines (ICEs) are thermal engines converting chemical energy from fuel into mechanical energy by burning it inside a combustion chamber. This process generates high-pressure gases that drive a piston or turbine, producing power for various applications like vehicles, generators, and machinery. They are fundamental to modern transportation and industry.
Key Takeaways
ICEs convert fuel's chemical energy into mechanical power internally.
They are classified by cycle, fuel, combustion, and structural features.
Key components include piston, valvetrain, fuel, and exhaust systems.
ICEs power diverse applications from cars to aircraft and generators.
Understanding ICE terminology is crucial for engine comprehension.
What key topics are covered in the study of Internal Combustion Engines?
Studying Internal Combustion Engines (ICEs) involves exploring essential areas for understanding their complexities. This overview covers historical evolution to practical applications, ensuring a holistic grasp of how these vital machines operate. Examining these core topics offers a complete perspective on ICE technology and its significance across industries. It provides a foundational roadmap for comprehensive learning.
- Development History
- Definition
- Classification
- Basic Structure
- Terminologies
- Application
What is the historical development of Internal Combustion Engines?
The historical development of Internal Combustion Engines (ICEs) showcases a remarkable journey of innovation. Significant milestones transformed transportation and industry. From early designs to today's sophisticated engines, engineers continuously refined combustion and mechanical efficiency. This evolution highlights humanity's persistent quest for powerful, efficient energy conversion, fundamentally shaping the modern world and its technological landscape.
- Engine Timeline (Implicit)
How are Internal Combustion Engines defined and categorized?
Internal Combustion Engines (ICEs) are thermal engines converting fuel's chemical energy into mechanical work. Combustion occurs within a confined space, directly driving mechanical components. They differ from external combustion engines, where fuel burns outside the working fluid. This core definition helps differentiate ICEs from other power sources, clarifying their operational principle and unique energy conversion method.
- Thermal Engine: Converts thermal to mechanical energy.
- Internal Combustion Engine: Combustion and energy transformation inside.
- Engine Types: Heat (external/internal), electrical, pneumatic, spring.
How are Internal Combustion Engines classified based on various characteristics?
Internal Combustion Engines are classified using multiple criteria, reflecting diverse designs and operational principles. This systematic categorization helps understand specific characteristics and applications. Classifications range from working cycle and fuel type to structural features and intended use, providing a detailed framework for analysis. This comprehensive approach aids in selecting the right engine for specific needs.
- By Working Cycle: 4-stroke, 2-stroke.
- By Fuel: Gas (CNG, LPG), Liquid (gasoline, diesel), Solid (coal).
- By Mixture Formation: Outside or inside cylinder.
- By Combustion Process: Compressed Ignition (Diesel), Spark Ignition (Gasoline).
- By Charging Process: Naturally Aspirated, Forced Charging (Supercharge, Turbocharge).
- By Structural Characteristics: Cylinders (number, configuration: V-type, Inline, Radial).
- By Rotational Direction, Gas Force, Piston Speed: Mean piston speed (low, medium, high).
- By Application: Automobile, Marine, Aircraft, Specialized, Stationary.
- By Thermal Cycle: Otto, Diesel, Dual.
What are the fundamental structural components of an Internal Combustion Engine?
The basic structure of an Internal Combustion Engine comprises interconnected systems working in harmony to convert fuel into power. Each component plays a critical role, from mechanical parts facilitating motion to systems managing fuel, air, lubrication, and cooling. Understanding these foundational elements is essential for comprehending ICE function, performance, efficiency, and longevity. This integrated design ensures optimal operation.
- Piston & Cranktrain: Piston, connecting rod, crankshaft.
- Valvetrain: Cam gear, timing belt, camshaft, cams, valves.
- Intake System: Air filter, pipe, manifold, air/oxygen ratio.
- Lubrication System: Motor oil functions, pump, filter, galleries, pan.
- Cooling System: Coolant channels, anti-freeze, radiator, fan, water pump, thermostat.
- Engine Electrical: Battery, alternator, starter, distributor, spark plug wires, spark plug.
- Fuel System: Fuel injectors, octane rating (unleaded, plus, premium).
- Exhaust System: Manifold, catalytic converter, muffler.
- Cylinder Head, Cylinder Block.
- 4-Stroke Cycle: Intake, Compression, Power, Exhaust strokes.
What are the key terminologies used to describe Internal Combustion Engines?
Understanding specific terminologies for Internal Combustion Engines is crucial for accurate communication and detailed analysis. These terms define physical dimensions and operational states, providing precise language for engineers, mechanics, and students. Mastering these definitions allows deeper comprehension of engine design, performance metrics, and diagnostic procedures, facilitating effective discussion and problem-solving. Precision in language is key.
- Geometrical: TDC, BDC, Bore (B), Stroke (s), Displacement (Vd), Clearance (Vc), Total (Vmax), Compression ratio (re).
- Operating: Mixture, Working fluid, Cycle.
Where are Internal Combustion Engines commonly applied?
Internal Combustion Engines (ICEs) are ubiquitous, powering a vast array of machines and vehicles across numerous sectors. Their versatility and efficiency make them indispensable for transportation, industrial operations, and power generation. From personal mobility to heavy-duty machinery, ICEs remain a primary source of motive power, demonstrating enduring importance despite alternative technologies. Their widespread use highlights adaptability.
- Motorcycles
- Cars (SUVs, trucks)
- Aircraft (jets)
- Ships
- Generators
- Construction vehicles (excavators)
- Agricultural machinery (tractors)
- Chainsaws
Frequently Asked Questions
What is the primary function of an Internal Combustion Engine?
An ICE converts fuel's chemical energy into mechanical energy by burning it inside a combustion chamber, driving pistons or turbines to produce power for various applications.
How do 2-stroke and 4-stroke engines differ in operation?
A 4-stroke engine completes its cycle in four piston movements, while a 2-stroke engine completes it in two, combining intake/compression and power/exhaust phases more efficiently.
What are the main components of an ICE's basic structure?
Key components include the piston/cranktrain, valvetrain, intake, fuel, lubrication, cooling, electrical, and exhaust systems, plus the cylinder head and block.
How is an ICE typically classified by its fuel type?
ICEs are classified by using gas fuels (CNG, LPG), liquid fuels (gasoline, diesel), or solid fuels like coal, depending on their specific design and application.
What does 'compression ratio' signify in an ICE?
Compression ratio is the ratio of the cylinder's maximum volume (piston at BDC) to its minimum volume (piston at TDC), indicating how much the air-fuel mixture is compressed.
