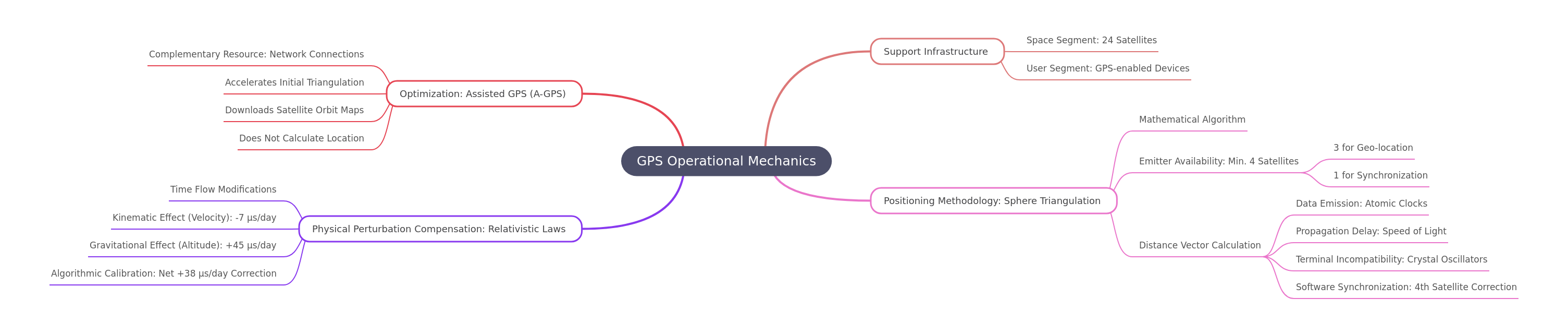

GPS Operational Mechanics Explained
Global Positioning System (GPS) operates by calculating a receiver's location through sphere triangulation, using precise time signals from a constellation of 24 satellites. It requires a minimum of four satellites for accurate positioning and synchronization, while also accounting for relativistic effects on time to maintain high precision. Assisted GPS (A-GPS) further enhances initial acquisition speed.
Key Takeaways
GPS relies on 24 satellites and user devices for global positioning.
Sphere triangulation, needing four satellites, determines precise location.
Relativistic effects on time are crucial for GPS accuracy.
A-GPS uses network data to speed up initial satellite lock.
What Infrastructure Supports GPS Operations?
The Global Positioning System (GPS) relies on a robust infrastructure comprising two primary segments to deliver accurate location data worldwide. The space segment consists of a constellation of 24 operational satellites orbiting Earth, continuously transmitting precise timing and orbital information. These satellites are strategically positioned to ensure that at least four are visible from almost any point on the planet at any given time. Complementing this is the user segment, which includes all GPS-enabled devices, such as smartphones, navigation systems, and specialized tracking units. These devices receive and process the satellite signals to calculate their precise geographical coordinates. This dual-segment architecture is fundamental to the system's global reach and functionality, enabling a wide array of applications from personal navigation to scientific research.
- Space Segment: Comprises a constellation of 24 active satellites orbiting Earth, continuously broadcasting precise timing and orbital data essential for global coverage and signal availability.
- User Segment: Encompasses all GPS-enabled devices, from personal smartphones and vehicle navigation systems to specialized industrial trackers, which receive and process satellite signals to compute their exact geographical coordinates.
How Does GPS Determine Your Position Using Sphere Triangulation?
GPS determines a receiver's precise location using sphere triangulation, also known as trilateration. This method calculates the distance from the receiver to multiple satellites by measuring signal travel time. Each satellite transmits its exact position and precise time using atomic clocks. The receiver computes its distance from each satellite by knowing the signal's travel time and the speed of light, creating a conceptual sphere around each satellite. The intersection of these spheres pinpoints the location. A minimum of four satellites is crucial: three for latitude, longitude, and altitude, and a fourth to synchronize the receiver's less precise internal clock with the satellites' atomic clocks, correcting timing discrepancies. This mathematical algorithm ensures high precision.
- Mathematical Algorithm: The fundamental computational process that translates signal travel times from multiple satellites into a precise three-dimensional location on Earth.
- Emitter Availability: Requires a minimum of four visible satellites for accurate positioning and crucial time synchronization.
- Three satellites are used to establish the receiver's latitude, longitude, and altitude, defining its spatial coordinates.
- One additional satellite is dedicated to synchronizing the receiver's internal clock, correcting for its inherent inaccuracies compared to atomic clocks.
- Distance Vector Calculation: Involves precisely measuring the time difference between signal transmission from the satellite and its reception by the device.
- Data Emission: Satellites transmit highly accurate time signals generated by onboard atomic clocks, ensuring unparalleled precision.
- Propagation Delay: The time taken for the radio signal to travel from the satellite to the receiver at the constant speed of light.
- Terminal Incompatibility: Receiver devices typically use less precise crystal oscillators, necessitating external synchronization to match satellite accuracy.
- Software Synchronization: The fourth satellite's signal provides the necessary data to algorithmically correct the receiver's clock errors, ensuring precise distance calculations.
Why Are Relativistic Laws Essential for GPS Accuracy?
Relativistic laws are crucial for GPS accuracy, compensating for subtle time distortions from satellite velocity and Earth's gravity. Without these corrections, daily errors would accumulate by kilometers. Special Relativity dictates that satellites' high speed (kinematic effect) slows their clocks by approximately 7 microseconds daily. Conversely, General Relativity states that clocks in weaker gravitational fields (higher altitude) run faster, adding about 45 microseconds per day. The uncorrected net effect would be clocks running faster by approximately 38 microseconds daily. GPS systems apply an algorithmic calibration to precisely compensate for this net +38 µs/day correction, ensuring the timing accuracy vital for precise positioning.
- Time Flow Modifications: Relativistic principles, derived from Einstein's theories, predict and explain how time can be perceived differently based on relative motion and gravitational potential.
- Kinematic Effect (Velocity): Due to their high orbital speed, GPS satellites experience time dilation, causing their onboard clocks to run approximately 7 microseconds slower per day relative to Earth-bound observers.
- Gravitational Effect (Altitude): Operating in a weaker gravitational field at higher altitudes, satellite clocks run faster by about 45 microseconds per day, as predicted by General Relativity.
- Algorithmic Calibration: A precise, continuous correction of a net +38 µs/day is applied to the satellite clocks to counteract these relativistic effects, maintaining the system's extraordinary accuracy.
What is Assisted GPS (A-GPS) and How Does it Optimize Location Services?
Assisted GPS (A-GPS) optimizes standard GPS performance, especially in challenging environments or during initial startup. It leverages complementary resources like cellular data or Wi-Fi to provide additional information to the GPS receiver. This assistance data includes satellite orbit maps (almanac and ephemeris) and approximate network-based location. By downloading these maps and initial position estimates, A-GPS significantly accelerates the initial triangulation process, known as "time to first fix" (TTFF). This allows devices to acquire satellite lock much faster, even indoors or in urban areas with weak signals. Crucially, A-GPS does not calculate the location itself; it merely provides data to help the GPS receiver perform its calculations more quickly and efficiently.
- Complementary Resource: Utilizes existing network connections, such as cellular data or Wi-Fi, to obtain supplementary information that aids the GPS receiver.
- Accelerates Initial Triangulation: Significantly reduces the "time to first fix" (TTFF), allowing the device to acquire a position much faster than standalone GPS.
- Downloads Satellite Orbit Maps: Acquires current almanac and ephemeris data, which are precise orbital parameters of satellites, directly from network servers.
- Does Not Calculate Location: A-GPS provides crucial data but does not perform the actual position calculation; that remains the function of the device's integrated GPS receiver.
Frequently Asked Questions
How many satellites are needed for GPS to work accurately?
For accurate GPS positioning, a minimum of four satellites are required. Three satellites determine the receiver's geo-location (latitude, longitude, altitude), while the fourth is essential for synchronizing the receiver's internal clock with the precise atomic clocks on the satellites.
Why are relativistic effects important for GPS?
Relativistic effects are crucial because they account for time distortions caused by satellite velocity and Earth's gravity. Without these corrections, GPS clocks would drift by approximately 38 microseconds daily, leading to significant positioning errors of several kilometers, rendering the system inaccurate.
What is the main benefit of Assisted GPS (A-GPS)?
The main benefit of A-GPS is accelerating the "time to first fix" (TTFF). By using network connections to download satellite orbit data and approximate location information, A-GPS helps the GPS receiver acquire satellite signals and calculate a position much faster, especially in difficult signal conditions.
