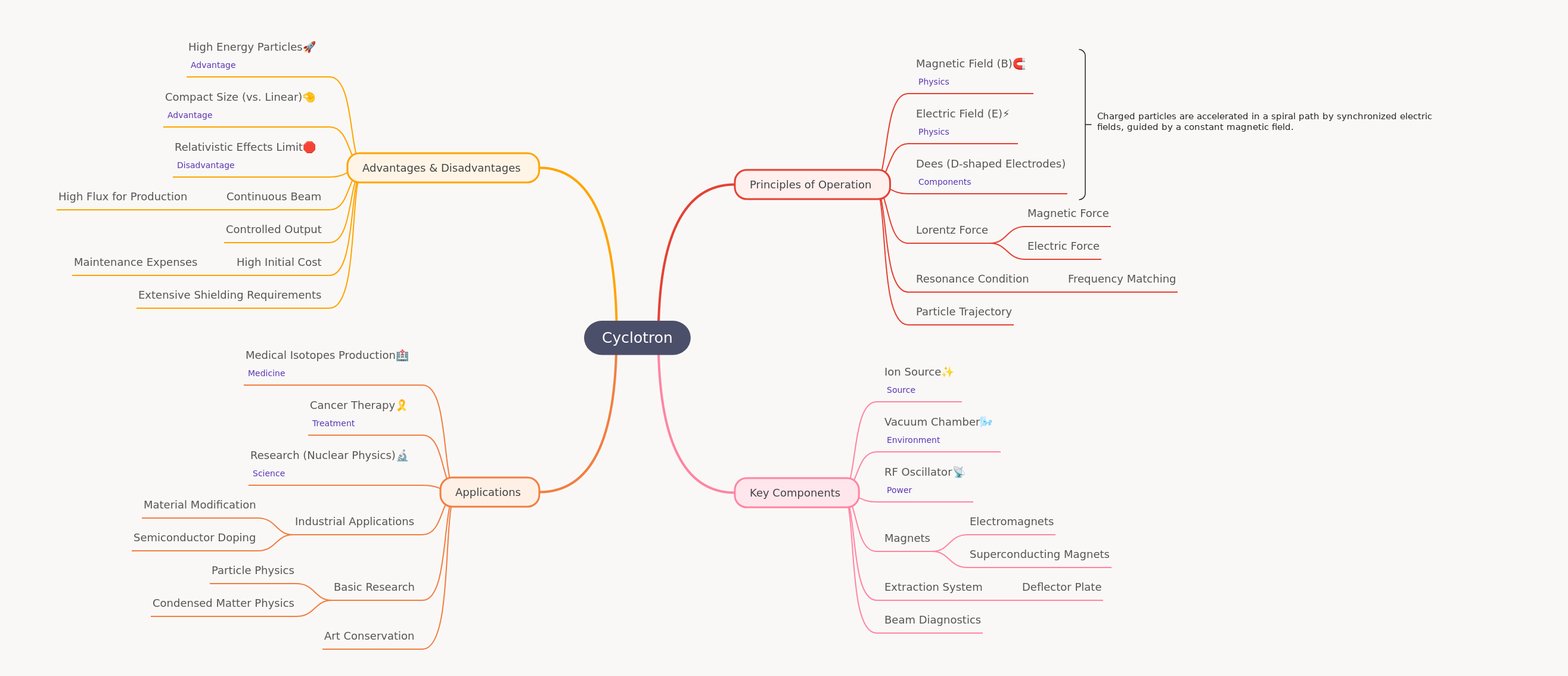

Understanding Cyclotrons: Principles, Components, and Uses
A cyclotron is a particle accelerator that uses a constant magnetic field and a rapidly oscillating electric field to accelerate charged particles in an outward spiral path. This ingenious device efficiently boosts particles to high energies for various applications, including medical isotope production, cancer therapy, and fundamental research in nuclear and particle physics. Its design allows for continuous beam generation and compact size.
Key Takeaways
Cyclotrons accelerate charged particles using synchronized magnetic and electric fields.
They operate on a resonance principle, ensuring continuous and efficient particle acceleration.
Essential components include ion sources, dees, powerful magnets, and RF oscillators.
Applications span critical areas like medicine, industrial processes, and scientific research.
Offer high-energy output and compact design, balanced by significant cost and shielding needs.
What are the fundamental principles governing cyclotron operation?
Cyclotrons operate on fundamental electromagnetic principles to efficiently accelerate charged particles. A constant magnetic field forces particles into an outward spiral trajectory, while a rapidly oscillating electric field provides synchronized energy boosts. This continuous acceleration occurs each time particles cross the gap between two D-shaped electrodes, known as "dees." The magnetic field ensures particles follow a circular path, and the electric field, timed to match the particle's increasing orbital frequency, repeatedly accelerates them. This design allows particles to gain significant kinetic energy over many revolutions, eventually reaching high velocities before extraction. The combined Lorentz force dictates the particle's precise motion.
- Magnetic Field (B): Provides a constant force perpendicular to particle velocity, bending their path.
- Electric Field (E): Oscillates, accelerating particles each time they cross the gap between dees.
- Dees (D-shaped Electrodes): Hollow chambers where particles are accelerated by the electric field.
- Lorentz Force: Combined magnetic and electric forces guiding and accelerating charged particles.
- Magnetic Force: Primarily curves the particle's trajectory.
- Electric Force: Directly increases the particle's kinetic energy.
- Resonance Condition: Ensures electric field frequency matches particle's orbital frequency for efficient acceleration.
- Particle Trajectory: Charged particles follow an outward spiral path as their energy increases.
What are the essential components that make up a cyclotron?
A cyclotron's effective operation relies on several interconnected key components, each playing a vital role in the acceleration process. An ion source generates the charged particles to be accelerated. These particles are introduced into a high-vacuum chamber, preventing collisions with air molecules. An RF oscillator generates the high-frequency alternating voltage applied to the dees, providing the necessary electric field. Powerful magnets, often electromagnets or superconducting magnets, create the strong, constant magnetic field that guides the particles in their spiral trajectory. Finally, an extraction system, typically involving a deflector plate, guides the high-energy beam out of the cyclotron, while beam diagnostics monitor and control the particle stream.
- Ion Source: Generates and injects charged particles (ions) for acceleration.
- Vacuum Chamber: Maintains low-pressure, preventing particle scattering and energy loss.
- RF Oscillator: Produces high-frequency alternating electric field across the dees.
- Magnets: Generate strong, constant magnetic field for bending particle trajectories.
- Electromagnets: Traditional magnets used in many cyclotron designs.
- Superconducting Magnets: Offer stronger fields for compact, higher-energy cyclotrons.
- Extraction System: Directs the accelerated particle beam out for external use.
- Deflector Plate: Electrostatic device steering the high-energy beam away.
- Beam Diagnostics: Instruments monitoring and measuring accelerated particle beam properties.
Where are cyclotrons primarily utilized across various fields?
Cyclotrons have a wide array of critical applications spanning medicine, industry, and fundamental scientific research, demonstrating their versatility and impact. In medicine, they are indispensable for producing medical isotopes, such as Fluorine-18 for PET scans, crucial for diagnostic imaging. They also play a significant role in cancer therapy, particularly in proton therapy, where precisely targeted high-energy beams destroy cancerous cells with minimal damage to surrounding healthy tissue. Beyond healthcare, cyclotrons contribute to industrial applications like material modification, enhancing properties of materials, and semiconductor doping, vital for electronics manufacturing. Furthermore, they are fundamental tools in basic research, exploring nuclear and particle physics, and even contribute to art conservation.
- Medical Isotopes Production: Creates short-lived radioisotopes for diagnostic imaging like PET scans.
- Cancer Therapy: Employs proton therapy for highly precise targeting of tumors.
- Research (Nuclear Physics): Provides high-energy beams for studying atomic nuclei and interactions.
- Industrial Applications: Enhances material properties and enables precise semiconductor doping.
- Material Modification: Improves characteristics like wear resistance or surface hardness.
- Semiconductor Doping: Introduces impurities to control electrical conductivity.
- Basic Research: Facilitates investigations into fundamental constituents of matter and forces.
- Particle Physics: Explores elementary particles and their interactions.
- Condensed Matter Physics: Researches physical properties of solid materials.
- Art Conservation: Applied for non-destructive analysis of artworks, guiding restoration.
What are the main advantages and disadvantages of using cyclotrons?
While cyclotrons offer significant benefits, they also come with certain limitations that must be considered. A primary advantage is their ability to produce high-energy particles, essential for many applications, from medical treatments to advanced research. Their compact size, especially compared to linear accelerators, makes them more feasible for installation in various facilities. Cyclotrons can also generate a continuous beam, providing a high flux of particles crucial for efficient isotope production. However, a significant disadvantage arises from relativistic effects, which limit the maximum energy achievable in conventional cyclotrons as particles gain mass and fall out of resonance. Furthermore, cyclotrons involve a high initial cost for construction and substantial ongoing maintenance expenses. The powerful radiation generated necessitates extensive shielding requirements to ensure safety.
- High Energy Particles: Accelerates particles to very high kinetic energies for diverse applications.
- Compact Size (vs. Linear): Occupies less space compared to linear accelerators of comparable energy.
- Relativistic Effects Limit: Energy limitation due to relativistic increase in particle mass, causing desynchronization.
- Continuous Beam: Provides a steady stream of accelerated particles, beneficial for high-volume production.
- High Flux for Production: Ensures efficient and rapid generation of isotopes.
- Controlled Output: Allows precise control over the energy and intensity of the particle beam.
- High Initial Cost: Requires significant capital investment for construction and installation.
- Maintenance Expenses: Incur substantial ongoing costs for operation and repairs.
- Extensive Shielding Requirements: Demands robust radiation shielding to protect personnel and environment.
Frequently Asked Questions
How does a cyclotron accelerate particles?
A cyclotron accelerates charged particles using a constant magnetic field to bend their path into a spiral. An oscillating electric field then repeatedly boosts their energy as they cross gaps between D-shaped electrodes, efficiently increasing velocity.
What are cyclotrons primarily used for in medicine?
In medicine, cyclotrons produce essential medical isotopes for diagnostic imaging like PET scans. They are also vital for advanced cancer therapy, specifically proton therapy, which precisely targets and destroys cancerous tumors.
What limits the maximum energy of a conventional cyclotron?
The maximum energy of a conventional cyclotron is limited by relativistic effects. As particles approach the speed of light, their mass increases, causing them to fall out of sync with the oscillating electric field, preventing further acceleration.
