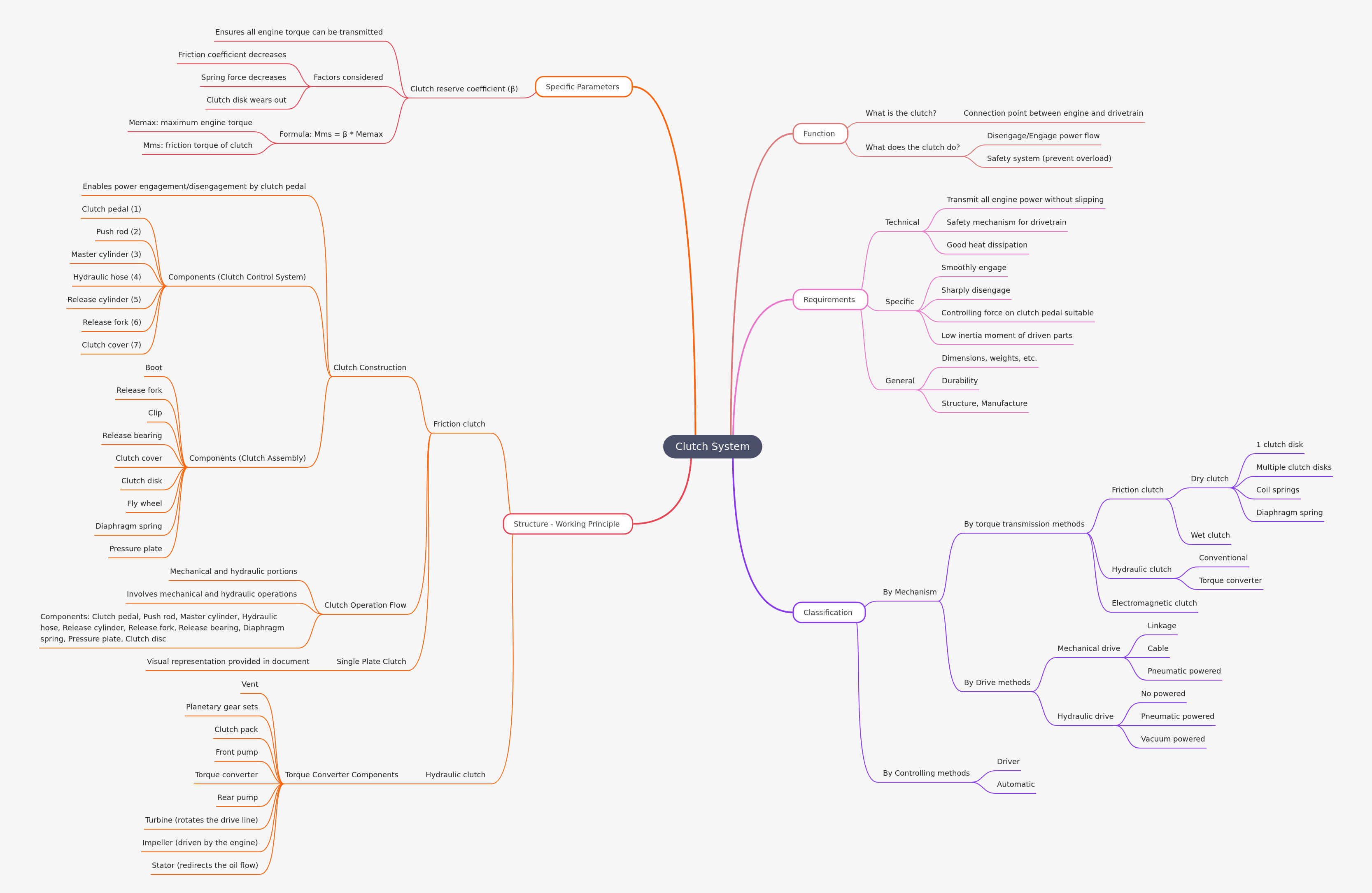

Clutch System: Function, Requirements, Structure, Classification
The clutch system is a vital automotive component that precisely controls the power transfer from the engine to the drivetrain. It enables drivers to smoothly engage and disengage engine power, facilitating seamless gear changes and vehicle starts without stalling. Crucially, it also functions as a safety mechanism, preventing engine overload and protecting the transmission from potential damage during operation.
Key Takeaways
Clutch systems connect and disconnect engine power to the drivetrain.
They ensure smooth gear changes and prevent engine overload.
Clutches must transmit full engine torque without any slipping.
Classifications include friction, hydraulic, and electromagnetic types.
The reserve coefficient guarantees reliable torque transmission capacity.
What is the primary function of an automotive clutch system?
The primary function of an automotive clutch system is to precisely manage the connection between the engine and the vehicle's drivetrain. It empowers the driver to smoothly engage or disengage the power flow from the engine to the transmission, which is absolutely essential for facilitating seamless gear changes and enabling vehicle starts without stalling. Furthermore, the clutch serves as a critical safety mechanism, diligently preventing the engine from overloading the drivetrain by allowing controlled slipping under excessive stress, thereby protecting other vital components from potential damage and ensuring operational longevity.
- Acts as the crucial connection point between the engine and the drivetrain.
- Enables the driver to smoothly disengage and engage engine power flow.
- Functions as an essential safety system to prevent drivetrain overload.
What are the essential requirements for an effective automotive clutch system?
An effective automotive clutch system must meticulously fulfill several critical requirements to guarantee optimal vehicle performance, safety, and durability. Technically, it is imperative that the clutch can transmit the entire engine power output without any slipping, while also serving as a robust safety mechanism for the entire drivetrain. Additionally, it must possess excellent heat dissipation capabilities to prevent thermal damage during operation. Specific operational demands include achieving smooth engagement and sharp disengagement, providing a suitable and comfortable controlling force on the clutch pedal, and maintaining a low inertia moment of driven parts to minimize operational shock and vibration. General requirements encompass practical considerations such as optimized dimensions, manageable weights, superior durability, and efficient manufacturing processes.
- Must transmit all engine power effectively without any slipping.
- Serves as a vital safety mechanism for protecting the drivetrain.
- Requires good heat dissipation to prevent overheating and wear.
- Needs to smoothly engage and sharply disengage power for control.
- Clutch pedal controlling force must be suitable for driver comfort.
- Driven parts should have a low inertia moment for smooth operation.
- Considerations include dimensions, weights, durability, and manufacturing.
How are various automotive clutch systems typically classified?
Automotive clutch systems are systematically classified based on their fundamental mechanism and the methods used for their control, reflecting a diverse range of engineering solutions for power transmission. Regarding the mechanism, clutches are primarily categorized by their torque transmission methods, which include friction clutches (further divided into dry or wet types, and single or multiple disk configurations, utilizing coil or diaphragm springs), hydraulic clutches (encompassing conventional designs or sophisticated torque converters), and electromagnetic clutches. Further distinctions are made by drive methods, differentiating between mechanical drives (such as linkage, cable, or pneumatic powered systems) and hydraulic drives (which can be non-powered, pneumatic powered, or vacuum powered). Finally, controlling methods distinguish between systems operated directly by the driver and those that function automatically.
- Classified by torque transmission methods: Friction, Hydraulic, Electromagnetic.
- Friction clutches include dry (single/multiple disk, coil/diaphragm spring) and wet types.
- Hydraulic clutches comprise conventional and torque converter designs.
- Drive methods include mechanical (linkage, cable, pneumatic) and hydraulic (various power sources).
- Controlling methods differentiate between driver-operated and automatic systems.
What are the structural components and working principles of common clutch systems?
The structural components and working principles of clutch systems vary significantly, primarily between friction and hydraulic types, each designed for specific operational demands. A friction clutch, for instance, enables precise power engagement and disengagement through the driver's clutch pedal input. Its control system typically involves components like the clutch pedal, push rod, master cylinder, hydraulic hose, and release cylinder. The core clutch assembly comprises a release fork, release bearing, clutch cover, clutch disk, flywheel, diaphragm spring, and pressure plate. Its operation seamlessly integrates both mechanical and hydraulic portions to achieve controlled power transfer. In contrast, hydraulic clutches, particularly torque converters, transmit torque through fluid dynamics, utilizing key components such as an impeller, turbine, and stator to achieve a different operational dynamic.
- Friction clutch construction facilitates power engagement/disengagement via the clutch pedal.
- Friction clutch control system includes pedal, cylinders, hose, and release mechanisms.
- Friction clutch assembly features a release fork, bearing, cover, disk, flywheel, and springs.
- Hydraulic clutches, like torque converters, use an impeller, turbine, and stator for fluid-based torque transfer.
What is the significance of the clutch reserve coefficient (β) in clutch design?
The clutch reserve coefficient (β) represents a critically important specific parameter that quantifies the clutch's inherent ability to reliably transmit the engine's maximum torque without slipping under various operating conditions. This coefficient is designed to ensure that the clutch can consistently transmit all maximum engine torque, even when accounting for anticipated reductions in the friction coefficient, decreases in spring force over time, and the inevitable wear of the clutch disk. The fundamental relationship is defined by the formula Mms = β * Memax, where Mms denotes the friction torque of the clutch and Memax signifies the maximum engine torque. A higher reserve coefficient directly correlates with enhanced reliability, increased durability, and a longer service life for the clutch system.
- Ensures the clutch can transmit all maximum engine torque without slipping.
- Accounts for factors like decreasing friction coefficient and spring force.
- Considers the impact of clutch disk wear over its operational lifespan.
- Defined by the formula Mms = β * Memax, linking friction torque to engine torque.
