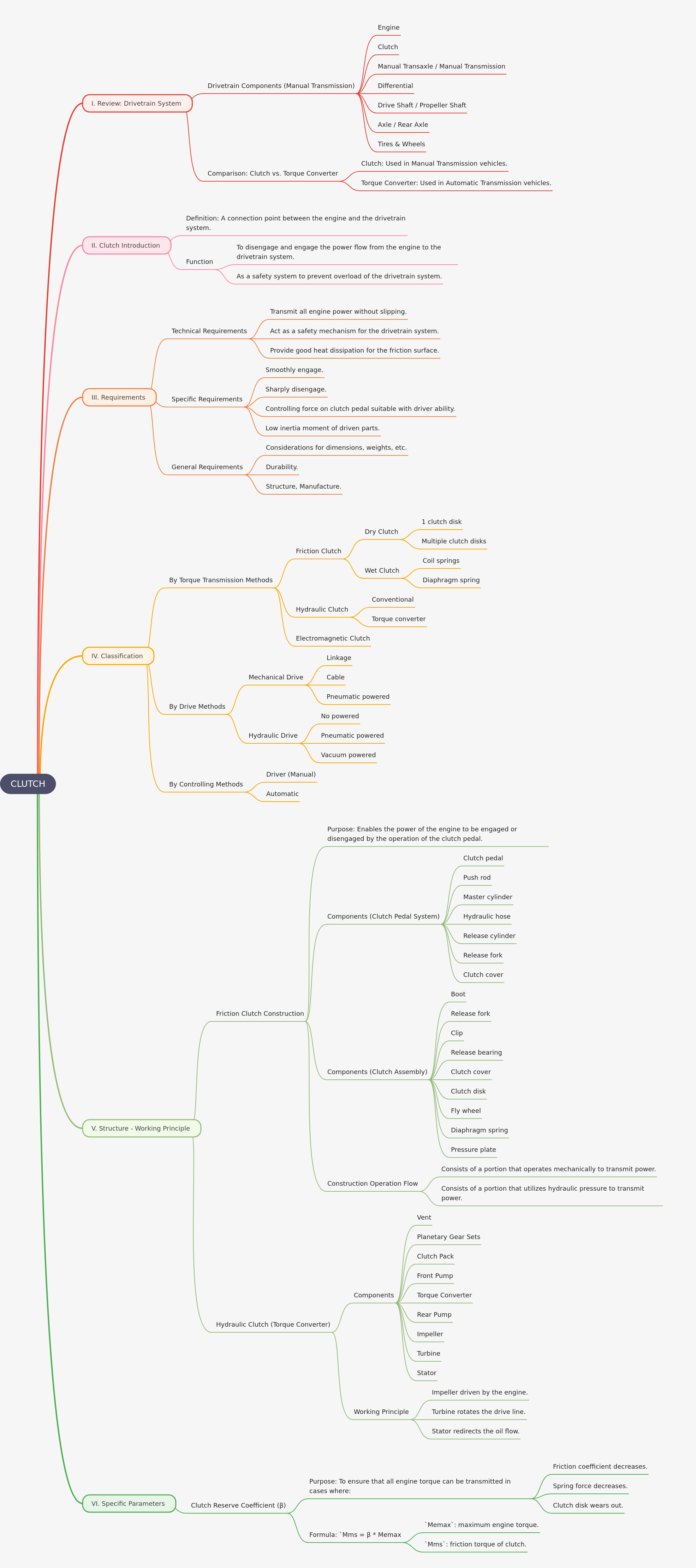

Featured Mind map
Vehicle Clutch Systems: Mechanics and Function
A clutch is a vital mechanical component in manual transmission vehicles, acting as a controlled connection between the engine and the drivetrain. Its primary function is to smoothly engage and disengage power flow, allowing for gear changes and preventing engine stalling. It also serves as a crucial safety mechanism, protecting the drivetrain from excessive loads.
Key Takeaways
The clutch connects and disconnects engine power to the drivetrain.
It enables smooth gear changes and prevents drivetrain overload.
Clutches are classified by torque transmission, drive, and control methods.
Key requirements include power transmission, heat dissipation, and smooth operation.
The Clutch Reserve Coefficient ensures reliable torque delivery under varying conditions.
What is the drivetrain system and its components in a manual vehicle?
The drivetrain system in a manual transmission vehicle is a complex network of components responsible for transmitting power from the engine to the wheels, ultimately propelling the vehicle. It ensures that the rotational energy generated by the engine is efficiently delivered to the road, allowing for controlled movement and speed. Understanding this system is fundamental to comprehending how a clutch integrates and functions within the overall vehicle mechanics. The drivetrain must manage varying loads and speeds, requiring robust and precisely engineered parts to operate effectively and reliably under diverse driving conditions, from starting to high-speed cruising.
- Drivetrain Components (Manual Transmission): Engine, Clutch, Manual Transaxle/Transmission, Differential, Drive Shaft/Propeller Shaft, Axle/Rear Axle, Tires & Wheels.
- Comparison: Clutch is used in Manual Transmission vehicles, while a Torque Converter is used in Automatic Transmission vehicles.
What is a clutch and what are its primary functions in a vehicle?
A clutch serves as a critical connection point, strategically positioned between the engine and the drivetrain system in vehicles equipped with manual transmissions. Its fundamental role is to manage the flow of power, allowing the driver to smoothly engage or disengage the engine's output from the transmission. This control is essential for starting the vehicle from a standstill, changing gears without grinding, and bringing the vehicle to a stop without stalling the engine. Beyond power management, the clutch also acts as an important safety system, designed to prevent the drivetrain from being overloaded by sudden surges of engine power or abrupt changes in load, thereby protecting other vital components from damage.
- Definition: A connection point between the engine and the drivetrain system.
- Function: To disengage and engage the power flow from the engine to the drivetrain system; As a safety system to prevent overload of the drivetrain system.
What are the essential requirements for an effective clutch system?
An effective clutch system must meet a range of stringent requirements to ensure optimal vehicle performance, safety, and driver comfort. Technically, it must be capable of transmitting the engine's full power without any slippage, ensuring efficient power delivery to the wheels. It also functions as a crucial safety mechanism, protecting the entire drivetrain from potential damage due to excessive torque. Furthermore, the clutch's friction surfaces must possess excellent heat dissipation properties to prevent overheating and premature wear during operation. These technical aspects are complemented by specific operational demands that enhance the driving experience and system longevity.
- Technical Requirements: Transmit all engine power without slipping; Act as a safety mechanism for the drivetrain system; Provide good heat dissipation for the friction surface.
- Specific Requirements: Smoothly engage; Sharply disengage; Controlling force on clutch pedal suitable with driver ability; Low inertia moment of driven parts.
- General Requirements: Considerations for dimensions, weights, etc.; Durability; Structure, Manufacture.
How are clutches classified based on torque transmission, drive, and control methods?
Clutches are categorized into various types based on their fundamental operating principles, specifically how they transmit torque, how they are driven, and how they are controlled. Understanding these classifications helps in selecting the appropriate clutch for different vehicle applications and performance needs. Torque transmission methods include friction clutches, which rely on friction between surfaces, hydraulic clutches that use fluid pressure, and electromagnetic clutches that utilize magnetic fields. Drive methods refer to the mechanism that actuates the clutch, such as mechanical linkages or hydraulic systems. Control methods distinguish between manual driver operation and automatic engagement, each offering distinct advantages in vehicle design and user experience.
- By Torque Transmission Methods: Friction Clutch (Dry Clutch: 1 clutch disk, Multiple clutch disks; Wet Clutch: Coil springs, Diaphragm spring), Hydraulic Clutch (Conventional, Torque converter), Electromagnetic Clutch.
- By Drive Methods: Mechanical Drive (Linkage, Cable, Pneumatic powered), Hydraulic Drive (No powered, Pneumatic powered, Vacuum powered).
- By Controlling Methods: Driver (Manual), Automatic.
How do friction and hydraulic clutches operate and what are their key components?
The operational principles of friction and hydraulic clutches, particularly torque converters, differ significantly due to their distinct designs and componentry. A friction clutch, common in manual vehicles, relies on mechanical and hydraulic action to engage and disengage. When the clutch pedal is pressed, hydraulic pressure disengages the clutch disk from the flywheel, interrupting power flow. Releasing the pedal allows springs to press the clutch disk against the flywheel, re-establishing the connection. In contrast, a hydraulic clutch, often a torque converter in automatic transmissions, uses fluid dynamics. An impeller driven by the engine propels fluid to a turbine, which then rotates the driveline, with a stator redirecting fluid for torque multiplication. Both systems achieve power transfer but through different engineering approaches.
- Friction Clutch Construction: Purpose (enables engine power engagement/disengagement via clutch pedal); Components (Clutch Pedal System: Clutch pedal, Push rod, Master cylinder, Hydraulic hose, Release cylinder, Release fork, Clutch cover; Clutch Assembly: Boot, Release fork, Clip, Release bearing, Clutch cover, Clutch disk, Fly wheel, Diaphragm spring, Pressure plate); Construction Operation Flow (mechanically transmits power, hydraulically transmits power).
- Hydraulic Clutch (Torque Converter): Components (Vent, Planetary Gear Sets, Clutch Pack, Front Pump, Torque Converter, Rear Pump, Impeller, Turbine, Stator); Working Principle (Impeller driven by engine, Turbine rotates drive line, Stator redirects oil flow).
What is the Clutch Reserve Coefficient and why is it important?
The Clutch Reserve Coefficient (β) is a critical specific parameter in clutch design, serving as a safety factor to ensure the clutch can consistently transmit the engine's maximum torque under various adverse conditions. This coefficient is essential because real-world operating conditions can degrade clutch performance over time. Factors such as a decrease in the friction coefficient of the clutch material, weakening of spring forces, or wear of the clutch disk can all reduce the clutch's ability to transmit power effectively. By incorporating a reserve coefficient, engineers ensure that even with some degradation, the clutch maintains sufficient capacity to prevent slippage and reliably transfer all engine torque to the drivetrain, safeguarding vehicle performance and longevity.
- Purpose: To ensure that all engine torque can be transmitted in cases where friction coefficient decreases, spring force decreases, or clutch disk wears out.
- Formula: `Mms = β * Memax` (where `Memax` is maximum engine torque, and `Mms` is friction torque of clutch).
Frequently Asked Questions
What is the main purpose of a clutch in a vehicle?
The clutch's main purpose is to connect and disconnect the engine's power from the transmission, enabling smooth gear changes and allowing the vehicle to stop without stalling. It also protects the drivetrain from sudden overloads.
How do friction clutches differ from hydraulic clutches?
Friction clutches use mechanical and hydraulic pressure to engage/disengage physical friction plates. Hydraulic clutches, like torque converters, use fluid dynamics to transfer power, often found in automatic transmissions, providing a smoother, continuous power flow.
Why is the Clutch Reserve Coefficient important for clutch performance?
The Clutch Reserve Coefficient ensures the clutch can transmit maximum engine torque even when components degrade due to wear or heat. It acts as a safety margin, preventing slippage and maintaining reliable power transfer under varying conditions.
