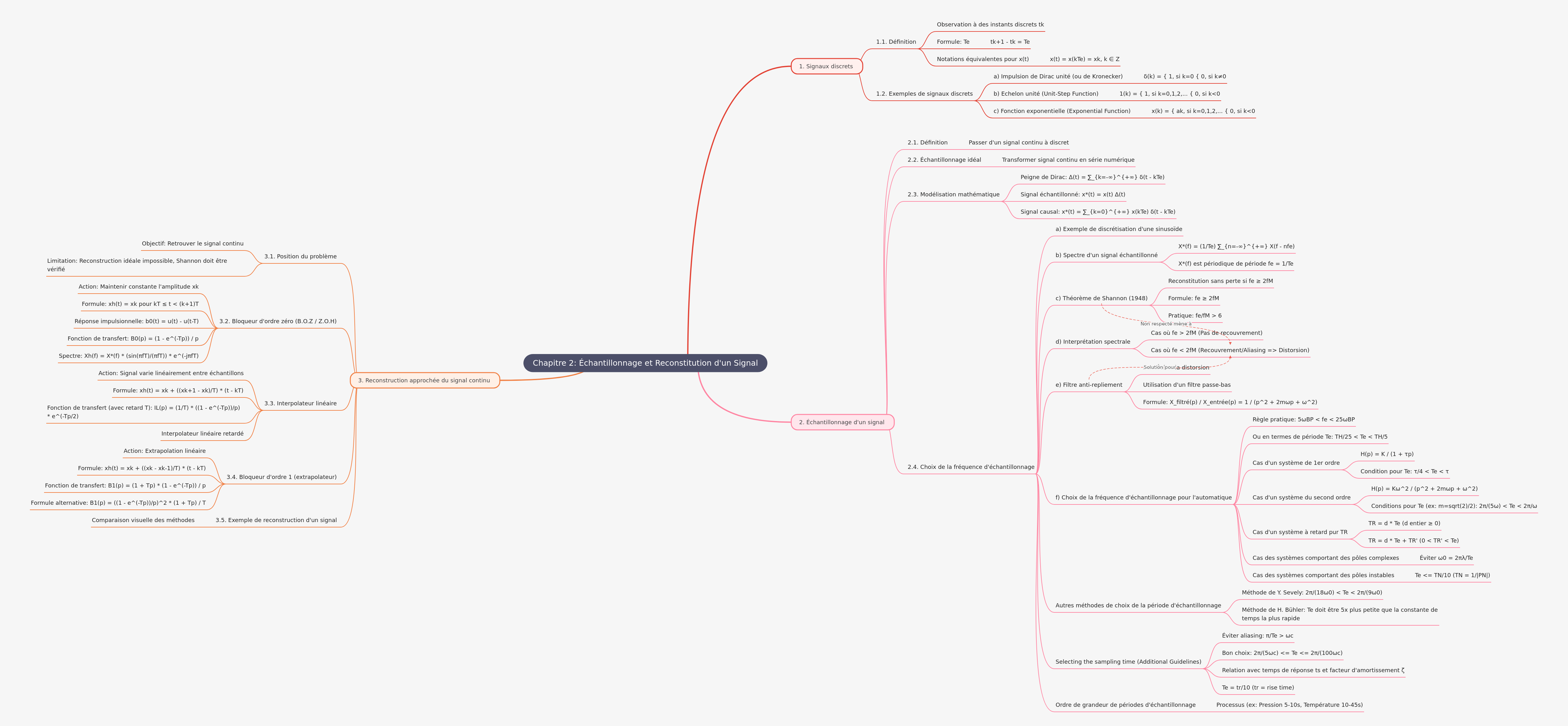

Featured Mind map
Signal Sampling & Reconstruction Fundamentals
Signal sampling is the process of converting a continuous analog signal into a discrete sequence of values by taking measurements at regular intervals. Signal reconstruction then aims to convert these discrete samples back into an approximate continuous form. This fundamental process is crucial in digital signal processing for efficient data handling, storage, and analysis, while carefully managing potential information loss or distortion.
Key Takeaways
Discrete signals are defined by observations at specific, distinct time points.
Sampling transforms continuous signals into digital, quantifiable data points.
Shannon's theorem dictates the minimum sampling rate to avoid data loss.
Aliasing distortion occurs when the sampling frequency is insufficiently high.
Reconstruction methods like ZOH approximate the original continuous signal.
What are Discrete Signals and How are They Defined?
Discrete signals represent observations of a continuous phenomenon taken only at specific, distinct moments in time, rather than continuously. This transformation is fundamental in digital systems, where analog information must be converted into a quantifiable, digital format. Such signals are typically defined by their values at these discrete time instants, often denoted as tk. The interval between these consecutive observations is known as the sampling period, Te, which is a critical parameter determining the signal's digital representation. Understanding discrete signals is the first step towards comprehending the entire sampling and reconstruction process.
- Discrete signals are observations of a continuous signal at specific, non-continuous time points.
- The sampling period Te defines the fixed time interval between successive discrete observations.
- Notations for discrete signals include x(kTe) or xk, where k is an integer.
- Dirac impulse (Kronecker delta) is 1 at k=0, 0 otherwise; a fundamental discrete signal.
- Unit step function 1(k) is 1 for k ≥ 0, 0 for k < 0, representing sudden onset.
- Exponential functions x(k) = ak for k ≥ 0 are also common discrete signal examples.
How is a Continuous Signal Sampled and What are the Key Considerations?
Sampling a signal involves converting a continuous-time analog signal into a discrete-time digital signal. Ideal sampling conceptually transforms the continuous signal into a series of impulses, each representing the signal's amplitude at a specific sampling instant. Mathematically, this process is often modeled by multiplying the continuous signal x(t) with a Dirac comb, Δ(t), which is an infinite series of Dirac impulses spaced by the sampling period Te. The resulting sampled signal, x*(t), is a sequence of weighted impulses. Crucially, the choice of sampling frequency, fe, is paramount to ensure accurate representation and subsequent reconstruction of the original signal without significant loss or distortion.
- Sampling transforms continuous analog signals into discrete numerical series for digital processing.
- Ideal sampling converts continuous signals into a sequence of impulses at specific time points.
- Mathematical modeling uses a Dirac comb Δ(t) to represent the precise sampling instants.
- The sampled signal x*(t) is the product of the continuous signal and the Dirac comb.
- The spectrum X*(f) of a sampled signal becomes periodic, repeating at the sampling frequency fe.
- Shannon's theorem requires fe ≥ 2fM (Nyquist rate) for perfect signal reconstruction.
- If fe < 2fM, spectral overlap (aliasing) occurs, causing irreversible signal distortion.
- Anti-aliasing filters, typically low-pass, are crucial before sampling to prevent aliasing effects.
- Practical sampling frequency rules for control systems often suggest 5ωBP < fe < 25ωBP.
- For first-order systems, the sampling period Te should ideally range between τ/4 and τ.
- Second-order system Te conditions depend on damping and natural frequency, e.g., 2π/(5ω) < Te < 2π/ω.
- Specific guidelines optimize Te for systems with pure delays, complex poles, or unstable poles.
What Methods are Used for Approximating Continuous Signal Reconstruction?
After a signal has been sampled, the next challenge is to reconstruct an approximation of the original continuous signal from its discrete samples. Perfect reconstruction is theoretically possible only if Shannon's theorem is strictly met and an ideal low-pass filter is used, which is not physically realizable. Therefore, practical applications rely on approximate reconstruction methods. These techniques aim to generate a continuous waveform that closely resembles the original signal, balancing fidelity with computational complexity. Understanding these methods is crucial for converting digital data back into a usable analog form for various applications, from audio playback to control systems.
- The objective is to recover a continuous signal from discrete samples; ideal reconstruction is impossible.
- Zero-Order Hold (ZOH) maintains the amplitude of each sample xk constant until the next sample.
- ZOH's impulse response is a rectangular pulse; its transfer function is B0(p) = (1 - e^(-Tp)) / p.
- A linear interpolator connects consecutive samples xk and xk+1 with a straight line segment.
- The linear interpolator generates a signal that varies linearly between the sampled points.
- The First-Order Hold (extrapolator) predicts future signal values based on current and previous samples.
- First-Order Hold performs linear extrapolation, using xk and xk-1 to estimate intermediate values.
- Its transfer function, B1(p), is complex, involving (1 + Tp) * (1 - e^(-Tp)) / p.
- Each reconstruction method introduces different levels of approximation and distinct spectral characteristics.
- Visual comparison of these methods highlights their distinct approaches to approximating the original waveform.
Frequently Asked Questions
What is the primary purpose of signal sampling?
Signal sampling converts a continuous analog signal into a discrete sequence of values. This process is essential for digital processing, storage, and transmission, allowing analog information to be handled by digital systems efficiently and reliably.
What is Shannon's sampling theorem and why is it important?
Shannon's theorem states that a continuous signal can be perfectly reconstructed from its samples if the sampling frequency (fe) is at least twice the signal's maximum frequency (fM). It's crucial for avoiding aliasing and ensuring accurate signal recovery.
How do Zero-Order Hold (ZOH) and linear interpolation differ in signal reconstruction?
ZOH reconstructs a signal by holding each sample's value constant until the next sample. Linear interpolation, conversely, connects consecutive samples with a straight line, providing a smoother, though still approximate, reconstruction of the original continuous signal.
