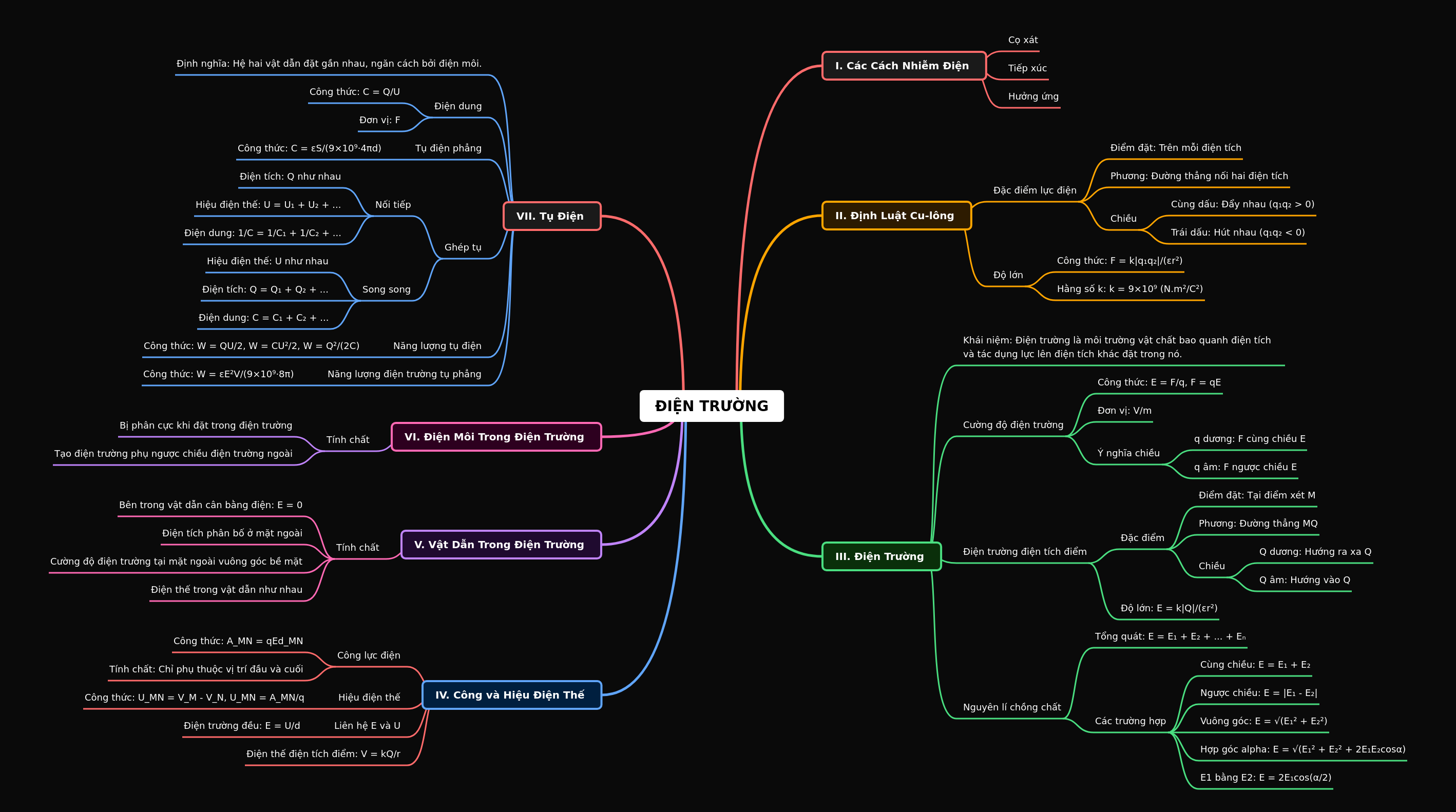

Electric Field: Concepts, Laws, and Applications
The electric field is a fundamental concept in physics, describing the physical field surrounding electrically charged particles. It exerts force on other charges, governing interactions from basic electrification to the behavior of conductors, dielectrics, and the energy storage function of capacitors. Understanding it is key to electrostatics.
Key Takeaways
Objects electrify via friction, contact, or induction.
Coulomb's Law quantifies forces between static charges.
Electric field strength measures force per unit charge.
Work and potential difference relate to charge movement.
Capacitors store electrical energy using dielectrics.
What is Coulomb's Law and how does it describe electric forces?
Coulomb's Law is a foundational principle in electrostatics, quantifying the force between two stationary point charges. It states that the force's magnitude is directly proportional to the product of the charges and inversely proportional to the square of the distance separating them. This force acts along the line connecting the charges. Its direction depends on the charge signs: like charges repel, while opposite charges attract. This law is indispensable for calculating electric field strengths.
- Force acts on each charge, along the line connecting them.
- Like charges repel (q₁q₂ > 0); opposite charges attract (q₁q₂ < 0).
- Magnitude: F = k|q₁q₂|/(εr²), with k = 9×10⁹ N.m²/C².
What is an electric field and how is its strength determined?
An electric field is a physical region surrounding electrically charged particles, exerting force on other charges within it without direct contact. It's crucial for understanding charge interactions. Electric field strength (E) is defined as the electric force per unit positive test charge, with its direction matching the force on such a charge. For a point charge, field lines emanate from positive charges and converge towards negative ones. The superposition principle allows calculating the total electric field by vectorially summing individual fields.
- Concept: A medium surrounding charges, exerting force on others.
- Field Strength (E): Force per unit charge (E = F/q), unit V/m.
- Direction: F aligns with E for positive q, opposes E for negative q.
- Point Charge Field: Away from positive Q, towards negative Q.
- Superposition: Total E is the vector sum of individual fields.
How are work and electric potential difference related in an electric field?
In an electric field, work is performed when a charge moves, directly linking to the electric potential difference between its start and end points. The work done by the electric force is conservative, depending solely on initial and final positions, not the path. Electric potential difference, or voltage (U), is defined as the work done per unit charge by the electric field. This concept is vital for analyzing energy changes in electrical systems.
- Work of Electric Force: A_MN = qEd_MN; path-independent.
- Potential Difference: U_MN = V_M - V_N = A_MN/q.
- Relation E and U: In uniform fields, E = U/d.
- Point Charge Potential: V = kQ/r.
What are the key characteristics of conductors in an electric field?
Conductors exhibit unique properties when placed in an electric field, reaching electrostatic equilibrium through charge redistribution. Crucially, the electric field inside a conductor at equilibrium is zero, as free charges move to cancel any internal field. Consequently, all excess charge resides exclusively on the conductor's outer surface. Electric field lines always meet the conductor's surface perpendicularly. The electric potential remains constant throughout the entire volume. These characteristics are fundamental to electrostatic shielding.
- Inside a conductor at equilibrium, E = 0.
- Excess charge resides on the outer surface.
- Electric field lines are perpendicular to the surface.
- Electric potential is uniform throughout the conductor.
How do dielectric materials behave when placed in an electric field?
Dielectric materials, electrical insulators, respond distinctly when subjected to an external electric field. Unlike conductors, they lack free charges. Instead, their molecules become polarized; positive and negative charges within each molecule slightly separate and align with the external field. This molecular alignment generates an internal electric field within the dielectric that opposes the external field, reducing the overall electric field inside. This property is essential for enhancing capacitor capacitance and providing effective electrical insulation.
- Dielectrics polarize when in an electric field.
- Internal field opposes external field, reducing net E.
- Crucial for capacitance and electrical insulation.
What is a capacitor and how does it store electrical energy?
A capacitor is an electronic component designed to store electrical energy within an electric field. It typically comprises two conductive plates separated by a dielectric material. When voltage is applied, charges accumulate on the plates, creating an electric field. Capacitance (C) quantifies its ability to store charge per unit voltage. Capacitors can be connected in series or parallel to achieve specific total capacitance and voltage ratings. The stored energy is proportional to the square of the voltage or charge, making capacitors vital for filtering and energy storage.
- Definition: Two conductors separated by a dielectric, storing charge.
- Capacitance (C): C = Q/U, unit Farad (F).
- Parallel Plate: C = εS/(9×10⁹·4πd).
- Series: Q same, U adds, 1/C_eq = Σ(1/C_i).
- Parallel: U same, Q adds, C_eq = ΣC_i.
- Stored Energy: W = QU/2 = CU²/2 = Q²/(2C).
Frequently Asked Questions
What is the primary function of an electric field?
An electric field mediates interactions between charges. It surrounds charged particles, exerting force on others without direct contact, governing electrostatic phenomena.
How does Coulomb's Law differentiate between attractive and repulsive forces?
Coulomb's Law states that like charges repel, while opposite charges attract. The force direction depends directly on the product of the two charges' signs.
Why is the electric field inside a conductor zero at equilibrium?
At equilibrium, free charges in a conductor redistribute to cancel any external electric field. If a field existed, charges would move, preventing equilibrium, thus the net field inside is zero.
What is the significance of electric potential difference (voltage)?
Electric potential difference (voltage) quantifies the work done per unit charge by the electric field moving a charge between two points. It represents available energy per unit charge.
How does a dielectric material impact a capacitor's performance?
A dielectric material increases a capacitor's capacitance by reducing the electric field between its plates. This allows storing more charge at a given voltage, enhancing energy storage.
