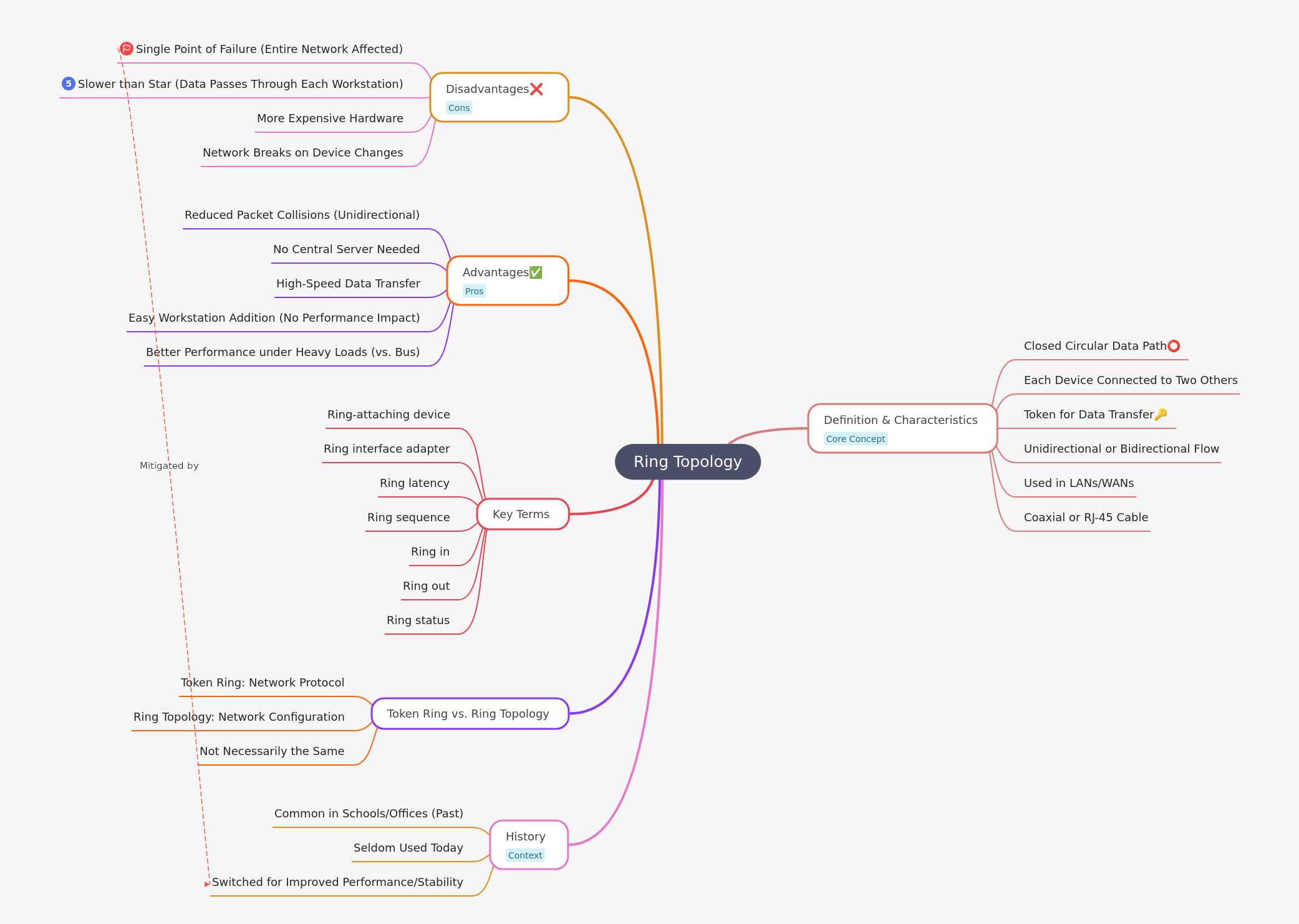

Featured Mind map
Understanding Ring Network Topology
Ring topology is a network configuration where devices connect in a circular data path, with each device linked to two others. Data travels unidirectionally or bidirectionally, often using a token for transfer. It offers high-speed data transfer and reduced collisions, but a single point of failure can disrupt the entire network.
Key Takeaways
Ring topology connects devices in a closed loop, ensuring data passes sequentially.
It minimizes packet collisions and can offer high-speed data transfer.
A major drawback is its vulnerability to a single point of failure.
Token Ring is a protocol, while ring topology is the physical layout.
Though less common now, it was historically significant in LANs.
What is Ring Topology and what are its key characteristics?
Ring topology defines a network configuration where devices are connected in a continuous, closed circular data path, ensuring that each workstation is directly linked to exactly two other devices. This unique structure facilitates data transmission, often in a sequential manner, either unidirectionally or bidirectionally around the loop. A key characteristic involves the use of a token, a special data packet, which circulates to control access to the network, preventing data collisions. Historically and currently, ring topologies have found applications in both Local Area Networks (LANs) and Wide Area Networks (WANs), typically utilizing coaxial or RJ-45 cabling for physical connections. This design ensures a predictable data flow, making it distinct from other network layouts.
- Closed Circular Data Path
- Each Device Connected to Two Others
- Token for Data Transfer
- Unidirectional or Bidirectional Flow
- Used in LANs/WANs
- Coaxial or RJ-45 Cable
What is the history and current relevance of Ring Topology?
Historically, ring topology played a significant role in network infrastructure, particularly gaining popularity in educational institutions and corporate offices during the 1980s and early 1990s. Its structured approach to data handling was considered advanced for its time. However, its prevalence has significantly diminished in contemporary networking environments. The primary reason for this decline is the advent and widespread adoption of more robust and efficient network architectures, such as star topology combined with advanced switching technologies. These modern solutions offer superior performance, enhanced fault tolerance, and greater scalability, effectively replacing the traditional ring setup for most applications. While seldom used as a primary physical topology today, understanding its principles remains fundamental in network education.
- Common in Schools/Offices (Past)
- Seldom Used Today
- Switched for Improved Performance/Stability
What is the difference between Token Ring and Ring Topology?
It is crucial to distinguish between Token Ring and ring topology, as these terms are often mistakenly used interchangeably, yet they represent different aspects of network design. Ring topology refers specifically to the physical or logical arrangement of network devices in a circular fashion, where data signals travel from one device to the next in a closed loop. In contrast, Token Ring is a specific network protocol, primarily developed by IBM, that operates on a ring topology. This protocol dictates how devices access the network and transmit data using a circulating token. Therefore, while a Token Ring network utilizes a ring topology, not all ring topologies necessarily implement the Token Ring protocol; other protocols can also operate on a ring structure.
- Token Ring: Network Protocol
- Ring Topology: Network Configuration
- Not Necessarily the Same
What are the essential terms associated with Ring Topology?
Understanding the specific terminology associated with ring topology is vital for comprehending its operational mechanics and design principles. Key terms help define the components and processes within this network architecture. For instance, a "ring-attaching device" refers to any equipment that connects to the ring, while a "ring interface adapter" is the hardware component enabling this connection. "Ring latency" measures the time it takes for a signal to travel around the entire ring, and "ring sequence" describes the order in which devices transmit data. "Ring in" and "ring out" denote the input and output ports for data flow on a device, respectively, and "ring status" indicates the operational health of the network. These terms collectively paint a comprehensive picture of how ring networks function.
- Ring-attaching device
- Ring interface adapter
- Ring latency
- Ring sequence
- Ring in
- Ring out
- Ring status
What are the advantages of implementing a Ring Topology?
Implementing a ring topology offers several notable advantages, particularly in specific networking scenarios. One significant benefit is the substantial reduction in packet collisions, especially in unidirectional rings, because data flows in a single direction and access is often controlled by a token. This structured data flow contributes to more efficient network utilization. Furthermore, ring networks do not require a central server to manage network traffic, distributing control among connected devices. They are also capable of high-speed data transfer, making them suitable for applications demanding quick communication. Adding new workstations typically has minimal impact on overall network performance, and ring topologies often exhibit better performance under heavy network loads compared to older bus topologies.
- Reduced Packet Collisions (Unidirectional)
- No Central Server Needed
- High-Speed Data Transfer
- Easy Workstation Addition (No Performance Impact)
- Better Performance under Heavy Loads (vs. Bus)
What are the disadvantages and limitations of Ring Topology?
Despite its advantages, ring topology presents several significant disadvantages and limitations that have contributed to its decline in modern networking. A critical drawback is the single point of failure: if one device or cable segment in the ring fails, the entire network can become inoperable, disrupting communication for all connected workstations. This vulnerability makes troubleshooting and maintenance challenging. Compared to star topologies, data transmission in a ring can be slower because data must pass through each intermediate workstation to reach its destination. The specialized hardware required for ring networks can also be more expensive. Moreover, any changes to the network, such as adding or removing a device, necessitate breaking the ring, which temporarily brings down the entire network.
- Single Point of Failure (Entire Network Affected)
- Slower than Star (Data Passes Through Each Workstation)
- More Expensive Hardware
- Network Breaks on Device Changes
Frequently Asked Questions
Why is Ring Topology seldom used today?
Ring topology is less common now because newer network architectures, like star topology with switches, offer superior performance, stability, and fault tolerance, making them more suitable for modern network demands.
How does a token work in a Ring Topology?
In a token ring network, a special data packet called a token circulates. A device can only transmit data when it possesses the token, preventing collisions and ensuring orderly data transfer around the ring.
What happens if one device fails in a Ring Topology?
A single device failure in a basic ring topology can disrupt the entire network, as data must pass through each workstation. This creates a single point of failure, halting communication for all connected devices.
