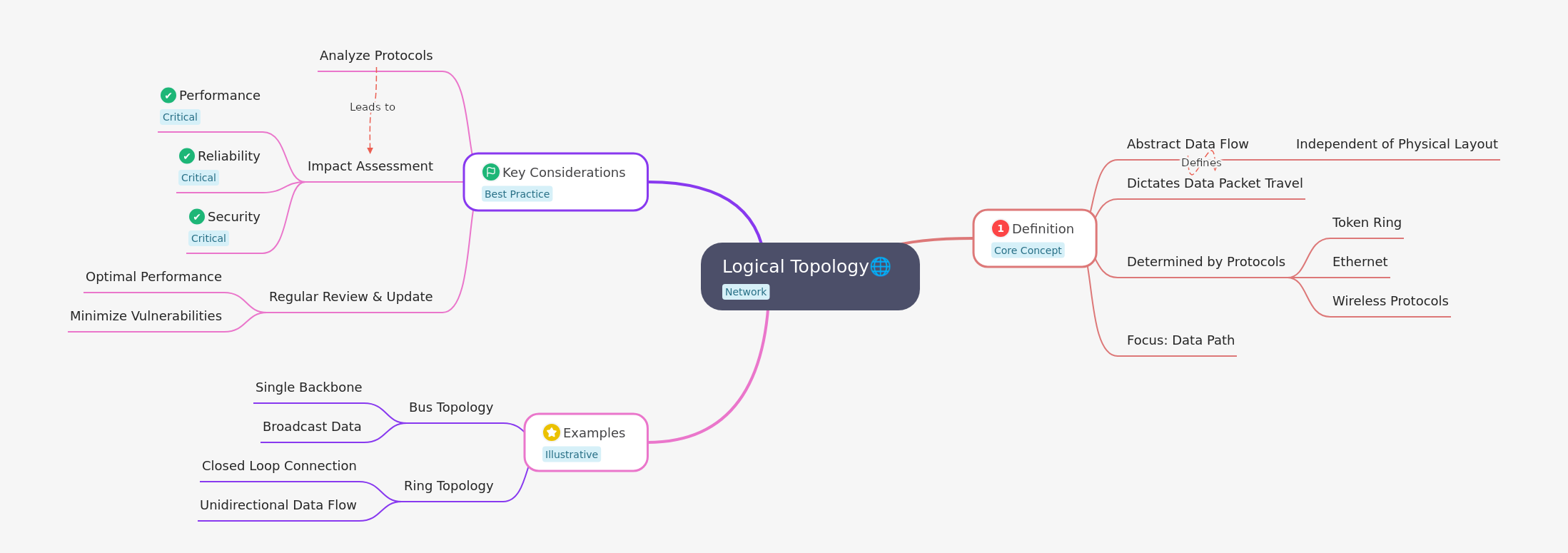

Featured Mind map
Understanding Logical Network Topology
Logical network topology defines the abstract communication pathways and data flow within a network, entirely independent of its physical cabling and hardware arrangement. It is fundamentally determined by the network protocols in use, which dictate precisely how data packets travel between devices. This conceptual framework is vital for understanding network operations, optimizing performance, ensuring reliability, and maintaining robust security across the entire system infrastructure.
Key Takeaways
Logical topology maps data flow, distinct from physical connections and hardware arrangements.
Network protocols like Ethernet or Token Ring define the logical structure and behavior.
Bus and Ring are primary examples of common logical network topologies in use.
Assess performance, reliability, and security impacts critically for effective design.
Regularly review and update logical topology for optimal network health and efficiency.
What Exactly Constitutes Logical Network Topology?
Logical network topology precisely describes the conceptual arrangement of devices and the pathways data traverses within a network, fundamentally distinct from its physical layout. This abstract representation, a core concept in networking, focuses intently on how information flows and communicates, governed entirely by the specific network protocols implemented. It dictates the precise route and method data packets utilize to travel from a source to a destination, making it a critical blueprint for understanding network operations. By defining these communication rules, logical topology profoundly influences network efficiency, scalability, and overall operational integrity, providing the essential framework for all data exchanges across the entire network system.
- Abstract Data Flow: Represents the conceptual path data takes, entirely independent of physical wiring or hardware.
- Independent of Physical Layout: Not concerned with where devices are physically located or connected in space.
- Dictates Data Packet Travel: Governs the specific routes and methods data packets use to move across the network.
- Determined by Protocols: Defined by communication rules such as Token Ring, Ethernet, or various wireless standards.
- Focus: Data Path: Emphasizes the journey of information and communication flow across the entire network.
What are the Primary Examples of Logical Network Topologies in Practice?
Exploring common examples, which are highly illustrative, helps clarify how logical network topologies function in practice, showcasing diverse data flow patterns and communication methodologies. The Bus Topology, for instance, operates with a single shared communication backbone where all network devices connect directly. Data broadcasted onto this central line is accessible to every connected node, though only the intended recipient processes the information, requiring address filtering. Conversely, a Ring Topology arranges devices in a closed, continuous loop, facilitating unidirectional data flow. Information passes sequentially from one device to the next until it reaches its designated destination, ensuring ordered delivery. Each topology presents unique advantages and challenges regarding network efficiency, fault tolerance, and overall management complexity.
- Bus Topology: Utilizes a single shared communication backbone for all connected network devices.
- Single Backbone: All nodes connect to one central communication line, simplifying initial setup and wiring.
- Broadcast Data: Information is sent to all devices on the shared segment, requiring address filtering by each node.
- Ring Topology: Connects devices in a closed loop, forming a continuous, circular data path for communication.
- Closed Loop Connection: Data passes sequentially from one node to the next around the ring, ensuring order.
- Unidirectional Data Flow: Information travels in a single direction, ensuring ordered packet delivery and preventing collisions.
What Key Considerations Guide Effective Logical Network Topology Design and Management?
Effective logical network topology design necessitates careful consideration of several critical factors to ensure robust and efficient network operations. This process embodies best practice principles. Firstly, a thorough analysis of the underlying network protocols is paramount, as these fundamentally define the logical structure and dictate data flow mechanisms. This analysis directly leads to a comprehensive impact assessment, which must evaluate how the chosen topology influences crucial aspects such as overall network performance, its inherent reliability in maintaining consistent operation, and its resilience against potential security threats. Moreover, logical topologies are dynamic entities; they demand regular review and strategic updates to adapt to evolving technological landscapes, changing user demands, and emerging vulnerabilities, thereby sustaining optimal network health and security posture over time.
- Analyze Protocols: Thoroughly understand how network communication rules shape data flow and interaction.
- Impact Assessment: Evaluate the topology's effects on critical network attributes and operational functions.
- Performance: Assess how efficiently data moves, ensuring optimal speed, throughput, and resource utilization.
- Reliability: Determine the network's ability to operate consistently without unexpected failures or downtime.
- Security: Evaluate protection against unauthorized access, data breaches, and integrity compromises effectively.
- Regular Review & Update: Continuously monitor and adjust the topology to meet evolving needs and challenges.
- Optimal Performance: Ensure the network operates at peak efficiency and responsiveness consistently over time.
- Minimize Vulnerabilities: Proactively reduce potential security weaknesses and operational risks through updates.
Frequently Asked Questions
How does logical network topology fundamentally differ from physical network topology in its core definition, operational focus, and practical application within network infrastructure?
Logical topology describes the abstract data flow and communication paths, independent of physical connections. Physical topology, conversely, details the actual cabling, hardware arrangement, and physical layout of network devices, focusing on tangible infrastructure and its spatial organization.
Why is a deep understanding of logical network topology so critically important for effective network design, strategic planning, efficient troubleshooting, and future scalability considerations?
Understanding logical topology is crucial because it dictates how data travels, directly impacting network performance, reliability, and security. It helps engineers optimize communication efficiency, troubleshoot issues effectively, and plan for future scalability and resilience across the system.
What specific and critical role do various network protocols play in defining a network's logical topology, influencing its overall behavior, efficiency, and communication patterns?
Network protocols fundamentally determine the logical topology by establishing the rules and methods for data transmission. They define the abstract connections, communication patterns, and access methods, such as token passing or collision detection, that characterize the network's logical structure and behavior.
