Understanding Embedded Systems & PIC Microcontrollers
Embedded systems are specialized computer systems designed for specific functions, integrating hardware and software for dedicated tasks. They are crucial in modern technology, from consumer electronics to industrial automation. PIC microcontrollers, a key component, offer efficient processing with unique architectures and memory structures, enabling precise control and interaction with the physical world through various peripherals and development tools.
Key Takeaways
PIC microcontrollers utilize Harvard architecture for efficient, simultaneous code and data access.
Embedded systems are integrated computational units optimized for specific, dedicated functions.
Various memory types, including Flash ROM and RAM, are essential for program and data storage.
Special Function Registers (SFRs) are critical for controlling microcontroller peripherals and status.
Development boards like Arduino and ESP32 simplify prototyping and learning embedded concepts.

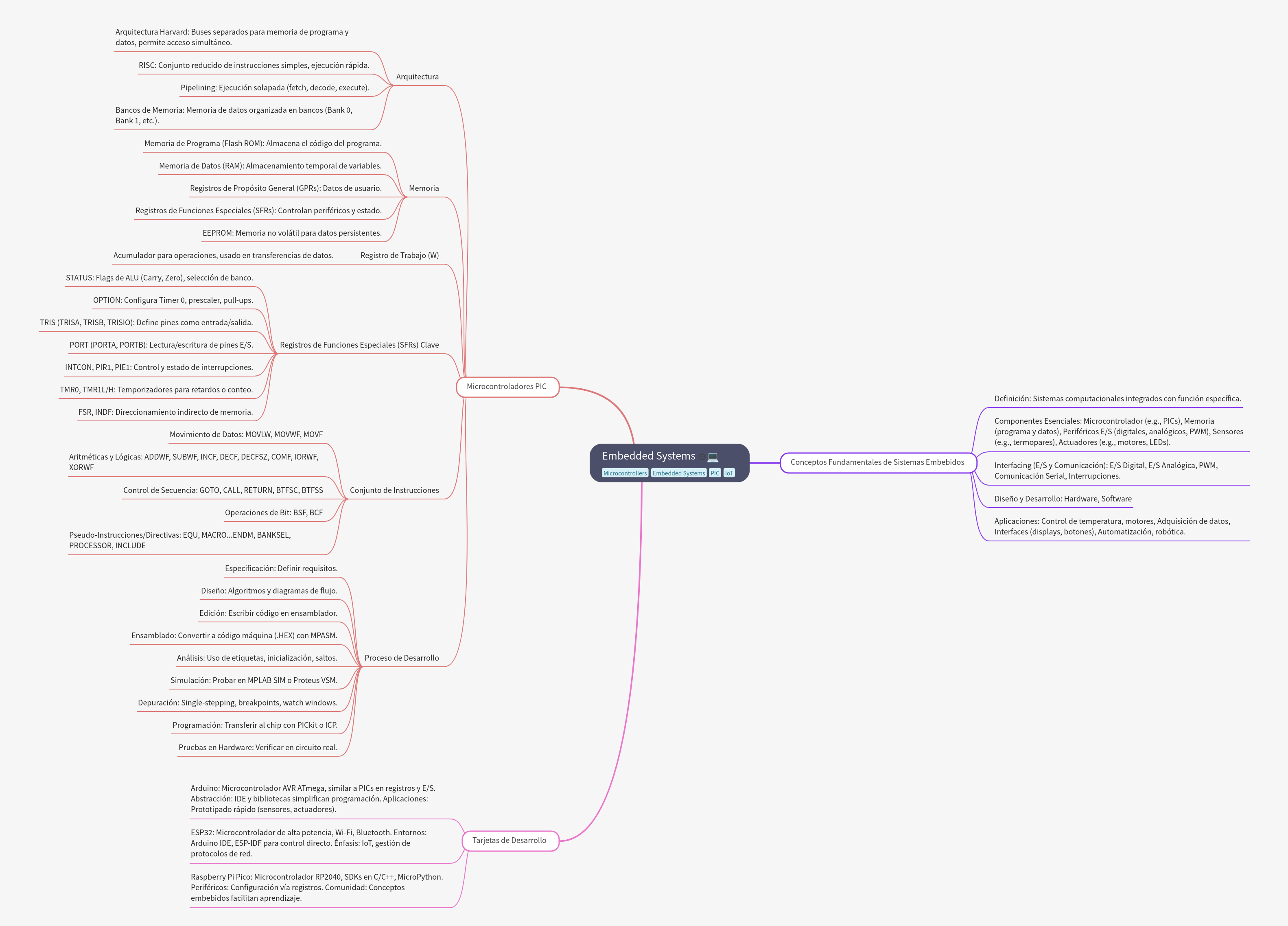

What are the key architectural features of PIC Microcontrollers?
PIC microcontrollers are fundamental components in numerous embedded applications, distinguished by their efficient design and dedicated functionalities. They employ a unique architecture and specific memory organization to optimize performance for real-time tasks, ensuring reliable operation in diverse environments. Understanding their internal structure, including how they process instructions and manage data, is crucial for effective programming and system design. These microcontrollers are engineered for robustness and reliability, making them highly suitable for a wide range of control and monitoring applications where resource efficiency and predictable behavior are paramount. Their streamlined instruction set further contributes to faster execution speeds and simplified development.
- Architecture: Harvard Architecture: Separate buses for program and data memory, allows simultaneous access.
- Architecture: RISC: Reduced Instruction Set Computer, simple instructions, fast execution.
- Architecture: Pipelining: Overlapping execution (fetch, decode, execute).
- Architecture: Memory Banks: Data memory organized in banks (Bank 0, Bank 1, etc.).
- Memory: Program Memory (Flash ROM): Stores program code.
- Memory: Data Memory (RAM): Temporary storage for variables.
- Memory: General Purpose Registers (GPRs): User data.
- Memory: Special Function Registers (SFRs): Control peripherals and state.
- Memory: EEPROM: Non-volatile memory for persistent data.
- Working Register (W): Accumulator for operations, used in data transfers.
- Key Special Function Registers (SFRs): STATUS: ALU flags (Carry, Zero), bank selection.
- Key Special Function Registers (SFRs): OPTION: Configures Timer 0, prescaler, pull-ups.
- Key Special Function Registers (SFRs): TRIS (TRISA, TRISB, TRISIO): Defines pins as input/output.
- Key Special Function Registers (SFRs): PORT (PORTA, PORTB): Read/write I/O pins.
- Key Special Function Registers (SFRs): INTCON, PIR1, PIE1: Interrupt control and status.
- Key Special Function Registers (SFRs): TMR0, TMR1L/H: Timers for delays or counting.
- Key Special Function Registers (SFRs): FSR, INDF: Indirect memory addressing.
- Instruction Set: Data Movement: MOVLW, MOVWF, MOVF.
- Instruction Set: Arithmetic and Logic: ADDWF, SUBWF, INCF, DECF, DECFSZ, COMF, IORWF, XORWF.
- Instruction Set: Sequence Control: GOTO, CALL, RETURN, BTFSC, BTFSS.
- Instruction Set: Bit Operations: BSF, BCF.
- Instruction Set: Pseudo-Instructions/Directives: EQU, MACRO...ENDM, BANKSEL, PROCESSOR, INCLUDE.
- Development Process: Specification: Define requirements.
- Development Process: Design: Algorithms and flowcharts.
- Development Process: Editing: Write code in assembly.
- Development Process: Assembly: Convert to machine code (.HEX) with MPASM.
- Development Process: Analysis: Use of labels, initialization, jumps.
- Development Process: Simulation: Test in MPLAB SIM or Proteus VSM.
- Development Process: Debugging: Single-stepping, breakpoints, watch windows.
- Development Process: Programming: Transfer to chip with PICkit or ICP.
- Development Process: Hardware Testing: Verify in real circuit.
What are the fundamental concepts and components of embedded systems?
Embedded systems are specialized computing systems designed to perform dedicated functions within a larger mechanical or electrical system. Unlike general-purpose computers, they are optimized for specific tasks, often with real-time constraints and limited resources. These systems integrate both hardware and software, working cohesively to interact with the physical world. Their design prioritizes efficiency, reliability, and cost-effectiveness for their intended application, making them ubiquitous in modern technology. Understanding their core elements is essential for anyone involved in their development or application, ensuring successful implementation across diverse industries.
- Definition: Integrated computational systems with specific functions.
- Essential Components: Microcontroller (e.g., PICs), Memory (program and data), I/O Peripherals (digital, analog, PWM), Sensors (e.g., thermocouples), Actuators (e.g., motors, LEDs).
- Interfacing (I/O and Communication): Digital I/O, Analog I/O, PWM, Serial Communication, Interrupts.
- Design and Development: Hardware, Software.
- Applications: Temperature control, motors, Data acquisition, Interfaces (displays, buttons), Automation, robotics.
Which popular development boards are used for embedded systems?
Development boards serve as invaluable tools for prototyping and learning in the field of embedded systems, providing a convenient platform to experiment with microcontrollers and their peripherals. These boards abstract away much of the complex low-level hardware setup, allowing developers to focus on programming and application logic. They come equipped with various features, including integrated programming interfaces, power regulation, and accessible I/O pins, significantly accelerating the development cycle for both beginners and experienced engineers. Each board offers unique advantages tailored to different project requirements and learning objectives, fostering innovation and rapid iteration.
- Arduino: AVR ATmega microcontroller, similar to PICs in registers and I/O. Abstraction: IDE and libraries simplify programming. Applications: Rapid prototyping (sensors, actuators).
- ESP32: High-power microcontroller, Wi-Fi, Bluetooth. Environments: Arduino IDE, ESP-IDF for direct control. Emphasis: IoT, network protocol management.
- Raspberry Pi Pico: RP2040 microcontroller, SDKs in C/C++, MicroPython. Peripherals: Configuration via registers. Community: Embedded concepts facilitate learning.
Frequently Asked Questions
What is the primary function of a PIC microcontroller?
PIC microcontrollers are designed for specific control tasks in embedded systems, efficiently executing programs stored in their memory to manage various hardware components and peripherals, enabling precise real-world interaction.
How do embedded systems differ from general-purpose computers?
Embedded systems are specialized for dedicated functions, often with real-time constraints and limited resources, unlike general-purpose computers designed for broad applications and user interaction.
Why are development boards important for embedded systems?
Development boards simplify prototyping and learning by providing pre-configured hardware, abstracting complexities, and offering easy access to microcontroller features for rapid application development and experimentation.
