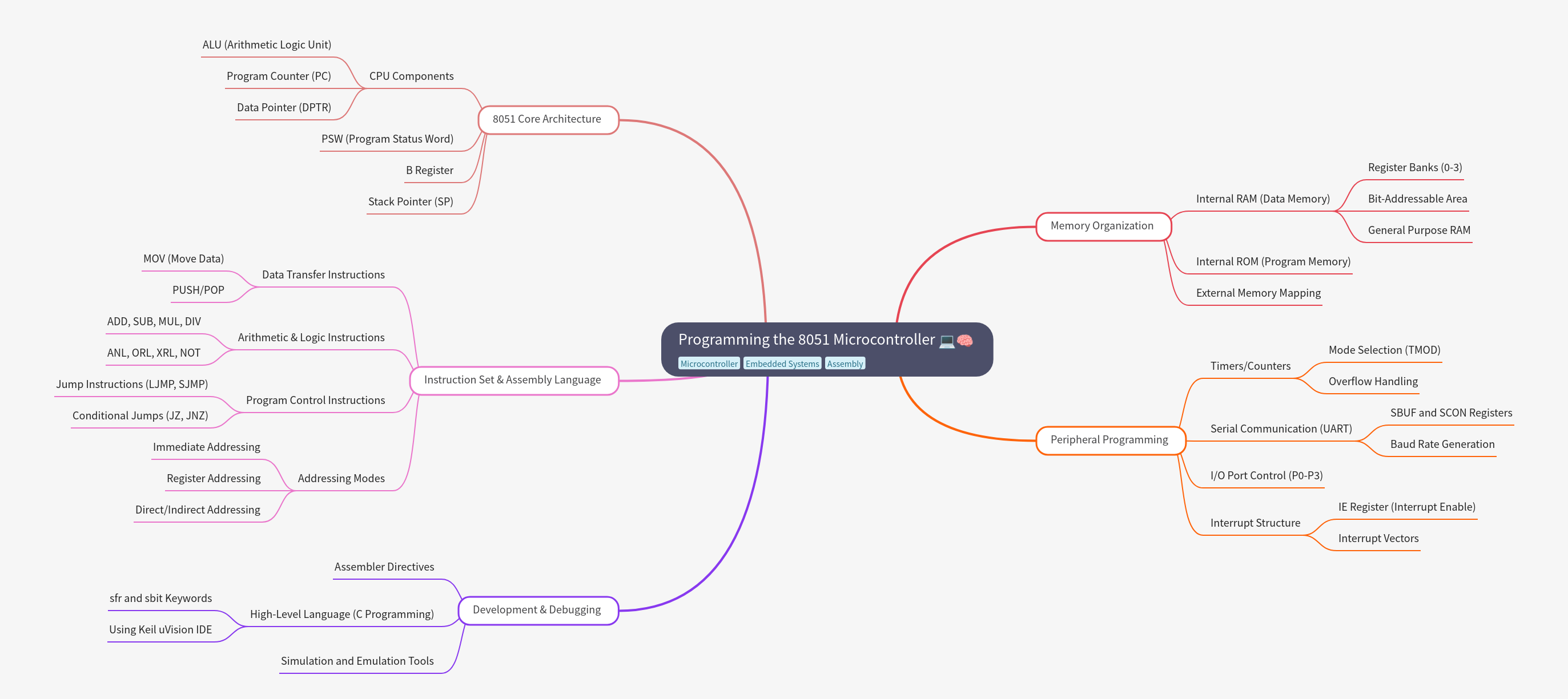

Featured Mind Map

Programming the 8051 Microcontroller

Programming the 8051 microcontroller involves understanding its Harvard architecture, memory organization (RAM/ROM), and specialized registers. Developers use Assembly or C language to write code that controls peripherals like timers, serial ports, and I/O pins. Successful programming requires mastering the instruction set and utilizing development tools like Keil uVision for simulation and debugging, ensuring efficient control over embedded systems.

Key Takeaways

1

The 8051 uses specialized registers like the Program Status Word (PSW) and Data Pointer (DPTR).

2

Memory is divided into internal RAM (data) and internal ROM (program storage).

3

Programming relies on data transfer, arithmetic, and program control instructions.

4

Peripherals like timers and serial ports are controlled via dedicated Special Function Registers (SFRs).

5

Development is streamlined using high-level languages like C and IDEs such as Keil uVision.

Programming the 8051 Microcontroller

What are the key components of the 8051 Core Architecture?

The 8051 core architecture is built around several essential components that facilitate instruction execution and data management. The CPU contains the Arithmetic Logic Unit (ALU) for calculations, while specialized registers manage program flow and status. Understanding these core elements, including the Program Status Word (PSW) and the Stack Pointer (SP), is fundamental for efficient assembly language programming and resource allocation within the microcontroller, allowing precise control over operations.

  • CPU Components: Includes the ALU (Arithmetic Logic Unit), Program Counter (PC), and Data Pointer (DPTR).
  • PSW (Program Status Word): Stores status flags resulting from arithmetic operations.
  • B Register: Used primarily for multiplication and division operations.
  • Stack Pointer (SP): Manages the stack memory used for temporary data storage and subroutine calls.

How is memory organized within the 8051 Microcontroller?

Memory organization in the 8051 is crucial for data and program storage, distinguishing between internal and external resources. Internal RAM serves as data memory, supporting fast access for variables and the stack, while Internal ROM holds the program code. Programmers must manage the limited internal RAM, which includes register banks and bit-addressable areas, and utilize external memory mapping when larger storage is required for complex applications that exceed the chip's built-in capacity.

  • Internal RAM (Data Memory): Contains Register Banks (0-3), the Bit-Addressable Area, and General Purpose RAM.
  • Internal ROM (Program Memory): Stores the executable code and constants.
  • External Memory Mapping: Allows the 8051 to interface with external RAM or ROM chips to expand capacity.

Which types of instructions are used in 8051 Assembly Language programming?

8051 Assembly Language utilizes a concise instruction set categorized by function, enabling direct control over the hardware. These instructions handle data movement, mathematical operations, and program flow control. Effective programming requires selecting the correct addressing mode—such as immediate, register, or direct addressing—to efficiently access operands and execute tasks, forming the basis for all low-level microcontroller operations. Mastering these instructions is essential for writing optimized and compact code for embedded applications.

  • Data Transfer Instructions: Such as MOV (Move Data) for moving data and PUSH/POP for stack operations.
  • Arithmetic & Logic Instructions: Includes ADD, SUB, MUL, DIV, and logical operations like ANL, ORL, XRL, and NOT.
  • Program Control Instructions: Manages execution flow using Jump Instructions (LJMP, SJMP) and Conditional Jumps (JZ, JNZ).
  • Addressing Modes: Defines how operands are accessed, including Immediate Addressing, Register Addressing, and Direct/Indirect Addressing.

How do developers program the 8051's internal peripherals?

Programming the 8051's internal peripherals, such as timers and serial communication modules, is achieved by manipulating dedicated Special Function Registers (SFRs). Timers can be configured for various modes using the TMOD register, requiring careful Overflow Handling to ensure accurate timing. Serial communication (UART) is managed via SBUF and SCON registers, often requiring precise Baud Rate Generation. Furthermore, I/O Port Control (P0-P3) allows the microcontroller to interact with external devices, while the Interrupt Structure enables responsive event handling.

  • Timers/Counters: Involves Mode Selection (TMOD) and managing Overflow Handling.
  • Serial Communication (UART): Utilizes SBUF and SCON Registers, and requires Baud Rate Generation setup.
  • I/O Port Control (P0-P3): Direct manipulation of ports for input and output operations.
  • Interrupt Structure: Controlled by the IE Register (Interrupt Enable) and defined by Interrupt Vectors.

What tools and methods are used for 8051 development and debugging?

Modern 8051 development often leverages high-level languages like C, which significantly simplifies complex programming tasks compared to pure assembly. Tools such as the Keil uVision IDE provide a comprehensive environment for writing, compiling, and debugging code. Developers must also understand Assembler Directives for structuring assembly code and utilize Simulation and Emulation Tools to test program logic and hardware interactions before deployment onto the physical chip, ensuring robust and error-free embedded systems before final production.

  • Assembler Directives: Commands used by the assembler to control the assembly process and structure code.
  • High-Level Language (C Programming): Uses specific keywords like sfr and sbit for register access, often implemented using Keil uVision IDE.
  • Simulation and Emulation Tools: Essential for testing code logic and hardware behavior without physical hardware.

Frequently Asked Questions

Q

What is the primary function of the Program Status Word (PSW)?

A

The PSW is an 8-bit register that holds status flags, such as carry, auxiliary carry, and parity flags. It reflects the current state of the CPU and the results of recent arithmetic operations, which is vital for conditional branching and program control flow.

Q

How do programmers manage data transfer in 8051 Assembly?

A

Data transfer is primarily handled by the MOV instruction, which moves data between registers, memory locations, and the accumulator. PUSH and POP instructions are also used specifically for managing data on the stack during subroutine calls and interrupt handling routines.

Q

What is the role of the IE Register in peripheral programming?

A

The IE (Interrupt Enable) Register controls which specific interrupt sources, such as timers or external inputs, are allowed to interrupt the main program execution. Setting bits in the IE register enables or disables these interrupt requests selectively.
