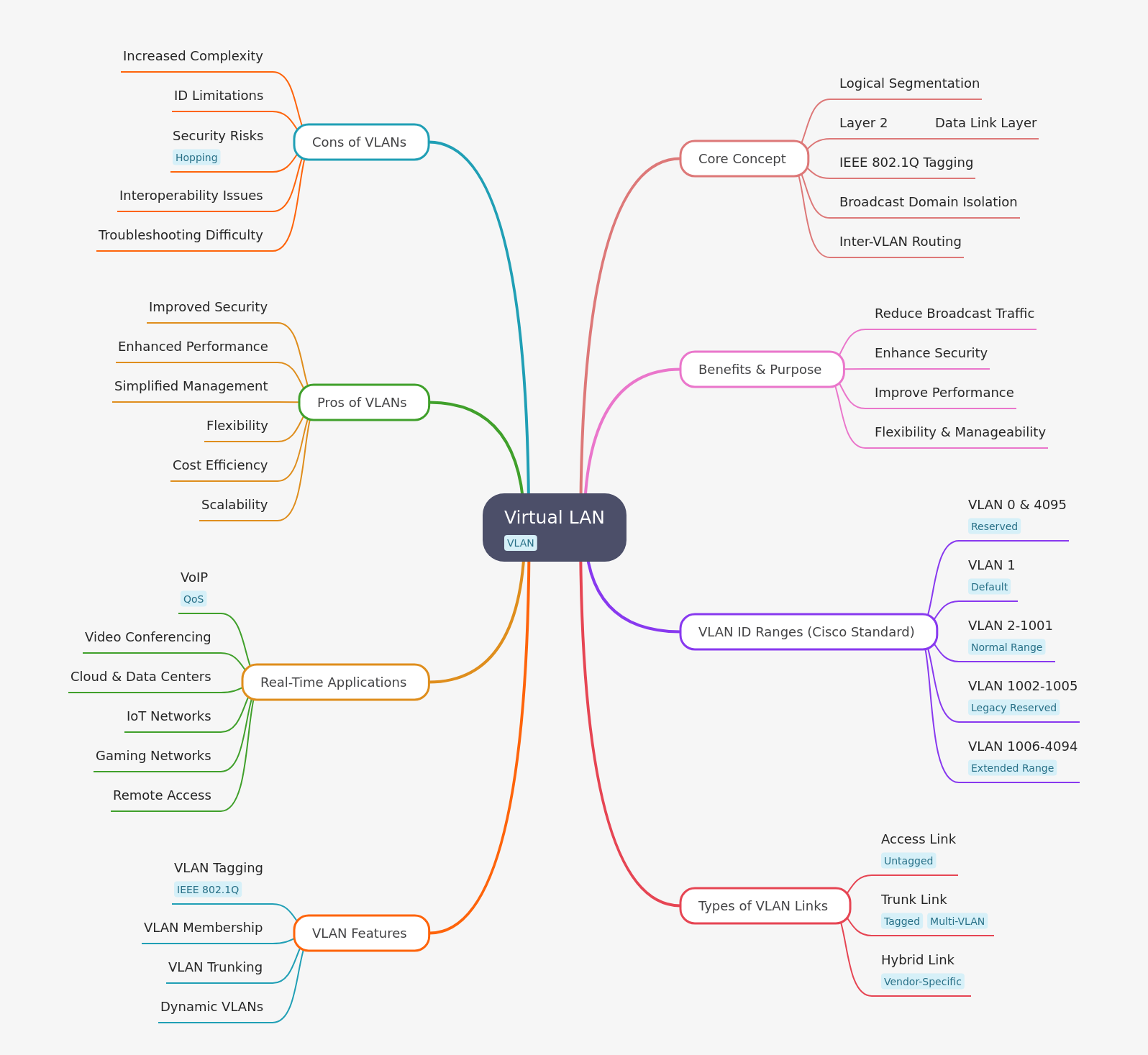

Featured Mind map
Understanding Virtual LANs (VLANs): A Comprehensive Guide
Virtual LANs (VLANs) logically segment a single physical network into multiple broadcast domains at Layer 2, enhancing network efficiency and security. They isolate traffic, reduce broadcast overhead, and provide flexibility in network management without requiring separate physical infrastructure. VLANs are crucial for modern, scalable network architectures.
Key Takeaways
VLANs logically segment networks, improving security and performance.
They operate at Layer 2, isolating broadcast domains effectively.
IEEE 802.1Q tagging enables multiple VLANs over single links.
VLANs offer flexibility, scalability, and simplified network management.
Inter-VLAN routing is essential for communication between segments.
What is the Core Concept of a Virtual LAN (VLAN)?
A Virtual LAN (VLAN) logically segments a single physical network into multiple distinct broadcast domains. Devices on the same physical switch can belong to different logical networks, isolating their traffic. VLANs function at Layer 2, the data link layer, using IEEE 802.1Q tagging to identify and separate traffic. This segmentation prevents broadcast storms and allows efficient resource allocation. Inter-VLAN routing enables controlled communication between these isolated segments, forming a backbone of modern network design.
- Logical Segmentation of network resources
- Operates at Layer 2 (Data Link Layer)
- Utilizes IEEE 802.1Q Tagging for traffic identification
- Achieves Broadcast Domain Isolation
- Requires Inter-VLAN Routing for cross-VLAN communication
Why are Virtual LANs (VLANs) Beneficial for Network Management?
Virtual LANs (VLANs) significantly enhance network management and performance by creating smaller, more efficient broadcast domains. Their primary purpose is to reduce broadcast traffic, improving overall network performance. VLANs also boost security by isolating sensitive data and user groups, preventing unauthorized access. This logical separation provides greater flexibility in network design and simplifies administration, allowing IT teams to easily reconfigure network topology without physically moving devices or cables, leading to better manageability and adaptability.
- Reduce Broadcast Traffic efficiently
- Enhance Security through isolation
- Improve Performance by minimizing overhead
- Provide Flexibility & Manageability in network design
What are the Standard VLAN ID Ranges in Cisco Networks?
In Cisco networking, Virtual LANs (VLANs) are assigned specific identification numbers, or VLAN IDs, organized into defined ranges. Understanding these ranges is crucial for proper network configuration. VLANs 0 and 4095 are reserved for system use. VLAN 1 serves as the default VLAN, often for management traffic. The normal range, VLANs 2-1001, is commonly used for most user-defined VLANs. Legacy reserved IDs exist between 1002-1005. The extended range, VLANs 1006-4094, supports larger network deployments requiring more VLANs.
- VLAN 0 & 4095: Reserved for system functions
- VLAN 1: Default VLAN for management
- VLAN 2-1001: Normal Range for user-defined VLANs
- VLAN 1002-1005: Legacy Reserved IDs
- VLAN 1006-4094: Extended Range for large networks
What are the Different Types of Links Used with VLANs?
Different types of links are utilized in Virtual LAN (VLAN) implementations to connect network devices, each handling VLAN traffic distinctly. An Access Link is for end-user devices, carrying traffic for only a single VLAN, typically untagged. A Trunk Link connects switches or routers, enabling multiple VLANs to traverse a single physical connection by tagging each frame with its VLAN ID (e.g., IEEE 802.1Q). A Hybrid Link, often vendor-specific, combines aspects of both, offering flexible configuration options.
- Access Link: Untagged, carries traffic for a single VLAN
- Trunk Link: Tagged, carries traffic for multiple VLANs
- Hybrid Link: Vendor-Specific, combines tagged and untagged traffic
What Key Features Define Virtual LAN (VLAN) Functionality?
Virtual LAN (VLAN) functionality relies on several key features for logical network segmentation and efficient traffic management. VLAN Tagging, primarily via IEEE 802.1Q, embeds a VLAN ID into Ethernet frames to distinguish traffic. VLAN Membership determines which devices or ports belong to a specific VLAN, either statically or dynamically. VLAN Trunking allows multiple VLANs to traverse a single physical link between switches, essential for network-wide VLAN extension. Dynamic VLANs automatically assign devices to VLANs based on criteria, simplifying administration.
- VLAN Tagging: Uses IEEE 802.1Q for identification
- VLAN Membership: Assigns devices/ports to specific VLANs
- VLAN Trunking: Enables multiple VLANs over one link
- Dynamic VLANs: Automatic assignment based on criteria
Where are Virtual LANs (VLANs) Applied in Real-Time Networks?
Virtual LANs (VLANs) are widely applied in real-time network scenarios to optimize performance, enhance security, and manage diverse traffic. In Voice over IP (VoIP), VLANs prioritize voice traffic using Quality of Service (QoS). They are critical for Video Conferencing, guaranteeing bandwidth. Cloud and Data Centers use VLANs for tenant isolation and efficient resource allocation. IoT Networks segment numerous devices, improving security. Gaming Networks benefit from dedicated VLANs for low-latency connections, while Remote Access solutions leverage them to securely connect off-site users.
- VoIP: Prioritizes voice traffic with QoS
- Video Conferencing: Ensures dedicated bandwidth
- Cloud & Data Centers: Isolates tenants and resources
- IoT Networks: Segments diverse device traffic
- Gaming Networks: Provides low-latency connections
- Remote Access: Secures off-site user connections
What are the Primary Advantages of Implementing Virtual LANs (VLANs)?
Implementing Virtual LANs (VLANs) offers numerous advantages for network infrastructure. They provide improved security by isolating sensitive data and user groups, limiting breach scope. VLANs enhance performance by reducing broadcast traffic and creating smaller, efficient broadcast domains. They simplify network management by allowing logical grouping of devices regardless of physical location, easing reconfigurations. Flexibility enables dynamic network adjustments without physical rewiring. Furthermore, they offer cost efficiency by maximizing existing hardware use and provide excellent scalability.
- Improved Security through traffic isolation
- Enhanced Performance by reducing broadcasts
- Simplified Management and network reconfiguration
- Increased Flexibility in network design
- Cost Efficiency by optimizing hardware use
- Scalability for future network expansion
What are the Potential Disadvantages and Challenges of VLANs?
While Virtual LANs (VLANs) offer many benefits, their implementation can introduce disadvantages. A significant drawback is increased complexity in network design and configuration, requiring specialized knowledge. ID Limitations exist, as the number of available VLAN IDs is finite. VLANs can pose security risks, particularly VLAN hopping attacks if not properly secured. Interoperability Issues may arise with mixed vendor equipment. Finally, troubleshooting difficulty can increase in complex VLAN environments, requiring advanced diagnostic skills.
- Increased Complexity in network setup
- ID Limitations for very large networks
- Security Risks like VLAN hopping
- Interoperability Issues with mixed vendor equipment
- Troubleshooting Difficulty in complex environments
Frequently Asked Questions
What is the main difference between a VLAN and a physical LAN?
A physical LAN requires separate hardware for each segment. A VLAN logically segments a single physical network into multiple broadcast domains using software, allowing devices on the same switch to be in different networks without additional hardware.
How does IEEE 802.1Q tagging work with VLANs?
IEEE 802.1Q tagging inserts a 4-byte tag into an Ethernet frame header, containing the VLAN ID. This allows switches to identify the frame's VLAN, enabling multiple VLANs to share a single physical link, known as a trunk.
Can devices in different VLANs communicate with each other?
By default, devices in different VLANs cannot communicate directly as they are in separate broadcast domains. To enable communication, a Layer 3 device like a router or Layer 3 switch is required to perform inter-VLAN routing, controlling traffic flow.
What is the purpose of a VLAN trunk link?
A VLAN trunk link allows multiple VLANs to traverse a single physical connection between network devices, typically switches. It uses tagging (like 802.1Q) to differentiate traffic for each VLAN, efficiently extending VLANs across the network infrastructure.
What are some common security risks associated with VLANs?
Common security risks include VLAN hopping, where an attacker bypasses VLAN isolation. Misconfigurations, such as incorrect port assignments or default VLAN usage, can also create vulnerabilities, emphasizing the need for careful setup and continuous monitoring.
