Sensor Classification and Types Explained

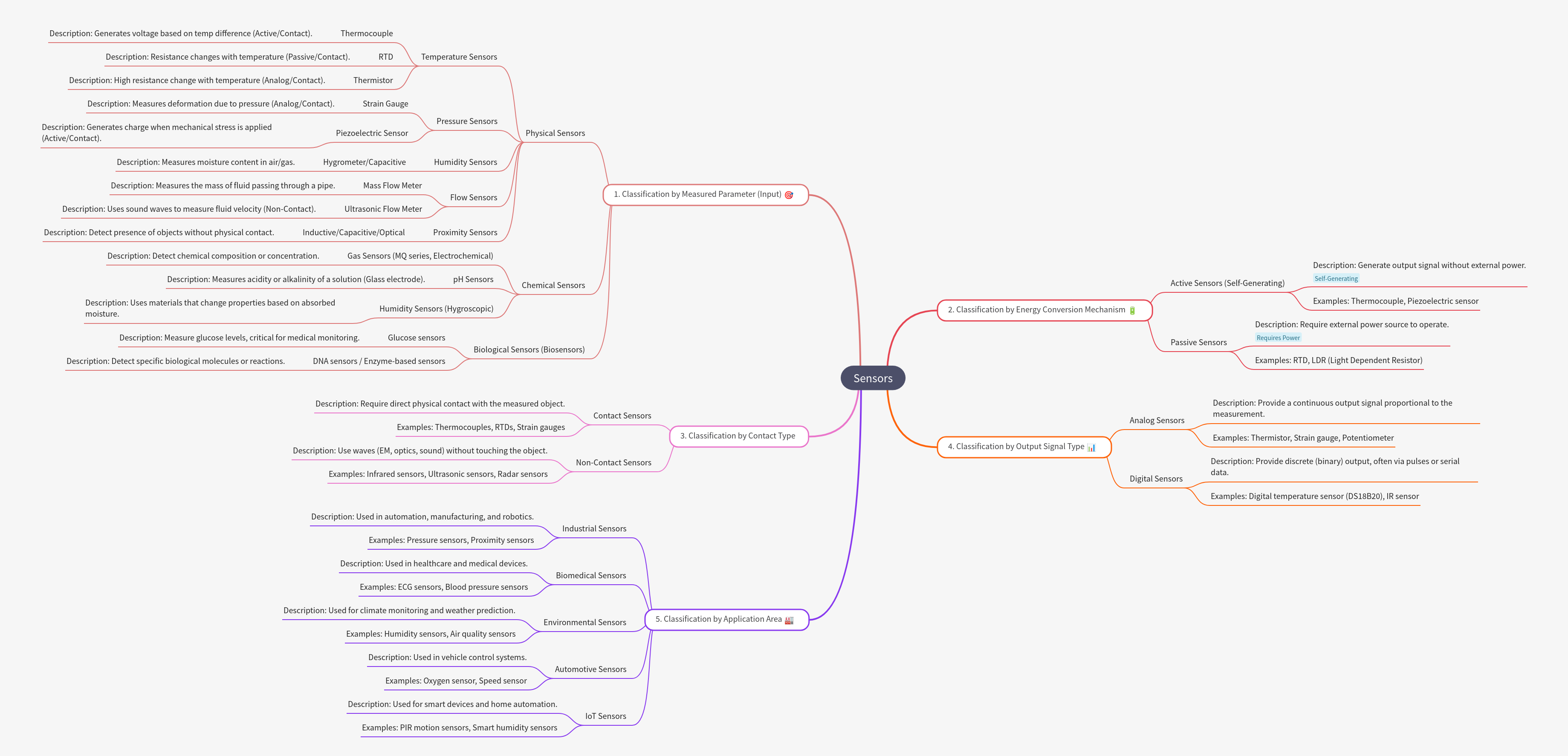

Sensors are fundamental devices that detect and quantify physical, chemical, or biological inputs from the environment, converting these stimuli into measurable electrical signals. They are systematically classified based on the specific parameter they measure, their energy requirements (active or passive), the necessity of physical contact, and the format of their output signal (analog or digital), enabling their use across diverse technological applications.
Key Takeaways
Sensors are categorized by the input they measure: physical, chemical, or biological stimuli.
Active sensors are self-generating, while passive sensors require an external power source to function.
Classification by contact type separates sensors that require physical touch from those that use waves.
Output signals are either continuous (analog) or discrete (digital) for processing.
Sensor applications span industrial automation, biomedical monitoring, and IoT systems.
What are the primary ways sensors are classified by the measured parameter?
Sensors are primarily categorized by the type of input they are designed to detect, which falls into three major domains: physical, chemical, and biological. Physical sensors measure tangible properties like temperature, pressure, and flow, converting these environmental changes into electrical signals. Chemical sensors focus on detecting molecular composition or concentration, such as gases or pH levels. Biological sensors, or biosensors, are specialized for measuring biological reactions or molecules, like glucose, making them essential for medical diagnostics and monitoring. This input-based classification dictates the sensor's fundamental design and material requirements.
- Physical Sensors: Measure properties like temperature, pressure, humidity, flow, and proximity. Examples include:
- Temperature Sensors: Thermocouple (generates voltage based on temperature difference), RTD (resistance changes with temperature), and Thermistor (high resistance change).
- Pressure Sensors: Strain Gauge (measures deformation due to pressure) and Piezoelectric Sensor (generates charge when mechanical stress is applied).
- Flow Sensors: Mass Flow Meter and Ultrasonic Flow Meter (uses sound waves to measure fluid velocity without contact).
- Proximity Sensors: Inductive, Capacitive, and Optical types that detect the presence of objects without physical contact.
- Chemical Sensors: Detect composition or concentration, including Gas Sensors (MQ series, Electrochemical) and pH Sensors (measures acidity or alkalinity using a glass electrode).
- Biological Sensors (Biosensors): Specialized devices that measure biological molecules or reactions, such as Glucose sensors (critical for medical monitoring) and DNA/Enzyme-based sensors.
How do active and passive sensors differ in their energy conversion mechanism?
Sensors are classified based on their energy requirements and how they generate an output signal, distinguishing them as either active or passive. Active sensors are self-generating, meaning they produce an electrical signal directly from the measured input without needing an external power source for operation. This makes them ideal for remote or low-power applications. Conversely, passive sensors require an external power supply or excitation signal to measure the change in a physical property, such as resistance or capacitance, which then translates into a measurable output. Understanding this mechanism is crucial for system design and power management.
- Active Sensors (Self-Generating): Generate an output signal without external power.
- Examples: Thermocouple and Piezoelectric sensor.
- Passive Sensors: Require an external power source to operate.
- Examples: RTD (Resistance Temperature Detector) and LDR (Light Dependent Resistor).
What defines the difference between contact and non-contact sensors?
The operational requirement for physical interaction determines whether a sensor is classified as contact or non-contact. Contact sensors must physically touch or be immersed in the object or medium they are measuring to obtain data accurately. This method is common for measuring internal properties or direct surface conditions, such as temperature or strain. Non-contact sensors, however, utilize various forms of energy, such as electromagnetic waves, optics, or sound, to detect properties without any physical touch, allowing for measurement in harsh environments or of moving objects where physical interaction is impractical or impossible.
- Contact Sensors: Require direct physical contact with the measured object.
- Examples: Thermocouples, RTDs, and Strain gauges.
- Non-Contact Sensors: Use waves (electromagnetic, optics, sound) to measure properties without touching the object.
- Examples: Infrared sensors, Ultrasonic sensors, and Radar sensors.
How are sensors categorized based on their output signal type?
Sensors are categorized by the nature of the electrical signal they produce, which is either analog or digital. Analog sensors provide a continuous output signal that is directly proportional to the physical quantity being measured, allowing for infinite resolution within their range. This continuous signal often requires an Analog-to-Digital Converter (ADC) for processing by microprocessors. Digital sensors, conversely, produce a discrete, binary output, often delivered as pulses or serial data streams. Digital outputs are generally easier to interface with modern microprocessors and offer superior noise immunity and stability.
- Analog Sensors: Provide a continuous output signal proportional to the measurement.
- Examples: Thermistor, Strain gauge, and Potentiometer.
- Digital Sensors: Provide discrete (binary) output, often via pulses or serial data.
- Examples: Digital temperature sensor (DS18B20) and certain IR sensors.
Where are different types of sensors primarily applied in modern technology?
Sensors are ubiquitous across modern industries, and their classification by application area helps define their specific design requirements and operating environments. Industrial sensors are robust, used for automation and robotics in manufacturing settings where reliability is paramount. Biomedical sensors are highly sensitive, designed for patient monitoring and diagnostics, requiring precision and safety. Environmental sensors track climate and air quality, while automotive sensors manage vehicle performance and safety systems. The rise of the Internet of Things (IoT) has also driven the development of specialized, low-power sensors for smart devices and home automation, connecting the physical world to digital networks.
- Industrial Sensors: Used in automation, manufacturing, and robotics.
- Examples: Pressure sensors and Proximity sensors.
- Biomedical Sensors: Essential for healthcare and medical devices.
- Examples: ECG sensors and Blood pressure sensors.
- Environmental Sensors: Used for climate monitoring and weather prediction.
- Examples: Humidity sensors and Air quality sensors.
- Automotive Sensors: Integrated into vehicle control systems.
- Examples: Oxygen sensor and Speed sensor.
- IoT Sensors: Used for smart devices and home automation.
- Examples: PIR motion sensors and Smart humidity sensors.
Frequently Asked Questions
What is the difference between a Thermocouple and an RTD?
A Thermocouple is an active sensor that generates voltage based on temperature difference (Seebeck effect). An RTD (Resistance Temperature Detector) is a passive sensor whose resistance changes with temperature, requiring external power to measure the resistance change.
How do chemical sensors detect substances?
Chemical sensors detect the composition or concentration of substances, often through electrochemical reactions. Examples include gas sensors, which detect specific gases, and pH sensors, which measure acidity or alkalinity using a glass electrode to monitor solution properties.
What are the benefits of using non-contact sensors?
Non-contact sensors, like ultrasonic or infrared types, measure properties without physical touch. This is beneficial for measuring moving objects, avoiding contamination, or operating in harsh, high-temperature, or inaccessible environments where contact sensors would fail.
