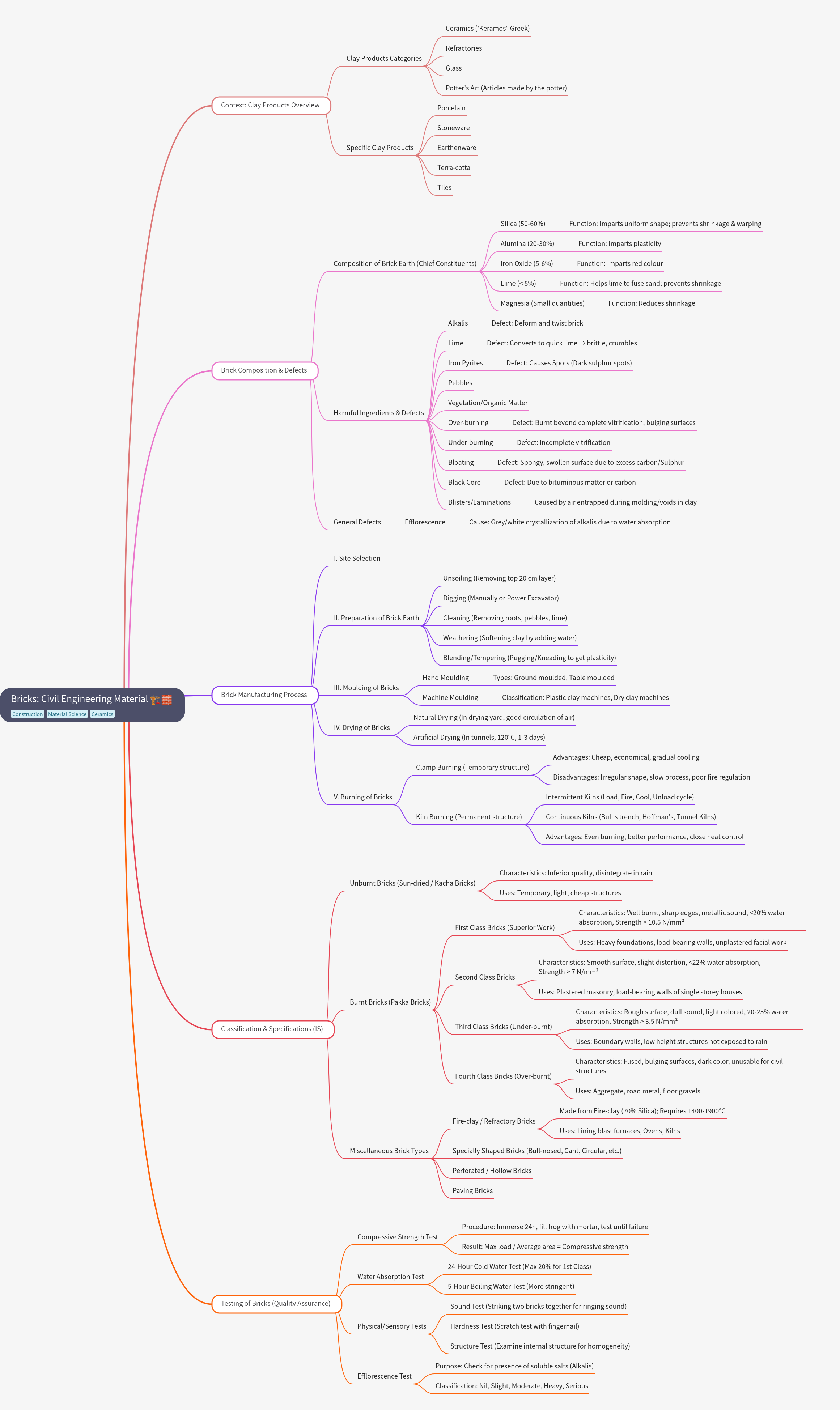

Bricks: Essential Civil Engineering Material
Bricks are standardized ceramic units, primarily composed of silica and alumina, manufactured through a controlled process involving preparation, molding, drying, and burning. They serve as a foundational civil engineering material, classified by strength and water absorption (e.g., First Class > 10.5 N/mm²), ensuring durability and structural integrity in various construction applications.
Key Takeaways
Brick earth composition is dominated by Silica (50-60%) and Alumina (20-30%) for shape stability and plasticity.
The manufacturing process involves five critical stages: preparation, molding, drying, and high-temperature burning.
Quality is determined by classification standards, with First Class bricks offering the highest strength and lowest water absorption (<20%).
Common defects like efflorescence are caused by soluble salts, while bloating results from excess carbon or sulfur during firing.
Quality assurance relies on tests for compressive strength, water absorption, and sensory checks like the sound test.
What are the different categories of clay products?
Clay products constitute a broad category of materials derived from natural clay and subjected to high-temperature firing, with bricks being a primary example in civil engineering. This group, often referred to as ceramics (from the Greek 'Keramos'), encompasses various materials used across construction, industrial, and artistic applications. Understanding this context helps differentiate structural bricks from other specialized clay-based materials that require different compositions or firing techniques to achieve specific properties.
- Clay Products Categories:
- Ceramics ('Keramos'-Greek): General term for fired clay materials.
- Refractories: Materials designed specifically to withstand extremely high temperatures.
- Glass: Amorphous solid often derived from silica, a key component of clay.
- Potter's Art (Articles made by the potter): Items focused on artistic or domestic use.
- Specific Clay Products:
- Porcelain: Fine ceramic material, typically white and translucent.
- Stoneware: Dense, non-porous ceramic fired at high temperatures.
- Earthenware: Porous ceramic fired at lower temperatures.
- Terra-cotta: Glazed or unglazed porous ceramic used for ornamentation or drainage.
- Tiles: Flat pieces of fired clay used for roofing, flooring, or wall coverings.
What are the essential components and common defects found in bricks?
The quality and performance of a brick are fundamentally determined by the composition of the brick earth, which must contain specific constituents in controlled proportions to achieve desired properties like shape, color, and strength. Deviations from these ideal ratios or the presence of harmful impurities introduce defects that compromise the brick's structural integrity and aesthetic appearance, making quality control essential throughout the production process.
- Composition of Brick Earth (Chief Constituents):
- Silica (50-60%): Imparts uniform shape; prevents shrinkage and warping during drying and burning.
- Alumina (20-30%): Provides essential plasticity to the clay for easy molding.
- Iron Oxide (5-6%): Acts as a flux and gives the characteristic red color to the burnt brick.
- Lime (< 5%): Helps fuse the sand particles together and assists in reducing overall shrinkage.
- Magnesia (Small quantities): Primarily acts to reduce shrinkage.
- Harmful Ingredients & Defects:
- Alkalis: Cause the brick to deform and twist during the high-temperature burning process.
- Lime (Excess): Converts to quick lime, causing the brick to become brittle and crumble.
- Iron Pyrites: Leads to the formation of dark sulphur spots on the brick surface.
- Pebbles: Disrupt the homogeneity of the clay mixture, leading to uneven burning and reduced strength.
- Vegetation/Organic Matter: Burns out during firing, leaving voids and reducing the density of the final product.
- Over-burning: Causes bulging surfaces and irregular shapes due to excessive vitrification.
- Under-burning: Leads to incomplete vitrification, resulting in a soft, weak, and porous brick.
- Bloating: A spongy, swollen surface caused by the release of excess carbon or Sulphur gases during firing.
- Black Core: Due to unburnt bituminous matter or carbon remaining in the center of the brick.
- Blisters/Laminations: Surface or internal defects caused by air entrapped during the molding process.
- General Defects:
- Efflorescence: Grey/white crystallization of soluble alkalis on the surface due to water absorption and subsequent evaporation.
How are bricks manufactured in civil engineering?
The manufacturing of bricks is a systematic, multi-stage process designed to transform raw clay earth into durable, load-bearing units suitable for construction. This process ensures consistency in size, shape, and strength, beginning with careful site selection and preparation of the raw material, followed by precise molding, controlled drying to remove moisture, and finally, high-temperature burning to achieve permanent hardness and vitrification necessary for structural use.
- I. Site Selection: Choosing a location that provides easy access to suitable brick earth and necessary resources.
- II. Preparation of Brick Earth:
- Unsoiling: Removing the top 20 cm layer of earth which contains impurities.
- Digging: Excavating the required clay, either manually or using power excavators.
- Cleaning: Thoroughly removing undesirable elements such as roots, pebbles, and excessive lime.
- Weathering: Softening the clay by exposing it to the elements and adding water.
- Blending/Tempering: The final mixing stage (pugging or kneading) to achieve uniform consistency and required plasticity.
- III. Moulding of Bricks: Shaping the tempered clay into uniform brick units.
- Hand Moulding: Traditional method, including Ground moulded and Table moulded types.
- Machine Moulding: High-volume production using Plastic clay machines or Dry clay machines.
- IV. Drying of Bricks: Removing moisture from the green bricks before firing.
- Natural Drying: Placing bricks in a drying yard with good air circulation.
- Artificial Drying: Using controlled environments like tunnels at temperatures around 120°C for 1 to 3 days.
- V. Burning of Bricks: Firing the dried bricks at high temperatures to achieve strength.
- Clamp Burning (Temporary structure): Cheap and economical, but results in irregular shape and poor fire regulation.
- Kiln Burning (Permanent structure): Includes Intermittent Kilns (cyclic operation) and Continuous Kilns (Bull's trench, Hoffman's, Tunnel Kilns).
- Advantages of Kiln Burning: Ensures even burning, better performance, and allows for close heat control.
How are bricks classified according to quality and intended use?
Bricks are classified primarily based on their manufacturing method (unburnt vs. burnt) and, more critically, on their quality characteristics determined by standardized tests, particularly compressive strength and water absorption capacity. This classification system, often guided by Indian Standards (IS), dictates the suitability of the brick for specific construction applications, ranging from heavy load-bearing structures to temporary walls or aggregate material, ensuring safety and durability.
- Unburnt Bricks (Sun-dried / Kacha Bricks):
- Characteristics: Inferior quality, prone to disintegrating when exposed to rain.
- Uses: Suitable only for temporary, light, and cheap structures.
- Burnt Bricks (Pakka Bricks): Classified into four grades based on quality:
- First Class Bricks (Superior Work):
- Characteristics: Well burnt, sharp edges, metallic sound, <20% water absorption, Strength > 10.5 N/mm².
- Uses: Ideal for heavy foundations, critical load-bearing walls, and unplastered facial work.
- Second Class Bricks:
- Characteristics: Smooth surface, slight distortion, <22% water absorption, Strength > 7 N/mm².
- Uses: Commonly used for plastered masonry and load-bearing walls of single-storey houses.
- Third Class Bricks (Under-burnt):
- Characteristics: Rough surface, dull sound, light colored, 20-25% water absorption, Strength > 3.5 N/mm².
- Uses: Employed in boundary walls and low height structures not exposed to heavy rain.
- Fourth Class Bricks (Over-burnt):
- Characteristics: Fused, irregular, and bulging surfaces, unusable for civil structures.
- Uses: Primarily crushed and utilized as aggregate, road metal, or floor gravels.
- Miscellaneous Brick Types:
- Fire-clay / Refractory Bricks: Made from Fire-clay (70% Silica), requiring high firing temperatures (1400-1900°C).
- Uses: Essential for lining blast furnaces, ovens, and kilns.
- Specially Shaped Bricks: Includes Bull-nosed, Cant, and Circular bricks for architectural detailing.
- Perforated / Hollow Bricks: Lighter bricks designed for improved insulation.
- Paving Bricks: Dense, durable bricks specifically designed for road and walkway surfaces.
Why is quality testing essential for bricks in construction?
Quality assurance testing is crucial to verify that bricks meet the minimum standards required for structural stability and longevity, ensuring they can withstand expected loads and environmental exposure. These tests quantify mechanical properties like strength and durability (water absorption) and identify potential chemical issues (efflorescence), allowing engineers to select the appropriate class of brick for specific project requirements and prevent premature structural failure or deterioration over time.
- Compressive Strength Test:
- Procedure: Immerse 24h, fill frog with mortar, then test until failure under load.
- Result: Calculated as Max load / Average area, determining the brick's ultimate strength.
- Water Absorption Test: Measures the brick's porosity and resistance to moisture.
- 24-Hour Cold Water Test: Standard test (Max 20% absorption for 1st Class).
- 5-Hour Boiling Water Test: A more stringent test for maximum potential absorption.
- Physical/Sensory Tests: Quick, non-destructive methods for initial quality assessment.
- Sound Test: Striking two bricks together; a clear, metallic ringing sound indicates good quality.
- Hardness Test: A scratch test with a fingernail; a good brick should resist scratching.
- Structure Test: Examining the internal structure of a broken brick for homogeneity.
- Efflorescence Test:
- Purpose: Checks for the presence of soluble salts (Alkalis) that cause surface crystallization.
- Classification: Results are categorized based on severity: Nil, Slight, Moderate, Heavy, or Serious.
Frequently Asked Questions
What is the primary function of Silica in brick earth?
Silica, constituting 50-60% of brick earth, is essential for imparting a uniform shape to the brick and preventing excessive shrinkage and warping during the drying and burning stages of manufacturing.
What causes efflorescence in bricks?
Efflorescence is caused by the presence of soluble salts, specifically alkalis, within the brick material. When water is absorbed and then evaporates from the surface, these salts crystallize, leaving a visible grey or white deposit.
What is the minimum strength requirement for First Class Bricks?
According to Indian Standards (IS), First Class Bricks must exhibit a minimum compressive strength greater than 10.5 Newtons per square millimeter (N/mm²). They also must have a water absorption rate below 20%.
