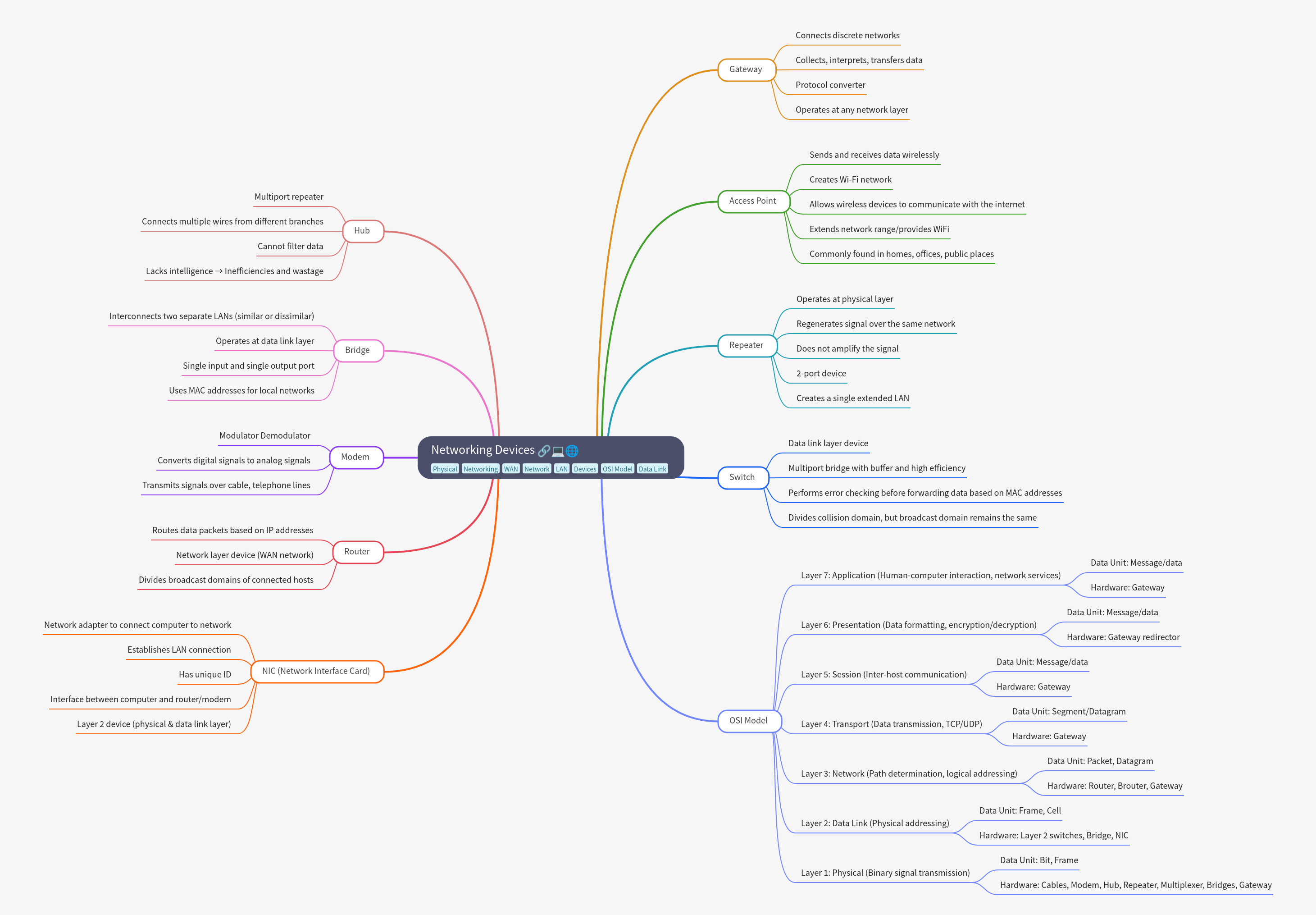

Featured Mind Map

Understanding Key Networking Devices

Networking devices are fundamental hardware components facilitating communication and data exchange within and between computer networks. They manage traffic, connect diverse network segments, and ensure data reaches its intended destination efficiently. These devices range from basic signal repeaters to complex routers and gateways, each operating at specific layers of the OSI model to enable seamless network operations and internet access.

Key Takeaways

1

Networking devices enable data flow and connectivity.

2

Each device serves a specific function in network operations.

3

Devices operate at different layers of the OSI model.

4

Hubs are basic, while routers provide intelligent routing.

5

Modems convert signals for internet transmission.

Understanding Key Networking Devices

What is a network hub and how does it function?

A network hub acts as a central connection point for devices in a local area network, functioning as a multiport repeater. It broadcasts data packets to all connected devices, regardless of the recipient. This indiscriminate forwarding means hubs cannot filter data, leading to network inefficiencies and bandwidth wastage.

  • Multiport repeater
  • Connects multiple wires from branches
  • Cannot filter data
  • Lacks intelligence, causes inefficiencies

What is a network gateway and what is its primary role?

A network gateway serves as a critical bridge, connecting two discrete networks that may use different protocols. Its primary role involves collecting, interpreting, and transferring data between these disparate environments. Functioning as a protocol converter, a gateway operates at any OSI model layer, translating data formats for seamless communication.

  • Connects discrete networks
  • Collects, interprets, transfers data
  • Protocol converter
  • Operates at any network layer

How does a network bridge connect LANs?

A network bridge interconnects two separate local area networks (LANs), whether similar or dissimilar. Operating at the data link layer of the OSI model, a bridge has a single input and output port. It intelligently forwards data frames based on MAC addresses, segmenting network traffic and reducing collisions within local network segments, enhancing performance.

  • Interconnects two separate LANs
  • Operates at data link layer
  • Single input and output port
  • Uses MAC addresses for local networks

What is an Access Point and how does it enable wireless connectivity?

An Access Point (AP) is a networking device that sends and receives data wirelessly, primarily creating a Wi-Fi network. It allows wireless devices to connect to a wired network and communicate with the internet. Access points extend network range or provide Wi-Fi coverage, commonly found in homes, offices, and public places.

  • Sends and receives data wirelessly
  • Creates Wi-Fi network
  • Allows wireless devices to communicate
  • Extends network range/provides WiFi
  • Commonly found in homes, offices, public places

What is a modem and how does it facilitate internet connection?

A modem, short for Modulator-Demodulator, is essential for internet connectivity. It converts digital signals from a computer into analog for transmission over traditional communication lines, such as cable or telephone lines. Conversely, it demodulates incoming analog signals back into digital data, enabling two-way communication with an Internet Service Provider.

  • Modulator Demodulator
  • Converts digital to analog signals
  • Transmits signals over cable, telephone lines

What is a network repeater and what is its function?

A network repeater operates at the physical layer of the OSI model, regenerating and strengthening a signal over the same network segment. Its main purpose is to extend network reach by boosting attenuated signals, ensuring data integrity over longer distances. Crucially, a repeater does not amplify the signal; instead, it reconstructs it. It is a 2-port device creating a single extended LAN.

  • Operates at physical layer
  • Regenerates signal over same network
  • Does not amplify the signal
  • 2-port device
  • Creates a single extended LAN

How does a router direct network traffic?

A router is a sophisticated networking device operating at the network layer of the OSI model, primarily used in Wide Area Networks (WANs). Its core function is to intelligently route data packets between different computer networks based on their IP addresses. Routers analyze destination IP addresses and determine the most efficient path, dividing broadcast domains and managing traffic.

  • Routes data packets based on IP
  • Network layer device (WAN)
  • Divides broadcast domains of hosts

What is a network switch and how does it improve network efficiency?

A network switch is a data link layer device functioning as a multiport bridge, offering significant improvements in network efficiency compared to hubs. It possesses a buffer and high efficiency, performing error checking before forwarding data. Switches intelligently direct data frames to their specific destination based on MAC addresses, effectively dividing collision domains. This targeted forwarding enhances network performance.

  • Data link layer device
  • Multiport bridge with buffer
  • Performs error checking before forwarding
  • Divides collision domain

What is a NIC and how does it connect a computer to a network?

A Network Interface Card (NIC), also known as a network adapter, is hardware allowing a computer to connect to a network. It establishes a Local Area Network (LAN) connection and serves as the interface between the computer and a router or modem. Each NIC has a unique Media Access Control (MAC) address, enabling unique identification. It operates at both physical and data link layers.

  • Network adapter for computer connection
  • Establishes LAN connection
  • Has unique ID (MAC address)
  • Interface between computer and router/modem
  • Layer 2 device (physical & data link)

What is the OSI Model and its layers?

The Open Systems Interconnection (OSI) model is a conceptual framework standardizing the functions of a telecommunication or computing system into seven distinct layers. It describes how network hardware and software interact to enable communication. Each layer performs specific functions, from physical transmission of bits to application-level interactions, providing clear understanding of network operations.

  • Layer 7: Application (Human-computer interaction, network services)
  • Layer 6: Presentation (Data formatting, encryption/decryption)
  • Layer 5: Session (Inter-host communication)
  • Layer 4: Transport (Data transmission, TCP/UDP)
  • Layer 3: Network (Path determination, logical addressing)
  • Layer 2: Data Link (Physical addressing)
  • Layer 1: Physical (Binary signal transmission)

Frequently Asked Questions

Q

What is the main difference between a hub and a switch?

A

A hub broadcasts data to all connected devices, causing inefficiency. A switch intelligently forwards data only to the intended recipient using MAC addresses, improving network performance and reducing unnecessary traffic.

Q

How does a modem enable internet access?

A

A modem converts digital signals from your computer into analog for transmission over internet lines, and vice versa. This modulation and demodulation allows devices to communicate with your Internet Service Provider and access the internet.

Q

What is the primary function of a router in a network?

A

A router directs data packets between different networks based on IP addresses. It determines the best path for data, connecting local networks to the internet and managing traffic flow across various network segments.

Q

Which OSI layer does a bridge operate at?

A

A network bridge operates at the Data Link Layer (Layer 2) of the OSI model. It uses MAC addresses to forward data frames, segmenting traffic and reducing collisions within local area networks.

Q

What is the purpose of a Network Interface Card (NIC)?

A

A NIC, or network adapter, is hardware allowing a computer to connect to a network. It provides the physical and data link layer interface between your device and the network, enabling communication with routers, modems, and other devices.
