Static Routing: A Comprehensive Guide
Static routing involves manually configuring network paths, offering predictable data flow and enhanced security by avoiding dynamic route announcements. It is ideal for smaller, stable networks where administrative overhead for manual updates is manageable. This method ensures specific traffic paths, reduces bandwidth consumption, and provides a clear, unchanging route for network communication, contrasting with dynamic routing protocols.

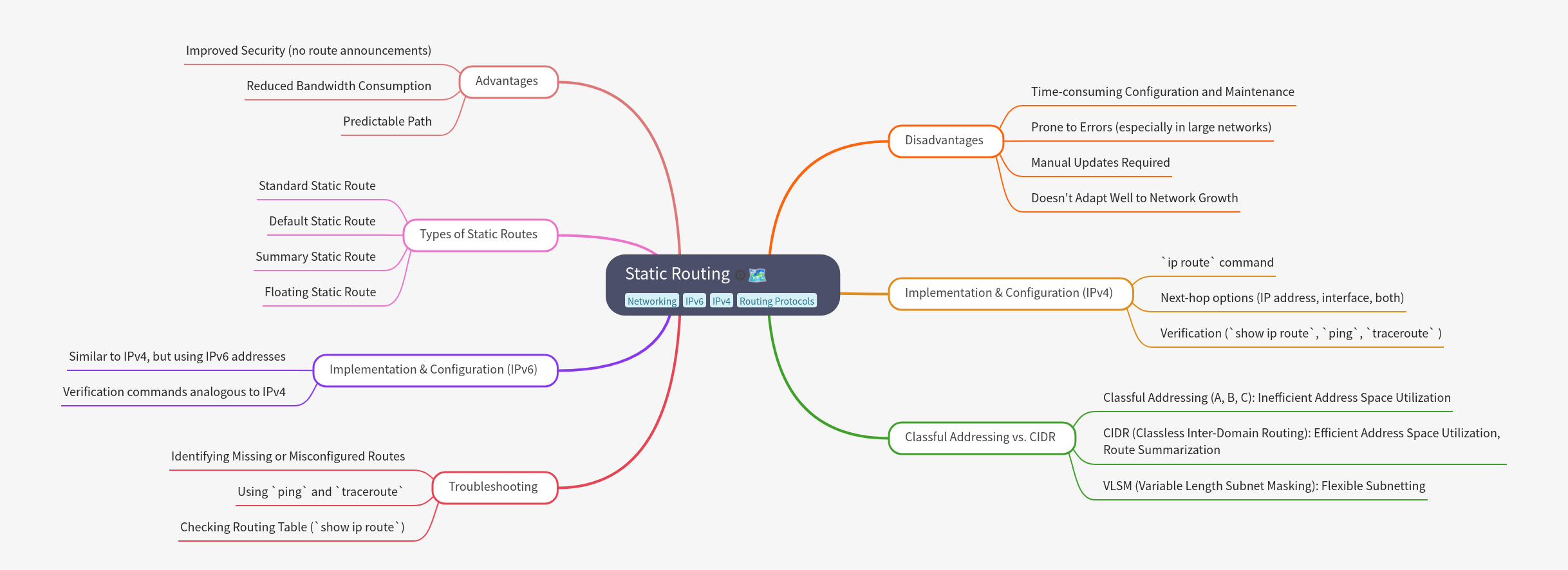

Key Takeaways
Static routes offer security and predictable network paths.
Manual configuration requires significant maintenance effort.
Different static route types serve specific network needs.
Implementation involves ip route commands and verification.
Troubleshooting focuses on identifying missing or misconfigured routes.
What are the primary advantages of using static routing?
Static routing offers several key benefits, particularly in specific network environments. It enhances security by preventing unauthorized route announcements, making the network less susceptible to certain types of attacks. This method also significantly reduces bandwidth consumption because routers do not exchange routing updates, freeing up network resources. Furthermore, static routes provide a highly predictable path for data traffic, ensuring consistent and reliable communication flows within the configured segments.
- Improved security due to the absence of dynamic route announcements.
- Reduced bandwidth consumption as no routing updates are exchanged.
- Predictable and consistent data paths for reliable communication.
What are the main drawbacks of static routing?
Despite its advantages, static routing presents significant disadvantages, especially as network complexity increases. Configuration and maintenance become time-consuming and labor-intensive, requiring manual intervention for every route change. This manual process is prone to errors, particularly in larger network infrastructures where misconfigurations can lead to widespread connectivity issues. Static routes also demand manual updates whenever network topology changes, and they do not adapt well to network growth, making scalability a major challenge.
- Time-consuming configuration and ongoing maintenance efforts.
- Increased susceptibility to errors, particularly in complex network setups.
- Requires manual updates for any network topology changes.
- Poor scalability, struggling to adapt to network expansion.
What are the different types of static routes?
Static routes are categorized into several types, each serving a distinct purpose in network design. A standard static route directs traffic to a specific destination network. A default static route acts as a gateway of last resort, forwarding all traffic for which no more specific route exists. Summary static routes consolidate multiple specific routes into a single, broader route, reducing routing table size. Floating static routes provide a backup path, becoming active only if the primary route fails, enhancing network resilience.
- Standard Static Route: Directs traffic to a specific network.
- Default Static Route: Acts as a gateway for unknown destinations.
- Summary Static Route: Consolidates multiple routes into one.
- Floating Static Route: Provides a backup path for primary routes.
How is static routing implemented and configured in IPv4 networks?
Implementing static routing in IPv4 networks primarily involves using the ip route command on network devices. This command specifies the destination network, subnet mask, and the next-hop address or exit interface. Next-hop options include specifying an IP address, an outgoing interface, or both for more precise control. After configuration, verification is crucial to ensure routes are correctly installed and functional. Common verification tools include show ip route to inspect the routing table, ping to test reachability, and traceroute to trace the path taken by packets.
- Utilize the ip route command for configuration.
- Specify next-hop using an IP address, interface, or both.
- Verify configuration with show ip route, ping, and traceroute.
How does static routing implementation differ for IPv6?
Static routing implementation for IPv6 networks largely mirrors the process used for IPv4, but with adaptations for the IPv6 addressing scheme. Instead of ip route, the ipv6 route command is used, specifying IPv6 destination prefixes and next-hop IPv6 addresses or interfaces. The fundamental principles of defining a path remain consistent. Verification commands are also analogous to their IPv4 counterparts, allowing administrators to confirm route installation and network connectivity using IPv6-specific versions of show route, ping, and traceroute utilities.
- Configuration is similar to IPv4, but uses IPv6 addresses and commands.
- Verification commands are analogous to IPv4 tools for IPv6.
What is the relationship between static routing and addressing schemes like CIDR?
Static routing interacts significantly with network addressing schemes, particularly concerning efficiency and scalability. Classful addressing (A, B, C) was an older method that led to inefficient address space utilization due to fixed network boundaries. Classless Inter-Domain Routing (CIDR) revolutionized this by allowing flexible subnetting and efficient address allocation, enabling route summarization which is beneficial for static routing by reducing the number of entries needed in routing tables. Variable Length Subnet Masking (VLSM) further enhances flexibility, allowing networks to be divided into subnets of varying sizes, optimizing address usage.
- Classful Addressing: Inefficient use of IP address space.
- CIDR: Enables efficient address utilization and route summarization.
- VLSM: Provides flexible subnetting for optimized address usage.
How can static routing issues be effectively troubleshoot?
Troubleshooting static routing problems involves a systematic approach to identify and resolve connectivity issues. The primary step is to identify missing or misconfigured routes within the network devices. This often means checking the routing table for incorrect next-hop addresses, incorrect subnet masks, or entirely absent routes. Tools like ping are essential for testing end-to-end reachability, while traceroute helps pinpoint the exact hop where traffic stops or deviates from the expected path. Regularly checking the routing table using commands like show ip route provides a comprehensive overview of installed routes.
- Identify missing or misconfigured static routes.
- Utilize ping to test reachability and traceroute to identify path issues.
- Regularly check the routing table with show ip route.
Frequently Asked Questions
What is static routing?
Static routing involves manually configuring network paths on a router. Administrators define specific routes for data to follow, offering precise control over traffic flow. It is a fixed, non-adaptive method, suitable for simple or highly controlled network environments.
When should static routing be used?
Use static routing in small, stable networks with predictable topologies. It is also suitable for stub networks, where there is only one exit path, or for providing a backup route in conjunction with dynamic routing.
What are the security benefits of static routing?
Static routing enhances security because routers do not exchange routing updates. This prevents malicious actors from injecting false route information into the network, making it more secure against certain types of routing attacks.
How do you verify a static route?
Verify static routes using commands like show ip route (or show ipv6 route for IPv6) to inspect the routing table. Additionally, use ping to test connectivity to the destination and traceroute to confirm the packet's path.
What is a default static route?
A default static route is a special type of static route that directs all traffic for which no more specific route exists. It acts as a "gateway of last resort," typically pointing to the internet or a central router.
