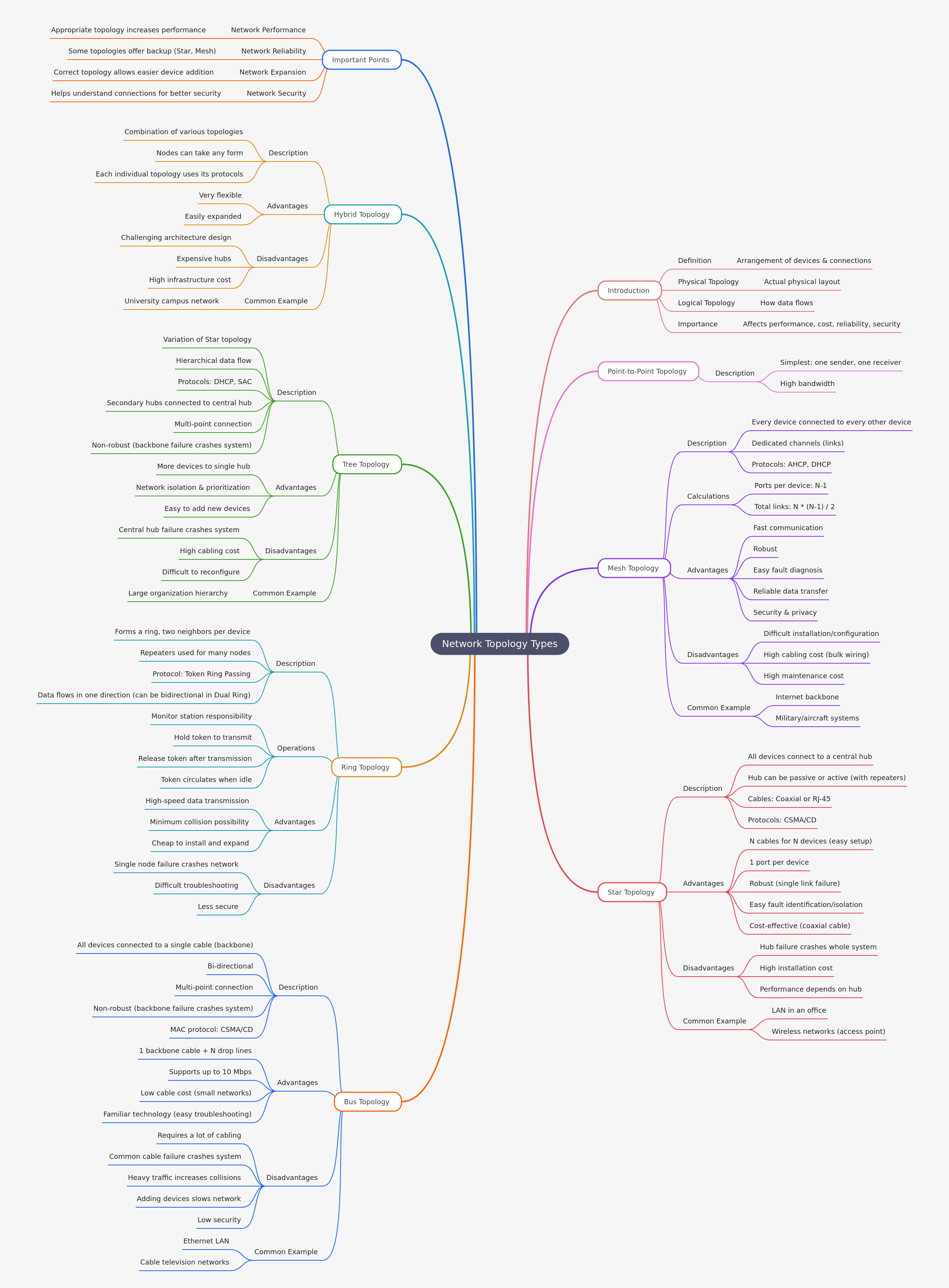

Understanding Network Topology Types
Network topology defines the arrangement of devices and connections within a network, influencing how data flows. It encompasses both physical layout and logical data paths, critically impacting performance, cost, reliability, and security. Understanding different topologies like Mesh, Star, Bus, and Ring is essential for effective network design and management.
Key Takeaways
Network topology dictates device arrangement and data flow.
Physical and logical layouts affect performance, cost, and reliability.
Mesh offers robustness; Star provides easy fault isolation.
Bus and Ring topologies are simpler but have single points of failure.
Hybrid topologies combine types for flexibility and scalability.
What is Network Topology and Why is it Important?
Network topology defines the arrangement of devices and connections within a computer network, encompassing both physical layout and logical data flow. It is fundamental for network design, directly influencing performance, cost, reliability, and security. Understanding these structures is essential for building efficient communication systems.
- Definition: Arrangement of devices and connections.
- Physical Topology: Actual physical layout.
- Logical Topology: How data flows.
- Importance: Affects performance, cost, reliability, security.
What Defines a Point-to-Point Network Topology?
A Point-to-Point topology is the simplest network configuration, establishing a direct, dedicated connection between only two devices: one sender and one receiver. This direct link guarantees high bandwidth and exclusive communication, ideal for specific, high-demand connections.
- Simplest: One sender, one receiver.
- High bandwidth.
How Does a Mesh Topology Ensure High Reliability?
Mesh topology connects every device to every other, creating multiple redundant data paths. This full interconnection ensures robust communication and high reliability, as a single link failure does not disrupt the network. It offers excellent fault tolerance and security, though installation and cabling costs are higher due to extensive wiring.
- Every device connected to every other; dedicated channels.
- Calculations: N-1 ports; N * (N-1) / 2 total links.
- Advantages: Fast, robust, easy fault diagnosis, reliable, secure.
- Disadvantages: Difficult installation, high cabling/maintenance costs.
- Examples: Internet backbone, military systems.
What are the Characteristics and Benefits of a Star Topology?
Star topology features all network devices connecting to a central hub, passive or active. This design simplifies setup, requiring N cables for N devices, and makes fault identification easy since a single link failure only affects that device. However, the central hub is a single point of failure; if it malfunctions, the entire network crashes.
- All devices connect to a central hub (passive/active).
- Cables: Coaxial or RJ-45; Protocol: CSMA/CD.
- Advantages: Easy setup, robust (single link failure), easy fault identification, cost-effective.
- Disadvantages: Hub failure crashes system, high installation cost, performance depends on hub.
- Examples: Office LANs, wireless networks.
Why is Bus Topology Simple but Prone to Failure?
Bus topology connects all devices to a single, shared backbone cable, allowing bi-directional, multi-point communication. It is simple to implement for small networks due to low cabling cost, supporting speeds up to 10 Mbps. However, the backbone is a critical single point of failure; if it breaks, the entire network goes down. Heavy traffic increases data collisions.
- All devices connected to single backbone; bi-directional.
- MAC protocol: CSMA/CD.
- Advantages: Low cable cost (small networks), familiar technology.
- Disadvantages: Backbone failure, heavy traffic collisions, low security.
- Examples: Ethernet LAN, cable television networks.
How Does Ring Topology Manage Data Transmission?
In a Ring topology, devices are connected circularly, each having two neighbors. Data typically flows in one direction, managed by a token-passing protocol, ensuring minimum collision possibility and high-speed transmission. Repeaters are often used. While cheap to install, a single node failure can crash the entire network, and troubleshooting is difficult.
- Forms a ring, two neighbors per device; repeaters.
- Protocol: Token Ring Passing; data flows one direction.
- Operations: Monitor station, hold/release token.
- Advantages: High-speed, minimum collision, cheap to expand.
- Disadvantages: Single node failure, difficult troubleshooting, less secure.
What are the Advantages of a Hierarchical Tree Topology?
Tree topology is a variation of the Star, featuring a hierarchical structure where secondary hubs connect to a central hub. This multi-point connection allows for easier network isolation and prioritization, and more devices can be added without disrupting the existing network. However, the central backbone or hub remains a single point of failure.
- Variation of Star; hierarchical data flow; secondary hubs.
- Multi-point connection; non-robust (backbone failure).
- Advantages: More devices per hub, network isolation, easy to add.
- Disadvantages: Central hub failure, high cabling cost, difficult to reconfigure.
- Example: Large organization hierarchy.

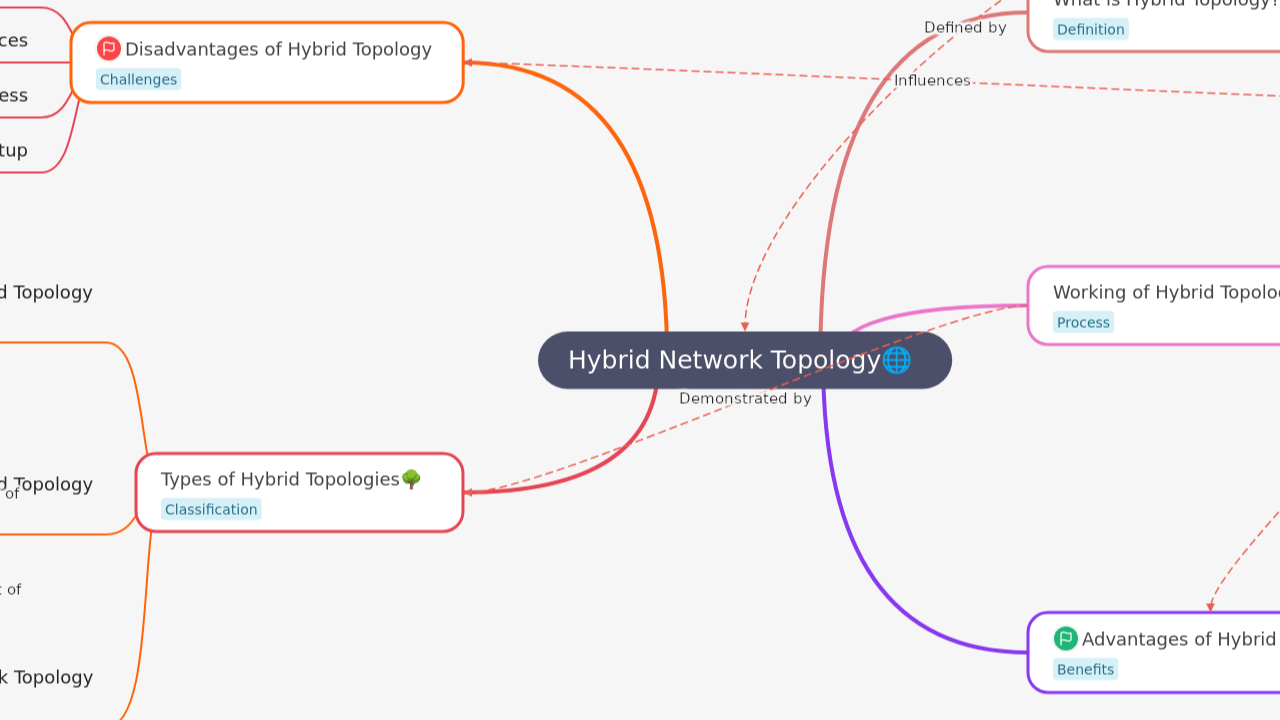

When is a Hybrid Network Topology the Best Choice?
A Hybrid topology combines two or more different network topologies, leveraging the strengths of each to create a highly flexible and scalable network. Nodes can take various forms, and each individual topology utilizes its own specific protocols. This approach allows for easy expansion and customization. However, designing such an architecture can be challenging.
- Combination of various topologies; flexible nodes.
- Each individual topology uses its own protocols.
- Advantages: Very flexible, easily expanded.
- Disadvantages: Challenging design, expensive hubs, high infrastructure cost.
- Example: University campus network.
Why is Choosing the Right Network Topology Critical?
Selecting the appropriate network topology is critical because it significantly impacts network performance, reliability, expansion capabilities, and security. An optimized topology can increase data transfer speeds and efficiency. Certain topologies, like Mesh and Star, offer built-in redundancy. A well-chosen topology also facilitates easier addition of new devices.
- Network Performance: Appropriate topology increases performance.
- Network Reliability: Some topologies offer backup.
- Network Expansion: Correct topology allows easier device addition.
- Network Security: Helps understand connections for better security.
Frequently Asked Questions
What is the primary difference between physical and logical topology?
Physical topology shows the actual cabling layout. Logical topology describes how data flows, independent of physical connections.
Which topology offers the highest fault tolerance and why?
Mesh topology provides highest fault tolerance. Every device connects to every other, creating multiple redundant data paths.
What is the main disadvantage of a Star topology?
The central hub is a single point of failure. If it malfunctions, the entire network connected to it ceases to function.
How does a Ring topology prevent data collisions?
Ring topology uses a token-passing protocol. A device must hold the token before transmitting, preventing simultaneous transmissions.
When would a Hybrid topology be the most suitable choice?
Hybrid topology is ideal for combining different topologies' strengths, offering flexibility, scalability, and customization for diverse network segments.
