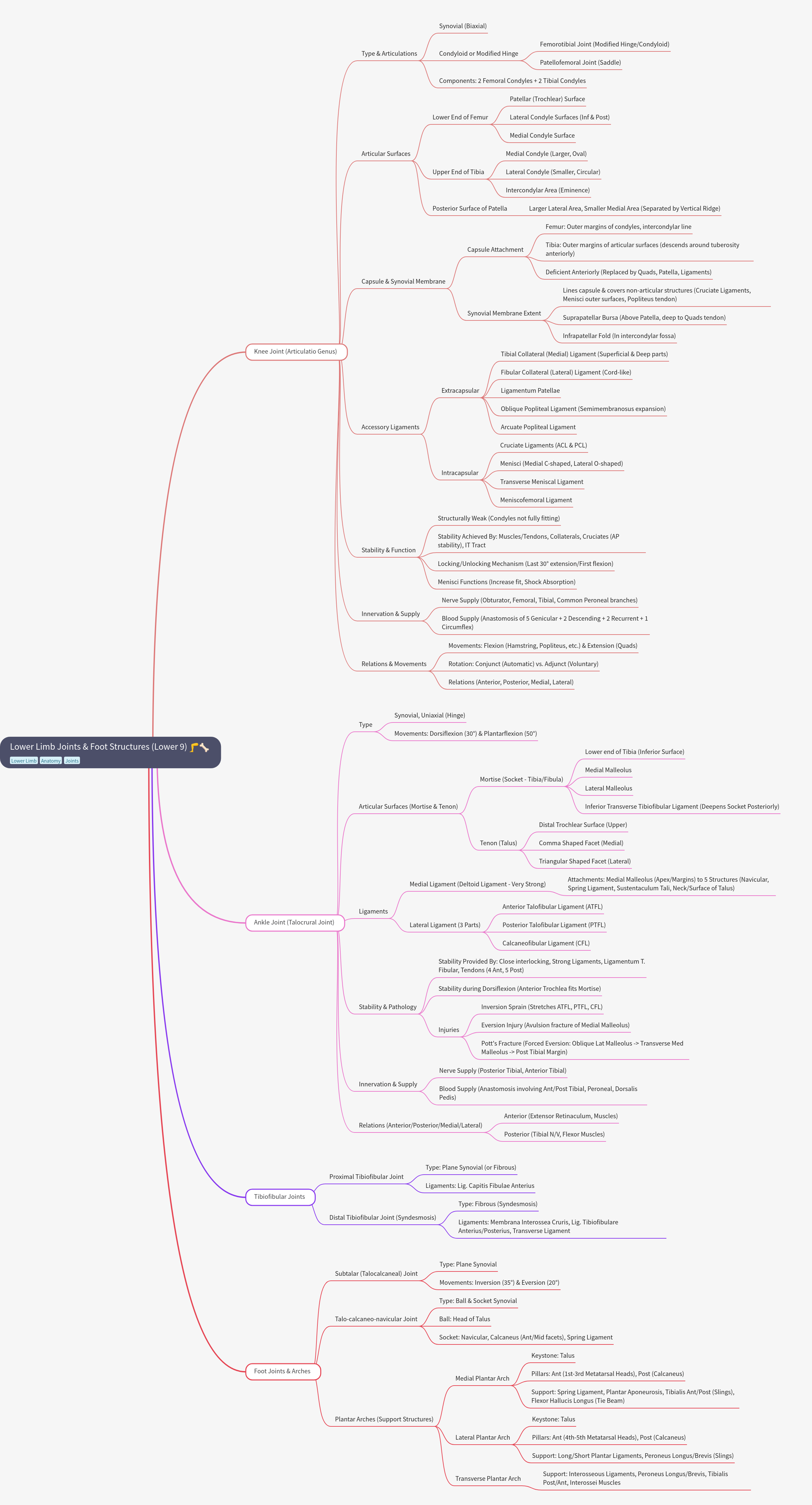

Featured Mind Map

Lower Limb Joints and Foot Structures Anatomy

The lower limb joints, including the knee (modified hinge), ankle (uniaxial hinge), and tibiofibular joints, facilitate essential movements like walking and standing. The knee joint is structurally weak but stabilized by strong ligaments and muscles. The foot structures rely on three complex plantar arches—medial, lateral, and transverse—to provide crucial support, flexibility, and shock absorption during weight bearing.

Key Takeaways

1

The knee joint is a synovial, biaxial, modified hinge joint, stabilized by ligaments.

2

Knee stability is achieved primarily by muscles, tendons, and the cruciate ligaments.

3

The ankle joint is a uniaxial hinge, allowing 30° dorsiflexion and 50° plantarflexion.

4

The medial plantar arch's keystone is the talus, supported by the spring ligament.

5

Inversion ankle sprains typically stretch the three components of the lateral ligament.

Lower Limb Joints and Foot Structures Anatomy

What are the structural components and stability mechanisms of the knee joint?

The knee joint is anatomically classified as a synovial, biaxial joint, functioning primarily as a modified hinge joint (femorotibial) alongside the patellofemoral saddle joint. Articulation occurs between the two femoral condyles and the two tibial condyles, with the posterior surface of the patella also involved. Although structurally weak due to poor bony fit, the knee achieves stability through a complex network of accessory ligaments, including the crucial intracapsular cruciate ligaments (ACL and PCL), collateral ligaments, and surrounding muscles and tendons. This joint also features a locking/unlocking mechanism essential for full extension and initial flexion.

  • Type & Articulations: Includes the synovial biaxial classification and the components of the femorotibial and patellofemoral joints.
  • Articular Surfaces: Comprises the lower end of the femur, the upper end of the tibia (condyles and intercondylar area), and the posterior surface of the patella.
  • Capsule & Synovial Membrane: Details the capsule attachments on the femur and tibia, and the extent of the synovial membrane, including the suprapatellar bursa.
  • Accessory Ligaments: Categorized into extracapsular (collaterals, patellae, popliteal) and intracapsular (cruciates, menisci, transverse, meniscofemoral).
  • Stability & Function: Addresses the structural weakness, the role of muscles/ligaments in stability, the locking mechanism, and menisci functions (shock absorption).
  • Innervation & Supply: Describes the nerve supply from Obturator, Femoral, Tibial, and Common Peroneal branches, and the extensive arterial anastomosis.
  • Relations & Movements: Covers movements like flexion/extension and rotation (conjunct/adjunct), along with anterior, posterior, medial, and lateral relations.

How is the ankle joint structured, and what movements does it permit?

The ankle joint, or talocrural joint, is a synovial, uniaxial hinge joint designed primarily for movement in one plane. It functions as a mortise and tenon structure, where the socket (mortise) is formed by the lower ends of the tibia and fibula, and the tenon is the trochlear surface of the talus. This structure allows for significant plantarflexion (up to 50°) and dorsiflexion (up to 30°). Stability is high, especially during dorsiflexion when the wider anterior part of the talus fits tightly into the mortise. The joint is reinforced by the very strong medial (Deltoid) ligament and the three-part lateral ligament, which is frequently injured during inversion sprains.

  • Type: Classified as synovial, uniaxial (hinge), permitting dorsiflexion and plantarflexion movements.
  • Articular Surfaces (Mortise & Tenon): Defines the mortise (tibia/fibula socket) and the tenon (talus trochlear surface and facets).
  • Ligaments: Includes the strong Medial (Deltoid) Ligament and the three-part Lateral Ligament (Anterior Talofibular, Posterior Talofibular, Calcaneofibular).
  • Stability & Pathology: Explains stability via interlocking bones, strong ligaments, and tendons, noting common injuries like inversion sprains and Pott's fracture.
  • Innervation & Supply: Supplied by the Posterior Tibial and Anterior Tibial nerves, and an arterial anastomosis involving several major arteries.
  • Relations: Describes the structures anteriorly (extensor retinaculum, muscles) and posteriorly (Tibial N/V, flexor muscles).

What are the classifications and functions of the tibiofibular joints?

The tibiofibular joints connect the tibia and fibula along their length, providing necessary stability and slight movement for ankle function. There are two main joints: the proximal and the distal. The proximal joint is typically a plane synovial joint, stabilized by the Ligamentum Capitis Fibulae Anterius. In contrast, the distal tibiofibular joint is a fibrous joint known as a syndesmosis. This distal connection is crucial for maintaining the integrity of the ankle mortise and is reinforced by the interosseous membrane, along with the anterior, posterior, and transverse tibiofibular ligaments.

  • Proximal Tibiofibular Joint: Characterized as a Plane Synovial (or Fibrous) joint, stabilized by the Ligamentum Capitis Fibulae Anterius.
  • Distal Tibiofibular Joint (Syndesmosis): Classified as a Fibrous joint, reinforced by the Membrana Interossea Cruris and multiple strong ligaments.

How do the foot joints and plantar arches contribute to foot function and support?

The foot contains several critical joints that enable complex movements, including the Subtalar (Talocalcaneal) joint, which is a plane synovial joint responsible for inversion (35°) and eversion (20°). Additionally, the Talo-calcaneo-navicular joint functions as a ball and socket synovial joint, where the head of the talus fits into a socket formed by the navicular, calcaneus, and the spring ligament. Crucially, the foot's structure is maintained by three plantar arches—medial, lateral, and transverse—which act as dynamic support structures. These arches, supported by specific ligaments and muscle slings, distribute weight, absorb shock, and provide propulsion during locomotion.

  • Subtalar (Talocalcaneal) Joint: A plane synovial joint facilitating inversion and eversion movements.
  • Talo-calcaneo-navicular Joint: A ball and socket synovial joint where the head of the talus forms the ball.
  • Plantar Arches (Support Structures): Includes the Medial, Lateral, and Transverse arches, each defined by specific keystone bones, pillars, and ligament/tendon supports.

Frequently Asked Questions

Q

What provides the primary stability for the knee joint?

A

Since the knee joint is structurally weak due to poor bony fit, stability is primarily achieved by the surrounding muscles and tendons, the collateral ligaments, and the intracapsular cruciate ligaments, which prevent anterior-posterior displacement.

Q

Which ligaments are most commonly injured during an inversion ankle sprain?

A

An inversion sprain, the most common ankle injury, stretches the lateral ligament complex. This includes the Anterior Talofibular Ligament (ATFL), the Posterior Talofibular Ligament (PTFL), and the Calcaneofibular Ligament (CFL).

Q

What is the keystone structure of the medial plantar arch?

A

The keystone of the medial plantar arch is the talus. This arch is supported by the anterior pillars (1st-3rd metatarsal heads) and the posterior pillar (calcaneus), reinforced by the spring ligament and muscle slings.
