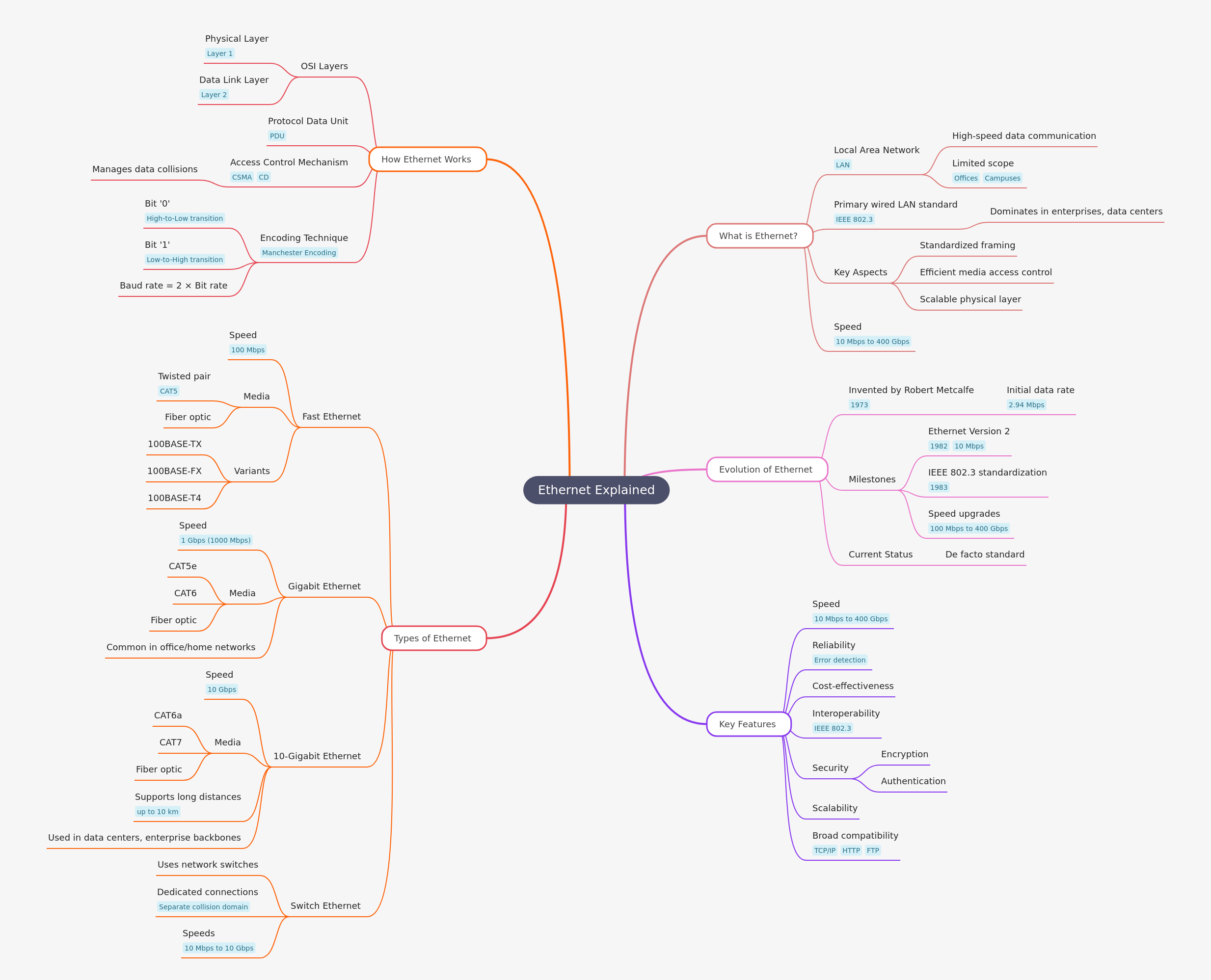

Ethernet Explained: A Comprehensive Guide
Ethernet is the predominant wired local area network (LAN) technology, enabling high-speed data communication within limited geographical areas like offices and campuses. It functions as the primary standard for connecting devices in a network, offering reliable, scalable, and cost-effective data transfer. Its continuous evolution has led to speeds ranging from 10 Mbps to 400 Gbps, making it indispensable for modern digital infrastructure.
Key Takeaways
Ethernet is the primary wired LAN standard for high-speed data.
It evolved from 2.94 Mbps in 1973 to 400 Gbps today.
Key features include reliability, scalability, and broad compatibility.
Various types exist, from Fast Ethernet to 10-Gigabit Ethernet.
Operates on OSI Layers 1 and 2, using CSMA/CD for access.
What is Ethernet and how does it function as a network standard?
Ethernet is the foundational technology for wired local area networks (LANs), enabling high-speed data communication within defined geographical boundaries such as offices, homes, and campuses. It serves as the primary wired LAN standard, dominating enterprise and data center environments due to its robust and efficient design. This technology defines how data is formatted and transmitted over a network, ensuring reliable and orderly communication between connected devices. Its core principles include standardized data framing, efficient media access control, and a scalable physical layer, allowing for consistent performance across diverse network infrastructures. Ethernet's versatility and continuous development have solidified its role as the backbone of modern wired networking.
- Functions as a Local Area Network (LAN) for high-speed data.
- Primary wired LAN standard, widely adopted (IEEE 802.3).
- Key aspects include standardized framing and efficient media access.
- Supports speeds from 10 Mbps up to 400 Gbps.
How has Ethernet evolved since its invention?
Ethernet's journey began in 1973, invented by Robert Metcalfe at Xerox PARC, initially supporting a modest data rate of 2.94 Mbps. This pioneering technology quickly gained traction, leading to significant milestones that shaped its widespread adoption. The release of Ethernet Version 2 in 1982 boosted speeds to 10 Mbps, paving the way for its formal standardization as IEEE 802.3 in 1983. Since then, Ethernet has undergone continuous speed upgrades, progressing from 100 Mbps to 1 Gbps, 10 Gbps, and now reaching up to 400 Gbps. This relentless innovation has cemented its status as the de facto standard for wired networking globally, adapting to ever-increasing demands for bandwidth and connectivity.
- Invented by Robert Metcalfe in 1973 with an initial 2.94 Mbps.
- Milestones include Ethernet Version 2 (1982) and IEEE 802.3 standardization (1983).
- Underwent continuous speed upgrades, now supporting up to 400 Gbps.
- Has become the de facto standard for wired network connectivity.
What are the essential features that make Ethernet a reliable network technology?
Ethernet is distinguished by several essential features that contribute to its reliability, efficiency, and widespread use in diverse networking environments. Its ability to support a vast range of speeds, from 10 Mbps to an impressive 400 Gbps, ensures it can meet varying bandwidth requirements. Reliability is a cornerstone, incorporating robust error detection mechanisms to maintain data integrity during transmission. Furthermore, Ethernet offers significant cost-effectiveness, making it an accessible solution for both small and large-scale deployments. Its adherence to the IEEE 802.3 standard guarantees interoperability across different hardware and manufacturers. Modern Ethernet also includes security enhancements like encryption and authentication, alongside inherent scalability and broad compatibility with common network protocols such as TCP/IP, HTTP, and FTP, ensuring seamless integration into existing infrastructures.
- Offers a wide speed range, from 10 Mbps to 400 Gbps.
- Ensures reliability through built-in error detection.
- Provides cost-effectiveness and broad interoperability (IEEE 802.3).
- Includes security features like encryption and authentication.
- Highly scalable and compatible with protocols like TCP/IP, HTTP, FTP.
What are the different types of Ethernet and their primary applications?
Ethernet has diversified into several types, each optimized for specific speed and application requirements. Fast Ethernet, operating at 100 Mbps, utilizes twisted pair (CAT5) or fiber optic cables and includes variants like 100BASE-TX and 100BASE-FX. Gigabit Ethernet, delivering 1 Gbps (1000 Mbps), is prevalent in modern office and home networks, typically using CAT5e, CAT6, or fiber optic media. For higher demands, 10-Gigabit Ethernet provides 10 Gbps, supporting long distances up to 10 km with CAT6a, CAT7, or fiber optic cables, making it ideal for data centers and enterprise backbones. Additionally, Switched Ethernet employs network switches to create dedicated connections, eliminating collision domains and supporting speeds from 10 Mbps to 10 Gbps, significantly enhancing network performance and efficiency.
- Fast Ethernet (100 Mbps) uses twisted pair (CAT5) or fiber optic.
- Gigabit Ethernet (1 Gbps) is common in homes/offices, using CAT5e/6 or fiber.
- 10-Gigabit Ethernet (10 Gbps) serves data centers, supporting long distances.
- Switched Ethernet uses network switches for dedicated, efficient connections.
How does Ethernet operate at the fundamental network layers?
Ethernet operates primarily across the first two layers of the OSI model: the Physical Layer (Layer 1) and the Data Link Layer (Layer 2). The Physical Layer handles the electrical and mechanical specifications for data transmission, including cabling and signal encoding. The Data Link Layer manages the framing of data into Protocol Data Units (PDUs) and controls access to the shared network medium. A crucial access control mechanism is Carrier Sense Multiple Access with Collision Detection (CSMA/CD), which helps manage data collisions by allowing devices to listen before transmitting and detect conflicts. For signal encoding, Ethernet often employs Manchester Encoding, where a bit '0' is represented by a high-to-low transition and a bit '1' by a low-to-high transition within each bit period, with the baud rate being twice the bit rate.
- Operates on OSI Physical (Layer 1) and Data Link (Layer 2) Layers.
- Uses Protocol Data Units (PDUs) for data framing.
- Employs CSMA/CD for efficient media access and collision management.
- Utilizes Manchester Encoding for signal transmission (e.g., bit '0' is high-to-low transition).
Frequently Asked Questions
What is the primary purpose of Ethernet?
Ethernet's primary purpose is to provide a reliable and high-speed wired connection for devices within a local area network (LAN). It enables efficient data exchange in environments like offices, homes, and data centers, serving as the foundational standard for wired networking.
How fast can Ethernet transmit data?
Ethernet speeds have significantly evolved, ranging from its initial 2.94 Mbps to modern capabilities of up to 400 Gbps. The specific speed depends on the Ethernet type and the network infrastructure deployed, offering scalable performance for various needs.
What role does CSMA/CD play in Ethernet?
CSMA/CD (Carrier Sense Multiple Access with Collision Detection) is an access control mechanism in Ethernet. It allows devices to "listen" to the network before transmitting to avoid collisions and detects if a collision occurs, enabling retransmission for reliable data delivery.
