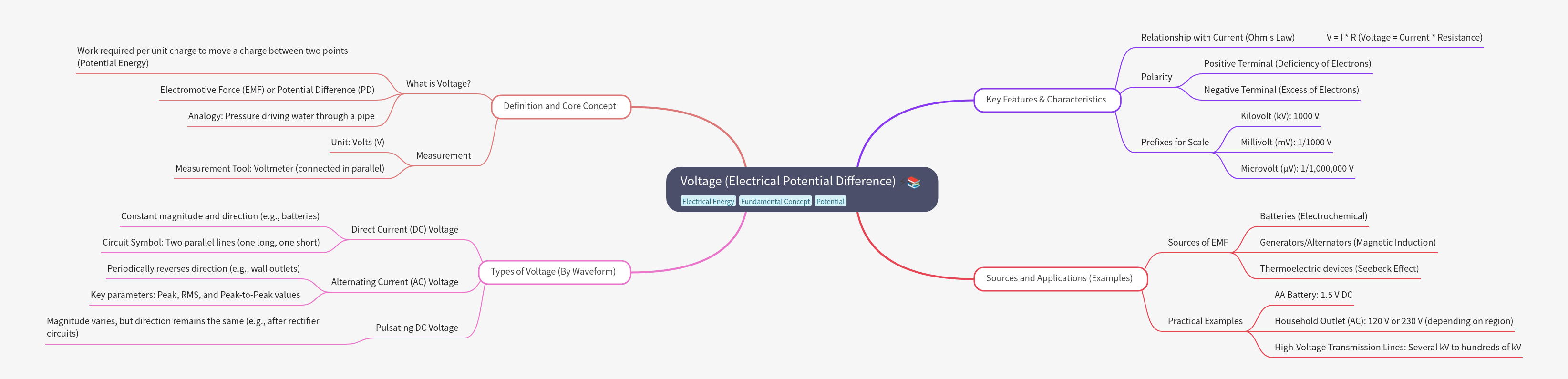

Featured Mind map
Understanding Voltage: Definition, Types, and Uses
Voltage, or electrical potential difference, represents the work required per unit charge to move an electric charge between two points in an electric field. It is the fundamental driving force that pushes electric current through a circuit, analogous to pressure in a water pipe. Measured in Volts (V), voltage is crucial for understanding how electrical energy is transferred and utilized in various applications.
Key Takeaways
Voltage is electrical potential difference, measured in Volts.
It drives current, following Ohm's Law (V=IR).
Types include DC (constant) and AC (reversing).
Sources range from batteries to power generators.
Polarity defines positive and negative terminals.
What is Voltage and How is it Fundamentally Defined?
Voltage, also known as electrical potential difference, is a fundamental concept in electricity that quantifies the work required per unit charge to move an electric charge between two distinct points within an electric field. This potential energy difference is often referred to as Electromotive Force (EMF) when generated by a source, or Potential Difference (PD) when measured across a component, acting as the essential driving force for electron flow in a circuit. An intuitive analogy compares voltage to pressure driving water through a pipe, where higher pressure (voltage) results in a stronger flow (current). Understanding this core concept is absolutely essential for comprehending all electrical phenomena, as it dictates the energy available to move charges.
- Work required per unit charge to move a charge between two points (Potential Energy) – This defines the energy available per unit of charge.
- Electromotive Force (EMF) or Potential Difference (PD) – These terms describe the force or difference that drives current.
- Analogy: Pressure driving water through a pipe – A simple way to visualize voltage's role in a circuit.
- Unit: Volts (V) – The standard international unit for measuring electrical potential difference.
- Measurement Tool: Voltmeter (connected in parallel) – Used to accurately determine voltage across components without altering circuit current.
What are the Essential Characteristics and Properties of Voltage?
Voltage exhibits several key characteristics that govern its behavior and application in electrical circuits. Its fundamental relationship with current and resistance is precisely defined by Ohm's Law, which states that voltage (V) equals the product of current (I) and resistance (R), expressed as V = I * R. This law is critical for circuit analysis and design. Polarity is another crucial feature, distinguishing between positive terminals, which have a deficiency of electrons, and negative terminals, which possess an excess of electrons. This distinction dictates the conventional direction of current flow from positive to negative. Furthermore, voltage can be expressed across various scales using standard prefixes like kilovolt (kV) for 1000 V, millivolt (mV) for 1/1000 V, and microvolt (µV) for 1/1,000,000 V, facilitating precise measurement and application in diverse electrical systems, from microelectronics to high-tension power lines.
- V = I * R (Voltage = Current * Resistance) – The foundational equation of Ohm's Law, linking these three core electrical quantities.
- Positive Terminal (Deficiency of Electrons) – The point in a circuit with higher electrical potential.
- Negative Terminal (Excess of Electrons) – The point in a circuit with lower electrical potential.
- Kilovolt (kV): 1000 V – Used for large-scale power transmission and industrial applications.
- Millivolt (mV): 1/1000 V – Common in sensitive electronic circuits and sensor outputs.
- Microvolt (µV): 1/1,000,000 V – Utilized for extremely low-level signal measurements.
What are the Primary Types of Voltage Based on Waveform?
Voltage manifests in different forms, primarily categorized by its waveform characteristics, which dictate its behavior and suitability for various applications. Direct Current (DC) voltage maintains a constant magnitude and direction over time, exemplified by the steady output from batteries or solar panels, making it ideal for many electronic devices and digital circuits. Alternating Current (AC) voltage, conversely, periodically reverses its direction and magnitude, as seen in household wall outlets and power grids. AC is characterized by key parameters such as peak voltage, RMS (Root Mean Square) voltage, and peak-to-peak values, which describe its fluctuating nature. A third type, Pulsating DC voltage, varies in magnitude but consistently flows in one direction, typically observed after rectifier circuits convert AC to DC, demonstrating a dynamic yet unidirectional electrical potential often requiring further smoothing for stable operation.
- Constant magnitude and direction (e.g., batteries) – Provides a stable power source for many portable devices.
- Circuit Symbol: Two parallel lines (one long, one short) – Standard schematic representation for a DC voltage source.
- Periodically reverses direction (e.g., wall outlets) – Efficient for long-distance power transmission and large-scale distribution.
- Key parameters: Peak, RMS, and Peak-to-Peak values – Essential for characterizing AC waveforms and their effective power delivery.
- Magnitude varies, but direction remains the same (e.g., after rectifier circuits) – An intermediate form often smoothed into pure DC for sensitive electronics.
Where Does Voltage Originate and How is it Practically Applied?
Voltage originates from various sources that efficiently convert other forms of energy into usable electrical potential difference, powering our modern world. Batteries generate voltage through controlled electrochemical reactions, providing portable DC power for countless devices. Generators and alternators utilize the principle of magnetic induction to produce voltage, forming the backbone of large-scale AC power generation in power plants. Thermoelectric devices leverage the Seebeck Effect to create voltage from temperature differences, finding niche applications in waste heat recovery. These diverse sources enable a vast array of practical applications, from small household items to large industrial systems. Practical examples include the familiar 1.5 V DC from an AA battery, the 120 V or 230 V AC found in household outlets depending on the region, and the hundreds of kilovolts carried by high-voltage transmission lines, illustrating voltage's pervasive and indispensable role in modern life and technology.
- Batteries (Electrochemical) – Convert chemical energy into electrical potential, common in portable electronics.
- Generators/Alternators (Magnetic Induction) – Convert mechanical energy into electrical energy, central to power grids.
- Thermoelectric devices (Seebeck Effect) – Generate voltage from temperature gradients, useful in specialized sensors and power generation.
- AA Battery: 1.5 V DC – A common low-voltage direct current source for everyday gadgets.
- Household Outlet (AC): 120 V or 230 V (depending on region) – Standard alternating current for home appliances and lighting.
- High-Voltage Transmission Lines: Several kV to hundreds of kV – Used for efficient long-distance bulk power transfer.
Frequently Asked Questions
What is the basic definition of voltage?
Voltage is the work needed per unit charge to move an electric charge between two points. It represents the electrical potential difference, driving current through a circuit. This fundamental concept is often compared to the pressure that drives water through a pipe, illustrating its role as an electrical "push."
How is voltage measured and what are its units?
Voltage is measured in Volts (V), which is the standard international unit. A voltmeter is the specific tool used for this purpose, and it must be connected in parallel across the two points where the potential difference is being measured to ensure an accurate reading without affecting the circuit's current flow.
What is the difference between AC and DC voltage?
Direct Current (DC) voltage maintains a constant magnitude and direction over time, as supplied by batteries. Alternating Current (AC) voltage, conversely, periodically reverses its direction and magnitude, which is characteristic of power from household outlets and is efficient for long-distance power transmission.
