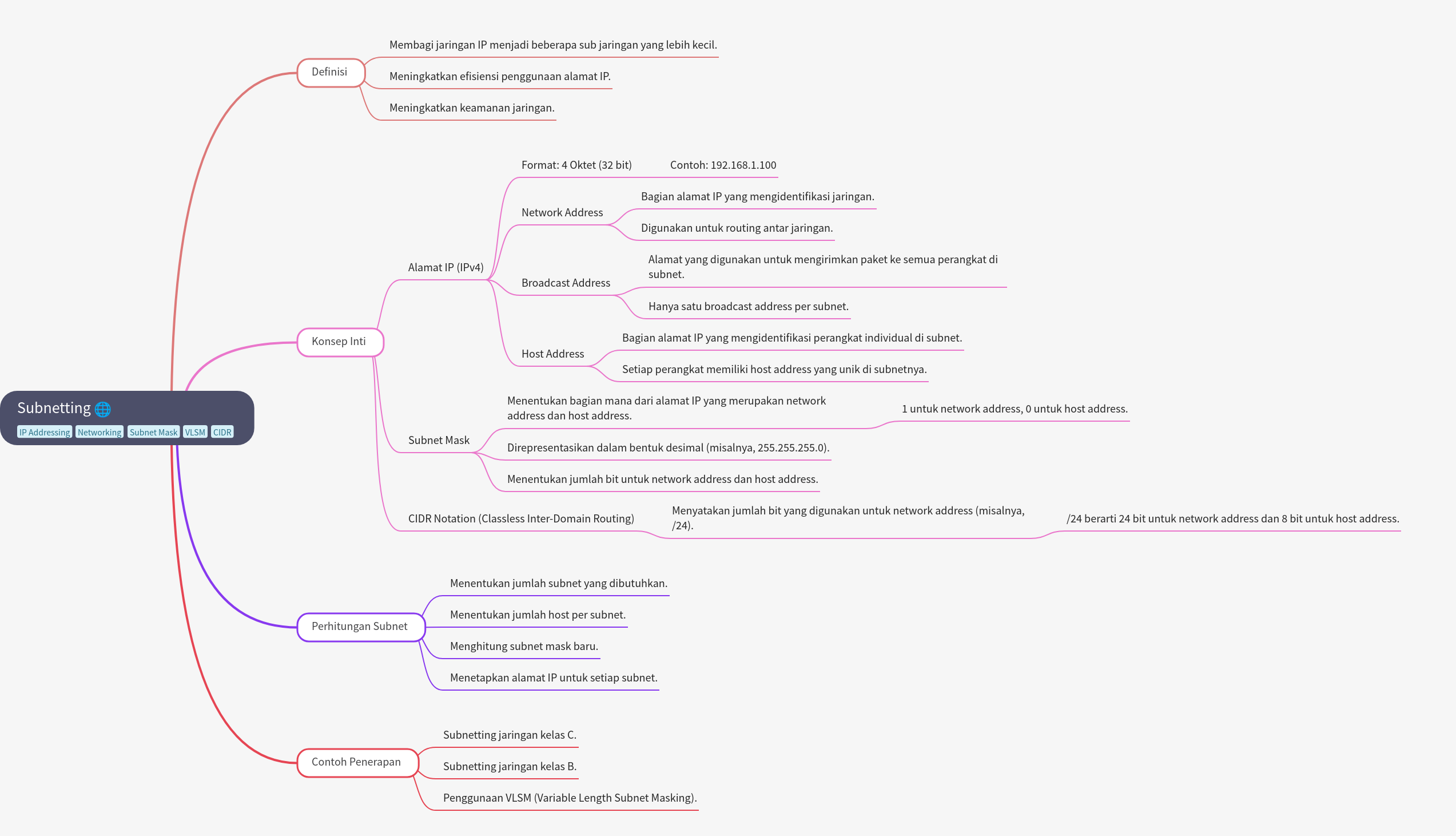

Featured Mind Map

Comprehensive Guide to Subnetting

Subnetting is the strategic process of dividing a large IP network into smaller, more manageable sub-networks. This fundamental technique enhances network efficiency by optimizing IP address utilization and significantly improves security through network segmentation. It also simplifies network management, reduces broadcast traffic, and allows for better organization of network resources, making networks more robust and scalable for diverse organizational needs and future expansion.

Key Takeaways

1

Subnetting divides IP networks into smaller, more efficient segments.

2

It significantly boosts IP address utilization and network security.

3

Core concepts include IP addresses, subnet masks, and CIDR notation.

4

Subnet calculations involve determining subnets, hosts, and new masks.

5

Practical applications span Class B/C networks and VLSM implementation.

Comprehensive Guide to Subnetting

What is Subnetting and Why is it Crucial for Modern Network Management?

Subnetting is the fundamental process of logically dividing a single, large IP network into multiple smaller, more manageable sub-networks. This strategic segmentation is crucial for optimizing network performance and resource allocation across any organization. By implementing subnetting, network administrators can significantly enhance the efficiency of IP address utilization, preventing wastage and ensuring that each network segment operates with its own dedicated address space. Furthermore, subnetting plays a vital role in bolstering network security by creating isolated broadcast domains, which effectively limits the scope of potential network issues and mitigates the impact of security breaches, making the overall network more resilient and easier to troubleshoot.

  • Divides a large IP network into several smaller, more manageable and highly efficient sub-networks.
  • Significantly increases the efficiency of IP address usage, preventing wastage across the entire network.
  • Enhances overall network security by isolating segments and reducing unnecessary broadcast traffic effectively.

What are the Essential Core Concepts Underlying Subnetting Principles?

Understanding subnetting fundamentally relies on grasping several core networking concepts, primarily centered around IP addressing and its components. An IP address, specifically IPv4, is a 32-bit numerical label assigned to devices, formatted into four octets, like 192.168.1.100. Key components include the network address, which identifies the network for routing, and the host address, unique to each individual device within a subnet. The broadcast address is a special address used to send packets to all devices in a subnet. The subnet mask, represented in decimal or CIDR notation, is pivotal as it precisely distinguishes between the network and host portions of an IP address, defining subnet boundaries and capacity.

  • IP Address (IPv4): A 32-bit address (e.g., 192.168.1.100) identifying network, broadcast, and host.
  • Subnet Mask: Defines network and host portions of an IP address, like 255.255.255.0.
  • CIDR Notation: States network bits (e.g., /24) for flexible IP addressing, optimizing allocation.

How Do You Perform Essential Subnet Calculations for Effective Network Segmentation?

Performing subnet calculations involves a systematic and precise approach to effectively segment an IP network. This crucial process begins by accurately determining the total number of subnets required to accommodate the network's current organizational structure and anticipated future growth. Subsequently, you must meticulously calculate the maximum number of usable hosts that each individual subnet can support, ensuring sufficient capacity for all connected devices and services. A critical step involves computing the new subnet mask, which precisely dictates the size and boundaries of the newly created subnets. Finally, you systematically assign unique IP address ranges, including network and broadcast addresses, for each subnet, ensuring no overlap and facilitating proper network segmentation and routing for optimal network performance.

  • Determine the exact number of subnets required for your specific network design and growth.
  • Calculate the maximum number of usable hosts available within each subnet for device capacity.
  • Compute the appropriate new subnet mask, precisely defining the boundaries and size of each subnet.
  • Assign unique IP address ranges, including network and broadcast addresses, to each new subnet.

Where is Subnetting Practically Applied in Diverse Real-World Network Environments?

Subnetting finds extensive and practical application in various real-world networking scenarios, enabling efficient and scalable network designs across different organizational sizes. Common examples include subnetting Class C networks, which typically involves dividing a single Class C address space into multiple smaller segments, perfectly suitable for small to medium-sized organizations requiring efficient IP management. Similarly, subnetting Class B networks allows for much larger network divisions, accommodating significantly more hosts and subnets, a common practice in larger enterprises or expansive data centers. Advanced applications also involve Variable Length Subnet Masking (VLSM), which permits the use of different subnet mask lengths within the same network, thereby optimizing IP address allocation and minimizing wasted addresses, leading to more flexible network designs.

  • Subnetting Class C networks creates smaller, manageable segments, ideal for small to medium organizations.
  • Subnetting Class B networks allows larger network divisions, accommodating more hosts in enterprise environments.
  • Utilizing VLSM (Variable Length Subnet Masking) optimizes IP address allocation and minimizes address waste.

Frequently Asked Questions

Q

What is the primary purpose of subnetting in network design?

A

Subnetting primarily divides a large IP network into smaller, more manageable segments. This strategic division significantly improves IP address efficiency, enhances network security by isolating traffic, and simplifies network administration by reducing broadcast traffic and containing network issues.

Q

How does a subnet mask function to define network segments?

A

A subnet mask functions by distinguishing the network portion from the host portion of an IP address. It uses '1's for the network part and '0's for the host part, effectively defining the boundaries of a subnet and determining the maximum number of hosts it can contain.

Q

What is the significance of CIDR notation in modern networking?

A

CIDR (Classless Inter-Domain Routing) notation simplifies subnet mask representation by indicating the number of bits used for the network address with a slash, like /24. This provides a flexible and efficient way to define network sizes without adhering to traditional class boundaries, optimizing IP address allocation.
